# iqr

Interquartile range

## Syntax

``r = iqr(x)``
``r = iqr(x,'all')``
``r = iqr(x,dim)``
``r = iqr(x,vecdim)``
``r = iqr(pd)``

## Description

example

````r = iqr(x)` returns the interquartile range of the values in `x`. If `x` is a vector, then `r` is the difference between the 75th and the 25th percentiles of the data contained in `x`.If `x` is a matrix, then `r` is a row vector containing the difference between the 75th and the 25th percentiles of the sample data in each column of `x`.If `x` is a multidimensional array, then `iqr` operates along the first nonsingleton dimension of `x`. The size of this dimension becomes 1 while the sizes of all other dimensions remain the same. ```

example

````r = iqr(x,'all')` returns the interquartile range of all the values in `x`.```

example

````r = iqr(x,dim)` returns the interquartile range along the dimension of `x` specified by `dim`.```

example

````r = iqr(x,vecdim)` returns the interquartile range over the dimensions specified by `vecdim`. For example, if `x` is a matrix, then `iqr(x,[1 2])` is the interquartile range of all the elements of `x` because every element of a matrix is contained in the array slice defined by dimensions 1 and 2.```

example

````r = iqr(pd)` returns the interquartile range of the probability distribution `pd`.```

## Examples

collapse all

Generate a 4-by-4 matrix of random data from a normal distribution with parameter values $\mu$ equal to 10 and $\sigma$ equal to 1.

```rng default % For reproducibility x = normrnd(10,1,4)```
```x = 4×4 10.5377 10.3188 13.5784 10.7254 11.8339 8.6923 12.7694 9.9369 7.7412 9.5664 8.6501 10.7147 10.8622 10.3426 13.0349 9.7950 ```

Compute the interquartile range for each column of data.

`r = iqr(x)`
```r = 1×4 2.2086 1.2013 2.5969 0.8541 ```

Compute the interquartile range for each row of data.

`r2 = iqr(x,2)`
```r2 = 4×1 1.7237 2.9870 1.9449 1.8797 ```

Compute the interquartile range of a multidimensional array over multiple dimensions by specifying the `'all'` and `vecdim` input arguments.

Create a 3-by-4-by-2 array `X`.

`X = reshape(1:24,[3 4 2])`
```X = X(:,:,1) = 1 4 7 10 2 5 8 11 3 6 9 12 X(:,:,2) = 13 16 19 22 14 17 20 23 15 18 21 24 ```

Compute the interquartile range of all the values in `X`.

`rall = iqr(X,'all')`
```rall = 12 ```

Compute the interquartile range of each page of `X`. Specify the first and second dimensions as the operating dimensions along which the interquartile range is calculated.

`rpage = iqr(X,[1 2])`
```rpage = rpage(:,:,1) = 6 rpage(:,:,2) = 6 ```

For example, `rpage(1,1,1)` is the interquartile range of all the elements in `X(:,:,1)`.

Compute the interquartile range of the elements in each `X(i,:,:)` slice by specifying the second and third dimensions as the operating dimensions.

`rrow = iqr(X,[2 3])`
```rrow = 3×1 12 12 12 ```

For example, `rrow(3)` is the interquartile range of all the elements in `X(3,:,:)`.

Create a standard normal distribution object with the mean, $\mu$, equal to 0 and the standard deviation, $\sigma$, equal to 1.

`pd = makedist('Normal','mu',0,'sigma',1);`

Compute the interquartile range of the standard normal distribution.

`r = iqr(pd)`
```r = 1.3490 ```

The returned value is the difference between the 75th and the 25th percentile values for the distribution. This is equivalent to computing the difference between the inverse cumulative distribution function (icdf) values at the probabilities y equal to 0.75 and 0.25.

`r2 = icdf(pd,0.75) - icdf(pd,0.25)`
```r2 = 1.3490 ```

Load the sample data. Create a vector containing the first column of students’ exam grade data.

```load examgrades; x = grades(:,1);```

Create a normal distribution object by fitting it to the data.

`pd = fitdist(x,'Normal')`
```pd = NormalDistribution Normal distribution mu = 75.0083 [73.4321, 76.5846] sigma = 8.7202 [7.7391, 9.98843] ```

Compute the interquartile range of the fitted distribution.

`r = iqr(pd)`
```r = 11.7634 ```

The returned result indicates that the difference between the 75th and 25th percentile of the students’ grades is 11.7634.

Use `icdf` to determine the 75th and 25th percentiles of the students’ grades.

`y = icdf(pd,[0.25,0.75])`
```y = 1×2 69.1266 80.8900 ```

Calculate the difference between the 75th and 25th percentiles. This yields the same result as `iqr`.

`y(2)-y(1)`
```ans = 11.7634 ```

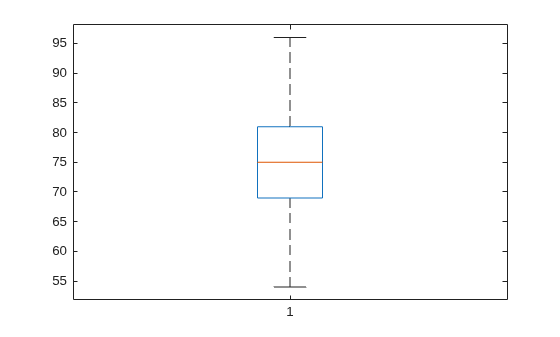

Use `boxplot` to visualize the interquartile range.

`boxplot(x)`

The top line of the box shows the 75th percentile, and the bottom line shows the 25th percentile. The center line shows the median, which is the 50th percentile.

## Input Arguments

collapse all

Input array, specified as a vector, matrix, or multidimensional array.

Data Types: `single` | `double`

Dimension along which the interquartile range is calculated, specified as a positive integer. For example, for a matrix `x`, when `dim` is equal to 1, `iqr` returns the interquartile range for the columns of `x`. When `dim` is equal to 2, `iqr` returns the interquartile range for the rows of x. For n-dimensional arrays, `iqr` operates along the first nonsingleton dimension of `x`.

Data Types: `single` | `double`

Vector of dimensions, specified as a positive integer vector. Each element of `vecdim` represents a dimension of the input array `x`. The output `r` has length 1 in the specified operating dimensions. The other dimension lengths are the same for `x` and `r`.

For example, if `x` is a 2-by-3-by-3 array, then `iqr(x,[1 2])` returns a 1-by-1-by-3 array. Each element of the output array is the interquartile range of the elements on the corresponding page of `x`.

Data Types: `single` | `double`

Probability distribution, specified as a probability distribution object created using one of the following.

Function or AppDescription
`makedist`Create a probability distribution object using specified parameter values.
`fitdist`Fit a probability distribution object to sample data.
Distribution FitterFit a probability distribution to sample data using the interactive Distribution Fitter app and export the fitted object to the workspace.

## Output Arguments

collapse all

Interquartile range values, returned as a scalar, vector, matrix, or multidimensional array.

• If you input an array `x`, then the dimensions of `r` depend on whether the `'all'`, `dim`, or `vecdim` input arguments are specified. Each interquartile range value in `r` is the difference between the 75th and the 25th percentiles of the specified data contained in `x`.

• If you input a probability distribution `pd`, then the scalar value of `r` is the difference between the values of the 75th and 25th percentiles of the probability distribution.
