## Detect Autocorrelation

Visually detect autocorrelation in a time series by plotting stem plots of the sample
autocorrelation and partial autocorrelation functions (ACF and PACF, respectively), using
`autocorr`

and `parcorr`

. Conduct a statistical test that detects
autocorrelation effects in a time series by conducting a Ljung-Box Q-test using `lbqtest`

.

### Compute Sample ACF and PACF

Visually and qualitatively assess autocorrelation in a time series is 57 consecutive days of overshorts from a gasoline tank in Colorado by computing and plotting the sample ACF and PACF.

**Load Data**

Load the time series of overshorts.

load Data_Overshort y = Data; n = length(y); figure plot(y) xlim([0 n]) title("Overshorts for 57 Consecutive Days")

The series appears to be stationary.

**Plot Sample ACF and PACF**

Plot the sample ACF and PACF.

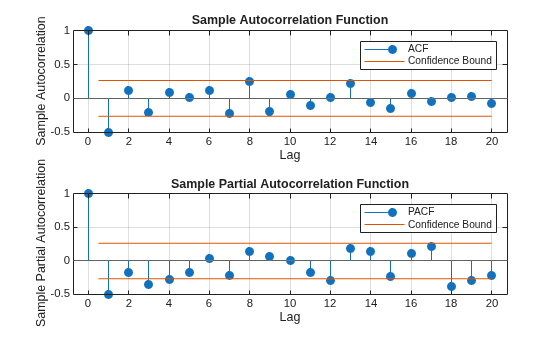

figure tiledlayout(2,1) nexttile autocorr(y) nexttile parcorr(y)

The sample ACF and PACF exhibit significant autocorrelation. The sample ACF has significant autocorrelation at lag 1. The sample PACF has significant autocorrelation at lags 1, 3, and 4.

The distinct cutoff of the ACF combined with the more gradual decay of the PACF suggests an MA(1) model might be appropriate for this data.

**Store Sample ACF and PACF Values**

Set variables to the sample ACF and PACF values up to lag 15.

acf = autocorr(y,NumLags=15); pacf = parcorr(y,NumLags=15); [length(acf) length(pacf)]

`ans = `*1×2*
16 16

The outputs `acf`

and `pacf`

are vectors storing the sample autocorrelation and partial autocorrelation at lags 0, 1,...,15 (a total of 16 lags).

### Conduct the Ljung-Box Q-Test

Assess autocorrelation in a time series is 57 consecutive days of overshorts from a gasoline tank in Colorado by conducting the Ljung-Box Q-test for autocorrelation.

**Load Data**

Load the time series of overshorts.

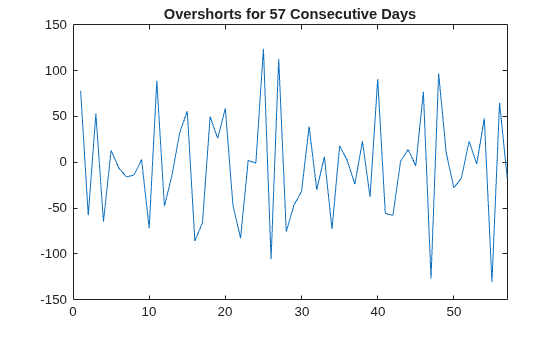

load Data_Overshort y = Data; n = length(y); figure plot(y) xlim([0 n]) title("Overshorts for 57 Consecutive Days")

The data appears to fluctuate around a constant mean, so no data transformations are needed before conducting the Ljung-Box Q-test.

**Conduct the Ljung-Box Q-test.**

Conduct the Ljung-Box Q-test for autocorrelation at lags 5, 10, and 15.

[h,p,Qstat,crit] = lbqtest(y,Lags=[5 10 15])

`h = `*1x3 logical array*
1 1 1

`p = `*1×3*
0.0016 0.0007 0.0013

`Qstat = `*1×3*
19.3604 30.5986 36.9639

`crit = `*1×3*
11.0705 18.3070 24.9958

All outputs are vectors with three elements, corresponding to tests at each of the three lags. The first element of each output corresponds to the test at lag 5, the second element corresponds to the test at lag 10, and the third element corresponds to the test at lag 15.

The test decisions are stored in the vector `h`

. The value `h = 1`

means reject the null hypothesis. Vector `p`

contains the p-values for the three tests. At the $$\alpha =0.05$$ significance level, the null hypothesis of no autocorrelation is rejected at all three lags. The conclusion is that there is significant autocorrelation in the series.

The test statistics and $${\chi}^{2}$$ critical values are given in outputs `Qstat`

and `crit`

, respectively.

### What Is the Ljung-Box Q-Test?

The sample autocorrelation function (ACF) and partial autocorrelation function (PACF)
are useful qualitative tools to assess the presence of autocorrelation at individual lags.
The Ljung-Box Q-test is a more quantitative way to test for autocorrelation at multiple lags
*jointly*
[3]. The null hypothesis for this test is that the first *m*
autocorrelations are jointly zero,

$${H}_{0}:{\rho}_{1}={\rho}_{2}=\dots ={\rho}_{m}=0.$$

The choice of *m* affects test performance. If *N* is
the length of your observed time series, choosing$$m\approx \mathrm{ln}(N)$$ is recommended for power [4]. You can test at multiple values of *m*. If seasonal autocorrelation is
possible, you might consider testing at larger values of *m*, such as 10 or
15.

The Ljung-Box test statistic is given by

$$Q(m)=N(N+2){\displaystyle {\sum}_{h=1}^{m}\frac{{\widehat{\rho}}_{h}^{2}}{N-h}.}$$

This is a modification of the Box-Pierce Portmanteau “Q”
statistic [1]. Under the null hypothesis, Q(*m*) follows a $${\chi}_{m}^{2}$$ distribution.

You can use the Ljung-Box Q-test to assess autocorrelation in any series with a constant
mean. This includes residual series, which can be tested for autocorrelation during model
diagnostic checks. If the residuals result from fitting a model with *g*
parameters, you should compare the test statistic to a $${\chi}^{2}$$ distribution with *m* – *g* degrees of
freedom. Optional input arguments to `lbqtest`

let you modify the degrees
of freedom of the null distribution.

You can also test for conditional heteroscedasticity by conducting a Ljung-Box Q-test on
a squared residual series. An alternative test for conditional heteroscedasticity is Engle’s
ARCH test (`archtest`

).
