Logistic

Create Logistic model object for lifetime probability of default

Description

Create and analyze a Logistic model object to calculate the lifetime probability (PD) of default using this workflow:

  1. Use fitLifetimePDModel to create a Logistic model object.

  2. Use predict to predict the conditional PD and predictLifetime to predict the lifetime PD.

  3. Use modelDiscrimination to return AUROC and ROC data. You can plot the results using modelDiscriminationPlot.

  4. Use modelAccuracy to return the RMSE of the observed and predicted PD data. You can plot the results using modelAccuracyPlot.

Creation

Description

example

LogisticPDModel = fitLifetimePDModel(data,ModelType) creates a Logistic PD model object.

If you do not specify variable information for IDVar, AgeVar, LoanVars, MacroVars, and ResponseVar, then:

  • IDVar is set to the first column in the data input.

  • LoanVars is set to include all columns from the second to the second-to-last columns of the data input.

  • ResponseVar is set to the last column in the data input.

example

LogisticPDModel = fitLifetimePDModel(___,Name,Value) specifies options using one or more name-value pair arguments in addition to the input arguments in the previous syntax. The optional name-value pair arguments set model object properties. For example, LogisticPDModel = fitLifetimePDModel(data(TrainDataInd,:),"Logistic",'ModelID',"Logistic_A",'Description',"Logisitic_model",'AgeVar',"YOB",'IDVar',"ID",'LoanVars',"ScoreGroup','MacroVars',{'GDP','Market',}'ResponseVar',"Default") creates a Logistic model object.

Input Arguments

expand all

Data, specified as a table where the first column is IDVar, the last column is ResponseVar, and all other columns are LoanVars.

Data Types: table

Model type, specified as a string with the value of "Logistic" or a character vector with the value of 'Logistic'.

Data Types: char | string

Logistic Name-Value Pair Arguments

Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

Example: LogisticPDModel = fitLifetimePDModel(data(TrainDataInd,:),"Logistic",'ModelID',"Logistic_A",'Description',"Logisitic_model",'AgeVar',"YOB",'IDVar',"ID",'LoanVars',"ScoreGroup','MacroVars',{'GDP','Market',}'ResponseVar',"Default")

User-defined model ID, specified as the comma-separated pair consisting of 'ModelID' and a string or character vector. The software uses the ModelID to format outputs and is expected to be short.

Data Types: string | char

User-defined description for model, specified as the comma-separated pair consisting of 'Description' and a string or character vector.

Data Types: string | char

ID variable indicating which column in data contains the loan or borrower ID, specified as the comma-separated pair consisting of 'IDVar' and a string or character vector.

Data Types: string | char

Age variable indicating which column in data contains the loan age information, specified as the comma-separated pair consisting of 'AgeVar' and a string or character vector.

Data Types: string | char

Loan variables indicating which column in data contains the loan-specific information, such as origination score or loan-to-value ratio, specified as the comma-separated pair consisting of 'LoanVars' and a string array or cell array of character vectors.

Data Types: string | cell

Macro variables indicating which column in data contains the macroeconomic information, such as gross domestic product (GDP) growth or unemployment rate, specified as the comma-separated pair consisting of 'MacroVars' and a string array or cell array of character vectors.

Data Types: string | cell

Variable indicating which column in data contains the response variable, specified as the comma-separated pair consisting of 'ResponseVar' and a string or character vector.

Note

The response variable in the data must be a binary variable with 0 or 1 values, with 1 indicating default.

Data Types: logical

Properties

expand all

User-defined model ID, returned as a string.

Data Types: string

User-defined description, returned as a string.

Data Types: string

Model, returned as a vector.

Data Types: string

ID variable indicating which column in data contains loan or borrower ID, returned as a string.

Data Types: string

Age variable indicating which column in data contains loan age information, returned as a string.

Data Types: string

Loan variables indicating which column in data contains loan-specific information, returned as a string array.

Data Types: string

Macro variables indicating which column in data contains macroeconomic information, returned as a string array.

Data Types: string

Variable indicating which column in data contains the response variable, returned as a string or character vector.

Data Types: string

Object Functions

predictCompute conditional PD
predictLifetimeCompute cumulative lifetime PD, marginal PD, and survival probability
modelDiscriminationCompute AUROC and ROC data
modelAccuracyCompute RMSE of predicted and observed PDs on grouped data
modelDiscriminationPlotPlot ROC curve
modelAccuracyPlotPlot observed default rates compared to predicted PDs on grouped data

Examples

collapse all

This example shows how to use fitLifetimePDModel to create a Logistic model using credit and macroeconomic data.

Load Data

Load the credit portfolio data.

load RetailCreditPanelData.mat
disp(head(data))
    ID    ScoreGroup    YOB    Default    Year
    __    __________    ___    _______    ____

    1      Low Risk      1        0       1997
    1      Low Risk      2        0       1998
    1      Low Risk      3        0       1999
    1      Low Risk      4        0       2000
    1      Low Risk      5        0       2001
    1      Low Risk      6        0       2002
    1      Low Risk      7        0       2003
    1      Low Risk      8        0       2004
disp(head(dataMacro))
    Year     GDP     Market
    ____    _____    ______

    1997     2.72      7.61
    1998     3.57     26.24
    1999     2.86      18.1
    2000     2.43      3.19
    2001     1.26    -10.51
    2002    -0.59    -22.95
    2003     0.63      2.78
    2004     1.85      9.48

Join the two data components into a single data set.

data = join(data,dataMacro);
disp(head(data))
    ID    ScoreGroup    YOB    Default    Year     GDP     Market
    __    __________    ___    _______    ____    _____    ______

    1      Low Risk      1        0       1997     2.72      7.61
    1      Low Risk      2        0       1998     3.57     26.24
    1      Low Risk      3        0       1999     2.86      18.1
    1      Low Risk      4        0       2000     2.43      3.19
    1      Low Risk      5        0       2001     1.26    -10.51
    1      Low Risk      6        0       2002    -0.59    -22.95
    1      Low Risk      7        0       2003     0.63      2.78
    1      Low Risk      8        0       2004     1.85      9.48

Partition Data

Separate the data into training and test partitions.

nIDs = max(data.ID);
uniqueIDs = unique(data.ID);

rng('default'); % for reproducibility
c = cvpartition(nIDs,'HoldOut',0.4);

TrainIDInd = training(c);
TestIDInd = test(c);

TrainDataInd = ismember(data.ID,uniqueIDs(TrainIDInd));
TestDataInd = ismember(data.ID,uniqueIDs(TestIDInd));

Create Logistic Lifetime PD Model

Use fitLifetimePDModel to create a Logistic model using the training data.

pdModel = fitLifetimePDModel(data(TrainDataInd,:),"Logistic",...
    'AgeVar','YOB',...
    'IDVar','ID',...
    'LoanVars','ScoreGroup',...
    'MacroVars',{'GDP','Market'},...
    'ResponseVar','Default');
disp(pdModel)
  Logistic with properties:

        ModelID: "Logistic"
    Description: ""
          Model: [1x1 classreg.regr.CompactGeneralizedLinearModel]
          IDVar: "ID"
         AgeVar: "YOB"
       LoanVars: "ScoreGroup"
      MacroVars: ["GDP"    "Market"]
    ResponseVar: "Default"

Display the underlying model.

disp(pdModel.Model)
Compact generalized linear regression model:
    logit(Default) ~ 1 + ScoreGroup + YOB + GDP + Market
    Distribution = Binomial

Estimated Coefficients:
                               Estimate        SE         tStat       pValue
                              __________    _________    _______    ___________

    (Intercept)                  -2.7422      0.10136    -27.054     3.408e-161
    ScoreGroup_Medium Risk      -0.68968     0.037286    -18.497     2.1894e-76
    ScoreGroup_Low Risk          -1.2587     0.045451    -27.693    8.4736e-169
    YOB                         -0.30894     0.013587    -22.738    1.8738e-114
    GDP                         -0.11111     0.039673    -2.8006      0.0051008
    Market                    -0.0083659    0.0028358    -2.9502      0.0031761


388097 observations, 388091 error degrees of freedom
Dispersion: 1
Chi^2-statistic vs. constant model: 1.85e+03, p-value = 0

Predict Conditional and Lifetime PD

Use the predict function to predict conditional PD values. The prediction is a row-by-row prediction.

dataCustomer1 = data(1:8,:);
CondPD = predict(pdModel,dataCustomer1)
CondPD = 8×1

    0.0092
    0.0053
    0.0045
    0.0039
    0.0037
    0.0037
    0.0019
    0.0012

Use predictLifetime to predict the lifetime cumulative PD values (computing marginal and survival PD values is also supported). The predictLifetime function uses the ID variable (see the 'IDVar' property for the Logistic object) to transform conditional PDs to cumulative PDs for each ID.

LifetimePD = predictLifetime(pdModel,dataCustomer1)
LifetimePD = 8×1

    0.0092
    0.0145
    0.0189
    0.0228
    0.0264
    0.0300
    0.0319
    0.0330

Validate Model

Use modelDiscrimination to measure the ranking of customers by PD.

DiscMeasure = modelDiscrimination(pdModel,data(TestDataInd,:),'DataID','test data');
disp(DiscMeasure)
                            AUROC
                           _______

    Logistic, test data    0.70009

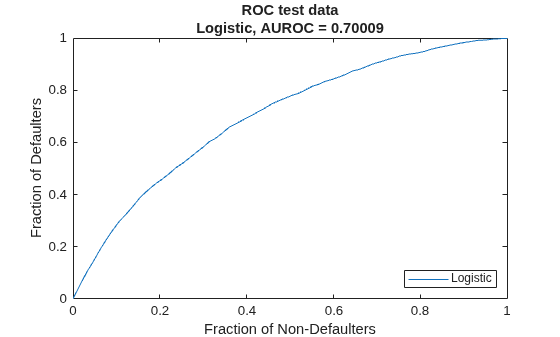

Use modelDiscriminationPlot to visualize the ROC curve.

modelDiscriminationPlot(pdModel,data(TestDataInd,:),'DataID','test data');

Figure contains an axes. The axes with title ROC test data Logistic, AUROC = 0.70009 contains an object of type line. This object represents Logistic.

Use modelAccuracy to measure the accuracy of the predicted PD values. The modelAccuracy function requires a grouping variable and compares the accuracy of the observed default rate in the group with the average predicted PD for the group. For example, you can group by calendar year using the 'Year' variable.

AccMeasure = modelAccuracy(pdModel,data(TestDataInd,:),'Year','DataID','test data');
disp(AccMeasure)
                                              RMSE
                                            ________

    Logistic, grouped by Year, test data    0.000453

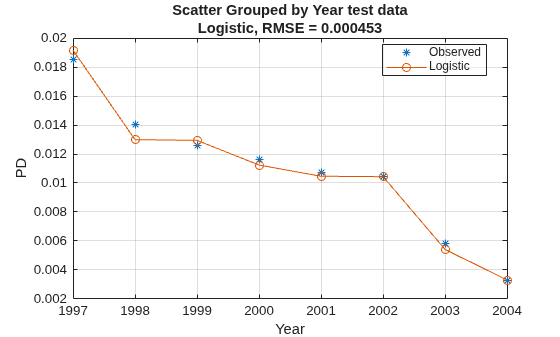

Use modelAccuracyPlot to visualize the observed default rates compared to the predicted probabilities of default (PD).

modelAccuracyPlot(pdModel,data(TestDataInd,:),'Year','DataID','test data');

Figure contains an axes. The axes with title Scatter Grouped by Year test data Logistic, RMSE = 0.000453 contains 2 objects of type line. These objects represent Observed, Logistic.

References

[1] Baesens, Bart, Daniel Roesch, and Harald Scheule. Credit Risk Analytics: Measurement Techniques, Applications, and Examples in SAS. Wiley, 2016.

[2] Bellini, Tiziano. IFRS 9 and CECL Credit Risk Modelling and Validation: A Practical Guide with Examples Worked in R and SAS. San Diego, CA: Elsevier, 2019.

[3] Breeden, Joseph. Living with CECL: The Modeling Dictionary. Santa Fe, NM: Prescient Models LLC, 2018.

Introduced in R2020b
