ode

Ordinary differential equations

Since R2023b

Description

An ode object defines a system of ordinary differential equations or differential algebraic equations to solve.

You can solve initial value problems of the form $$y\text{'}=f\left(t,y\right)$$, $$f\left(t,y,y\text{'}\right)=0$$, or problems that involve a mass matrix, $$M\left(t,y\right)y\text{'}=f\left(t,y\right)$$.

Define aspects of the problem using properties of the ode object, such as ODEFcn, InitialTime, and InitialValue. You can select a specific solver to use, or let MATLAB^® choose an appropriate solver based on properties of the equations. After you create an ode object, you can solve the equations using the solve or solutionFcn object functions.

Creation

Syntax

F = ode

F = ode(PropertyName=Value)

Description

F = ode creates an ode object with default properties.

F = ode(PropertyName=Value) specifies one or more property values using name-value arguments. For example, you can specify the equations to be solved, the initial time for integration, and the value of the solution at the initial time using the ODEFcn, InitialTime, and InitialValue properties.

Properties

Problem Definition

ODEFcn — Equations to solve

function handle

Equations to solve, specified as a function handle that defines the system of differential equations to be integrated. The function handle can be an anonymous function or a handle to a named function file.

• The function dydt = ODEFcn(t,y), for a scalar t and a column vector y, must return a column vector dydt that corresponds to $$f\left(t,y\right)$$. ODEFcn must accept at least two input arguments, t and y, even if one of the arguments is not used in the function.

• The function f = ODEFcn(t,y,yp), when EquationType is "fullyimplicit" and for a scalar t and column vectors y and yp, must return a column vector f that corresponds to $$f\left(t,y,y\text{'}\right)$$. ODEFcn must accept at least three input arguments, t, y, and yp, even if one of the arguments is not used in the function. (since R2024b)

• The function dydt = ODEFcn(t,y,Z), when EquationType is "delay" and for a scalar t, column vector y, and matrix Z, must return a column vector dydt that corresponds to $$f\left(t,y(t),y(t-{\tau }_1),\mathrm{...},y(t-{\tau }_k)\right)$$ when the solver is dde23 or $$f\left(t,y(t),y(d(1)),\mathrm{...},y(d(k))\right)$$, for delays d(j), when the solver is ddesd. ODEFcn must accept at least three input arguments, t, y, and Z, even if one of the arguments is not used in the function. (since R2025a)

• The function yp = ODEFcn(t,y,ydel,ypdel), when EquationType is "delay" and for a scalar t, column vector y, and matrices ydel and ypdel, must return a column vector yp that corresponds to $$f(t,y(t),y(d{y}_1),\mathrm{...},y(d{y}_p),y\text{'}(dy{p}_1),\mathrm{...},y\text{'}(dy{p}_q))$$. ODEFcn must accept at least four arguments, t, y, ydel, ypdel, even if one of the arguments is not used in the function. (since R2025a)

To supply parameter values, define ODEFcn as a function that accepts three inputs, dydt = ODEFcn(t,y,p), four inputs, f = ODEFcn(t,y,yp,p) or dydt = ODEFun(t,y,Z,p), or five inputs, yp = ODEFcn(t,y,ydel,ypdel,p), and then use the Parameters property to store parameter values (such as in a struct or cell array).

For example, to solve a single equation $$y\text{'}=5y-3$$, you can use the anonymous function @(t,y) 5*y-3.

For a system of equations, the output of ODEFcn is a vector. Each element in the vector is the computed value of the right side of one equation. For example, consider this system of two equations.

$$\begin{array}{l}y{\text{'}}_1=y_1+2y_2\\ y{\text{'}}_2=3y_1+2y_2\end{array}$$

An anonymous function that defines these equations is @(t,y) [y(1)+2*y(2); 3*y(1)+2*y(2)].

Example: F.ODEFcn = @myFcn specifies a handle to a named function file myFcn.m containing the equations.

Example: F.ODEFcn = @(t,y) [y(2); -y(1)] specifies an anonymous function that defines a system of two equations.

Example: F.ODEFcn = @(t,y,yp) [yp(1)-y(2); yp(2)+1] specifies an anonymous function that defines a system of two equations.

Example: F.ODEFcn = @(t,y,p) 5*y*p(1)-3*p(2) specifies an anonymous function for a single equation that uses two parameters.

Data Types: function_handle

InitialTime — Initial time for integration

0 (default) | real scalar

Initial time for integration, specified as a real scalar. The value of InitialTime is the beginning of the integration interval where the initial conditions specified in InitialValue are applied by the solver before beginning integration steps.

Example: F.InitialTime = 10;

Data Types: single | double

InitialValue — Value of solution at InitialTime

scalar | vector

Value of solution at InitialTime, specified as a scalar or vector. InitialValue must be a vector with the same length as the output of ODEFcn so that an initial value is specified for each equation defined in ODEFcn. The value of InitialTime is the beginning of the integration interval where the initial conditions specified in InitialValue are applied by the solver before beginning integration steps.

Example: F.InitialValue = 1;

Example: F.InitialValue = [1 2 3];

Data Types: single | double
Complex Number Support: Yes

Parameters — Equation parameters

array

Equation parameters, specified as an array of any size or data type. The values you store in Parameters can be supplied to any of the functions used for the ODEFcn, Jacobian, MassMatrix, or EventDefinition properties by specifying an extra input argument in the function.

For instance, you can supply parameter values stored in the Parameters property to ODEFcn by specifying ODEFcn as a function handle that accepts three inputs, dydt = ODEFcn(t,y,p). For example, F.ODEFcn = @(t,y,p) 5*y*p(1)-3*p(2) specifies an anonymous function for a single equation that uses two parameters. If you then specify F.Parameters = [2 3], then ODEFcn uses the parameter values p(1) = 2 and p(2) = 3 whenever the solver calls the function.

Example: F.Parameters = [0.1 0.5] specifies two parameter values.

Data Types: single | double
Complex Number Support: Yes

MassMatrix — Mass matrix

odeMassMatrix object | matrix | function handle

Mass matrix, specified as an odeMassMatrix object, matrix, or handle to a function that evaluates the mass matrix.

ode objects can represent problems of the form $$M\left(t,y\right)y\text{'}=f\left(t,y\right)$$, where $$M\left(t,y\right)$$ is a mass matrix that can be full or sparse. The mass matrix encodes linear combinations of derivatives on the left side of the equation.

• When the mass matrix is nonsingular, the equation simplifies to $$y\text{'}=M^{-1}f\left(t,y\right)$$ and the ODE has a solution for any initial value. However, it is often more convenient and natural to express the model in terms of the mass matrix directly using $$M\left(t,y\right)y\text{'}=f\left(t,y\right)$$, and avoiding the computation of the matrix inverse reduces the storage and execution time needed to solve the problem.

• When the mass matrix is singular, then the problem is a system of differential algebraic equations (DAEs). A DAE has a solution only when the initial values are consistent; that is, you must specify the initial slope $$y{\text{'}}_0$$ using the InitialSlope property such that the initial conditions are all consistent, $$M\left(t_0,y_0\right)y{\text{'}}_0=f\left(t_0,y_0\right)$$. If the specified initial conditions are not consistent with the InitialTime, InitialValue, and MassMatrix properties, then the solver treats them as guesses and attempts to compute consistent values for the initial slopes that are close to the guesses before continuing to solve the problem. For more information, see Solve Differential Algebraic Equations (DAEs).

You can specify the value of the MassMatrix property as:

• An odeMassMatrix object, which represents the mass matrix and its associated properties. You can specify whether the mass matrix is singular or has state dependence.

• A constant matrix with calculated values for $$M\left(t,y\right)$$.

• A handle to a function that computes the matrix elements and that accepts two input arguments, M = Mass(t,y). To give the function access to parameter values stored in the Parameters property, specify a third input argument in the function definition, M = Mass(t,y,p).

If you specify a matrix or function handle, then MATLAB converts it to an odeMassMatrix object.

Example: F.MassMatrix = @Mass specifies the function Mass that evaluates the mass matrix.

Example: F.MassMatrix = [1 0; -2 1] specifies a constant mass matrix.

Example: F.MassMatrix = odeMassMatrix(MassMatrix=@Mass,StateDependence="strong",SparsityPattern=S) specifies a state-dependent mass matrix and the sparsity pattern when the mass matrix multiplies a vector.

Data Types: single | double | function_handle
Complex Number Support: Yes

Advanced Problem Definition

EquationType — Equation form

"standard" (default) | "fullyimplicit" | "delay"

Since R2024b

Equation form, specified as one of these options:

• "standard" for standard ordinary differential equations (ODEs)

• "fullyimplicit" for implicit ODEs, that is, a system of differential equations of the form $$f\left(t,y,y\text{'}\right)=0$$. If you specify the Jacobian when the EquationType property is "fullyimplicit", the Jacobian must be a function handle or cell array.

• "delay" for delay differential equations (DDEs), that is, a system of differential equations of the form $$y^{\prime }(t)=f\left(t,y(t),y(t-{\tau }_1),\mathrm{...},y(t-{\tau }_k)\right)$$, $$y^{\prime }(t)=f\left(t,y(t),y(d(1)),\mathrm{...},y(d(k))\right)$$, or $$y^{\prime }(t)=f(t,y(t),y(d{y}_1),\mathrm{...},y(d{y}_p),y^{\prime }(dy{p}_1),\mathrm{...},y^{\prime }(dy{p}_q))$$. (since R2025a)

Jacobian — Jacobian matrix

odeJacobian object | matrix | cell array | function handle

Jacobian matrix, specified as an odeJacobian object, matrix, cell array, or handle to a function that evaluates the Jacobian. The Jacobian is a matrix of partial derivatives of the functions that define the system of differential equations.

$$J=\frac{\partial f}{\partial y}=\left[\begin{array}{ccc}\frac{\partial f_1}{\partial y_1}& \frac{\partial f_1}{\partial y_2}& \cdots \\ \frac{\partial f_2}{\partial y_1}& \frac{\partial f_2}{\partial y_2}& \cdots \\ ⋮& ⋮& \end{array}\right]$$

For stiff ODE problems, providing information about the Jacobian matrix is critical for reliability and efficiency of the solver. If you do not provide the Jacobian, then the ODE solver approximates it numerically using finite differences.

For large systems of equations where it is not feasible to provide the entire analytic Jacobian, you can specify the sparsity pattern of the Jacobian matrix instead. The solver uses the sparsity pattern to calculate a sparse Jacobian.

You can specify the Jacobian property as:

• An odeJacobian object, which can represent either the Jacobian matrix or its sparsity pattern.

• A constant matrix with calculated values for $$\frac{\partial f}{\partial y}$$.

• When EquationType is "fullyimplicit", a two-element cell array with calculated values for the constant Jacobian with respect to y in the first element and yp in the second element. If you specify one of the elements as [], the ODE solver approximates the corresponding Jacobian numerically while taking the provided values in the other element into account. (since R2024b)

• A handle to a function that computes the matrix elements and that accepts two input arguments, dfdy = Fjac(t,y). To give the function access to parameter values in the Parameters property, specify a third input argument in the function definition, dfdy = Fjac(t,y,p).

• When EquationType is "fullyimplicit", a handle to a function that computes the matrix elements and that accepts three input arguments, [dfdy,dfdp] = Fjac(t,y,yp). To give the function access to parameter values in the Parameters property, specify a fourth input argument in the function definition, [dfdy,dfdp] = Fjac(t,y,yp,p). (since R2024b)

If you specify a matrix, function handle, or cell array, then MATLAB converts it to an odeJacobian object.

Example: F.Jacobian = @Fjac specifies the function Fjac that evaluates the Jacobian matrix.

Example: F.Jacobian = [0 1; -2 1] specifies a constant Jacobian matrix.

Example: F.Jacobian = odeJacobian(SparsityPattern=S) specifies the Jacobian sparsity pattern using sparse matrix S.

Data Types: single | double | function_handle
Complex Number Support: Yes

EventDefinition — Events to detect

odeEvent object

Events to detect, specified as an odeEvent object. Create an odeEvent object to define expressions that trigger an event when they cross zero. You can specify the direction of the zero crossing and what to do when an event triggers, including the use of a callback function.

NonNegativeVariables — Nonnegative solution components

scalar index | vector of indices

Nonnegative solution components, specified as a scalar index or vector of indices. Use the NonNegativeVariables property to specify which solutions the solver must keep nonnegative. If dydt = ODEFcn(t,y), then the indices correspond to elements in the vector y. For example, if you specify a value of 3, then the solver keeps the solution component y(3) nonnegative.

Note

NonNegativeVariables is not available for the ode23s solver. Additionally, for ode15s, ode23t, and ode23tb the property is not available for problems that have a mass matrix.

Example: F.NonNegativeVariables = [1 3] specifies that the first and third solution components must be kept nonnegative.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

InitialSlope — Initial value of dy/dt

vector

Initial value of dy/dt, specified as a vector. Use this property with the ode15s and ode23t solvers when solving DAEs. The specified vector is the initial slope $$y{\text{'}}_0$$ such that $$M\left(t_0,y_0\right)y{\text{'}}_0=f\left(t_0,y_0\right)$$. If the specified initial conditions are not consistent with the InitialTime, InitialValue, and MassMatrix properties, then the solver treats them as guesses and attempts to compute consistent values for the initial slopes that are close to the guesses before continuing to solve the problem. For more information, see Solve Differential Algebraic Equations (DAEs).

Data Types: single | double

Sensitivity — Sensitivity analysis information

odeSensitivity object

Sensitivity analysis information, specified as an odeSensitivity object. The ODE solver performs sensitivity analysis only when the Sensitivity property is nonempty. The analysis is with respect to the Parameters property, which must be nonempty and numeric. See odeSensitivity for more information.

Example: F.Sensitivity = odeSensitivity performs sensitivity analysis on all parameters.

Example: F.Sensitivity = odeSensitivity(ParameterIndices=1:2) performs sensitivity analysis on the first two parameters.

DelayDefinition — DDE delay information

odeDelay object

Since R2025a

DDE delay information, specified as an odeDelay object. To solve a DDE using the ODE solver, you must specify the DelayDefinition property. See odeDelay for more information.

Example: F.DelayDefinition = odeDelay(ValueDelay=[2; 1],History=[0.1; 0.5]) specifies a DDE that has solution delays [2; 1] and solution history [0.1; 0.5].

SeparateComplexParts — Separate complex ODE equation into real and imaginary parts while solving

on/off logical value

Since R2025a

Separate complex ODE equation into real and imaginary parts while solving, specified as "off" or "on", or as a numeric or logical 1 (true) or 0 (false). A value of "on" is equivalent to true, and "off" is equivalent to false. Thus, you can use the value of this property as a logical value. The value is stored as an on/off logical value of type OnOffSwitchState.

When SeparateComplexParts is specified as "on", each variable of the complex ODE equation is split into real and imaginary parts while solving and then combined at the end. Use this property when the ODE is complex and the selected solver fails or takes a long time to converge. Specifying SeparateComplexParts is especially helpful for solving implicit and stiff ODEs where the Jacobian is not specified. For more information on how a complex ODE equation is split into real and imaginary parts, see Complex ODEs.

Solver Control

Solver — Solver method

"auto" (default) | "stiff" | "nonstiff" | name of a solver

Solver method, specified as one of the values in this table. To change the solver based on specified parameters after creating an ode object, use the selectSolver function. For example, you can incorporate a stiffness detection heuristic when selecting a solver by using the selectSolver function with its DetectStiffness name-value argument.

Value	Description
"auto"	Automatically selects a solver based on available problem information and tolerances. The SelectedSolver property shows the currently chosen solver, and the solver choice can change when you update property values of the ode object.
"stiff"	Similar to "auto" but chooses only from the stiff solvers: "ode15s", "ode23s", "ode23t", "ode23tb", "cvodesstiff", "idas".
"nonstiff"	Similar to "auto" but chooses only from the nonstiff solvers: "ode23", "ode45", "ode78", "ode89", "ode113", "cvodesnonstiff".
"ode23"	Runge-Kutta (2,3) pair. See ode23.
"ode45"	Runge-Kutta (4,5) pair. See ode45.
"ode78"	Runge-Kutta 8(7) pair with a 7th-order continuous extension. See ode78.
"ode89"	Runge-Kutta 9(8) pair with an 8th-order continuous extension. See ode89.
"ode113"	Variable-step, variable-order (VSVO) solver of orders 1 to 13. See ode113.
"ode15s"	Variable-step, variable-order (VSVO) solver based on the numerical differentiation formulas (NDFs) of orders 1 to 5. See ode15s.
"ode23s"	Modified Rosenbrock formula of order 2. See ode23s.
"ode23t"	Trapezoidal rule using a “free” interpolant. See ode23t.
"ode23tb"	Implicit Runge-Kutta formula with a trapezoidal rule step as its first stage and a backward differentiation formula of order 2 as its second stage. See ode23tb.
"ode15i" (since R2024b)	Variable-step, variable order (VSVO) solver based on the backward differentiation formulas (BDFs) of orders 1 to 5. See ode15i.
"cvodesnonstiff"	Variable-step, variable-order (VSVO) solver using Adams-Moulton formulas, with the order varying between 1 and 12. Supports sensitivity analysis. See CVODE and CVODES.
"cvodesstiff"	Variable-step, variable-order (VSVO) solver using backward differentiation formulas (BDFs) in fixed-leading coefficient form, with order varying between 1 and 5. Supports sensitivity analysis. See CVODE and CVODES.
"idas"	Variable-order, variable-coefficient solver using backward differentiation formulas (BDFs) in fixed-leading coefficient form, with order varying between 1 and 5. Supports sensitivity analysis. See IDA and IDAS.
"dde23" (since R2025a)	Runge-Kutta (2,3) pair. See dde23.
"ddesd" (since R2025a)	Fourth-order Runge-Kutta method. See ddesd.
"ddensd" (since R2025a)	Neutral type delay solver. See ddensd.

SelectedSolver — Selected solver

Read-only: name of a solver

This property is read-only.

Selected solver, returned as the name of a solver. If the value of Solver is "auto", "stiff", or "nonstiff", then the ode object automatically chooses a solver and sets the value of SelectedSolver to the name of the chosen solver. If you manually select a solver, then SelectedSolver and Solver have the same value.

SolverOptions — Solver-specific options

matlab.ode.options.* object

Solver-specific options, specified as a matlab.ode.options.* object. The ode object automatically populates the SolverOptions property with an options object appropriate for the selected solver. You can check available options for an existing ode object with the command properties(F.SolverOptions). Specify options for the ODE problem by changing property values of the matlab.ode.options.* object. For example, F.SolverOptions.OutputFcn = @odeplot specifies an output function that the solver calls after each successful time step.

When the Solver property is "auto", "stiff", or "nonstiff", the SolverOptions property is read-only.

This table summarizes the available options for each solver.

Options Object	Properties
matlab.ode.options.ODE23 Properties matlab.ode.options.ODE45 Properties matlab.ode.options.ODE78 Properties matlab.ode.options.ODE89 Properties matlab.ode.options.ODE113 Properties	InitialStep MaxStep MinStep NormControl OutputFcn OutputSelection
matlab.ode.options.ODE15s Properties	InitialStep MaxStep MinStep NormControl OutputFcn OutputSelection Vectorization BDF MaxOrder
matlab.ode.options.ODE15i Properties (since R2024b)	InitialStep MaxStep MinStep NormControl OutputFcn OutputSelection Vectorization MaxOrder ComputeConsistentInitialConditions
matlab.ode.options.ODE23s Properties matlab.ode.options.ODE23t Properties matlab.ode.options.ODE23tb Properties	InitialStep MaxStep MinStep NormControl OutputFcn OutputSelection Vectorization
matlab.ode.options.CVODESNonstiff Properties matlab.ode.options.CVODESStiff Properties matlab.ode.options.IDAS Properties	InitialStep MaxStep MaxOrder
matlab.ode.options.DDE23 Properties (since R2025a)	InitialStep MaxStep MinStep NormControl OutputFcn OutputSelection Jumps
matlab.ode.options.DDESD Properties (since R2025a)	InitialStep MaxStep MinStep NormControl OutputFcn OutputSelection
matlab.ode.options.DDENSD Properties (since R2025a)	InitialStep MaxStep MinStep NormControl OutputFcn OutputSelection ComputeConsistentInitialConditions

AbsoluteTolerance — Absolute error tolerance

1e-6 (default) | positive scalar | vector

Absolute error tolerance, specified as a positive scalar or vector. This tolerance is a threshold below which the value of the solution becomes unimportant. If the solution |y| is less than AbsoluteTolerance, then the solver does not need to obtain any correct digits in |y|. For this reason, keep in mind the scale of the solution components when setting the value of AbsoluteTolerance.

If AbsoluteTolerance is a vector, then it must be the same length as the number of solution components. If AbsoluteTolerance is a scalar, then the value applies to all solution components.

At each step, the ODE solver estimates the local error e in the ith component of the solution. To be successful, the step must have an acceptable error, as determined by both the relative and absolute error tolerances:

|e(i)| <= max(RelativeTolerance*abs(y(i)),AbsoluteTolerance(i))

Data Types: single | double

RelativeTolerance — Relative error tolerance

1e-3 (default) | positive scalar

Relative error tolerance, specified as a positive scalar. This tolerance measures the error relative to the magnitude of each solution component. The relative error tolerance controls the number of correct digits in all solution components, except those smaller than AbsoluteTolerance.

At each step, the ODE solver estimates the local error e in the ith component of the solution. To be successful, the step must have an acceptable error, as determined by both the relative and absolute error tolerances:

|e(i)| <= max(RelativeTolerance*abs(y(i)),AbsoluteTolerance(i))

Data Types: single | double

Object Functions

solve	Solve ODE over interval or at specified points
solutionFcn	Construct function that interpolates ODE solution
selectSolver	Change ODE solver

Examples

Solve Single ODE

Create an empty ode object, and then specify values for the ODEFcn and InitialValue properties.

F = ode;
F.ODEFcn = @(t,y) 2*t;
F.InitialValue = 0;

Check which solver is selected for the problem, and then solve the equation over the time range [0 10].

F.SelectedSolver

ans =
  SolverID enumeration

    ode45

sol = solve(F,0,10)

sol =
  ODEResults with properties:

        Time: [0 0.2500 0.5000 0.7500 1 1.2500 1.5000 1.7500 2 2.2500 2.5000 2.7500 3 3.2500 3.5000 3.7500 4 4.2500 4.5000 4.7500 5 5.2500 5.5000 5.7500 6 6.2500 6.5000 6.7500 7 7.2500 7.5000 7.7500 8 8.2500 8.5000 8.7500 9 9.2500 9.5000 9.7500 10]
    Solution: [0 0.0625 0.2500 0.5625 1.0000 1.5625 2.2500 3.0625 4 5.0625 6.2500 7.5625 9 10.5625 12.2500 14.0625 16 18.0625 20.2500 22.5625 25 27.5625 30.2500 33.0625 36 39.0625 42.2500 45.5625 49 52.5625 56.2500 60.0625 64 68.0625 … ] (1×41 double)

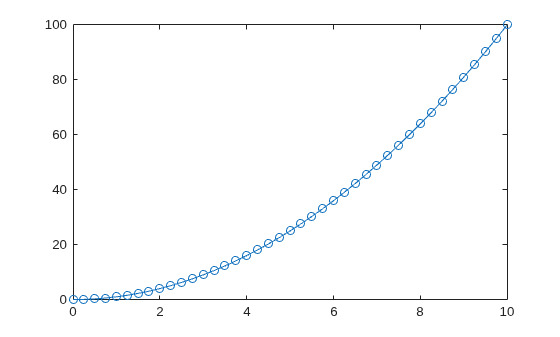

Plot the results.

plot(sol.Time,sol.Solution,"-o")

Solve Complex ODE

Create an ode object that represents the complex ODE ${\mathit{y}}^{\prime }=\mathrm{yt}+2\mathit{i}$ with initial value $1+\mathit{i}$. Specify the ODEFcn, InitialValue, and SeparateComplexParts properties.

F = ode;
F.ODEFcn = @(t,y) y.*t + 2*1i;
F.InitialValue = 1+1i;
F.SeparateComplexParts = "on";

Solve the ODE over the time range [0 2].

sol = solve(F,0,2)

sol =
  ODEResults with properties:

        Time: [0 0.0251 0.0502 0.0754 0.1005 0.1505 0.2005 0.2505 0.3005 0.3505 0.4005 0.4505 0.5005 0.5505 0.6005 0.6505 0.7005 0.7505 0.8005 0.8505 0.9005 0.9505 1.0005 1.0505 1.1005 1.1505 1.2005 1.2505 1.3005 1.3505 1.4005 1.4505 … ] (1×45 double)
    Solution: [1.0000 + 1.0000i 1.0003 + 1.0506i 1.0013 + 1.1018i 1.0028 + 1.1538i 1.0051 + 1.2067i 1.0114 + 1.3146i 1.0203 + 1.4267i 1.0319 + 1.5434i 1.0462 + 1.6655i 1.0633 + 1.7937i 1.0835 + 1.9287i 1.1068 + 2.0712i 1.1334 + 2.2223i … ] (1×45 double)

Specify Jacobian Matrix for Stiff ODE

The Van der Pol oscillator equation is a second-order differential equation. The equation includes a parameter $\mu$, and the equation becomes stiff when the value of $\mu$ is large.

$$\frac{d^{2}x}{d{t}^2}-\mu (1-x^2)\frac{dx}{dt}+x=0$$

Using the substitutions ${\mathit{y}}_1=\mathit{x}$ and ${\mathit{y}}_2=\frac{\mathrm{dx}}{\mathrm{dt}}$ produces a system of two first-order equations.

$$\begin{array}{l}\frac{d{y}_1}{dt}=y_2\\ \frac{d{y}_2}{dt}=\mu (1-y_1^2)y_2-y_1\end{array}$$

The Jacobian matrix for these equations is the matrix of partial derivatives of each equation with respect to both ${\mathit{y}}_1$ and ${\mathit{y}}_2$.

$$J=\left[\begin{array}{cc}\frac{\partial f_1}{\partial y_1}& \frac{\partial f_1}{\partial y_2}\\ \frac{\partial f_2}{\partial y_1}& \frac{\partial f_2}{\partial y_2}\end{array}\right]=\left[\begin{array}{cc}0& 1\\ -2\mu y_1{y}_2-1& \mu (1-y_1^2)\end{array}\right]$$

Solve the Van der Pol oscillator using $\mu =1000$ and initial values of [2; 0] by creating an ode object to represent the problem.

• Store the value of $\mu$ in the Parameters property.

• Specify the initial values in the InitialValue property.

• Specify the system of equations in the ODEFcn property, specifying three input arguments so that the value for $\mu$ is passed to the function.

• Specify a function that calculates the Jacobian matrix in the Jacobian property, specifying three input arguments so that the value for $\mu$ is passed to the function.

F = ode;
F.Parameters = 1000;
F.InitialValue = [2; 0];
F.ODEFcn = @(t,y,p) [y(2); p(1)*(1-y(1)^2)*y(2)-y(1)];
F.Jacobian = @(t,y,p) [0 1; -2*p(1)*y(1)*y(2)-1  p(1)*(1-y(1)^2)];

Display the ode object. The SelectedSolver property shows that the ode15s solver was automatically chosen for this problem.

F

F =
  ode with properties:

   Problem definition
               ODEFcn: @(t,y,p)[y(2);p(1)*(1-y(1)^2)*y(2)-y(1)]
           Parameters: 1000
          InitialTime: 0
         InitialValue: [2×1 double]
             Jacobian: [1×1 odeJacobian]
         EquationType: standard

   Solver properties
    AbsoluteTolerance: 1.0000e-06
    RelativeTolerance: 1.0000e-03
               Solver: auto
       SelectedSolver: ode15s

  Show all properties

Solve the system of equations over the time interval [0 3000] by using the solve method. Plot the first solution component.

S = solve(F,0,3000);
plot(S.Time,S.Solution(1,:),"-o")

Detect Stiffness When Selecting ODE Solver

Create an ode object for the van der Pol equations with mu = 1000 using the built-in function file vdp1000.m. Specify the initial values of y' and y'' as 2 and 0, respectively.

F = ode(ODEFcn=@vdp1000,InitialValue=[2;0])

F =
  ode with properties:

   Problem definition
               ODEFcn: @vdp1000
          InitialTime: 0
         InitialValue: [2×1 double]
         EquationType: standard

   Solver properties
    AbsoluteTolerance: 1.0000e-06
    RelativeTolerance: 1.0000e-03
               Solver: auto
       SelectedSolver: ode45

  Show all properties

The automatically selected solver is ode45. Solve the ODE system over the time interval [0 3000]. Measure the time the ode45 solver takes by using tic and toc.

tic
sol45 = solve(F,0,3000);
toc

Elapsed time is 17.243319 seconds.

Call the selectSolver function with the DetectStiffness name-value argument to choose a solver using a stiffness detection heuristic. Also specify the IntervalLength name-value argument as 3000.

F.Solver = selectSolver(F,DetectStiffness="on",IntervalLength=3000)

F =
  ode with properties:

   Problem definition
               ODEFcn: @vdp1000
          InitialTime: 0
         InitialValue: [2×1 double]
             Jacobian: []
         EquationType: standard

   Solver properties
    AbsoluteTolerance: 1.0000e-06
    RelativeTolerance: 1.0000e-03
               Solver: ode15s

  Show all properties

The selected solver is now ode15s. Solving the ODE system over the time interval [0 3000] using the ode15s solver is faster and more efficient than using the ode45 solver.

tic
sol15s = solve(F,0,3000);
toc

Elapsed time is 0.244035 seconds.

Solve System of DAEs with Mass Matrix

Consider this system of first-order equations.

$$\begin{array}{l}{y}_1^{\prime }=y_1{y}_3-y_2\\ y_2^{\prime }=y_1-1\\ 0=y_1+y_2+y_3\end{array}$$

The left side of the equations contain time derivatives, ${\mathit{y}}_{\mathit{n}}^{\prime }=\frac{{\mathrm{dy}}_{\mathit{n}}}{\mathrm{dt}}$. However, because the derivative for ${\mathit{y}}_3$ does not appear in the system, the equations define a system of differential algebraic equations. Rewriting the system in the form ${\mathrm{My}}^{\prime }=\mathit{f}\left(\mathit{t},\mathit{y}\right)$ shows a constant, singular mass matrix on the left side.

$$\left[\begin{array}{ccc}1& 0& 0\\ 0& 1& 0\\ 0& 0& 0\end{array}\right]\underset{}{\overset{\dot{}}{\left[\begin{array}{c}{y}_1^{\prime }\\ y_2^{\prime }\\ y_3^{\prime }\end{array}\right]}}=\left[\begin{array}{c}{y}_1{y}_3-y_2\\ y_1-1\\ y_1+y_2+y_3\end{array}\right]$$

Solve the system of equations using the initial values [1 1 -2] by creating an ode object to represent the problem.

• Specify the initial values in the InitialValue property.

• Specify the system of equations as an anonymous function in the ODEFcn property.

• Use an odeMassMatrix object to specify the constant, singular mass matrix in the MassMatrix property.

F = ode;
F.InitialValue = [1 1 -2];
F.ODEFcn = @(t,y) [y(1)*y(3)-y(2);
                   y(1)-1;
                   y(1)+y(2)+y(3)];
F.MassMatrix = odeMassMatrix(MassMatrix=[1 0 0; 0 1 0; 0 0 0],Singular="yes");

Display the ode object. The SelectedSolver property shows that the ode15s solver was automatically chosen for this problem.

F

F =
  ode with properties:

   Problem definition
               ODEFcn: @(t,y)[y(1)*y(3)-y(2);y(1)-1;y(1)+y(2)+y(3)]
          InitialTime: 0
         InitialValue: [1 1 -2]
             Jacobian: []
           MassMatrix: [1×1 odeMassMatrix]
         EquationType: standard

   Solver properties
    AbsoluteTolerance: 1.0000e-06
    RelativeTolerance: 1.0000e-03
               Solver: auto
       SelectedSolver: ode15s

  Show all properties

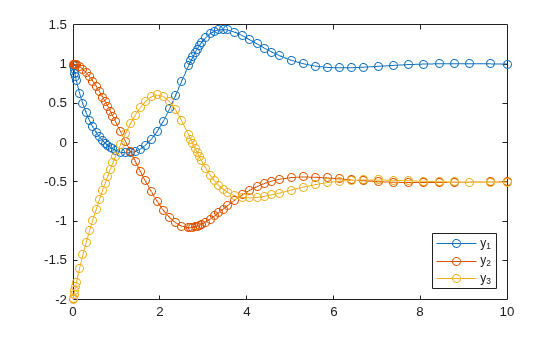

Solve the system of equations over the time interval [0 10] by using the solve method. Plot all three solution components.

S = solve(F,0,10);
plot(S.Time,S.Solution,"-o")
legend("y_1","y_2","y_3",Location="southeast")

Examine Parameter Sensitivity

Solve an ODE system with two equations and two parameters, and perform sensitivity analysis on the parameters.

Create an ode object to represent this system of equations.

$$\begin{array}{l}\frac{{\mathrm{dy}}_1}{\mathrm{dt}}={\mathit{p}}_1{\mathit{y}}_1-{\mathit{y}}_2\\ \frac{{\mathrm{dy}}_2}{\mathrm{dt}}={-\mathit{p}}_2{\mathit{y}}_2\end{array}$$

Specify the initial conditions as ${\mathit{y}}_1\left(0\right)=2$ and ${\mathit{y}}_2\left(0\right)=3$, and parameter values of ${\mathit{p}}_1=0.05$ and ${\mathit{p}}_2=1.5$. To enable sensitivity analysis of the parameters, set the Sensitivity property of the ode object to an odeSensitivity object.

p = [0.05 1.5];
F = ode(ODEFcn=@(t,y,p) [p(1)*y(1)-y(2); -p(2)*y(2)], ...
        InitialValue=[2 3], ...
        Parameters=p, ...
        Sensitivity=odeSensitivity)

F =
  ode with properties:

   Problem definition
               ODEFcn: @(t,y,p)[p(1)*y(1)-y(2);-p(2)*y(2)]
           Parameters: [0.0500 1.5000]
          InitialTime: 0
         InitialValue: [2 3]
          Sensitivity: [1×1 odeSensitivity]
         EquationType: standard

   Solver properties
    AbsoluteTolerance: 1.0000e-06
    RelativeTolerance: 1.0000e-03
               Solver: auto
       SelectedSolver: cvodesnonstiff

  Show all properties

Because the equations are nonstiff and sensitivity analysis is enabled, the ode object automatically chooses the cvodesnonstiff solver for this problem.

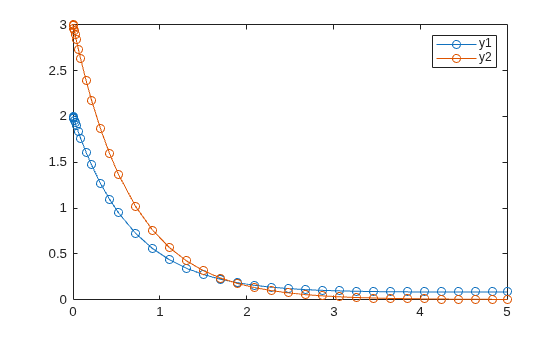

Solve the ODE over the time interval [0 5], and plot the solution for each component.

S = solve(F,0,5)

S =
  ODEResults with properties:

           Time: [0 2.9540e-09 2.9543e-05 2.2465e-04 4.1976e-04 0.0024 0.0080 0.0137 0.0245 0.0353 0.0611 0.0869 0.1499 0.2129 0.3169 0.4208 0.5248 0.7204 0.9161 1.1118 1.3075 1.5031 1.6988 1.8945 2.0901 2.2858 2.4815 2.6772 2.8728 … ] (1×40 double)
       Solution: [2×40 double]
    Sensitivity: [2×2×40 double]

plot(S.Time,S.Solution(1,:),"-o",S.Time,S.Solution(2,:),"-o")
legend("y1","y2")

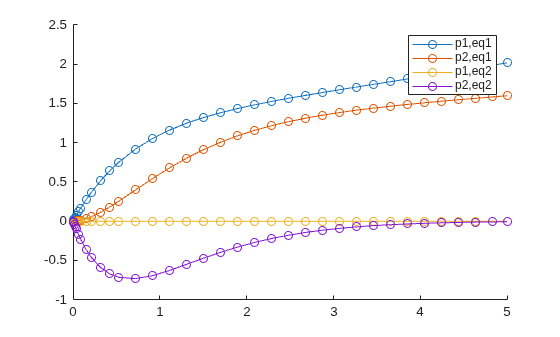

The values in S.Sensitivity are partial derivatives of the equations with respect to the parameters. To examine the effects of the parameter values during the integration, plot the sensitivity values.

figure
hold on
plot(S.Time,squeeze(S.Sensitivity(1,1,:)),"-o")
plot(S.Time,squeeze(S.Sensitivity(1,2,:)),"-o")
plot(S.Time,squeeze(S.Sensitivity(2,1,:)),"-o")
plot(S.Time,squeeze(S.Sensitivity(2,2,:)),"-o")
legend("p1,eq1","p2,eq1","p1,eq2","p2,eq2")
hold off

Use Callback Function to Restart Integration of Bouncing Ball

Consider a ball thrown upward with an initial velocity $\mathrm{dy}/\mathrm{dt}$. The ball is subject to acceleration due to gravity aimed downward, so its acceleration is

$$\frac{d^{2}y}{d{t}^2}=-g.$$

Rewriting the equation as a first-order system of equations with the substitutions ${\mathit{y}}_1=\mathit{y}$ and ${\mathit{y}}_2=\frac{\mathrm{dy}}{\mathrm{dt}}$ yields

$$\begin{array}{l}{y}_1^{\prime }=y_2\\ y_2^{\prime }=-g.\end{array}$$

Solve the equations for the position ${\mathit{y}}_1$ and velocity ${\mathit{y}}_2$ of the ball over time.

Define Equations and Initial Conditions

Create a function handle for the first-order system of equations that accepts two inputs for (t,y). Use the value $\mathit{g}=9.8$ for the acceleration due to gravity.

dydt = @(t,y) [y(2); -9.8];

Next, create a vector with the initial conditions. The ball starts at position ${\mathit{y}}_1=3$ at $\mathit{t}=0$ as it is thrown upward with initial velocity ${\mathit{y}}_2=20$.

y0 = [3 20];

Model Ball Bounces as Events

The ball initially travels upward until the force due to gravity causes it to change direction and head back down to the ground. If you solve the equations without more consideration, then the ball falls back downward forever without striking the ground. Instead, you can use an event function to detect when the position of the ball goes to zero where the ground is located. Because the solution component ${\mathit{y}}_1=\mathit{y}$ is the position of the ball, the event function tracks the value of ${\mathit{y}}_1$ so that an event triggers whenever ${\mathit{y}}_1=0$.

Create a function handle for the event function that accepts two inputs for (t,y).

bounceEvent = @(t,y) y(1);

When the ball strikes the ground, its direction changes again as it heads back upwards with a new (smaller) initial velocity. To model this situation, use a callback function along with the event function. When an event triggers, the ODE solver invokes the callback function. The callback function resets the position and initial velocity of the ball so that the integration can restart with the correct initial conditions. When an event occurs, the callback function sets the position ${\mathit{y}}_1=0$ and attenuates the velocity by a factor of $0.9$ while reversing its direction back upward. Define a callback function that performs these actions.

function [stop,y] = bounceResponse(t,y)
stop = false;
y(1) = 0;
y(2) = -0.9*y(2);
end

(The callback function is included as a local function at the end of the example.)

Create an odeEvent object to represent the bouncing ball events. Specify Direction="descending" so that only events where the position is decreasing are detected. Also, specify Response="callback" so that the solver invokes the callback function when an event occurs.

E = odeEvent(EventFcn=bounceEvent, ...
             Direction="descending", ...
             Response="callback", ...
             CallbackFcn=@bounceResponse)

E =
  odeEvent with properties:

       EventFcn: @(t,y)y(1)
      Direction: descending
       Response: callback
    CallbackFcn: @bounceResponse

Solve Equations

Create an ode object for the problem, specifying the equations dydt, initial conditions y0, and events E as property values.

F = ode(ODEFcn=dydt,InitialValue=y0,EventDefinition=E);

Integrate the equations over the time interval [0 30] by using the solve method. Specify Refine=8 to generate 8 points per step. The resulting object has properties for the time and solution, and because events are being tracked, the object also displays properties related to the events that triggered during the integration.

S = solve(F,0,30,Refine=8)

S =
  ODEResults with properties:

             Time: [0 0.0038 0.0075 0.0113 0.0151 0.0188 0.0226 0.0264 0.0301 0.0490 0.0678 0.0867 0.1055 0.1243 0.1432 0.1620 0.1809 0.2751 0.3692 0.4634 0.5576 0.6518 0.7460 0.8402 0.9344 1.3094 1.6844 2.0594 2.4344 2.8094 3.1844 … ] (1×468 double)
         Solution: [2×468 double]
        EventTime: [4.2265 8.1607 11.7015 14.8882 17.7563 20.3375 22.6606 24.7514 26.6331 28.3267 29.8509]
    EventSolution: [2×11 double]
       EventIndex: [1 1 1 1 1 1 1 1 1 1 1]

Plot Results

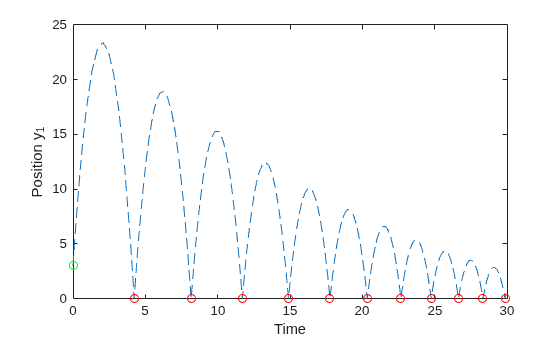

Plot the position ${\mathit{y}}_1$ of the ball over time, marking the initial position with a green circle and events with red circles.

plot(S.Time,S.Solution(1,:),"--")
hold on
plot(S.EventTime,S.EventSolution(1,:),"ro")
plot(0,y0(1),"go")
hold off
ylim([0 25])
xlabel("Time")
ylabel("Position y_1")

Local Functions

function [stop,y] = bounceResponse(t,y)
stop = false;
y(1) = 0;
y(2) = -0.9*y(2);
end

Version History

Introduced in R2023b

R2025a: Specify single-precision property values

For properties that accept matrix values, you can now specify single-precision sparse matrices. Additionally, for properties that accept function handles, the specified functions can now return single-precision outputs. If you specify any property as single, the properties of the ODEResults object returned by solve and solutionFcn are single. For faster computation, specify all property values and function handle outputs using as the same precision.

R2025a: Solve delay differential equations

You can solve delay differential equations (DDEs) using an ode object by specifying the Solver property as "dde23", "ddesd", or "ddensd" and specifying the DelayDefinition property as an odeDelay object. If you specify only DelayDefinition and not Solver, the ode object automatically selects a solver.

R2025a: Solve complex-valued ODE functions

You can solve ODEs with complex solution values using the ode object by specifying the SeparateComplexParts property as "on". Specify SeparateComplexParts as "on" when the ODE is complex and the selected solver fails or takes a long time to converge. This is especially helpful for solving implicit and stiff ODEs where the Jacobian is not specified.

R2024b: Specify ODE as implicit

You can now specify the Solver property as "ode15i" for implicit ODEs. Alternatively, you can specify whether your ODE is implicit by setting the new EquationType property to "standard" (default) or "fullyimplicit".

If you specify the Jacobian when EquationType is "fullyimplicit", the Jacobian must be a function handle or cell array. Additionally, the ODEFcn property can accept functions of the form f = ODEFcn(t,y,yp) for implicit ODEs.

R2024b: Detect stiffness to change ODE solver

You can specify parameters to change the solver after creating an ode object by using the selectSolver object function. For example, you can incorporate a stiffness detection heuristic when selecting a solver by using the selectSolver function with its DetectStiffness name-value argument.
