# solutionFcn

Construct function that interpolates ODE solution

Since R2023b

## Syntax

``fh = solutionFcn(F,tmin,tmax)``
``fh = solutionFcn(F,tmin,tmax,Name=Value)``
``[fh,S] = solutionFcn(___)``

## Description

example

````fh = solutionFcn(F,tmin,tmax)` creates a function handle `fh` that can interpolate the solution of the differential equation problem represented by `F` at any time `t` in the range `tmin <= t <= tmax`. The `tmin` and `tmax` arguments must satisfy ```tmin <= t0 <= tmax```, where `t0` is the value of `F.InitialTime`.```

example

````fh = solutionFcn(F,tmin,tmax,Name=Value)` specifies options using one or more name-value arguments. For example, specify `OutputVariables=[1 2]` to limit the function handle `fh` to interpolate only the first two solution components.```

example

````[fh,S] = solutionFcn(___)` also returns an `ODEResults` object `S`, obtained by solving the differential equation problem over the specified time interval.```

## Examples

collapse all

Create an `ode` object for the equation `@(t,y) y(1)` with the initial value `y=1`.

`F = ode(ODEFcn=@(t,y) y(1),InitialValue=1);`

Create a function handle that can evaluate the solution at any time value in the range `[0 10]` by using the `solutionFcn` method.

`fh = solutionFcn(F,0,10);`

Use `linspace` to generate 100 points, and then evaluate the solution at those points and plot the results.

```t = linspace(0,10); y = fh(t); plot(t,y,"-o")```

Create an `ode` object for the equations `@(t,y) [y(2); 1000*(1-y(1)^2)*y(2)-y(1)]` with the initial conditions `[2 0]`. Specify the solver as `"stiff"`.

`F = ode(ODEFcn=@(t,y) [y(2); 1000*(1-y(1)^2)*y(2)-y(1)],InitialValue=[2 0],Solver="stiff");`

Create a function handle that can evaluate the solution of the problem in the interval `[0 1000]` by using the `solutionFcn` method.

• Specify `Extension="on"` to enable the function handle to evaluate the solution at times outside of the original interval `[0 1000]`.

• Specify `OutputVariables=1` so that the function handle interpolates only the first solution variable.

• Specify two outputs to also return the integration results in the original interval.

`[fh,S] = solutionFcn(F,0,1000,Extension="on",OutputVariables=1)`
```fh = function_handle with value: @ode.solutionFcn/interpolate ```
```S = ODEResults with properties: Time: [0 1.4606e-05 2.9212e-05 4.3818e-05 1.1010e-04 1.7639e-04 2.4267e-04 3.0896e-04 4.5006e-04 5.9116e-04 7.3226e-04 8.7336e-04 0.0010 0.0012 0.0013 0.0015 0.0017 0.0018 0.0021 0.0024 0.0027 0.0030 0.0033 0.0044 0.0055 ... ] (1x227 double) Solution: [2x227 double] ```

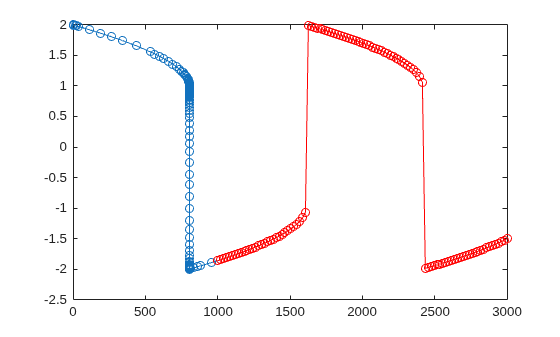

Extract and plot the integration results for the first solution variable in `S`, and then use the function handle `fh` to also evaluate the solution in the extended interval `[1000 3000]`. Plot the extended solution in red.

```plot(S.Time,S.Solution(1,:),"-o") t = linspace(1000,3000); ys = fh(t); hold on plot(t,ys,"r-o") hold off```

## Input Arguments

collapse all

ODE problem to solve, specified as an `ode` object.

Time limits for interpolation, specified as two scalars that define the range of acceptable values of `t` that you can use as inputs to `fh` for interpolation. The `tmin` and `tmax` arguments must satisfy ```tmin <= t0 <= tmax```, where `t0` is the value of `F.InitialTime`.

Example: `fh = solutionFcn(F,0,10)` returns a function handle `fh` that can interpolate `F` at any time in the range `[0 10]`.

### Name-Value Arguments

Specify optional pairs of arguments as `Name1=Value1,...,NameN=ValueN`, where `Name` is the argument name and `Value` is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: ```fh = solutionFcn(F,0,10,OutputVariables=[1 2],Extension="on")```

Subset of variables for interpolation, specified as a scalar index or vector of indices. Use this option when the value returned by `F.ODEFcn` is a vector and you want to limit the number of variables that `fh` can interpolate. Specify one or more indices for the solution variables returned by `F.ODEFcn` that `fh` can interpolate.

The value of this option affects only the behavior of `fh`; it does not affect the solution returned in `S`. Use `F.SolverOptions.OutputSelection` to limit the number of output variables returned in `S`.

Example: `fh = solutionFcn(F,0,5,OutputVariables=3)` returns a function handle `fh` that interpolates the third solution component of `F`.

Example: `fh = solutionFcn(F,0,5,OutputVariables=[1 3])` returns a function handle `fh` that interpolates the first and third solution components of `F`.

Time interval extension mode, specified as `"on"` or `"off"`. Use this option to enable querying `fh` with time values outside of the solution interval `[tmin tmax]`.

• By default, `Extension="off"` and the command `fh(t)` returns `NaN` for values of `t` outside of the solution interval ```[tmin tmax]```.

• If `Extension="on"`, then you can query `fh(t)` with values of `t` outside of the solution interval `[tmin tmax]`. This requires the solver to run again to extend the solution domain, so there can be a performance difference between querying points inside or outside the solution interval.

Example: `fh = solutionFcn(F,0,3,Extension="on")` enables `fh` to be queried with time values outside of the interval `[0 3]`.

## Output Arguments

collapse all

Function for interpolation, returned as a function handle. `fh` uses the built-in interpolant for the solver, which enables efficient interpolation during intermediate steps of the integration. You can specify one or two outputs when you use `fh`:

• `y = fh(t)` returns the computed solution at the times specified by `t`. The output `y` matches `S.Solution` if `S = solve(F,t)`.

• `[y,dydt] = fh(t)` also returns the interpolated derivative values `dydt`.

Computed solution, returned as an `ODEResults` object.

## Version History

Introduced in R2023b
