restart
Restart driving scenario simulation from beginning
Syntax
Description
Examples
Restart Driving Scenario Simulation

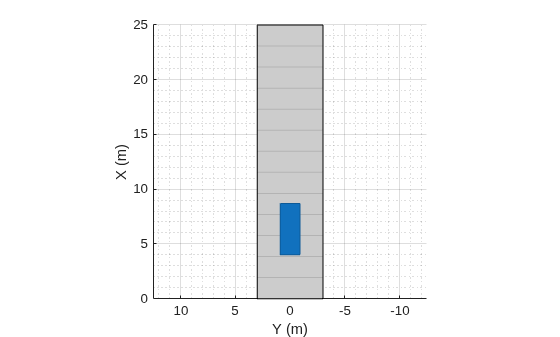

Create a driving scenario in which a vehicle travels down a straight, 25-meter road at 20 meters per second. Plot the scenario.
scenario = drivingScenario('SampleTime',0.1);
roadcenters= [0 0 0; 25 0 0];
road(scenario,roadcenters)
ans = Road with properties: Name: "" RoadID: 1 RoadCenters: [2x3 double] RoadWidth: 6 BankAngle: [2x1 double] Heading: [2x1 double]
v = vehicle(scenario,'ClassID',1); waypoints = [5 0 0; 20 0 0]; speed = 20; % m/s smoothTrajectory(v,waypoints,speed) plot(scenario)

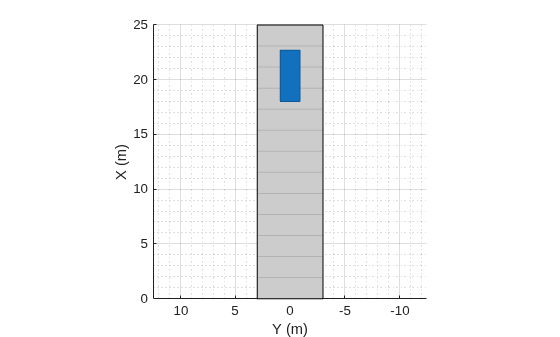

Run the simulation and display the location of the vehicle at each time step.
while advance(scenario) fprintf('Vehicle location: %0.2f meters at t = %0.0f ms\n', ... v.Position(1), ... scenario.SimulationTime * 1000) end
Vehicle location: 7.00 meters at t = 100 ms Vehicle location: 9.00 meters at t = 200 ms Vehicle location: 11.00 meters at t = 300 ms Vehicle location: 13.00 meters at t = 400 ms Vehicle location: 15.00 meters at t = 500 ms Vehicle location: 17.00 meters at t = 600 ms Vehicle location: 19.00 meters at t = 700 ms
Restart the simulation. Increase the sample time and rerun the simulation.
restart(scenario); scenario.SampleTime = 0.2; while advance(scenario) fprintf('Vehicle location: %0.2f meters at t = %0.0f ms\n', ... v.Position(1), ... scenario.SimulationTime * 1000) end
Vehicle location: 9.00 meters at t = 200 ms Vehicle location: 13.00 meters at t = 400 ms Vehicle location: 17.00 meters at t = 600 ms
Input Arguments
scenario
— Driving scenario
drivingScenario
object
Driving scenario, specified as a drivingScenario
object.
Version History
Introduced in R2017a
