frd
Frequency-response data model
Description
Use frd
to create real-valued or complex-valued
frequency-response data models, or to convert dynamic system models to frequency-response data model
form.
Frequency-response data models store complex frequency response data with corresponding
frequency points. For example, a frequency-response data model H(jwi), stores the frequency response at each input frequency
wi, where i = 1,…,n. The frd
model object can represent SISO or MIMO
frequency-response data models in continuous time or discrete time. For more information, see
Frequency Response Data (FRD) Models.
You can also use frd
to create generalized frequency-response data
(genfrd
) models.
Creation
You can obtain frd
models in one of the following ways.
Create the model from frequency response data using the
frd
command. For example, you can create anfrd
model with frequency response data taken at specific frequencies.For an example, see SISO Frequency-Response Data Model.

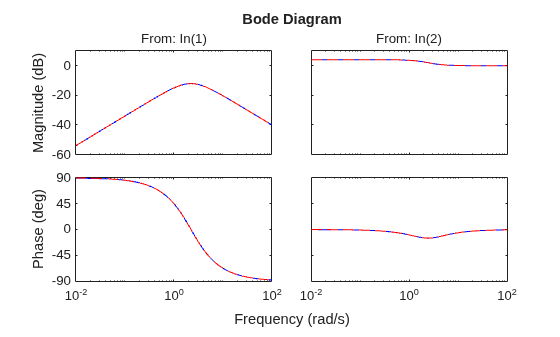

Convert a linear model such as an
ss
model into anfrd
model by computing the frequency response of the model at specified frequencies.For an example, see Convert State-Space Model to Frequency-Response Data Model.
Estimate the model using offline frequency response estimation workflows. These workflows require Simulink® Control Design™ software.
For more information, see Estimate Frequency Response at the Command Line (Simulink Control Design) and Estimate Frequency Response Using Model Linearizer (Simulink Control Design).
Syntax
Description
sets properties of the frequency-response data model using one or more name-value
arguments for any of the previous input-argument combinations.sys
= frd(___,Name,Value
)
interprets frequencies in the units specified by sys
= frd(ltiSys
,frequency
,FrequencyUnits)FrequencyUnit
.
Input Arguments
response
— Frequency response data
vector | multidimensional array
Frequency response data, specified as a vector or a multidimensional array of complex numbers.

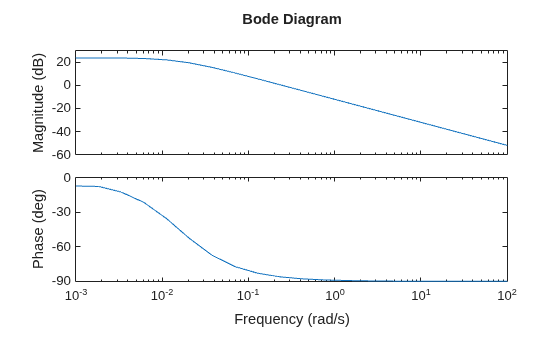

For SISO systems, specify a vector of frequency response values at the frequency points specified in
frequency
.For MIMO systems with
Nu
inputs andNy
outputs, specify aNy
-by-Nu
-by-Nf
array, whereNf
is the number of frequency points.For an
S1
-...-by-Sn
array of models withNu
inputs andNy
outputs, specify a multidimensional array of size [Ny
Nu
Nf
S1
…Sn
].For instance, a
response
of size [Ny
,Nu
,Nf
,3
,4
] represents the response data for a 3-by-4 array of models. Each model hasNy
outputs,Nu
inputs, andNf
frequency points.
This input sets the ResponseData property.
frequency
— Frequency points
vector
Frequency points corresponding to response
, specified as a
vector that contains Nf
points. frequency
can

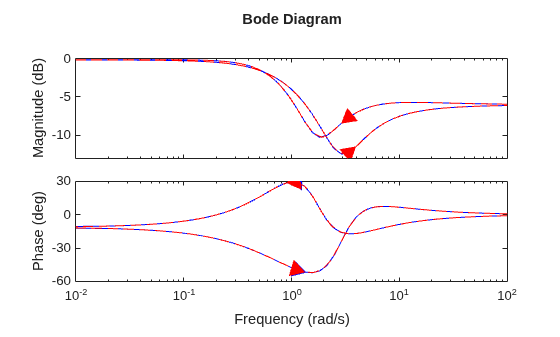

contain both positive and negative frequencies.
This input sets the Frequency property.
ts
— Sample time
scalar
Sample time, specified as a scalar.
The input sets the Ts property.
ltiSys
— Dynamic system
dynamic system model | model array
Dynamic system, specified as a SISO or MIMO dynamic system model or an array of dynamic system models. Dynamic systems that you can use include:
Continuous-time or discrete-time numeric LTI models, such as
tf
,zpk
,ss
, orpid
models.Generalized or uncertain LTI models such as
genss
oruss
(Robust Control Toolbox) models. (Using uncertain models requires Robust Control Toolbox™ software.)The resulting
frd
model assumes:Current values of the tunable components for tunable control design blocks
Nominal model values for uncertain control design blocks
Identified LTI models, such as
idtf
(System Identification Toolbox),idss
(System Identification Toolbox),idproc
(System Identification Toolbox),idpoly
(System Identification Toolbox), andidgrey
(System Identification Toolbox) models. (Using identified models requires System Identification Toolbox™ software.)
Properties
ResponseData
— Frequency response data
multidimensional array of complex numbers
Frequency response data, specified as a multidimensional array of complex numbers.
For SISO systems,
ResponseData
is a1
-by-1
-by-Nf
array of frequency response values at theNf
frequency points specified in theFrequency
property.For MIMO systems with
Nu
inputs andNy
outputs,ResponseData
is anNy
-by-Nu
-by-Nf
array, whereNf
is the number of frequency points.For instance,
ResponseData(ky,ku,kf)
represents the frequency response from the inputku
to the outputky
at the frequencyFrequency(kf)
.For an
S1
-...-by-Sn
array of models withNu
inputs andNy
outputs,ResponseData
is a multidimensional array of size [Ny
Nu
Nf
S1
…Sn
].For instance, a
ResponseData
of size [Ny
,Nu
,Nf
,3
,4
] represents the response data for a 3-by-4 array of models. Each model hasNy
outputs,Nu
inputs, andNf
frequency points.
Frequency
— Frequency points
vector
Frequency points corresponding to ResponseData
, specified as a
vector that contains Nf
points in the units specified by
FrequencyUnit
.
FrequencyUnit
— Units for frequency vector
'rad/TimeUnit'
(default) | 'cycles/TimeUnit'
| 'rad/s'
| 'Hz'
| 'kHz'
| 'MHz'
| 'GHz'
| 'rpm'
Units of the frequency vector in the Frequency
property,
specified as one of the following values:
'rad/TimeUnit'
'cycles/TimeUnit'
'rad/s'
'Hz'
'kHz'
'MHz'
'GHz'
'rpm'
The units 'rad/TimeUnit'
and 'cycles/TimeUnit'
are relative to the time units specified in the TimeUnit
property.
Changing this property does not resample or convert the data. Modifying the property
changes only the interpretation of the existing data. Use chgFreqUnit
to convert the data to different frequency units.
IODelay
— Transport delay
0
(default) | scalar | Ny
-by-Nu
array
Transport delay, specified as one of the following:
Scalar — Specify the transport delay for a SISO system or the same transport delay for all input/output pairs of a MIMO system.
Ny
-by-Nu
array — Specify separate transport delays for each input/output pair of a MIMO system. Here,Ny
is the number of outputs andNu
is the number of inputs.
For continuous-time systems, specify transport delays in the time unit specified by
the TimeUnit
property. For discrete-time systems, specify transport
delays in integer multiples of the sample time, Ts
.
InputDelay
— Input delay
0
(default) | scalar | Nu
-by-1 vector
Input delay for each input channel, specified as one of the following:
Scalar — Specify the input delay for a SISO system or the same delay for all inputs of a multi-input system.
Nu
-by-1 vector — Specify separate input delays for input of a multi-input system, whereNu
is the number of inputs.
For continuous-time systems, specify input delays in the time unit specified by the TimeUnit
property. For discrete-time systems, specify input delays in integer multiples of the sample time, Ts
.
For more information, see Time Delays in Linear Systems.
OutputDelay
— Output delay
0
(default) | scalar | Ny
-by-1 vector
Output delay for each output channel, specified as one of the following:
Scalar — Specify the output delay for a SISO system or the same delay for all outputs of a multi-output system.
Ny
-by-1 vector — Specify separate output delays for output of a multi-output system, whereNy
is the number of outputs.
For continuous-time systems, specify output delays in the time unit specified by the TimeUnit
property. For discrete-time systems, specify output delays in integer multiples of the sample time, Ts
.
For more information, see Time Delays in Linear Systems.
Ts
— Sample time
0
(default) | positive scalar | -1
Sample time, specified as:
0
for continuous-time systems.A positive scalar representing the sampling period of a discrete-time system. Specify
Ts
in the time unit specified by theTimeUnit
property.-1
for a discrete-time system with an unspecified sample time.
Note
Changing Ts
does not discretize or resample the model.
TimeUnit
— Time variable units
'seconds'
(default) | 'nanoseconds'
| 'microseconds'
| 'milliseconds'
| 'minutes'
| 'hours'
| 'days'
| 'weeks'
| 'months'
| 'years'
| ...
Time variable units, specified as one of the following:
'nanoseconds'
'microseconds'
'milliseconds'
'seconds'
'minutes'
'hours'
'days'
'weeks'
'months'
'years'
Changing TimeUnit
has no effect on other properties, but changes the overall system behavior. Use chgTimeUnit
to convert between time units without modifying system behavior.

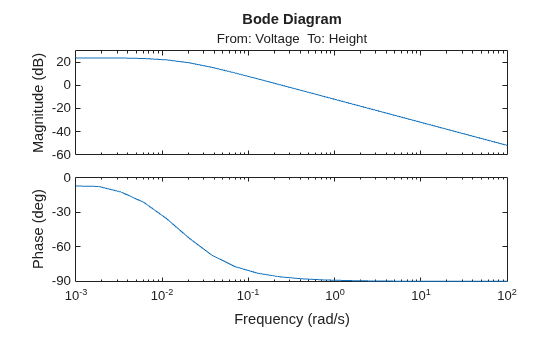

InputName
— Input channel names
''
(default) | character vector | cell array of character vectors
Input channel names, specified as one of the following:
A character vector, for single-input models.
A cell array of character vectors, for multi-input models.
''
, no names specified, for any input channels.
Alternatively, you can assign input names for multi-input models using automatic vector
expansion. For example, if sys
is a two-input model, enter the
following.
sys.InputName = 'controls';
The input names automatically expand to {'controls(1)';'controls(2)'}
.
You can use the shorthand notation u
to refer to the InputName
property. For example, sys.u
is equivalent to sys.InputName
.
Use InputName
to:
Identify channels on model display and plots.
Extract subsystems of MIMO systems.
Specify connection points when interconnecting models.
InputUnit
— Input channel units
''
(default) | character vector | cell array of character vectors
Input channel units, specified as one of the following:
A character vector, for single-input models.
A cell array of character vectors, for multi-input models.
''
, no units specified, for any input channels.
Use InputUnit
to specify input signal units. InputUnit
has no effect on system behavior.
InputGroup
— Input channel groups
structure
Input channel groups, specified as a structure. Use InputGroup
to assign
the input channels of MIMO systems into groups and refer to each group by name. The
field names of InputGroup
are the group names and the field values
are the input channels of each group. For example, enter the following to create input
groups named controls
and noise
that include input
channels 1
and 2
, and 3
and
5
, respectively.
sys.InputGroup.controls = [1 2]; sys.InputGroup.noise = [3 5];
You can then extract the subsystem from the controls
inputs to all outputs
using the following.
sys(:,'controls')
By default, InputGroup
is a structure with no fields.
OutputName
— Output channel names
''
(default) | character vector | cell array of character vectors
Output channel names, specified as one of the following:
A character vector, for single-output models.
A cell array of character vectors, for multi-output models.
''
, no names specified, for any output channels.
Alternatively, you can assign output names for multi-output models using automatic vector
expansion. For example, if sys
is a two-output model, enter the
following.
sys.OutputName = 'measurements';
The output names automatically expand to {'measurements(1)';'measurements(2)'}
.
You can also use the shorthand notation y
to refer to the OutputName
property. For example, sys.y
is equivalent to sys.OutputName
.
Use OutputName
to:
Identify channels on model display and plots.
Extract subsystems of MIMO systems.
Specify connection points when interconnecting models.
OutputUnit
— Output channel units
''
(default) | character vector | cell array of character vectors
Output channel units, specified as one of the following:
A character vector, for single-output models.
A cell array of character vectors, for multi-output models.
''
, no units specified, for any output channels.
Use OutputUnit
to specify output signal units. OutputUnit
has no effect on system behavior.
OutputGroup
— Output channel groups
structure
Output channel groups, specified as a structure. Use OutputGroup
to
assign the output channels of MIMO systems into groups and refer to each group by name.
The field names of OutputGroup
are the group names and the field
values are the output channels of each group. For example, create output groups named
temperature
and measurement
that include
output channels 1
, and 3
and 5
,
respectively.
sys.OutputGroup.temperature = [1]; sys.OutputGroup.measurement = [3 5];
You can then extract the subsystem from all inputs to the measurement
outputs using the following.
sys('measurement',:)
By default, OutputGroup
is a structure with no fields.
Name
— System name
''
(default) | character vector
System name, specified as a character vector. For example, 'system_1'
.
Notes
— User-specified text
{}
(default) | character vector | cell array of character vectors
User-specified text that you want to associate with the system, specified as a character vector or cell array of character vectors. For example, 'System is MIMO'
.
UserData
— User-specified data
[]
(default) | any MATLAB® data type
User-specified data that you want to associate with the system, specified as any MATLAB data type.
SamplingGrid
— Sampling grid for model arrays
structure array
Sampling grid for model arrays, specified as a structure array.
Use SamplingGrid
to track the variable values associated with each model in a model array, including identified linear time-invariant (IDLTI) model arrays.
Set the field names of the structure to the names of the sampling variables. Set the field values to the sampled variable values associated with each model in the array. All sampling variables must be numeric scalars, and all arrays of sampled values must match the dimensions of the model array.
For example, you can create an 11-by-1 array of linear models, sysarr
, by taking snapshots of a linear time-varying system at times t = 0:10
. The following code stores the time samples with the linear models.
sysarr.SamplingGrid = struct('time',0:10)
Similarly, you can create a 6-by-9 model array, M
, by independently sampling two variables, zeta
and w
. The following code maps the (zeta,w)
values to M
.
[zeta,w] = ndgrid(<6 values of zeta>,<9 values of w>) M.SamplingGrid = struct('zeta',zeta,'w',w)
When you display M
, each entry in the array includes the corresponding zeta
and w
values.
M
M(:,:,1,1) [zeta=0.3, w=5] = 25 -------------- s^2 + 3 s + 25 M(:,:,2,1) [zeta=0.35, w=5] = 25 ---------------- s^2 + 3.5 s + 25 ...
For model arrays generated by linearizing a Simulink model at multiple parameter values or operating points, the software populates SamplingGrid
automatically with the variable values that correspond to each entry in the array. For instance, the Simulink
Control Design commands linearize
(Simulink Control Design) and slLinearizer
(Simulink Control Design) populate SamplingGrid
automatically.
By default, SamplingGrid
is a structure with no fields.
Object Functions
The following lists contain a representative subset of the functions you can use with
frd
models. In general, many functions applicable to Dynamic System Models are also
applicable to a frd
object. frd
models do not work with
any time-domain analysis functions.
Frequency Response Analysis
bode | Bode frequency response of dynamic system |
sigma | Singular values of frequency response of dynamic system |
nyquist | Nyquist response of dynamic system |
nichols | Nichols response of dynamic system |
bandwidth | Frequency response bandwidth |
freqresp | Evaluate system response over a grid of frequencies |
margin | Gain margin, phase margin, and crossover frequencies |
Model Transformation
chgFreqUnit | Change frequency units of frequency-response data model |
chgTimeUnit | Change time units of dynamic system |
frdfun | Apply a function to the frequency response value at each frequency of an
frd model object |
fselect | Select frequency points or range in FRD model |
interp | Interpolate FRD model |
fcat | Concatenate FRD models along frequency dimension |
fnorm | Pointwise peak gain of FRD model |
Model Interconnection
Controller Design
pidtune | PID tuning algorithm for linear plant model |
Examples
SISO Frequency-Response Data Model
Create an frd
object from frequency response data.
For this example, load the frequency response data collected for a water tank model.
load wtankData.mat
This data contains the frequency response data collected for the frequency range rad/s to rad/s.
Create the model.
sys = frd(response,frequency)
sys = Frequency(rad/s) Response ---------------- -------- 0.0010 1.562e+01 - 1.9904i 0.0018 1.560e+01 - 2.0947i 0.0034 1.513e+01 - 3.3670i 0.0062 1.373e+01 - 5.4306i 0.0113 1.047e+01 - 7.5227i 0.0207 5.829e+00 - 7.6529i 0.0379 2.340e+00 - 5.6271i 0.0695 7.765e-01 - 3.4188i 0.1274 2.394e-01 - 1.9295i 0.2336 7.216e-02 - 1.0648i 0.4281 2.157e-02 - 0.5834i 0.7848 6.433e-03 - 0.3188i 1.4384 1.916e-03 - 0.1740i 2.6367 5.705e-04 - 0.0950i 4.8329 1.698e-04 - 0.0518i 8.8587 5.055e-05 - 0.0283i 16.2378 1.505e-05 - 0.0154i 29.7635 4.478e-06 - 0.0084i 54.5559 1.333e-06 - 0.0046i 100.0000 3.967e-07 - 0.0025i Continuous-time frequency response.
Plot sys
.
bode(sys)
Discrete-Time MIMO Frequency-Response Data Model
For this example, consider randomly generated response data and frequencies.
Generate a 3-by-2-by-7 complex array and a frequency vector with seven points between 0.01 and 100 rad/s. Set the sample time Ts
to 5 seconds.
rng(0) r = randn(3,2,7)+1i*randn(3,2,7); w = logspace(-2,2,7); Ts = 5;
Create the model.
sys = frd(r,w,Ts)
sys = From input 1 to: Frequency(rad/s) output 1 output 2 output 3 ---------------- -------- -------- -------- 0.0100 0.5377 + 0.3192i 1.8339 + 0.3129i -2.2588 - 0.8649i 0.0464 -0.4336 + 1.0933i 0.3426 + 1.1093i 3.5784 - 0.8637i 0.2154 0.7254 - 0.0068i -0.0631 + 1.5326i 0.7147 - 0.7697i 1.0000 1.4090 - 1.0891i 1.4172 + 0.0326i 0.6715 + 0.5525i 4.6416 0.4889 - 1.4916i 1.0347 - 0.7423i 0.7269 - 1.0616i 21.5443 0.8884 - 0.1924i -1.1471 + 0.8886i -1.0689 - 0.7648i 100.0000 0.3252 - 0.1774i -0.7549 - 0.1961i 1.3703 + 1.4193i From input 2 to: Frequency(rad/s) output 1 output 2 output 3 ---------------- -------- -------- -------- 0.0100 0.8622 - 0.0301i 0.3188 - 0.1649i -1.3077 + 0.6277i 0.0464 2.7694 + 0.0774i -1.3499 - 1.2141i 3.0349 - 1.1135i 0.2154 -0.2050 + 0.3714i -0.1241 - 0.2256i 1.4897 + 1.1174i 1.0000 -1.2075 + 1.1006i 0.7172 + 1.5442i 1.6302 + 0.0859i 4.6416 -0.3034 + 2.3505i 0.2939 - 0.6156i -0.7873 + 0.7481i 21.5443 -0.8095 - 1.4023i -2.9443 - 1.4224i 1.4384 + 0.4882i 100.0000 -1.7115 + 0.2916i -0.1022 + 0.1978i -0.2414 + 1.5877i Sample time: 5 seconds Discrete-time frequency response.
The specified data results in a two-input, three-output frd
model.
Frequency-Response Data Model with Inherited Properties
For this example, create a frequency-response data model with properties inherited from a transfer function model.
Create a transfer function sys1
with the TimeUnit
property set to 'minutes'
and InputDelay
property set to 3.
numerator1 = [2,0]; denominator1 = [1,8,0]; sys1 = tf(numerator1,denominator1,'TimeUnit','minutes','InputDelay',3)
sys1 = 2 s exp(-3*s) * --------- s^2 + 8 s Continuous-time transfer function.
propValues1 = {sys1.TimeUnit,sys1.InputDelay}
propValues1=1×2 cell array
{'minutes'} {[3]}
Create an frd
model with properties inherited from sys1
.
rng(0) response = randn(1,1,7)+1i*randn(1,1,7); w = logspace(-2,2,7); sys2 = frd(response,w,sys1)
sys2 = Frequency(rad/minute) Response --------------------- -------- 0.0100 0.5377 + 0.3426i 0.0464 1.8339 + 3.5784i 0.2154 -2.2588 + 2.7694i 1.0000 0.8622 - 1.3499i 4.6416 0.3188 + 3.0349i 21.5443 -1.3077 + 0.7254i 100.0000 -0.4336 - 0.0631i Input delays (minutes): 3 Continuous-time frequency response.
propValues2 = {sys2.TimeUnit,sys2.InputDelay}
propValues2=1×2 cell array
{'minutes'} {[3]}
Observe that the frd
model sys2
has that same properties as sys1
.
Specify State and Input Names for Frequency-Response Data Model
For this example, load the frequency response data collected for a water tank model.
load wtankData.mat
The model has one input, Voltage, and one output, Water height.
Create an frd
model, specifying the input and output names.
sys = frd(response,frequency,'InputName','Voltage','OutputName','Height');
Plot the frequency response.
bode(sys)
The input and output names appear on the Bode plot. Naming the inputs and outputs can be useful when dealing with response plots for MIMO systems.
Convert State-Space Model to Frequency-Response Data Model
For this example, compute the frd
model of the following state-space model:
Create a state-space model using the state-space matrices.
A = [-2 -1;1 -2]; B = [1 1;2 -1]; C = [1 0]; D = [0 1]; ltiSys = ss(A,B,C,D);
Convert the state-space model ltiSys
to a frd
model for frequencies between 0.01 and 100 rad/s.
w = logspace(-2,2,50); sys = frd(ltiSys,w);
Compare the frequency responses.
bode(ltiSys,'b',sys,'r--')
The responses are identical.
Array of Frequency-Response Data Models
To create arrays of frd
models, you can specify a multidimensional array of frequency response data.
For instance, when you specify the response data as a numeric array of size [NY
NU
NF
S1
... Sn
], the function returns a S1
-by-...-by-Sn
array of frd
models. Each of these models has NY
outputs, NU
inputs, and NF
frequency points.
Generate a 2-by-3 array of random response data with one-output, two-input models at 10 frequency points between 0.1 and 10 rad/s.
w = logspace(-1,1,10); r = randn(1,2,10,2,3)+1i*randn(1,2,10,2,3); sys = frd(r,w);
Extract the model at the index (2,1) from the model array.
sys21 = sys(:,:,2,1)
sys21 = From input 1 to: Frequency(rad/s) output 1 ---------------- -------- 0.1000 0.6715 + 0.0229i 0.1668 0.7172 - 1.7502i 0.2783 0.4889 - 0.8314i 0.4642 0.7269 - 1.1564i 0.7743 0.2939 - 2.0026i 1.2915 0.8884 + 0.5201i 2.1544 -1.0689 - 0.0348i 3.5938 -2.9443 + 1.0187i 5.9948 0.3252 - 0.7145i 10.0000 1.3703 - 0.2248i From input 2 to: Frequency(rad/s) output 1 ---------------- -------- 0.1000 -1.2075 - 0.2620i 0.1668 1.6302 - 0.2857i 0.2783 1.0347 - 0.9792i 0.4642 -0.3034 - 0.5336i 0.7743 -0.7873 + 0.9642i 1.2915 -1.1471 - 0.0200i 2.1544 -0.8095 - 0.7982i 3.5938 1.4384 - 0.1332i 5.9948 -0.7549 + 1.3514i 10.0000 -1.7115 - 0.5890i Continuous-time frequency response.
Frequency-Response Data Model with Negative Frequencies
You can specify negative frequency values in an frd object. This capability is useful when you want to capture the frequency response data of models with complex coefficients.
Create a frequency vector with both positive and negative values.
w0 = sort([-logspace(-2,2,50) 0 logspace(-2,2,50)]);
Create a state-space model with complex coefficients.
A = [-3.50,-1.25-0.25i;2,0]; B = [1;0]; C = [-0.75-0.5i,0.625-0.125i]; D = 0.5; Gc = ss(A,B,C,D);
Convert the model to an frd model at the specified frequencies.
sys = frd(Gc,w0);
Plot the frequency response of the models.
bode(Gc,'b',sys,'r--')
The plot responses match closely. The plot shows two branches for models with complex coefficients, one for positive frequencies, with a right-pointing arrow, and one for negative frequencies, with a left-pointing arrow. In both branches, the arrows indicate the direction of increasing frequencies.
Version History
Introduced before R2006a
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
