monocone

Create monocone antenna on circular ground plane

Description

The monocone object creates a monocone antenna on a circular ground plane. A classical monocone antenna consists of a cone and a ground plane. To increase the bandwidth of the antenna, you can modify the antenna by merging the cone with a circular cylinder. By default, the monocone object creates the modified version.

Create a classical monocone antenna (without the cylinder on top) using one of these methods:

  • Set the height of the antenna to equal the sum of the cone height and the feed height.

  • Set the cone height to equal half of the difference between the total height and the feed height. Then set the radius at the aperture to twice the radius at the junction.

Creation

Description

example

ant = monocone creates a monocone antenna with the feedpoint at the center of the ground plane. The default dimensions are for a resonant frequency of 3.8 GHz.

example

ant = monocone(Name,Value) sets properties using one or more name-value pairs. For example, ant = monocone('Height',0.0560) creates a monocone antenna with a total height of 0.0560 meters.

Properties

expand all

Antenna radii, specified as a three-element real vector with each element unit in meters.

  • The first element represents the narrow radius of the cone.

  • The second element represents the radius at the junction of the cone and the cylinder.

  • The third element represents the radius at the top of the cylinder.

Example: 'Radii',[6.3300e-04 0.0546 0.0220]

Example: ant.Radii = [6.3300e-04 0.0546 0.0220]

Data Types: double

Total height of the antenna from the ground plane to the aperture of the antenna, specified as a positive scalar in meters.

Example: 'Height',0.0560

Example: ant.Height = 0.0560

Data Types: double

Vertical height of the cone from the apex of the cone to the junction of the cone and the cylinder, specified as a positive scalar in meters.

Example: 'ConeHeight',0.02250

Example: ant.ConeHeight = 0.02250

Data Types: double

Gap between the cone and the ground plane, specified as a positive scalar in meters.

Example: 'FeedHeight',0.0034

Example: ant.FeedHeight = 0.0034

Data Types: double

Width of the feed, specified as a positive scalar in meters.

Example: 'FeedWidth',0.0050

Example: ant.FeedWidth = 0.0050

Data Types: double

Radius of the ground plane, specified as a positive scalar in meters.

Example: 'GroundPlaneRadius',0.0050

Example: ant.GroundPlaneRadius = 0.050

Data Types: double

Type of the metal used as a conductor, specified as a metal material object. You can choose any metal from the MetalCatalog or specify a metal of your choice. For more information, see metal. For more information on metal conductor meshing, see Meshing.

Example: m = metal('Copper'); 'Conductor',m

Example: m = metal('Copper'); ant.Conductor = m

Lumped elements added to the antenna feed, specified as a lumpedElement object. You can add a load anywhere on the surface of the antenna. By default, the load is at the feed. For more information, see lumpedElement.

Example: 'Load',lumpedElement, where lumpedElement is load added to the antenna feed.

Example: ant.Load = lumpedElement('Impedance',75)

Tilt angle of the antenna, specified as a scalar or vector with each element unit in degrees. For more information, see Rotate Antennas and Arrays.

Example: 'Tilt',90

Example: ant.Tilt = 90

Example: 'Tilt',[90 90],'TiltAxis',[0 1 0;0 1 1] tilts the antenna at 90 degrees about the two axes defined by the vectors.

Note

The wireStack antenna object only accepts the dot method to change its properties.

Data Types: double

Tilt axis of the antenna, specified as:

  • Three-element vector of Cartesian coordinates in meters. In this case, each coordinate in the vector starts at the origin and lies along the specified points on the X-, Y-, and Z-axes.

  • Two points in space, each specified as three-element vectors of Cartesian coordinates. In this case, the antenna rotates around the line joining the two points in space.

  • A string input describing simple rotations around one of the principal axes, 'X', 'Y', or 'Z'.

For more information, see Rotate Antennas and Arrays.

Example: 'TiltAxis',[0 1 0]

Example: 'TiltAxis',[0 0 0;0 1 0]

Example: ant.TiltAxis = 'Z'

Note

The wireStack antenna object only accepts the dot method to change its properties.

Data Types: double

Object Functions

coneangle2sizeCalculates equivalent cone height, broad radius, and narrow radius for cone
showDisplay antenna or array structure; display shape as filled patch
axialRatioAxial ratio of antenna
beamwidthBeamwidth of antenna
chargeCharge distribution on metal or dielectric antenna or array surface
currentCurrent distribution on metal or dielectric antenna or array surface
designDesign prototype antenna or arrays for resonance at specified frequency
efficiencyRadiation efficiency of antenna
EHfieldsElectric and magnetic fields of antennas; Embedded electric and magnetic fields of antenna element in arrays
impedanceInput impedance of antenna; scan impedance of array
meshMesh properties of metal or dielectric antenna or array structure
meshconfigChange mesh mode of antenna structure
optimizeOptimize antenna or array using SADEA optimizer
patternRadiation pattern and phase of antenna or array; Embedded pattern of antenna element in array
patternAzimuthAzimuth pattern of antenna or array
patternElevationElevation pattern of antenna or array
returnLossReturn loss of antenna; scan return loss of array
sparametersS-parameter object
vswrVoltage standing wave ratio of antenna

Examples

collapse all

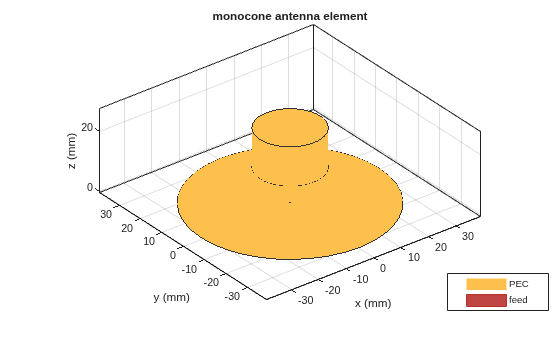

Create and view a default monocone antenna.

ant = monocone
ant =
  monocone with properties:

                Radii: [5.0000e-04 0.0110 0.0110]
    GroundPlaneRadius: 0.0325
           ConeHeight: 0.0115
               Height: 0.0250
           FeedHeight: 5.0000e-04
            FeedWidth: 5.0000e-04
            Conductor: [1x1 metal]
                 Tilt: 0
             TiltAxis: [1 0 0]
                 Load: [1x1 lumpedElement]

show(ant)

Figure contains an axes. The axes with title monocone antenna element contains 4 objects of type patch, surface. These objects represent PEC, feed.

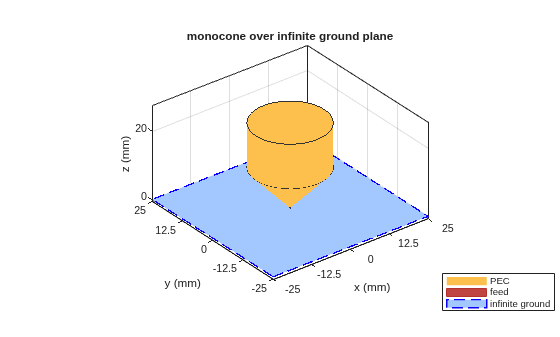

Create a monocone antenna with an infinite ground plane.

ant = monocone;
ant.GroundPlaneRadius = inf;
show(ant)

Figure contains an axes. The axes with title monocone over infinite ground plane contains 4 objects of type patch, surface. These objects represent PEC, feed, infinite ground.

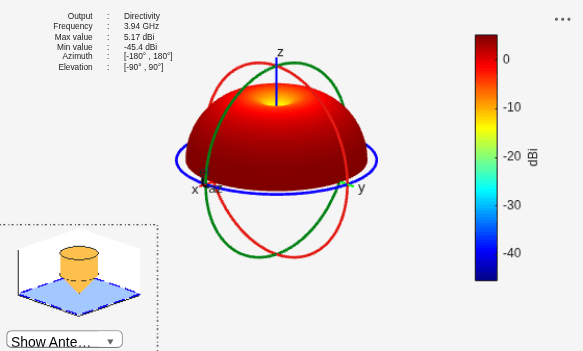

Plot the radiation pattern of the monocone antenna for the given frequency.

pattern(ant,3.94e9)

Figure contains an axes and other objects of type uicontrol. The axes contains 4 objects of type patch, surface. This object represents infinite ground.

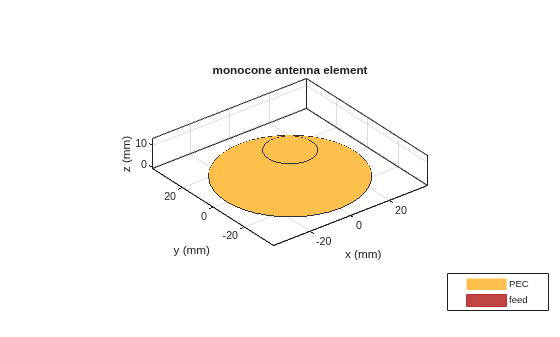

Create a classical monocone antenna by setting the total height of the antenna to equal the sum of cone height and feed height.

ant = monocone;
ant.Height = ant.ConeHeight+ant.FeedHeight;
show(ant)

Figure contains an axes. The axes with title monocone antenna element contains 4 objects of type patch, surface. These objects represent PEC, feed.

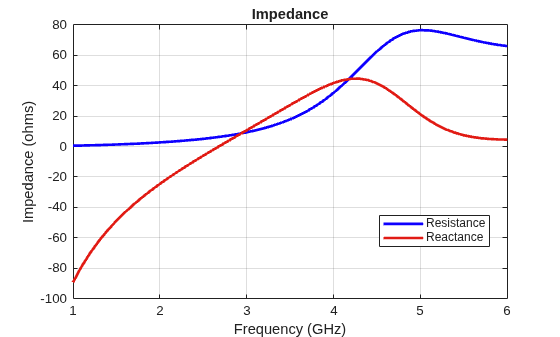

Calculate antenna impedance over the given frequency span.

impedance(ant,(1e9:0.1e9:6e9))

Figure contains an axes. The axes with title Impedance contains 2 objects of type line. These objects represent Resistance, Reactance.

References

[1] McDonald, James L., and Dejan S. Filipovic. “On the Bandwidth of Monocone Antennas.” IEEE Transactions on Antennas and Propagation 56, no. 4 (April 2008): 1196–1201. https://doi.org/10.1109/TAP.2008.919226.
