disconeStrip
Description

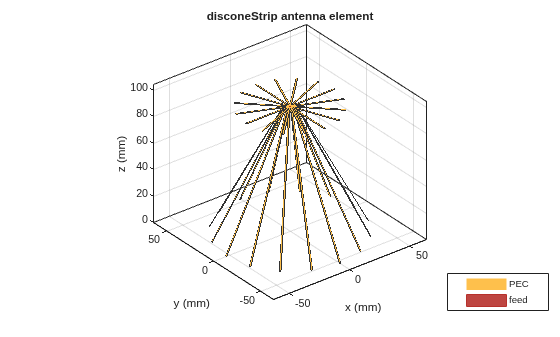

The disconeStrip
antenna object creates a strip discone
antenna. The strip discone antenna is an approximation to a solid discone antenna, where the
cone and the disc are replaced with strips. The strip discone antennas are lighter in weight
and suited for applications in high frequency (HF) and very high frequency (VHF)
bands.
Creation
Description
creates a strip discone
antenna with dimensions for a resonant frequency of 147.38 MHz. The default strip
discone antenna has a feed point at the center of the disc.ant
= disconeStrip
creates a
strip discone antenna, with additional Properties specified by one or
more name-value arguments. ant
= disconeStrip(Name=Value)Name
is the property name and
Value
is the corresponding value. You can specify several
name-value pair arguments in any order as Name1=Value1
,
...
, NameN=ValueN
. Properties that you do not
specify retain their default values. For example,
disconeStrip(NumStrips=8)
creates a discone strip antenna with
eight strips.
Properties
Object Functions
axialRatio | Calculate and/or plot axial ratio of antenna or array |
bandwidth | Calculate and/or plot absolute bandwidth of antenna |
beamwidth | Beamwidth of antenna |
charge | Charge distribution on antenna or array surface |
coneangle2size | Calculates equivalent cone height, broad radius, and narrow radius |
current | Current distribution on antenna or array surface |
design | Design prototype antenna or arrays for resonance around specified frequency or create AI-based antenna from antenna catalog objects |
efficiency | Radiation efficiency of antenna |
EHfields | Electric and magnetic fields of antennas or embedded electric and magnetic fields of antenna element in arrays |
impedance | Input impedance of antenna or scan impedance of array |
info | Display information about antenna, array, or platform |
memoryEstimate | Estimate memory required to solve antenna or array mesh |
mesh | Mesh properties of metal, dielectric antenna, or array structure |
meshconfig | Change meshing mode of antenna, array, custom antenna, custom array, or custom geometry |
optimize | Optimize antenna or array using SADEA optimizer |

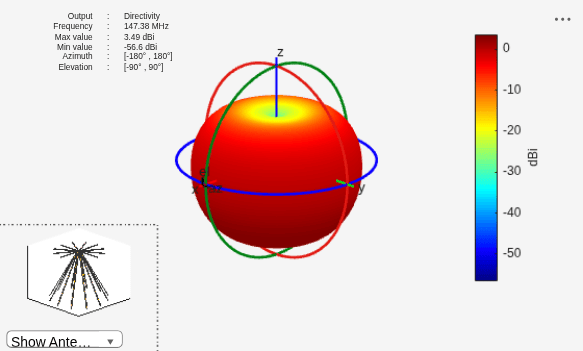

pattern | Plot radiation pattern and phase of antenna or array or embedded pattern of antenna element in array |
patternAzimuth | Azimuth plane radiation pattern of antenna or array |
patternElevation | Elevation plane radiation pattern of antenna or array |
rcs | Calculate and plot monostatic and bistatic radar cross section (RCS) of platform, antenna, or array |
resonantFrequency | Calculate and/or plot resonant frequency of antenna |
returnLoss | Return loss of antenna or scan return loss of array |
show | Display antenna, array structures, shapes, or platform |

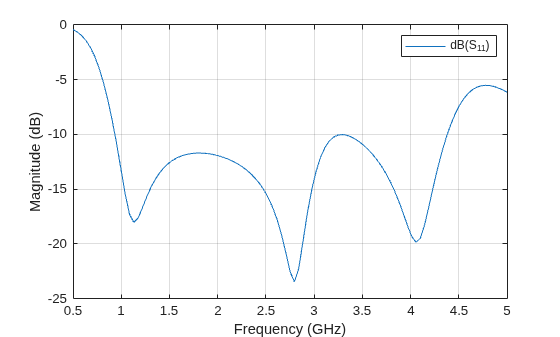

sparameters | Calculate S-parameters for antennas and antenna arrays |
vswr | Voltage standing wave ratio (VSWR) of antenna or array element |
Examples
More About
References
[1] Khumanthem.T., C.Sairam, S.D.Ahirwar and M.Balachary. ''Compact Discone Antenna with Small Form Factor in VHF Band'' EWCI, 2014.
[2] Ki-Hak Kim, Jin-U Kim, and Seong-Ook Park. “An Ultrawide-Band Double Discone Antenna with the Tapered Cylindrical Wires.” IEEE Transactions on Antennas and Propagation 53, no. 10 (October 2005): 3403–6. https://doi.org/10.1109/TAP.2005.856036.
[3] Tai C-T. and S. A. Long. ''Dipoles and Monopoles'' in Antenna Engineering Handbook, 4th ed., J. L. Volakis (Ed.), McGraw-Hill, 2007.
[4] McDonald, James L., and Dejan S. Filipovic. “On the Bandwidth of Monocone Antennas.” IEEE Transactions on Antennas and Propagation 56, no. 4 (April 2008): 1196–1201. https://doi.org/10.1109/TAP.2008.919226.
Version History
Introduced in R2020b
