# scatterhist

Scatter plot with marginal histograms

## Description

`scatterhist(`

creates
the plot using additional options specified by one or more name-value
pair arguments. For example, you can specify a grouping variable or
change the display options.`x`

,`y`

,`Name,Value`

)

## Examples

### Create a `scatterhist`

Plot

Load the sample data. Create data vector `x`

from the first column of the data matrix, which contains sepal length measurements from iris flowers. Create data vector `y`

from the second column of the data matrix, which contains sepal width measurements from the same flowers.

```
load fisheriris
x = meas(:,1);
y = meas(:,2);
```

Create a scatter plot and two marginal histograms to visualize the relationship between sepal length and sepal width.

scatterhist(x,y)

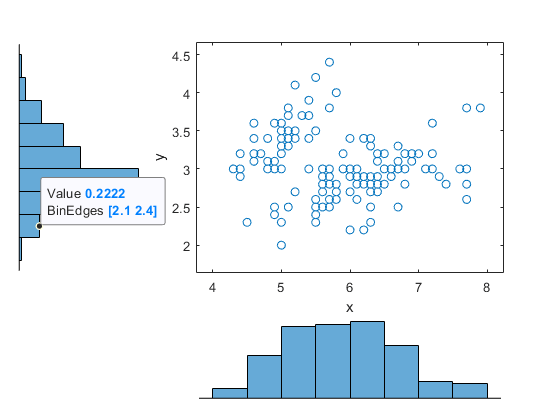

Display a data tip for a bin in a histogram. A data tip appears when you hover over a bin in a histogram.

The data tip displays the probability density function estimate of the selected bin and the lower and upper values for the bin edges.

### Plot Grouped Data

Load the sample data. Create data vector `x`

from the first column of the data matrix, which contains sepal length measurements from three species of iris flowers. Create data vector `y`

from the second column of the data matrix, which contains sepal width measurements from the same flowers.

```
load fisheriris.mat;
x = meas(:,1);
y = meas(:,2);
```

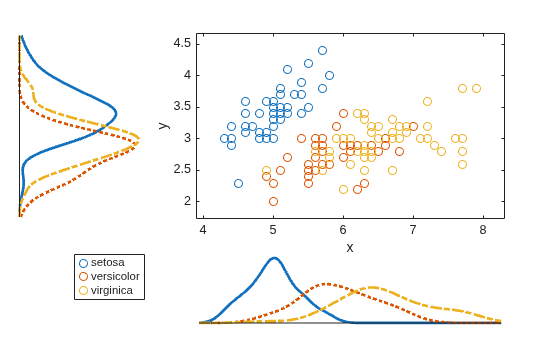

Create a scatter plot and six kernel density plots to visualize the relationship between sepal length and sepal width, grouped by species.

scatterhist(x,y,'Group',species,'Kernel','on')

The plot shows that the relationship between sepal length and width varies depending on the flower species.

### Customize the Plot Display

Load the sample data. Create data vector `x`

from the first column of the data matrix, which contains sepal length measurements from three different species of iris flowers. Create data vector `y`

from the second column of the data matrix, which contains sepal width measurements from the same flowers.

```
load fisheriris.mat;
x = meas(:,1);
y = meas(:,2);
```

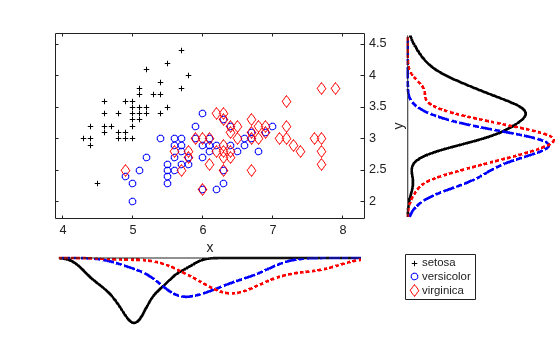

Create a scatter plot and six kernel density plots to visualize the relationship between sepal length and sepal width as measured on three species of iris flowers, grouped by species. Customize the appearance of the plots.

scatterhist(x,y,'Group',species,'Kernel','on','Location','SouthEast',... 'Direction','out','Color','kbr','LineStyle',{'-','-.',':'},... 'LineWidth',[2,2,2],'Marker','+od','MarkerSize',[4,5,6]);

### Customize Plots Using Axes Handles

Load the sample data. Create data vector `x`

from the first column of the data matrix, which contains sepal length measurements from three species of iris flowers. Create data vector `y`

from the second column of the data matrix, which contains sepal width measurements from the same flowers.

```
load fisheriris.mat;
x = meas(:,1);
y = meas(:,2);
```

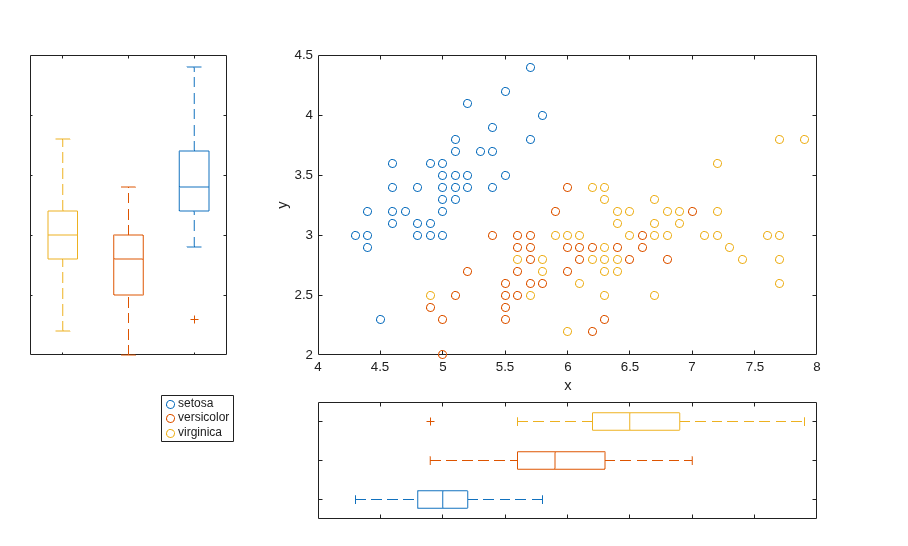

Use axis handles to replace the marginal histograms with box plots.

h = scatterhist(x,y,'Group',species); hold on; clr = get(h(1),'colororder'); boxplot(h(2),x,species,'orientation','horizontal',... 'label',{'','',''},'color',clr); boxplot(h(3),y,species,'orientation','horizontal',... 'label', {'','',''},'color',clr); set(h(2:3),'XTickLabel',''); view(h(3),[270,90]); % Rotate the Y plot axis(h(1),'auto'); % Sync axes hold off;

### Create a `scatterhist`

Plot in a Specified Parent Container

Load the sample data. Create data vector `x`

from the first column of the data matrix, which contains sepal length measurements from iris flowers. Create data vector `y`

from the second column of the data matrix, which contains sepal width measurements from the same flowers.

```
load fisheriris
x = meas(:,1);
y = meas(:,2);
```

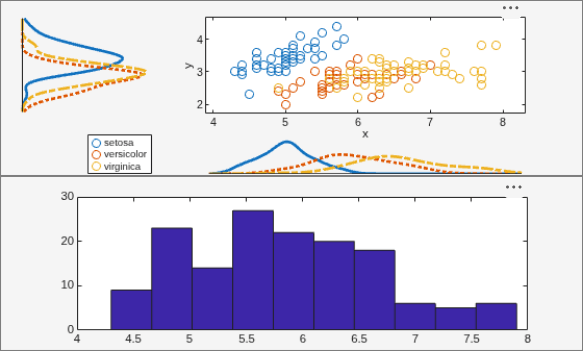

Create a new figure and define two `uipanel`

objects to divide the figure into two parts. In the upper half of the figure, plot the sample data using `scatterhist`

. Include marginal kernel density plots grouped by species. In the lower half of the figure, plot a histogram of the sepal length measurements contained in `x`

.

figure hp1 = uipanel('position',[0 .5 1 .5]); hp2 = uipanel('position',[0 0 1 .5]); scatterhist(x,y,'Group',species,'Kernel','on','Parent',hp1); axes('Parent',hp2); hist(x);

## Input Arguments

`x`

— Sample data

vector

Sample data, specified as a vector. The data vectors `x`

and `y`

must
be the same length.

If `x`

or `y`

contain `NaN`

values,
then `scatterhist`

:

Removes rows with

`NaN`

values in either`x`

or`y`

from both data vectors when generating the scatter plotRemoves rows with

`NaN`

values only from the corresponding`x`

or`y`

data vector when generating the marginal histograms

**Data Types: **`single`

| `double`

`y`

— Sample data

vector

Sample data, specified as a vector. The data vectors `x`

and `y`

must
be the same length.

If `x`

or `y`

contain `NaN`

values,
then `scatterhist`

:

Removes rows with

`NaN`

values in either`x`

or`y`

from both data vectors when generating the scatter plotRemoves rows with

`NaN`

values only from the corresponding`x`

or`y`

data vector when generating the marginal histograms

**Data Types: **`single`

| `double`

### Name-Value Arguments

Specify optional pairs of arguments as
`Name1=Value1,...,NameN=ValueN`

, where `Name`

is
the argument name and `Value`

is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.

*
Before R2021a, use commas to separate each name and value, and enclose*
`Name`

*in quotes.*

**Example: **`'Location','SouthEast','Direction','out'`

specifies
a plot with histograms located below and to the right of the scatter
plot, with the bars directed away from the scatter plot.

`NBins`

— Number of bins for histograms

positive integer value | vector

Number of bins for histograms, specified as the comma-separated
pair consisting of `'NBins'`

and a positive integer
value greater than or equal to 2, or vector of two such values. If
the number of bins is specified as a positive integer value, that
value is the number of bins for both the `x`

and `y`

histograms.
If the number of bins is specified by a vector, the first value is
the number of bins for the `x`

data, and the second
value is the number of bins for the `y`

data. By
default, the number of bins is computed based on the sample standard
deviation using Scott’s rule.

**Example: **`'NBins',[5,7]`

**Data Types: **`single`

| `double`

`Location`

— Location of marginal histograms

`'SouthWest'`

(default) | `'SouthEast'`

| `'NorthEast'`

| `'NorthWest'`

Location of the marginal histograms in the figure, specified
as the comma-separated pair consisting of `'Location'`

and
one of the following.

`'SouthWest'` | Plot the histograms below and to the left of the scatter plot. |

`'SouthEast'` | Plot the histograms below and to the right of the scatter plot. |

`'NorthEast'` | Plot the histograms above and to the right of the scatter plot. |

`'NorthWest'` | Plot the histograms above and to the left of the scatter plot. |

**Example: **`'Location','SouthEast'`

`Direction`

— Direction of marginal histograms

`'in'`

(default) | `'out'`

Direction of the marginal histograms, specified as the comma-separated
pair consisting of `'Direction'`

and one of the following.

`'in'` | Plot the histograms with the bars directed toward the scatter plot. |

`'out'` | Plot the histograms with the bars directed away from the scatter plot. |

**Example: **`'Direction','out'`

`Group`

— Grouping variable

categorical array | logical or numeric vector | character array | string array | cell array of character vectors

Grouping variable, specified as the comma-separated pair consisting of
`'Group'`

and a categorical array, logical or
numeric vector, character array, string array, or cell array of
character vectors. Each unique value in a grouping variable defines a
group.

For example, if `Gender`

is a cell array of character
vectors with values `'Male'`

and
`'Female'`

, you can use `Gender`

as a grouping variable to plot your data by gender.

The number of rows in the grouping variable must be equal to the
length of `x`

.

**Example: **`'Group',Gender`

**Data Types: **`categorical`

| `single`

| `double`

| `logical`

| `char`

| `string`

| `cell`

`PlotGroup`

— Grouped plot indicator

`'on'`

| `'off'`

Grouped plot indicator, specified as the comma-separated pair
consisting of `'PlotGroup'`

and one of the following.

`'on'` | Display grouped histograms or grouped kernel density plots.
This is the default if a `Group` parameter is specified. |

`'off'` | Display histograms or kernel density plots of the whole data
set. This is the default if a `Group` parameter
is not specified. |

**Example: **`'PlotGroup','off'`

`Style`

— Histogram display style

`'stairs'`

| `'bar'`

Histogram display style, specified as the comma-separated pair
consisting of `'PlotGroup'`

and one of the following.

`'stairs'` | Display a stairstep plot that shows the outline of the histogram without filling the bars. This is the default if you specify a grouping variable that contains more than one group. |

`'bar'` | Display a histogram bar plot. This is the default if you specify
a grouping variable that contains only one group or if `PlotGroup` is
specified as `'off'` . |

**Example: **`'Style','bar'`

`Kernel`

— Kernel density plot indicator

`'off'`

(default) | `'on'`

| `'overlay'`

Kernel density plot indicator, specified as the comma-separated
pair consisting of `'Kernel'`

and one of the following.

`'off'` | Display the marginal distributions as histograms. |

`'on'` | Display the marginal distributions as kernel density plots. |

`'overlay'` | Display the marginal distributions as kernel density plots
overlaid onto histograms, similar to `histfit` . |

**Example: **`'Kernel','overlay'`

`Bandwidth`

— Bandwidth of kernel smoothing window

matrix

Bandwidth of kernel smoothing window, specified as the comma-separated
pair consisting of `'Bandwidth'`

and a matrix of
size 2-by-*K*, where *K* is the
number of unique groups. The first row of the matrix gives the bandwidth
of each group in `x`

, and the second row gives the
bandwidth of each group in `y`

. By default, `scatterhist`

finds
the optimal bandwidth for estimating normal densities. Specifying
a different bandwidth value changes the smoothing characteristics
of the resulting kernel density plot. The value specified is a scaling
factor for the normal distribution used to generate the kernel density
plot.

**Example: **`'Bandwidth',[.5,.2,.1;.15,.25,.35]`

**Data Types: **`single`

| `double`

`Legend`

— Legend visibility indicator

`'on'`

| `'off'`

Legend visibility indicator, specified as the comma-separated
pair consisting of `'Legend'`

and one of the following.

`'on'` | Set legend visible. This is the default if a `Group` parameter
is specified. |

`'off'` | Set legend invisible. This is the default if a `Group` parameter
is not specified. |

**Example: **`'Legend','on'`

`Parent`

— Parent container of the plot

`uipanel`

container object | `figure`

container object

`LineStyle`

— Style of kernel density plot line

valid line style | string array or cell array of line styles

Style of kernel density plot line, specified as the comma-separated pair consisting of
`'LineStyle'`

and a valid line style or a string
array or cell array of valid line styles. See `plot`

for valid line
styles. The default is a solid line. Use a string array or cell array to
specify different line styles for each group. When the total number of
groups exceeds the number of specified values,
`scatterhist`

cycles through the specified
values.

**Example: **`'LineStyle',{'-',':','-.'}`

**Data Types: **`char`

| `string`

| `cell`

`LineWidth`

— Width of kernel density plot line

`0.5`

(default) | nonnegative scalar value | vector

Width of kernel density plot line, specified as the comma-separated
pair consisting of `'LineWidth'`

and a nonnegative
scalar value or vector of nonnegative scalar values. The specified
value is the size of the kernel density plot line measured in points.
The default size is 0.5 points. Use a vector to specify different
line widths for each group. When the total number of groups is greater
than the number of specified values, `scatterhist`

cycles
through the specified values.

**Example: **`'LineWidth',[0.5,1,2]`

**Data Types: **`single`

| `double`

`Color`

— Marker color for each scatter plot group

character vector or string scalar of color names | matrix of RGB values

Marker color for each scatter plot group, specified as the comma-separated pair consisting of
`'Color'`

and a character vector or string scalar
of color names, or a three-column matrix of RGB values in the range
[0,1]. If you specify colors using a matrix, then each row of the matrix
is an RGB triplet that represents a group. The three columns of the
matrix represent the R value, G value, and B value, respectively. When
the total number of groups exceeds the number of specified colors,
`scatterhist`

cycles through the specified
colors.

This table lists the predefined colors and their equivalent RGB triplet values.

Option | Description | Equivalent RGB Triplet |
---|---|---|

`'red'` or
`'r'` | Red | `[1 0 0]` |

`'green'` or
`'g'` | Green | `[0 1 0]` |

`'blue'` or
`'b'` | Blue | `[0 0 1]` |

`'yellow'` or
`'y'` | Yellow | `[1 1 0]` |

`'magenta'` or
`'m'` | Magenta | `[1 0 1]` |

`'cyan'` or
`'c'` | Cyan | `[0 1 1]` |

`'white'` or
`'w'` | White | `[1 1 1]` |

`'black'` or
`'k'` | Black | `[0 0 0]` |

**Example: **`'Color','kcm'`

**Example: **`'Color',[.5,0,1;0,.5,.5]`

**Data Types: **`single`

| `double`

| `char`

| `string`

`Marker`

— Marker symbol for each scatterplot group

`'o'`

(default) | character vector | string scalar

Marker symbol for each scatter plot group, specified as the comma-separated pair consisting of
`'Marker'`

and a character vector or string scalar
of one or more valid marker symbols. See `plot`

for valid symbols.
The default is `'o'`

, a circle. When the total number
of groups exceeds the number of specified symbols,
`scatterhist`

cycles through the specified
symbols.

**Example: **`'Marker','+do'`

**Data Types: **`char`

| `string`

`MarkerSize`

— Marker size for each scatter plot group

`6`

(default) | nonnegative scalar value | vector

Marker size for each scatter plot group, specified as the comma-separated
pair consisting of `'MarkerSize'`

and a nonnegative
scalar value or a vector of nonnegative scalar values, measured in
points. When the total number of groups exceeds the number of specified
values, `scatterhist`

cycles through the specified
values.

**Example: **`'MarkerSize',10`

**Data Types: **`single`

| `double`

## Output Arguments

`h`

— Axes handles

vector

Axes handles for the three plots, returned as a vector. The vector contains the handles for the scatter plot, the histogram along the horizontal axis, and the histogram along the vertical axis, respectively.

## Alternative Functionality

Alternatively, you can create a `ScatterHistogramChart`

object by
using the `scatterhistogram`

function.

Explore the data interactively in the object by panning, zooming, and using data tips. Unlike the

`scatterhist`

function,`scatterhistogram`

updates the marginal histograms based on the data within the current scatter plot limits.Control the appearance and behavior of the scatter histogram chart by changing the ScatterHistogramChart Properties.

## Version History

**Introduced in R2007a**

## Open Example

You have a modified version of this example. Do you want to open this example with your edits?

## MATLAB Command

You clicked a link that corresponds to this MATLAB command:

Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.

# Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
