plot
2-D line plot
Syntax
Description
Vector and Matrix Data
plot(
plots Y
)Y
against an implicit set of x-coordinates.
If
Y
is a vector, the x-coordinates range from 1 tolength(Y)
.If
Y
is a matrix, the plot contains one line for each column inY
. The x-coordinates range from 1 to the number of rows inY
.
If Y
contains complex numbers, MATLAB® plots the imaginary part of Y
versus the real
part of Y
. If you specify both X
and
Y
, the imaginary part is ignored.
Table Data
plot(
plots the variables tbl
,xvar
,yvar
)xvar
and yvar
from the
table tbl
. To plot one data set, specify one variable for
xvar
and one variable for yvar
. To
plot multiple data sets, specify multiple variables for xvar
,
yvar
, or both. If both arguments specify multiple
variables, they must specify the same number of variables. (since R2022a)
Additional Options
plot(
displays
the plot in the target axes. Specify the axes as the first argument in any of
the previous syntaxes.ax
,___)
plot(___,
specifies Name,Value
)Line
properties using one or more name-value
arguments. The properties apply to all the plotted lines. Specify the name-value
arguments after all the arguments in any of the previous syntaxes. For a list of
properties, see Line Properties.
p = plot(___)
returns a
Line
object or an array of Line
objects. Use p
to modify properties of the plot after
creating it. For a list of properties, see Line Properties.
Examples
Create Line Plot
Create x
as a vector of linearly spaced values between 0 and . Use an increment of between the values. Create y
as sine values of x
. Create a line plot of the data.
x = 0:pi/100:2*pi; y = sin(x); plot(x,y)
Plot Multiple Lines
Define x
as 100 linearly spaced values between and . Define y1
and y2
as sine and cosine values of x
. Create a line plot of both sets of data.
x = linspace(-2*pi,2*pi); y1 = sin(x); y2 = cos(x); figure plot(x,y1,x,y2)
Create Line Plot From Matrix
Define Y
as the 4-by-4 matrix returned by the magic
function.
Y = magic(4)
Y = 4×4
16 2 3 13
5 11 10 8
9 7 6 12
4 14 15 1
Create a 2-D line plot of Y
. MATLAB® plots each matrix column as a separate line.
figure plot(Y)
Specify Line Style
Plot three sine curves with a small phase shift between each line. Use the default line style for the first line. Specify a dashed line style for the second line and a dotted line style for the third line.
x = 0:pi/100:2*pi; y1 = sin(x); y2 = sin(x-0.25); y3 = sin(x-0.5); figure plot(x,y1,x,y2,'--',x,y3,':')
MATLAB® cycles the line color through the default color order.
Specify Line Style, Color, and Marker
Plot three sine curves with a small phase shift between each line. Use a green line with no markers for the first sine curve. Use a blue dashed line with circle markers for the second sine curve. Use only cyan star markers for the third sine curve.
x = 0:pi/10:2*pi; y1 = sin(x); y2 = sin(x-0.25); y3 = sin(x-0.5); figure plot(x,y1,'g',x,y2,'b--o',x,y3,'c*')

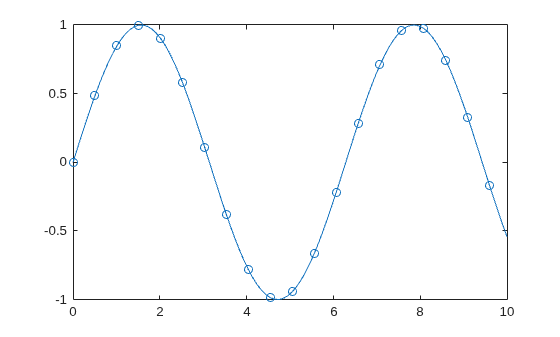

Display Markers at Specific Data Points
Create a line plot and display markers at every fifth data point by specifying a marker symbol and setting the MarkerIndices
property as a name-value pair.
x = linspace(0,10); y = sin(x); plot(x,y,'-o','MarkerIndices',1:5:length(y))

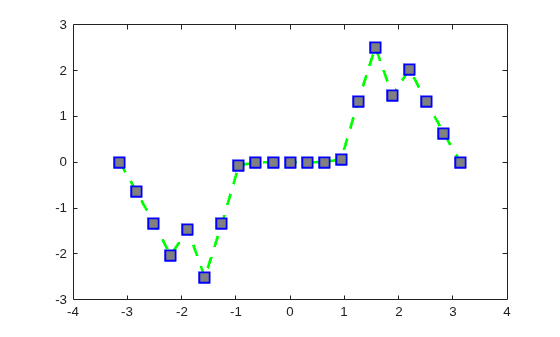

Specify Line Width, Marker Size, and Marker Color
Create a line plot and use the LineSpec
option to specify a dashed green line with square markers. Use Name,Value
pairs to specify the line width, marker size, and marker colors. Set the marker edge color to blue and set the marker face color using an RGB color value.
x = -pi:pi/10:pi; y = tan(sin(x)) - sin(tan(x)); figure plot(x,y,'--gs',... 'LineWidth',2,... 'MarkerSize',10,... 'MarkerEdgeColor','b',... 'MarkerFaceColor',[0.5,0.5,0.5])
Add Title and Axis Labels
Use the linspace
function to define x
as a vector of 150 values between 0 and 10. Define y
as cosine values of x
.
x = linspace(0,10,150); y = cos(5*x);
Create a 2-D line plot of the cosine curve. Change the line color to a shade of blue-green using an RGB color value. Add a title and axis labels to the graph using the title
, xlabel
, and ylabel
functions.
figure plot(x,y,'Color',[0,0.7,0.9]) title('2-D Line Plot') xlabel('x') ylabel('cos(5x)')
Plot Durations and Specify Tick Format
Define t
as seven linearly spaced duration
values between 0 and 3 minutes. Plot random data and specify the format of the duration
tick marks using the 'DurationTickFormat'
name-value pair argument.
t = 0:seconds(30):minutes(3); y = rand(1,7); plot(t,y,'DurationTickFormat','mm:ss')
Plot Coordinates from a Table
Since R2022a
A convenient way to plot data from a table is to pass the table to the plot
function and specify the variables to plot.
Read weather.csv
as a timetable tbl
. Then display the first three rows of the table.
tbl = readtimetable("weather.csv");
tbl = sortrows(tbl);
head(tbl,3)
Time WindDirection WindSpeed Humidity Temperature RainInchesPerMinute CumulativeRainfall PressureHg PowerLevel LightIntensity ____________________ _____________ _________ ________ ___________ ___________________ __________________ __________ __________ ______________ 25-Oct-2021 00:00:09 46 1 84 49.2 0 0 29.96 4.14 0 25-Oct-2021 00:01:09 45 1.6 84 49.2 0 0 29.96 4.139 0 25-Oct-2021 00:02:09 36 2.2 84 49.2 0 0 29.96 4.138 0
Plot the row times on the x-axis and the RainInchesPerMinute
variable on the y-axis. When you plot data from a timetable, the row times are plotted on the x-axis by default. Thus, you do not need to specify the Time
variable. Return the Line
object as p
. Notice that the axis labels match the variable names.
p = plot(tbl,"RainInchesPerMinute");
To modify aspects of the line, set the LineStyle
, Color
, and Marker
properties on the Line
object. For example, change the line to a red dotted line with point markers.
p.LineStyle = ":"; p.Color = "red"; p.Marker = ".";
Plot Multiple Table Variables on One Axis
Since R2022a
Read weather.csv
as a timetable tbl
, and display the first few rows of the table.
tbl = readtimetable("weather.csv");
head(tbl,3)
Time WindDirection WindSpeed Humidity Temperature RainInchesPerMinute CumulativeRainfall PressureHg PowerLevel LightIntensity ____________________ _____________ _________ ________ ___________ ___________________ __________________ __________ __________ ______________ 25-Oct-2021 00:00:09 46 1 84 49.2 0 0 29.96 4.14 0 25-Oct-2021 00:01:09 45 1.6 84 49.2 0 0 29.96 4.139 0 25-Oct-2021 00:02:09 36 2.2 84 49.2 0 0 29.96 4.138 0
Plot the row times on the x-axis and the Temperature
and PressureHg
variables on the y-axis. When you plot data from a timetable, the row times are plotted on the x-axis by default. Thus, you do not need to specify the Time
variable.
Add a legend. Notice that the legend labels match the variable names.
plot(tbl,["Temperature" "PressureHg"]) legend

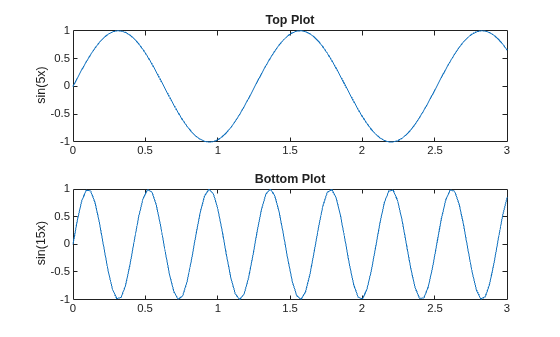

Specify Axes for Line Plot
Call the tiledlayout
function to create a 2-by-1 tiled chart layout. Call the nexttile
function to create an axes object and return the object as ax1
. Create the top plot by passing ax1
to the plot
function. Add a title and y-axis label to the plot by passing the axes to the title
and ylabel
functions. Repeat the process to create the bottom plot.
% Create data and 2-by-1 tiled chart layout x = linspace(0,3); y1 = sin(5*x); y2 = sin(15*x); tiledlayout(2,1) % Top plot ax1 = nexttile; plot(ax1,x,y1) title(ax1,'Top Plot') ylabel(ax1,'sin(5x)') % Bottom plot ax2 = nexttile; plot(ax2,x,y2) title(ax2,'Bottom Plot') ylabel(ax2,'sin(15x)')
Modify Lines After Creation
Define x
as 100 linearly spaced values between and . Define y1
and y2
as sine and cosine values of x
. Create a line plot of both sets of data and return the two chart lines in p
.
x = linspace(-2*pi,2*pi); y1 = sin(x); y2 = cos(x); p = plot(x,y1,x,y2);
Change the line width of the first line to 2. Add star markers to the second line. Use dot notation to set properties.
p(1).LineWidth = 2;
p(2).Marker = '*';
Plot Circle
Plot a circle centered at the point (4,3) with a radius equal to 2. Use axis equal
to use equal data units along each coordinate direction.
r = 2;
xc = 4;
yc = 3;
theta = linspace(0,2*pi);
x = r*cos(theta) + xc;
y = r*sin(theta) + yc;
plot(x,y)
axis equal
Input Arguments
X
— x-coordinates
scalar | vector | matrix
x-coordinates, specified as a scalar, vector, or
matrix. The size and shape of X
depends on the shape of
your data and the type of plot you want to create. This table describes the
most common situations.
Type of Plot | How to Specify Coordinates |
---|---|
Single point | Specify plot(1,2,"o") |
One set of points | Specify plot([1 2 3],[4; 5; 6]) |
Multiple sets of points (using vectors) | Specify consecutive pairs of
plot([1 2 3],[4 5 6],[1 2 3],[7 8 9]) |
Multiple sets of points (using matrices) | If all the sets share the same x- or y-coordinates, specify the shared coordinates as a vector and the other coordinates as a matrix. The length of the vector must match one of the dimensions of the matrix. For example: plot([1 2 3],[4 5 6; 7 8 9]) Alternatively, specify
plot([1 2 3; 4 5 6],[7 8 9; 10 11 12]) |
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| categorical
| datetime
| duration
Y
— y-coordinates
scalar | vector | matrix
y-coordinates, specified as a scalar, vector, or
matrix. The size and shape of Y
depends on the shape of
your data and the type of plot you want to create. This table describes the
most common situations.
Type of Plot | How to Specify Coordinates |
---|---|
Single point | Specify plot(1,2,"o") |
One set of points | Specify plot([1 2 3],[4; 5; 6]) Alternatively, specify just the y-coordinates. For example: plot([4 5 6]) |
Multiple sets of points (using vectors) | Specify consecutive pairs of
plot([1 2 3],[4 5 6],[1 2 3],[7 8 9]) |
Multiple sets of points (using matrices) | If all the sets share the same x- or y-coordinates, specify the shared coordinates as a vector and the other coordinates as a matrix. The length of the vector must match one of the dimensions of the matrix. For example: plot([1 2 3],[4 5 6; 7 8 9]) Alternatively, specify
plot([1 2 3; 4 5 6],[7 8 9; 10 11 12]) |
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| categorical
| datetime
| duration
LineSpec
— Line style, marker, and color
string scalar | character vector
Line style, marker, and color, specified as a string scalar or character vector containing symbols. The symbols can appear in any order. You do not need to specify all three characteristics (line style, marker, and color). For example, if you omit the line style and specify the marker, then the plot shows only the marker and no line.
Example: "--or"
is a red dashed line with circle markers.
Line Style | Description | Resulting Line |
---|---|---|
"-" | Solid line |
|
"--" | Dashed line |
|
":" | Dotted line |
|
"-." | Dash-dotted line |
|
Marker | Description | Resulting Marker |
---|---|---|
"o" | Circle |
|
"+" | Plus sign |
|
"*" | Asterisk |
|
"." | Point |
|
"x" | Cross |
|
"_" | Horizontal line |
|
"|" | Vertical line |
|
"square" | Square |
|
"diamond" | Diamond |
|
"^" | Upward-pointing triangle |
|
"v" | Downward-pointing triangle |
|
">" | Right-pointing triangle |
|
"<" | Left-pointing triangle |
|
"pentagram" | Pentagram |
|
"hexagram" | Hexagram |
|
Color Name | Short Name | RGB Triplet | Appearance |
---|---|---|---|
"red" | "r" | [1 0 0] |
|
"green" | "g" | [0 1 0] |
|
"blue" | "b" | [0 0 1] |
|
"cyan"
| "c" | [0 1 1] |
|
"magenta" | "m" | [1 0 1] |
|
"yellow" | "y" | [1 1 0] |
|
"black" | "k" | [0 0 0] |
|
"white" | "w" | [1 1 1] |
|
tbl
— Source table
table | timetable
Source table containing the data to plot, specified as a table or a timetable.
xvar
— Table variables containing x-coordinates
string array | character vector | cell array | pattern | numeric scalar or vector | logical vector | vartype()
Table variables containing the x-coordinates, specified using one of the indexing schemes from the table.
Indexing Scheme | Examples |
---|---|
Variable names:
|
|
Variable index:
|
|
Variable type:
|
|
The table variables you specify can contain numeric, categorical,
datetime, or duration values. If xvar
and
yvar
both specify multiple variables, the number of
variables must be the same.
Example: plot(tbl,["x1","x2"],"y")
specifies the table
variables named x1
and x2
for the
x-coordinates.
Example: plot(tbl,2,"y")
specifies the second variable
for the x-coordinates.
Example: plot(tbl,vartype("numeric"),"y")
specifies all
numeric variables for the x-coordinates.
yvar
— Table variables containing y-coordinates
string array | character vector | cell array | pattern | numeric scalar or vector | logical vector | vartype()
Table variables containing the y-coordinates, specified using one of the indexing schemes from the table.
Indexing Scheme | Examples |
---|---|
Variable names:
|
|
Variable index:
|
|
Variable type:
|
|
The table variables you specify can contain numeric, categorical,
datetime, or duration values. If xvar
and
yvar
both specify multiple variables, the number of
variables must be the same.
Example: plot(tbl,"x",["y1","y2"])
specifies the table
variables named y1
and y2
for the
y-coordinates.
Example: plot(tbl,"x",2)
specifies the second variable
for the y-coordinates.
Example: plot(tbl,"x",vartype("numeric"))
specifies all
numeric variables for the y-coordinates.
ax
— Target axes
Axes
object | PolarAxes
object | GeographicAxes
object
Target axes, specified as an Axes
object, a
PolarAxes
object, or a
GeographicAxes
object. If you do not specify the
axes, MATLAB plots into the current axes or it creates an
Axes
object if one does not exist.
To create a polar plot or geographic plot, specify ax
as a PolarAxes
or GeographicAxes
object. Alternatively, call the polarplot
or geoplot
function.
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Example: plot([0 1],[2 3],LineWidth=2)
Before R2021a, use commas to separate each name and value, and enclose
Name
in quotes.
Example: plot([0 1],[2 3],"LineWidth",2)
Note
The properties listed here are only a subset. For a complete list, see Line Properties.
Color
— Line color
[0 0.4470 0.7410]
(default) | RGB triplet | hexadecimal color code | "r"
| "g"
| "b"
| ...
Line color, specified as an RGB triplet, a hexadecimal color code, a color name, or a short name.
For a custom color, specify an RGB triplet or a hexadecimal color code.
An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range
[0,1]
, for example,[0.4 0.6 0.7]
.A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (
#
) followed by three or six hexadecimal digits, which can range from0
toF
. The values are not case sensitive. Therefore, the color codes"#FF8800"
,"#ff8800"
,"#F80"
, and"#f80"
are equivalent.
Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.
Color Name | Short Name | RGB Triplet | Hexadecimal Color Code | Appearance |
---|---|---|---|---|
"red" | "r" | [1 0 0] | "#FF0000" | |
"green" | "g" | [0 1 0] | "#00FF00" | |
"blue" | "b" | [0 0 1] | "#0000FF" | |
"cyan"
| "c" | [0 1 1] | "#00FFFF" | |
"magenta" | "m" | [1 0 1] | "#FF00FF" | |
"yellow" | "y" | [1 1 0] | "#FFFF00" | |
"black" | "k" | [0 0 0] | "#000000" | |
"white" | "w" | [1 1 1] | "#FFFFFF" | |
"none" | Not applicable | Not applicable | Not applicable | No color |
Here are the RGB triplets and hexadecimal color codes for the default colors MATLAB uses in many types of plots.
RGB Triplet | Hexadecimal Color Code | Appearance |
---|---|---|
[0 0.4470 0.7410] | "#0072BD" | |
[0.8500 0.3250 0.0980] | "#D95319" | |
[0.9290 0.6940 0.1250] | "#EDB120" | |
[0.4940 0.1840 0.5560] | "#7E2F8E" | |
[0.4660 0.6740 0.1880] | "#77AC30" | |
[0.3010 0.7450 0.9330] | "#4DBEEE" | |
[0.6350 0.0780 0.1840] | "#A2142F" |
Example: "blue"
Example: [0
0 1]
Example: "#0000FF"
LineStyle
— Line style
"-"
(default) | "--"
| ":"
| "-."
| "none"
Line style, specified as one of the options listed in this table.
Line Style | Description | Resulting Line |
---|---|---|
"-" | Solid line |
|
"--" | Dashed line |
|
":" | Dotted line |
|
"-." | Dash-dotted line |
|
"none" | No line | No line |
LineWidth
— Line width
0.5
(default) | positive value
Line width, specified as a positive value in points, where 1 point = 1/72 of an inch. If the line has markers, then the line width also affects the marker edges.
The line width cannot be thinner than the width of a pixel. If you set the line width to a value that is less than the width of a pixel on your system, the line displays as one pixel wide.
Marker
— Marker symbol
"none"
(default) | "o"
| "+"
| "*"
| "."
| ...
Marker symbol, specified as one of the values listed in this table. By default, the object does not display markers. Specifying a marker symbol adds markers at each data point or vertex.
Marker | Description | Resulting Marker |
---|---|---|
"o" | Circle |
|
"+" | Plus sign |
|
"*" | Asterisk |
|
"." | Point |
|
"x" | Cross |
|
"_" | Horizontal line |
|
"|" | Vertical line |
|
"square" | Square |
|
"diamond" | Diamond |
|
"^" | Upward-pointing triangle |
|
"v" | Downward-pointing triangle |
|
">" | Right-pointing triangle |
|
"<" | Left-pointing triangle |
|
"pentagram" | Pentagram |
|
"hexagram" | Hexagram |
|
"none" | No markers | Not applicable |
MarkerIndices
— Indices of data points at which to display markers
1:length(YData)
(default) | vector of positive integers | scalar positive integer
Indices of data points at which to display markers, specified as a vector of positive integers. If you do not specify the indices, then MATLAB displays a marker at every data point.
Note
To see the markers, you must also specify a marker symbol.
Example: plot(x,y,"-o","MarkerIndices",[1 5 10])
displays a circle marker at
the first, fifth, and tenth data points.
Example: plot(x,y,"-x","MarkerIndices",1:3:length(y))
displays a cross
marker every three data points.
Example: plot(x,y,"Marker","square","MarkerIndices",5)
displays one square
marker at the fifth data point.
MarkerEdgeColor
— Marker outline color
"auto"
(default) | RGB triplet | hexadecimal color code | "r"
| "g"
| "b"
| ...
Marker outline color, specified as "auto"
, an RGB triplet, a
hexadecimal color code, a color name, or a short name. The default value of
"auto"
uses the same color as the Color
property.
For a custom color, specify an RGB triplet or a hexadecimal color code.
An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range
[0,1]
, for example,[0.4 0.6 0.7]
.A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (
#
) followed by three or six hexadecimal digits, which can range from0
toF
. The values are not case sensitive. Therefore, the color codes"#FF8800"
,"#ff8800"
,"#F80"
, and"#f80"
are equivalent.
Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.
Color Name | Short Name | RGB Triplet | Hexadecimal Color Code | Appearance |
---|---|---|---|---|
"red" | "r" | [1 0 0] | "#FF0000" | |
"green" | "g" | [0 1 0] | "#00FF00" | |
"blue" | "b" | [0 0 1] | "#0000FF" | |
"cyan"
| "c" | [0 1 1] | "#00FFFF" | |
"magenta" | "m" | [1 0 1] | "#FF00FF" | |
"yellow" | "y" | [1 1 0] | "#FFFF00" | |
"black" | "k" | [0 0 0] | "#000000" | |
"white" | "w" | [1 1 1] | "#FFFFFF" | |
"none" | Not applicable | Not applicable | Not applicable | No color |
Here are the RGB triplets and hexadecimal color codes for the default colors MATLAB uses in many types of plots.
RGB Triplet | Hexadecimal Color Code | Appearance |
---|---|---|
[0 0.4470 0.7410] | "#0072BD" | |
[0.8500 0.3250 0.0980] | "#D95319" | |
[0.9290 0.6940 0.1250] | "#EDB120" | |
[0.4940 0.1840 0.5560] | "#7E2F8E" | |
[0.4660 0.6740 0.1880] | "#77AC30" | |
[0.3010 0.7450 0.9330] | "#4DBEEE" | |
[0.6350 0.0780 0.1840] | "#A2142F" |
MarkerFaceColor
— Marker fill color
"none"
(default) | "auto"
| RGB triplet | hexadecimal color code | "r"
| "g"
| "b"
| ...
Marker fill color, specified as "auto"
, an RGB triplet, a hexadecimal
color code, a color name, or a short name. The "auto"
option uses the
same color as the Color
property of the parent axes. If you specify
"auto"
and the axes plot box is invisible, the marker fill color is
the color of the figure.
For a custom color, specify an RGB triplet or a hexadecimal color code.
An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range
[0,1]
, for example,[0.4 0.6 0.7]
.A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (
#
) followed by three or six hexadecimal digits, which can range from0
toF
. The values are not case sensitive. Therefore, the color codes"#FF8800"
,"#ff8800"
,"#F80"
, and"#f80"
are equivalent.
Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.
Color Name | Short Name | RGB Triplet | Hexadecimal Color Code | Appearance |
---|---|---|---|---|
"red" | "r" | [1 0 0] | "#FF0000" | |
"green" | "g" | [0 1 0] | "#00FF00" | |
"blue" | "b" | [0 0 1] | "#0000FF" | |
"cyan"
| "c" | [0 1 1] | "#00FFFF" | |
"magenta" | "m" | [1 0 1] | "#FF00FF" | |
"yellow" | "y" | [1 1 0] | "#FFFF00" | |
"black" | "k" | [0 0 0] | "#000000" | |
"white" | "w" | [1 1 1] | "#FFFFFF" | |
"none" | Not applicable | Not applicable | Not applicable | No color |
Here are the RGB triplets and hexadecimal color codes for the default colors MATLAB uses in many types of plots.
RGB Triplet | Hexadecimal Color Code | Appearance |
---|---|---|
[0 0.4470 0.7410] | "#0072BD" | |
[0.8500 0.3250 0.0980] | "#D95319" | |
[0.9290 0.6940 0.1250] | "#EDB120" | |
[0.4940 0.1840 0.5560] | "#7E2F8E" | |
[0.4660 0.6740 0.1880] | "#77AC30" | |
[0.3010 0.7450 0.9330] | "#4DBEEE" | |
[0.6350 0.0780 0.1840] | "#A2142F" |
MarkerSize
— Marker size
6
(default) | positive value
Marker size, specified as a positive value in points, where 1 point = 1/72 of an inch.
DatetimeTickFormat
— Format for datetime
tick labels
character vector | string
Format for datetime
tick labels, specified as the comma-separated pair
consisting of "DatetimeTickFormat"
and a character
vector or string containing a date format. Use the letters
A-Z
and a-z
to construct a
custom format. These letters correspond to the Unicode® Locale Data Markup Language (LDML) standard for dates. You
can include non-ASCII letter characters such as a hyphen, space, or
colon to separate the fields.
If you do not specify a value for "DatetimeTickFormat"
, then
plot
automatically optimizes and updates the
tick labels based on the axis limits.
Example: "DatetimeTickFormat","eeee, MMMM d, yyyy HH:mm:ss"
displays a date
and time such as Saturday, April 19, 2014
21:41:06
.
The following table shows several common display formats and examples of the formatted output for the date, Saturday, April 19, 2014 at 9:41:06 PM in New York City.
Value of DatetimeTickFormat | Example |
---|---|
"yyyy-MM-dd" | 2014-04-19 |
"dd/MM/yyyy" | 19/04/2014 |
"dd.MM.yyyy" | 19.04.2014 |
"yyyy年 MM月
dd日" | 2014年 04月 19日 |
"MMMM d, yyyy" | April 19, 2014 |
"eeee, MMMM d, yyyy HH:mm:ss" | Saturday, April 19, 2014 21:41:06 |
"MMMM d, yyyy HH:mm:ss Z" | April 19, 2014 21:41:06 -0400 |
For a complete list of valid letter identifiers, see the Format
property
for datetime arrays.
DatetimeTickFormat
is not a chart line property.
You must set the tick format using the name-value pair argument when
creating a plot. Alternatively, set the format using the xtickformat
and ytickformat
functions.
The TickLabelFormat
property of the datetime
ruler stores the format.
DurationTickFormat
— Format for duration
tick labels
character vector | string
Format for duration
tick labels, specified as the comma-separated pair
consisting of "DurationTickFormat"
and a character
vector or string containing a duration format.
If you do not specify a value for "DurationTickFormat"
, then
plot
automatically optimizes and updates the
tick labels based on the axis limits.
To display a duration as a single number that includes a fractional part, for example, 1.234 hours, specify one of the values in this table.
Value of DurationTickFormat | Description |
---|---|
"y" | Number of exact fixed-length years. A fixed-length year is equal to 365.2425 days. |
"d" | Number of exact fixed-length days. A fixed-length day is equal to 24 hours. |
"h" | Number of hours |
"m" | Number of minutes |
"s" | Number of seconds |
Example: "DurationTickFormat","d"
displays duration values in terms of
fixed-length days.
To display a duration in the form of a digital timer, specify one of these values.
"dd:hh:mm:ss"
"hh:mm:ss"
"mm:ss"
"hh:mm"
In addition, you can display up to nine fractional
second digits by appending up to nine S
characters.
Example: "DurationTickFormat","hh:mm:ss.SSS"
displays the milliseconds of a
duration value to three digits.
DurationTickFormat
is not a chart line property.
You must set the tick format using the name-value pair argument when
creating a plot. Alternatively, set the format using the xtickformat
and ytickformat
functions.
The TickLabelFormat
property of the duration
ruler stores the format.
Tips
Use
NaN
andInf
values to create breaks in the lines. For example, this code plots the first two elements, skips the third element, and draws another line using the last two elements:plot([1,2,NaN,4,5])
plot
uses colors and line styles based on theColorOrder
andLineStyleOrder
properties of the axes.plot
cycles through the colors with the first line style. Then, it cycles through the colors again with each additional line style.You can change the colors and the line styles after plotting by setting the
ColorOrder
orLineStyleOrder
properties on the axes. You can also call thecolororder
function to change the color order for all the axes in the figure.
Extended Capabilities
Tall Arrays
Calculate with arrays that have more rows than fit in memory.
The
plot
function supports tall arrays with the following usage
notes and limitations:
Supported syntaxes for tall arrays
X
andY
are:plot(X,Y)
plot(Y)
plot(___,LineSpec)
plot(___,Name,Value)
plot(ax,___)
X
must be in monotonically increasing order.Categorical inputs are not supported.
Tall inputs must be real column vectors.
With tall arrays, the
plot
function plots in iterations, progressively adding to the plot as more data is read. During the updates, a progress indicator shows the proportion of data that has been plotted. Zooming and panning is supported during the updating process, before the plot is complete. To stop the update process, press the pause button in the progress indicator.
For more information, see Visualization of Tall Arrays.
GPU Arrays
Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.
The plot
function
supports GPU array input with these usage notes and limitations:
This function accepts GPU arrays, but does not run on a GPU.
For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).
Distributed Arrays
Partition large arrays across the combined memory of your cluster using Parallel Computing Toolbox™.
Usage notes and limitations:
This function operates on distributed arrays, but executes in the client MATLAB.
For more information, see Run MATLAB Functions with Distributed Arrays (Parallel Computing Toolbox).
Version History
Introduced before R2006aR2022b: Plots created with tables preserve special characters in axis and legend labels
When you pass a table and one or more variable names to the plot
function, the axis and legend labels now display any special characters that are included in the table variable names, such as underscores. Previously, special characters were interpreted as TeX or LaTeX characters.
For example, if you pass a table containing a variable named Sample_Number
to the plot
function, the underscore appears in the axis and
legend labels. In R2022a and earlier releases, the underscores are interpreted as
subscripts.
Release | Label for Table Variable "Sample_Number" |
---|---|
R2022b |
|
R2022a |
|
To display axis and legend labels with TeX or LaTeX formatting, specify the labels manually.
For example, after plotting, call the xlabel
or
legend
function with the desired label strings.
xlabel("Sample_Number") legend(["Sample_Number" "Another_Legend_Label"])
R2022a: Pass tables directly to plot
Create plots by passing a table to the plot
function followed by the variables you want to plot. When you specify your data as a table, the axis labels and the legend (if present) are automatically labeled using the table variable names.
See Also
Functions
Properties
External Websites
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
