gscatter

Scatter plot by group

Description

example

gscatter(x,y,g) creates a scatter plot of x and y, grouped by g. The inputs x and y are vectors of the same size.

example

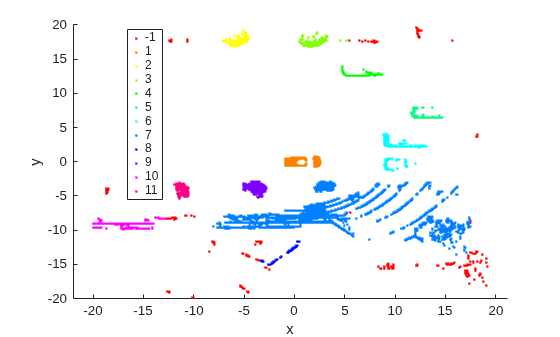

gscatter(x,y,g,clr,sym,siz) specifies the marker color clr, symbol sym, and size siz for each group.

gscatter(x,y,g,clr,sym,siz,doleg) controls whether a legend is displayed on the graph. gscatter creates a legend by default.

example

gscatter(x,y,g,clr,sym,siz,doleg,xnam,ynam) specifies the names to use for the x-axis and y-axis labels. If you do not provide xnam and ynam, and the x and y inputs are variables with names, then gscatter labels the axes with the variable names.

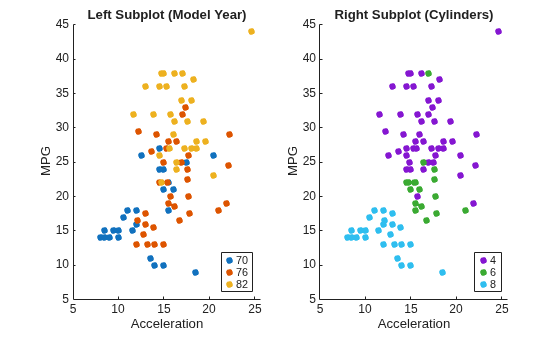

gscatter(ax,___) uses the plot axes specified by the axes object ax. Specify ax as the first input argument followed by any of the input argument combinations in the previous syntaxes.

example

h = gscatter(___) returns graphics handles corresponding to the groups in g.

Examples

collapse all

Load the carsmall data set.

load carsmall

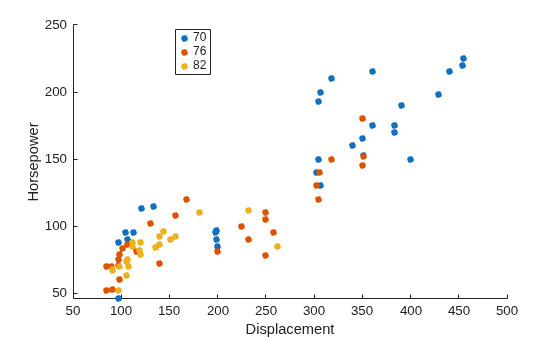

Plot the Displacement values on the x-axis and the Horsepower values on the y-axis. gscatter uses the variable names as the default labels for the axes. Group the data points by Model_Year.

gscatter(Displacement,Horsepower,Model_Year)

Load the discrim data set.

load discrim

The data set contains ratings of cities according to nine factors such as climate, housing, education, and health. The matrix ratings contains the ratings information.

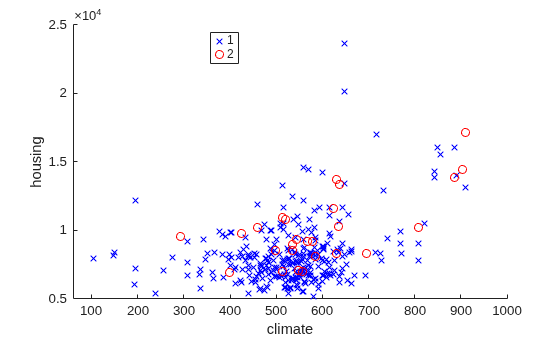

Plot the relationship between the ratings for climate (first column) and housing (second column) grouped by city size in the matrix group. Choose different colors and plotting symbols for each group.

gscatter(ratings(:,1),ratings(:,2),group,'br','xo')
xlabel('climate')
ylabel('housing')

Load the hospital data set.

load hospital

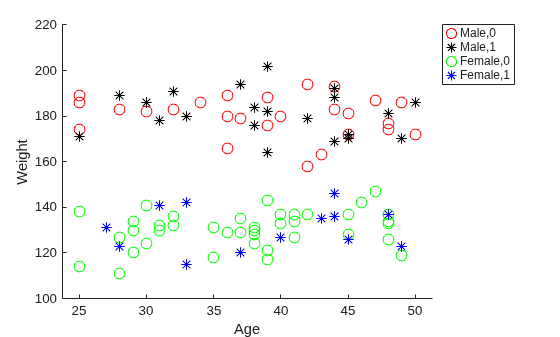

Plot the ages and weights of the hospital patients. Group the patients according to their gender and smoker status. Use the o symbol to represent nonsmokers and the * symbol to represent smokers.

x = hospital.Age;
y = hospital.Weight;
g = {hospital.Sex,hospital.Smoker};
gscatter(x,y,g,'rkgb','o*',8,'on','Age','Weight')
legend('Location','northeastoutside')

Load the carbig data set.

load carbig

Create a scatter plot comparing Acceleration to MPG. Group data points based on Origin.

h = gscatter(Acceleration,MPG,Origin)
h =
  7x1 Line array:

  Line    (USA)
  Line    (France)
  Line    (Japan)
  Line    (Germany)
  Line    (Sweden)
  Line    (Italy)
  Line    (England)

Display the Line object corresponding to the group labeled (Japan).

jgroup = h(3)
jgroup =
  Line (Japan) with properties:

              Color: [0.2857 1 0]
          LineStyle: 'none'
          LineWidth: 0.5000
             Marker: '.'
         MarkerSize: 15
    MarkerFaceColor: 'none'
              XData: [1x79 double]
              YData: [1x79 double]
              ZData: [1x0 double]

  Show all properties

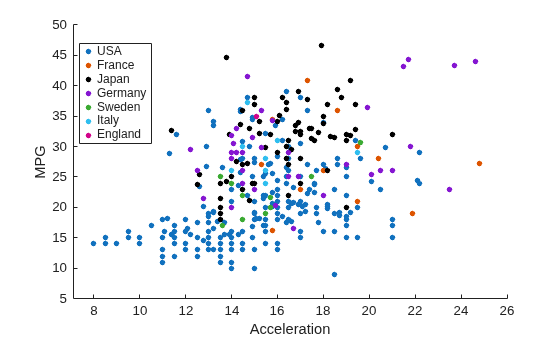

Change the marker color for the Japan group to black.

jgroup.Color = 'k';

Input Arguments

collapse all

x-axis values, specified as a numeric vector. x must have the same size as y.

Data Types: single | double

y-axis values, specified as a numeric vector. y must have the same size as x.

Data Types: single | double

Grouping variable, specified as a categorical vector, logical vector, numeric vector, character array, string array, or cell array of character vectors. Alternatively, g can be a cell array containing several grouping variables (such as {g1 g2 g3}), in which case observations are in the same group if they have common values of all grouping variables. Points in the same group appear on the scatter plot with the same marker color, symbol, and size.

The number of rows in g must be equal to the length of x.

Example: species

Example: {Cylinders,Origin}

Data Types: categorical | logical | single | double | char | string | cell

Marker colors, specified as either a character vector or string scalar of colors recognized by the plot function or a matrix of RGB triplet values. Each RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color, respectively. Each intensity must be in the range [0,1].

This table lists the available color characters and their equivalent RGB triplet values.

Long NameShort NameRGB Triplet
Yellow'y'[1 1 0]
Magenta'm'[1 0 1]
Cyan'c'[0 1 1]
Red'r'[1 0 0]
Green'g'[0 1 0]
Blue'b'[0 0 1]
White'w'[1 1 1]
Black'k'[0 0 0]

If you do not specify enough values for all groups, then gscatter cycles through the specified values as needed.

Example: 'rgb'

Example: [0 0 1; 0 0 0]

Data Types: char | string | single | double

Marker symbols, specified as a character vector or string scalar of symbols recognized by the plot function. This table lists the available marker symbols.

ValueDescription
'o'Circle
'+'Plus sign
'*'Asterisk
'.'Point
'x'Cross
's'Square
'd'Diamond
'^'Upward-pointing triangle
'v'Downward-pointing triangle
'>'Right-pointing triangle
'<'Left-pointing triangle
'p'Five-pointed star (pentagram)
'h'Six-pointed star (hexagram)
'none'No markers

If you do not specify enough values for all groups, then gscatter cycles through the specified values as needed.

Example: 'o+*v'

Data Types: char | string

Marker sizes, specified as a positive numeric vector in points. The default value is determined by the number of observations. If you do not specify enough values for all groups, then gscatter cycles through the specified values as needed.

Example: [6 12]

Data Types: single | double

Option to include a legend, specified as either 'on' or 'off'. By default, the legend is displayed on the graph.

x-axis label, specified as a character vector or string scalar.

Data Types: char | string

y-axis label, specified as a character vector or string scalar.

Data Types: char | string

Axes for the plot, specified as an Axes or UIAxes object. If you do not specify ax, then gscatter creates the plot using the current axes. For more information on creating an axes object, see axes and uiaxes.

Output Arguments

collapse all

Graphics handles, returned as an array of Line objects. Each Line object corresponds to one of the groups in g. You can use dot notation to query and set properties of the line objects. For a list of Line object properties, see Line Properties.

Introduced before R2006a
