Divide
Divide one input by another
Libraries:
Simulink /
Math Operations
HDL Coder /
HDL Floating Point Operations
HDL Coder /
Math Operations
Description
The Divide block outputs the result of dividing its first input by its second. The inputs can be scalars, a scalar and a nonscalar, or two nonscalars that have the same dimensions. This block supports only complex input values at division ports when all ports have the same single or double data type.
The Divide block is functionally a Product block that has two block parameter values preset:
Multiplication —
Elementwise(.*)
Number of Inputs —
*/
Setting nondefault values for either of those parameters can change a Divide block to be functionally equivalent to a Product block or a Product of Elements block.

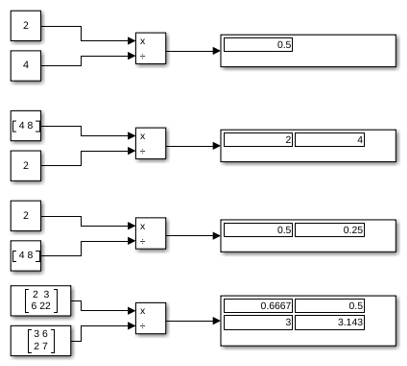

Examples
Ports
Input
X — Input signal to multiply
scalar  vector  matrix  ND array
Input signal to be multiplied with other inputs.
Dependencies
To enable one or more X ports, specify one or
more *
characters for the Number of
inputs parameter and set the
Multiplication parameter to
Elementwise(.*)
.
Data Types: half
 single
 double
 int8
 int16
 int32
 int64
 uint8
 uint16
 uint32
 uint64
 Boolean
 fixed point
÷ — Input signal to divide or invert
scalar  vector  matrix  ND array
Input signal for division or inversion operations.
Dependencies
To enable one or more ÷ ports, specify one or
more /
characters for the Number of
inputs parameter and set the
Multiplication parameter to
Elementwise(.*)
.
Data Types: half
 single
 double
 int8
 int16
 int32
 int64
 uint8
 uint16
 uint32
 uint64
 Boolean
 fixed point
Port_1 — First input to multiply or divide
scalar  vector  matrix  ND array
First input to multiply or divide, provided as a scalar, vector, matrix, or ND array.
Data Types: half
 single
 double
 int8
 int16
 int32
 int64
 uint8
 uint16
 uint32
 uint64
 Boolean
 fixed point
Port_N — Nth input to multiply or divide
scalar  vector  matrix  ND array
Nth input to multiply or divide, provided as a scalar, vector, matrix, or ND array.
Data Types: half
 single
 double
 int8
 int16
 int32
 int64
 uint8
 uint16
 uint32
 uint64
 Boolean
 fixed point
* — Input signal to multiply
scalar  vector  matrix  ND array
Input signal to be multiplied with other inputs.
Dependencies
To enable one or more * ports, specify one or
more *
characters for the Number of
inputs parameter and set the
Multiplication parameter to
Matrix(*)
.
Data Types: half
 single
 double
 int8
 int16
 int32
 int64
 uint8
 uint16
 uint32
 uint64
 Boolean
 fixed point
Inv — Input signal to divide or invert
scalar  vector  matrix  ND array
Input signal for division or inversion operations.
Dependencies
To enable one or more Inv ports, specify one
or more /
characters for the Number of
inputs parameter and set the
Multiplication parameter to
Matrix(*)
.
Data Types: half
 single
 double
 int8
 int16
 int32
 int64
 uint8
 uint16
 uint32
 uint64
 Boolean
 fixed point
Output
Port_1 — Output computed by multiplying, dividing, or inverting inputs
scalar  vector  matrix  ND array
Output computed by multiplying, dividing, or inverting inputs.
Data Types: half
 single
 double
 int8
 int16
 int32
 int64
 uint8
 uint16
 uint32
 uint64
 Boolean
 fixed point
Parameters
Main
Number of inputs — Control number of inputs and type of operation
*/
(default)  positive integer scalar  *
or /
for each input
port
Control two properties of the block:
The number of input ports on the block
Whether each input is multiplied or divided into the output
When you specify:
1
or*
or/
The block has one input port. In elementwise mode, the block processes the input as described for the Product of Elements block. In matrix mode, if the parameter value is
1
or*
, the block outputs the input value. If the value is/
, the input must be a square matrix (including a scalar as a degenerate case) and the block outputs the matrix inverse. See ElementWise Mode and Matrix Mode for more information.Integer value > 1
The block has the number of inputs given by the integer value. The inputs are multiplied together in elementwise mode or matrix mode, as specified by the Multiplication parameter. See ElementWise Mode and Matrix Mode for more information.
Unquoted string of two or more
*
and/
charactersThe block has the number of inputs given by the length of the character vector. Each input that corresponds to a
*
character is multiplied into the output. Each input that corresponds to a/
character is divided into the output. The operations occur in elementwise mode or matrix mode, as specified by the Multiplication parameter. See ElementWise Mode and Matrix Mode for more information.
Programmatic Use
Block Parameter:
Inputs
Type: character vector
Values:
'2'  '*'  '**'  '*/'  '*/*'
...
Default:
'*/'
Multiplication — Elementwise (.*) or Matrix (*) multiplication
Elementwise(.*)
(default)  Matrix(*)
Specify whether the block performs Elementwise(.*)
or
Matrix(*)
multiplication.
Programmatic Use
Block Parameter:
Multiplication
Type: character vector
Values:
'Elementwise(.*)'  'Matrix(*)'
Default:
'Elementwise(.*)'
Multiply over — All dimensions or specified dimension
All dimensions
(default)  Specified dimension
Specify the dimension to multiply over as All dimensions
, or
Specified dimension
. When you select
Specified dimension
, you can specify the
Dimension as 1
or
2
.
Dependencies
To enable this parameter, set Number of inputs to *
and Multiplication to Elementwise (.*)
.
Programmatic Use
Block Parameter: CollapseMode
Type: character vector
Values: 'All dimensions'  'Specified dimension'
Default: 'All dimensions'
Dimension — Dimension to multiply over
1
(default)  2
 ...
 N
Specify the dimension to multiply over as an integer less than or equal to the number of dimensions of the input signal.
Dependencies
To enable this parameter, set:
Number of inputs to
*
Multiplication to
Elementwise (.*)
Multiply over to
Specified dimension
Programmatic Use
Block Parameter: CollapseDim
Type: character vector
Values:
'1'  '2'  ...
Default: '1'
Sample time — Sample time value other than 1
1
(default)  scalar  vector
Specify the sample time as a value other than 1
. For more
information, see Specify Sample Time.
Dependencies
This parameter is not visible unless it is explicitly set to a value other than
1
. To learn more, see Blocks for Which Sample Time Is Not Recommended.
Programmatic Use
Block Parameter:
SampleTime
Type: string scalar or character vector
Default:
"1"
Signal Attributes
Require all inputs to have the same data type — Require that all inputs have the same data type
off
(default)  on
Specify if input signals must all have the same data type. If you enable this parameter, then an error occurs during simulation if the input signal types are different.
Programmatic Use
Block Parameter:
InputSameDT
Type: character vector
Values:
'off'  'on'
Default:
'off'
Output minimum — Minimum output value for range checking
[]
(default)  scalar
Lower value of the output range that Simulink^{®} checks.
Simulink uses the minimum to perform:
Parameter range checking (see Specify Minimum and Maximum Values for Block Parameters) for some blocks.
Simulation range checking (see Specify Signal Ranges and Enable Simulation Range Checking).
Automatic scaling of fixedpoint data types.
Optimization of the code that you generate from the model. This optimization can remove algorithmic code and affect the results of some simulation modes such as SIL or external mode. For more information, see Optimize using the specified minimum and maximum values (Embedded Coder).
Note
Output minimum does not saturate or clip the actual output signal. Use the Saturation block instead.
Programmatic Use
Block Parameter:
OutMin
Type: character vector
Values: '[ ]'
scalar
Default: '[ ]'
Output maximum — Maximum output value for range checking
[]
(default)  scalar
Upper value of the output range that Simulink checks.
Simulink uses the maximum value to perform:
Parameter range checking (see Specify Minimum and Maximum Values for Block Parameters) for some blocks.
Simulation range checking (see Specify Signal Ranges and Enable Simulation Range Checking).
Automatic scaling of fixedpoint data types.
Optimization of the code that you generate from the model. This optimization can remove algorithmic code and affect the results of some simulation modes such as SIL or external mode. For more information, see Optimize using the specified minimum and maximum values (Embedded Coder).
Note
Output maximum does not saturate or clip the actual output signal. Use the Saturation block instead.
Programmatic Use
Block Parameter:
OutMax
Type: character vector
Values: '[ ]'
scalar
Default: '[ ]'
Output data type — Specify the output data type
Inherit: Inherit via internal
rule
(default)  Inherit: Inherit via back propagation
 Inherit: Same as first input
 double
 single
 int8
 uint8
 int16
 uint16
 int32
 uint32
 int64
 uint64
 fixdt(1,16)
 fixdt(1,16,0)
 fixdt(1,16,2^0,0)
 <data type expression>
Choose the data type for the output. The type can be inherited, specified
directly, or expressed as a data type object such as
Simulink.NumericType
. For more information, see
Control Data Types of Signals.
When you select an inherited option, the block behaves as follows:
Inherit: Inherit via internal rule
— Simulink chooses a data type to balance numerical accuracy, performance, and generated code size, while taking into account the properties of the embedded target hardware. If you change the embedded target settings, the data type selected by the internal rule might change. For example, if the block multiplies an input of typeint8
by a gain ofint16
andASIC/FPGA
is specified as the targeted hardware type, the output data type issfix24
. IfUnspecified (assume 32bit Generic)
, in other words, a generic 32bit microprocessor, is specified as the target hardware, the output data type isint32
. If none of the word lengths provided by the target microprocessor can accommodate the output range, Simulink software displays an error in the Diagnostic Viewer.It is not always possible for the software to optimize code efficiency and numerical accuracy at the same time. If the internal rule doesn’t meet your specific needs for numerical accuracy or performance, use one of the following options:
Specify the output data type explicitly.
Use the simple choice of
Inherit: Same as input
.Explicitly specify a default data type such as
fixdt(1,32,16)
and then use the FixedPoint Tool to propose data types for your model. For more information, seefxptdlg
(FixedPoint Designer).To specify your own inheritance rule, use
Inherit: Inherit via back propagation
and then use a Data Type Propagation block. Examples of how to use this block are available in the Signal Attributes library Data Type Propagation Examples block.
Inherit: Inherit via back propagation
— Use data type of the driving block.Inherit: Same as first input
— Use data type of first input signal.
Dependencies
When input is a floatingpoint data type smaller than single
precision, the Inherit: Inherit via internal
rule
output data type depends on the setting
of the Inherit floatingpoint output type smaller than single precision configuration parameter. Data types are smaller than single
precision when the number of bits needed to encode the data type is
less than the 32 bits needed to encode the singleprecision data
type. For example, half
and
int16
are smaller than single
precision.
Programmatic Use
Block Parameter:
OutDataTypeStr
Type: character vector
Values: 'Inherit:
Inherit via internal rule
'Inherit: Same as first input'
'Inherit: Inherit via back
propagation'  'double'
 'single'  'int8'
'uint8'
'int16'
'uint16'
'int32'
'uint32'
'int64'
'uint64'
'fixdt(1,16)'
'fixdt(1,16,0)'
'fixdt(1,16,2^0,0)'
'<data type
expression>'
Default: 'Inherit:
Inherit via internal rule'
Lock output data type setting against changes by the fixedpoint tools — Prevent fixedpoint tools from overriding Output data type
off
(default)  on
Select this parameter to prevent the fixedpoint tools from overriding the Output data type you specify on the block. For more information, see Use Lock Output Data Type Setting (FixedPoint Designer).
Programmatic Use
Block Parameter:
LockScale
Type: character vector
Values:
'off'  'on'
Default:
'off'
Integer rounding mode — Rounding mode for fixedpoint operations
Floor
(default)  Ceiling
 Convergent
 Nearest
 Round
 Simplest
 Zero
Select the rounding mode for fixedpoint operations. You can select:
Ceiling
Rounds positive and negative numbers toward positive infinity. Equivalent to the MATLAB^{®}
ceil
function.Convergent
Rounds number to the nearest representable value. If a tie occurs, rounds to the nearest even integer. Equivalent to the FixedPoint Designer™
convergent
function.Floor
Rounds positive and negative numbers toward negative infinity. Equivalent to the MATLAB
floor
function.Nearest
Rounds number to the nearest representable value. If a tie occurs, rounds toward positive infinity. Equivalent to the FixedPoint Designer
nearest
function.Round
Rounds number to the nearest representable value. If a tie occurs, rounds positive numbers toward positive infinity and rounds negative numbers toward negative infinity. Equivalent to the FixedPoint Designer
round
function.Simplest
Chooses between rounding toward floor and rounding toward zero to generate rounding code that is as efficient as possible. This rounding mode is affected by these configuration parameters on the Hardware Implementation pane.
If the Signed integer division rounds to parameter is set to
Zero
orUndefined
,Simplest
resolves to zero.If the Signed integer division rounds to parameter is set to
Floor
,Simplest
resolves tofloor
.
Zero
Rounds number toward zero. Equivalent to the MATLAB
fix
function.
For more information, see Rounding (FixedPoint Designer).
Block parameters always round to the nearest representable value. To control the rounding of a block parameter, enter an expression using a MATLAB rounding function into the mask field.
Programmatic Use
Block Parameter:
RndMeth
Type: character vector
Values:
'Ceiling'  'Convergent'  'Floor'  'Nearest'
'Round'  'Simplest'  'Zero'
Default:
'Floor'
Saturate on integer overflow — Method of overflow action
off
(default)  on
Specify whether overflows saturate or wrap.
Action  Rationale  Impact on Overflows  Example

Select this check box (
Your model has possible overflow, and you want explicit saturation protection in the generated code.
Overflows saturate to either the minimum or maximum value that the data type can represent.
The maximum value that the
Do not select this check box (
You want to optimize efficiency of your generated code. You want to avoid overspecifying how a block handles outofrange signals. For more information, see Troubleshoot Signal Range Errors.
Overflows wrap to the appropriate value that is representable by the data type.
The maximum value that the
When you select this check box, saturation applies to every internal operation on the block, not just the output, or result. Usually, the code generation process can detect when overflow is not possible. In this case, the code generator does not produce saturation code.
Programmatic Use
Block Parameter: SaturateOnIntegerOverflow
Type: character vector
Values:
'off'  'on'
Default: 'off'
Mode — Select data type mode
Inherit
(default)  Built in
 Fixed Point
Select the category of data to specify.
Inherit
— Inheritance rules for data types. SelectingInherit
enables a second menu/text box to the right where you can select the inheritance mode.Built in
— Builtin data types. SelectingBuilt in
enables a second menu/text box to the right where you can select a builtin data type.Fixed point
— Fixedpoint data types. SelectingFixed point
enables additional parameters that you can use to specify a fixedpoint data type.Expression
— Expressions that evaluate to data types. SelectingExpression
enables a second menu/text box to the right, where you can enter the expression.
For more information, see Specify Data Types Using Data Type Assistant.
Dependencies
To enable this parameter, click the Show data type assistant button.
Data type override — Specify data type override mode for this signal
Inherit
 Off
Select the data type override mode for this signal.
When you select
Inherit
, Simulink inherits the data type override setting from its context, that is, from the block,Simulink.Signal
object or Stateflow^{®} chart in Simulink that is using the signal.When you select
Off
, Simulink ignores the data type override setting of its context and uses the fixedpoint data type specified for the signal.
For more information, see Specify Data Types Using Data Type Assistant in the Simulink documentation.
Dependencies
To enable this parameter, set Mode to Built
in
or Fixed point
.
Tips
The ability to turn off data type override for an individual data type provides greater control over the data types in your model when you apply data type override. For example, you can use this option to ensure that data types meet the requirements of downstream blocks regardless of the data type override setting.
Signedness — Specify signed or unsigned
Signed
(default)  Unsigned
Specify whether the fixedpoint data is signed or unsigned. Signed data can represent positive and negative values, but unsigned data represents positive values only.
Signed
, specifies the fixedpoint data as signed.Unsigned
, specifies the fixedpoint data as unsigned.
For more information, see Specify Data Types Using Data Type Assistant.
Dependencies
To enable this parameter, set the Mode to Fixed
point
.
Word length — Bit size of the word that holds the quantized integer
16
(default)  integer from 0 to 32
Specify the bit size of the word that holds the quantized integer. For more information, see Specifying a FixedPoint Data Type.
Dependencies
To enable this parameter, set Mode to
Fixed point
.
Fraction length — Specify fraction length for fixedpoint data type
0
(default)  scalar integer
Specify fraction length for fixedpoint data type as a positive or negative integer. For more information, see Specifying a FixedPoint Data Type.
Dependencies
To enable this parameter, set Scaling to
Binary point
.
Scaling — Method for scaling fixedpoint data
Best precision
(default)  Binary point
 Slope and bias
Specify the method for scaling your fixedpoint data to avoid overflow conditions and minimize quantization errors. For more information, see Specifying a FixedPoint Data Type.
Dependencies
To enable this parameter, set Mode to
Fixed point
.
Slope — Specify slope for the fixedpoint data type
2^0
(default)  positive, realvalued scalar
Specify slope for the fixedpoint data type. For more information, see Specifying a FixedPoint Data Type.
Dependencies
To enable this parameter, set Scaling to
Slope and bias
.
Bias — Specify bias for the fixedpoint data type
0
(default)  realvalued scalar
Specify bias for the fixedpoint data type as any real number. For more information, see Specifying a FixedPoint Data Type.
Dependencies
To enable this parameter, set Scaling to
Slope and bias
.
Block Characteristics
Data Types

Direct Feedthrough

Multidimensional Signals

VariableSize Signals

ZeroCrossing Detection

Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
These conditions may yield different results between simulation and the generated code:
The Divide block inputs contain a
NaN
orinf
valueThe Divide block generates
NaN
orinf
during execution
This difference is due to the nonfinite NaN
or
inf
values. In such cases, inspect your model
configuration and eliminate the conditions that produce NaN
or inf
.
The Simulink Coder™ build process provides efficient code for matrix inverse and division operations. This table describes the benefits and when each benefit is available.
Benefit  Small Matrices (2by2 to 5by5)  Medium Matrices (6by6 to 20by20)  Large Matrices (larger than 20by20)

Faster code execution time, compared to R2011a and earlier releases  Yes  No  Yes
Reduced ROM and RAM usage, compared to R2011a and earlier releases  Yes, for real values  Yes, for real values  Yes, for real values
Reuse of variables  Yes  Yes  Yes
Dead code elimination  Yes  Yes  Yes
Constant folding  Yes  Yes  Yes
Expression folding  Yes  Yes  Yes
Consistency with MATLAB Coder results  Yes  Yes  Yes
For blocks that have three or more inputs of different dimensions, the code might include an extra buffer to store temporary variables for intermediate results.
HDL Code Generation
Generate Verilog and VHDL code for FPGA and ASIC designs using HDL Coder™.
HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic.
Note
When you deploy the generated HDL code onto the target hardware, make sure
that you set the signed integer division rounds to
parameter in the Hardware Implementation pane of the
Configuration Parameters dialog box to Zero
or
Floor
.
To perform an HDLoptimized divide operation, connect a Product block to a Divide block in reciprocal mode.
The Divide block is the same as a Product block
with Number of Inputs set to */
.
Architecture  Parameters  Description

Linear(Default)
 None  Generate a divide (/ ) operator in the HDL
code.
ShiftAdd  UsePipelines  Perform divide operations on fixedpoint types by using a nonrestoring division algorithm that performs multiple shift and add operations to compute the quotient. This architecture provides improved accuracy compared to the NewtonRaphson approximation method. When you use this
architecture, to achieve a higher maximum clock frequency on
the target FPGA device, leave the
UsePipelines HDL block property to
When you use fixedpoint data types, following criteria must be satisfied for generating the HDL code:

Reciprocal Mode
When Number of Inputs is set to /
, the
Divide block is in reciprocal mode.
This block has multicycle implementations that introduce additional latency in the generated code. To see the added latency, view the generated model or validation model. See Generated Model and Validation Model (HDL Coder).
In reciprocal mode, the Divide block has the HDL block implementations described in the following table.
Architectures  Parameters  Additional cycles of latency  Description

Linear(default)  None  0  When you compute a reciprocal, use the HDL divide
(
ReciprocalRsqrtBasedNewton  Iterations  Signed input: Unsigned input:
 Use the iterative Newton method. Select this option to optimize area. The default value for
The recommended value for

ReciprocalRsqrtBasedNewtonSingleRate  Iterations  Signed input: ( Unsigned input:
(  Use the single rate pipelined Newton method. Select this option to optimize speed, or if you want a single rate implementation. The default value for
The recommended value for

ShiftAdd  UsePipelines  Signed input: (Input word length + 4) Unsigned input: (Input word length + 4)  Perform reciprocal operation on a fixedpoint input by using a nonrestoring division algorithm that performs multiple shift and add operations to compute the reciprocal. This architecture provides improved accuracy compared to the NewtonRaphson approximation method. When
you use this architecture, to achieve a higher maximum
clock frequency on the target FPGA device, leave the
UsePipelines HDL block property
to When you use fixedpoint data types, following criteria must be satisfied for generating the HDL code:

The NewtonRaphson iterative method:
$${x}_{i+1}={x}_{i}\frac{f({x}_{i})}{f\text{'}({x}_{i})}={x}_{i}(1.50.5a{x}_{i}{}^{2})$$
ReciprocalRsqrtBasedNewton
and
ReciprocalRsqrtBasedNewtonSingleRate
implement
the NewtonRaphson method with:
$$f(x)=\frac{1}{{x}^{2}}1$$
HDL code generation supports different output data types for divide
(*/)
and reciprocal (/)
operations in
ShiftAdd
. You can use these output data types for
the blocks:
Inherit: Inherit via internal rule
Inherit: Keep MSB
Inherit: Match scaling
Inherit: Inherit via back propagation
Inherit: Same as first input
Integer types (uint8,int8,uint16,int16,uint32,int32,uint64,int64)
Fixed point types
General

ConstrainedOutputPipeline  Number of registers to place at
the outputs by moving existing delays within your design. Distributed
pipelining does not redistribute these registers. The default is

DSPStyle  Synthesis attributes for multiplier mapping. The default is
Use this property with:

InputPipeline  Number of input pipeline stages
to insert in the generated code. Distributed pipelining and constrained
output pipelining can move these registers. The default is

OutputPipeline  Number of output pipeline stages
to insert in the generated code. Distributed pipelining and constrained
output pipelining can move these registers. The default is

LatencyStrategy  To enable this property, set HDL architecture to

CustomLatency  To enable this property, set HDL architecture to

Native Floating Point

HandleDenormals  Specify whether you want HDL Coder to insert additional logic to handle denormal numbers in your design.
Denormal numbers are numbers that have magnitudes less than the smallest floatingpoint
number that can be represented without leading zeros in the mantissa. The default is

NFPCustomLatency  To specify a value, set
LatencyStrategy to
MantissaMultiplyStrategy  Specify how to implement the mantissa multiplication operation during code generation.
By using different settings, you can control the DSP usage on the target FPGA device.
The default is
DivisionAlgorithm  Specify whether to use the Radix2 or Radix4 algorithm to perform the floatingpoint division. The Radix2 mode offers a tradeoff between latency and frequency. The Radix4 mode offers a tradeoff between latency and resource usage. For more information, see DivisionAlgorithm (HDL Coder).
To see the latency calculation for fixedpoint types with Divide and Reciprocal blocks, at the MATLAB command prompt, enter:
HDLMathLib
This block does not support code generation for division with complex signals.
When you use the Divide block in reciprocal mode, the following restrictions apply:
When you use fixedpoint types, the input and output must be scalar. To use vector inputs, specify the
Math
architecture and input a floatingpoint value.Only the
Zero
rounding mode is supported.You must select the Saturate on integer overflow option on the block.
For the Divide block, only the Zero
and
Simplest
rounding modes are supported.
PLC Code Generation
Generate Structured Text code using Simulink® PLC Coder™.
FixedPoint Conversion
Design and simulate fixedpoint systems using FixedPoint Designer™.
Version History
Introduced before R2006a
See Also
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
 América Latina (Español)
 Canada (English)
 United States (English)
Europe
 Belgium (English)
 Denmark (English)
 Deutschland (Deutsch)
 España (Español)
 Finland (English)
 France (Français)
 Ireland (English)
 Italia (Italiano)
 Luxembourg (English)
 Netherlands (English)
 Norway (English)
 Österreich (Deutsch)
 Portugal (English)
 Sweden (English)
 Switzerland
 United Kingdom (English)
