instbw

Estimate instantaneous bandwidth

Description

example

ibw = instbw(x,fs) estimates the instantaneous bandwidth of a signal, x, sampled at a rate fs. If x is a matrix, then the function estimates the instantaneous bandwidth independently for each column and returns the result in the corresponding column of ibw.

example

ibw = instbw(x,t) estimates the instantaneous bandwidth of x sampled at the time values stored in t.

example

ibw = instbw(xt) estimates the instantaneous bandwidth of a signal stored in the MATLAB® timetable xt. The function treats all variables in the timetable and all columns inside each variable independently.

example

ibw = instbw(tfd,fd,td) estimates the instantaneous bandwidth of the signal whose time-frequency distribution, tfd, is sampled at the bandwidth values stored in fd and the time values stored in td.

example

ibw = instbw(___,Name,Value) specifies additional options for any of the previous syntaxes using name-value arguments. You can specify the scale factor or the frequency limits used in the computation. For example, 'FrequencyLimits',[10 20] computes the instantaneous bandwidth of the input in the range from 10 Hz to 20 Hz.

example

[ibw,t] = instbw(___) also returns t, a vector of sample times corresponding to ibw.

example

instbw(___) with no output arguments plots the estimated instantaneous bandwidth.

Examples

collapse all

Generate a signal sampled at 600 Hz for 2 seconds. The signal consists of a chirp with sinusoidally varying frequency content.

fs = 6e2;

x = vco(sin(2*pi*(0:1/fs:2)),[0.1 0.4]*fs,fs);

Compute the spectrogram of the signal and display it as a waterfall plot.

[p,f,t] = pspectrum(x,fs,'spectrogram');

waterfall(f,t,p')
ax = gca;
ax.XDir = 'reverse';
view(30,45)

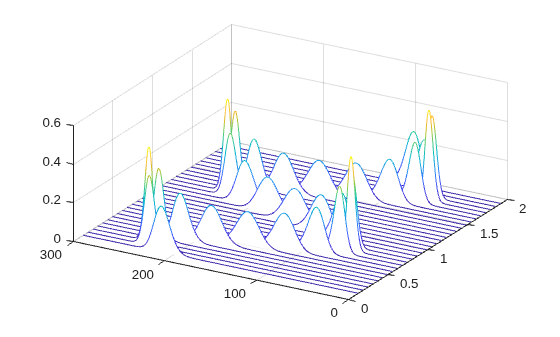

Figure contains an axes object. The axes object contains an object of type patch.

Estimate and plot the instantaneous bandwidth of the signal.

instbw(x,fs)
ylim([0 50])

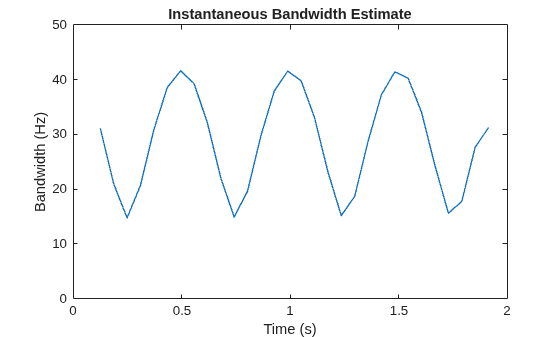

Figure contains an axes object. The axes object with title Instantaneous Bandwidth Estimate contains an object of type line.

Generate a signal sampled at 2 kHz for 2 seconds. The signal consists of a superposition of exponentially damped sinusoids of increasing frequency that are added at regular intervals. Plot the signal.

fs = 2000;
t = 0:1/fs:2-1/fs;

frq = (50:100:950)';

amp = (t > 4*(frq-frq(1))/fs);
x = sum(amp.*sin(2*pi*t.*frq).*exp(-3*t));

% To hear, type sound(x,fs)

plot(t,x)
xlabel('Time (s)')

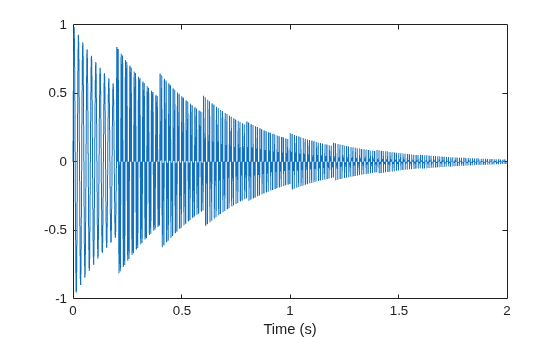

Figure contains an axes object. The axes object contains an object of type line.

Compute and display the instantaneous bandwidth of the signal.

[bw,bt] = instbw(x,t);

plot(bt,bw)
xlabel('Time (s)')
ylabel('Bandwidth (Hz)')

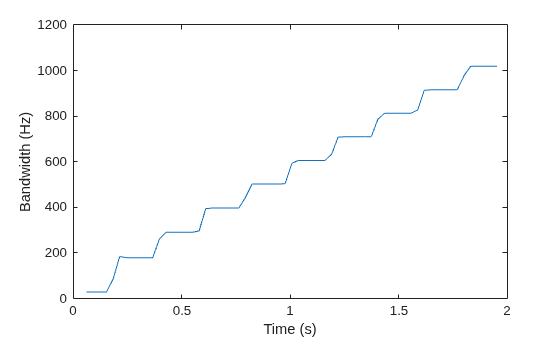

Figure contains an axes object. The axes object contains an object of type line.

Compute the spectrogram of the signal. Specify a time resolution of 100 milliseconds and 0 overlap between adjoining segments. Use the spectrogram to estimate the instantaneous frequency of the signal.

[p,ff,tt] = pspectrum(x,t,'spectrogram','TimeResolution',0.1,'OverlapPercent',0);

instfreq(p,ff,tt)

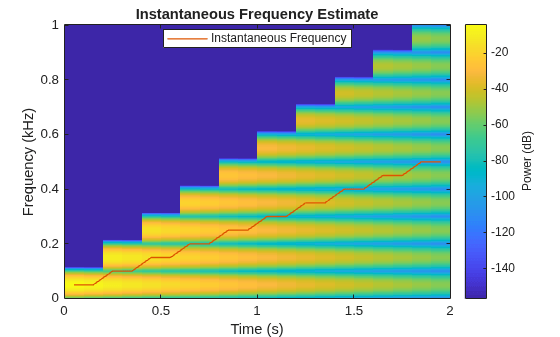

Figure contains an axes object. The axes object with title Instantaneous Frequency Estimate contains 2 objects of type image, line. This object represents Instantaneous Frequency.

Use the spectrogram to compute the instantaneous bandwidth.

instbw(p,ff,tt)

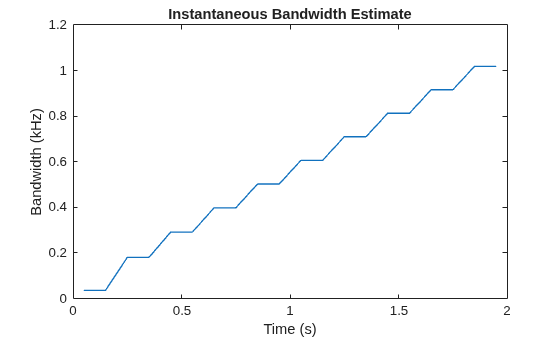

Figure contains an axes object. The axes object with title Instantaneous Bandwidth Estimate contains an object of type line.

Generate a signal sampled at 14 kHz for 2 seconds. The frequency of the signal varies as a chirp modulated by a Gaussian. Save the signal as a MATLAB® timetable.

fs = 14000;
t = (0:1/fs:2)';
s = vco(chirp(t+.1,0,t(end),3).*exp(-2*(t-1).^2),[0.1 0.4]*fs,fs);

sx = timetable(s,'SampleRate',fs);

Compute the spectrogram of the signal. Specify a leakage of 0.2, a time resolution of 50 milliseconds, and 99% of overlap between adjoining segments. Display the spectrogram.

opts = {'spectrogram','Leakage',0.2,'TimeResolution',0.05,'OverlapPercent',99};

[p,ff,tt] = pspectrum(sx,opts{:});

pspectrum(sx,opts{:})

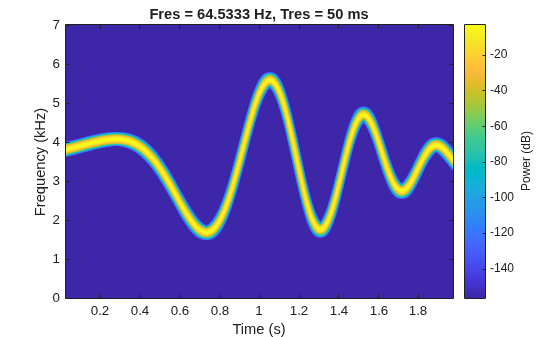

Figure contains an axes object. The axes object with title Fres = 64.5333 Hz, Tres = 50 ms contains an object of type image.

Estimate and display the instantaneous bandwidth of the signal.

instbw(p,ff,tt)

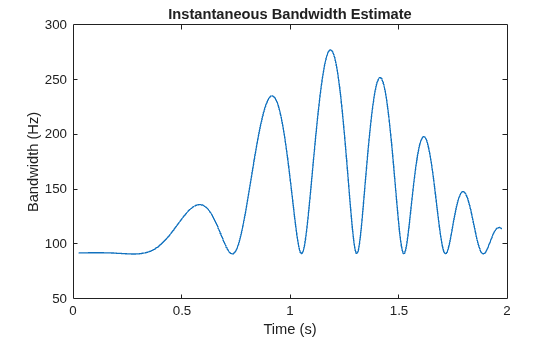

Figure contains an axes object. The axes object with title Instantaneous Bandwidth Estimate contains an object of type line.

Generate a signal that consists of a chirp whose frequency varies sinusoidally between 300 Hz and 1200 Hz. The signal is sampled at 3 kHz for 2 seconds.

fs = 3e3;
t = 0:1/fs:2;
y = chirp(t,100,1,200,"quadratic");
y = vco(cos(2*pi*t),[0.1 0.4]*fs,fs);

Use instfreq to compute the instantaneous frequency of the signal and the corresponding sample times. Verify that the output corresponds to the centralized first-order conditional spectral moment of the time-frequency distribution of the signal as computed by tfsmoment (Predictive Maintenance Toolbox).

[z,tz] = instfreq(y,fs);
[a,ta] = tfsmoment(y,fs,1,Centralize=false);

plot(tz,z,ta,a,'.')
legend("instfreq","tfsmoment")

Figure contains an axes object. The axes object contains 2 objects of type line. These objects represent instfreq, tfsmoment.

Use instbw to compute the instantaneous bandwidth of the signal and the corresponding sample times. Specify a scale factor of 1. Verify that the output corresponds to the square root of the noncentralized second-order conditional spectral moment of the time-distribution of the signal. In other words, instbw generates a standard deviation and tfsmoment generates a variance.

[w,tw] = instbw(y,fs,ScaleFactor=1);
[m,tm] = tfsmoment(y,fs,2);

plot(tw,w,tm,sqrt(m),'.')
legend("instfreq","tfsmoment")

Figure contains an axes object. The axes object contains 2 objects of type line. These objects represent instfreq, tfsmoment.

Input Arguments

collapse all

Input signal, specified as a vector or matrix. If x is a vector, then instbw treats it as a single channel. If x is a matrix, then instbw computes the instantaneous bandwidth independently for each column and returns the result in the corresponding column of ibw.

Example: sin(2*pi*(0:127)/16)+randn(1,128)/100 specifies a noisy sinusoid.

Example: [2 1].*sin(2*pi*(0:127)'./[16 64]) specifies a two-channel sinusoid.

Data Types: single | double
Complex Number Support: Yes

Sample rate, specified as a positive scalar. The sample rate is the number of samples per unit time. If the unit of time is seconds, then the sample rate is in Hz.

Data Types: single | double

Sample times, specified as a real vector, a duration scalar, a duration array, or a datetime array.

  • duration scalar — The time interval between consecutive samples of x.

  • Real vector, duration array, or datetime array — The time instant corresponding to each element of x.

Example: seconds(1) specifies a 1-second lapse between consecutive measurements of a signal.

Example: seconds(0:8) specifies that a signal is sampled at 1 Hz for 8 seconds.

Data Types: single | double | duration | datetime

Input timetable. xt must contain increasing, finite row times.

If a timetable has missing or duplicate time points, you can fix it using the tips in Clean Timetable with Missing, Duplicate, or Nonuniform Times.

Example: timetable(seconds(0:4)',randn(5,1)) specifies a random process sampled at 1 Hz for 4 seconds.

Example: timetable(seconds(0:4)',randn(5,3),randn(5,4)) contains a three-channel random process and a four-channel random process, both sampled at 1 Hz for 4 seconds.

Data Types: single | double
Complex Number Support: Yes

Time-frequency distribution, specified as a matrix sampled at the frequencies stored in fd and the time values stored in td. This input argument is supported only when 'Method' is set to 'tfmoment'.

Example: [p,f,t] = pspectrum(sin(2*pi*(0:511)/4),4,'spectrogram') specifies the time-frequency distribution of a 1 Hz sinusoid sampled at 4 Hz for 128 seconds, and also the frequencies and times at which it is computed.

Data Types: single | double

Frequency and time values for time-frequency distribution, specified as vectors. These input arguments are supported only when 'Method' is set to 'tfmoment'.

Example: [p,f,t] = pspectrum(sin(2*pi*(0:511)/4),4,'spectrogram') specifies the time-frequency distribution of a 1 Hz sinusoid sampled at 4 Hz for 128 seconds, and also the frequencies and times at which it is computed.

Data Types: single | double

Name-Value Arguments

Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

Example: 'FrequencyLimits',[25 50] computes the instantaneous bandwidth of the input in the range from 25 Hz to 50 Hz.

Frequency range, specified as a two-element vector in Hz. If not specified, 'FrequencyLimits' defaults to [0 fs/2] for real-valued signals and to [-fs/2 fs/2] for complex-valued signals.

Data Types: single | double

Scaling factor for spectral moment, specified as a real scalar.

Data Types: single | double

Output Arguments

collapse all

Instantaneous bandwidth, returned as a vector, a matrix, or a timetable with the same dimensions as the input.

Times of bandwidth estimates, returned as a real vector, a duration array, or a datetime array.

More About

collapse all

Instantaneous Bandwidth

The instantaneous bandwidth of a nonstationary signal is a time-varying parameter that relates to the spread of the instantaneous frequency about its average at a given time instant [1], [2].

instbw estimates the instantaneous bandwidth as the square-root of the second conditional spectral moment of the time-frequency distribution of the input signal. The function:

  1. Computes the spectrogram power spectrum P(t,f) of the input using the pspectrum function and uses the spectrum as a time-frequency distribution.

  2. Estimates the instantaneous bandwidth using

    σf2(t)=0(ffinst(t))2P(t,f)df0P(t,f)df,

    where finst(t) is the instantaneous frequency returned by instfreq and estimated by

    finst(t)=0fP(t,f)df0P(t,f)df.

References

[1] Boashash, Boualem. “Estimating and Interpreting the Instantaneous Frequency of a Signal. I. Fundamentals.” Proceedings of the IEEE® 80, no. 4 (April 1992): 520–538. https://doi.org/10.1109/5.135376.

[2] Boashash, Boualem. "Estimating and Interpreting The Instantaneous Frequency of a Signal. II. Algorithms and Applications." Proceedings of the IEEE 80, no. 4 (May 1992): 540–568. https://doi.org/10.1109/5.135378.
