# rigidBodyTree

Create tree-structured robot

## Description

The `rigidBodyTree`

is a representation of the connectivity
of rigid bodies with joints. Use this class to build robot manipulator models in
MATLAB^{®}. If you have a robot model specified using the Unified Robot Description
Format (URDF), use `importrobot`

to import your robot
model.

A rigid body tree model is made up of rigid bodies as `rigidBody`

objects. Each rigid body has a `rigidBodyJoint`

object associated with it that defines how it can move
relative to its parent body. Use `setFixedTransform`

to define the fixed transformation between the frame of
a joint and the frame of one of the adjacent bodies. You can add, replace, or remove
rigid bodies from the model using the methods of the `RigidBodyTree`

class.

Robot dynamics calculations are also possible. Specify the `Mass`

,
`CenterOfMass`

, and `Inertia`

properties for each
`rigidBody`

in the robot model. You can
calculate forward and inverse dynamics with or without external forces and compute
dynamics quantities given robot joint motions and joint inputs. To use the
dynamics-related functions, set the `DataFormat`

property to
`"row"`

or `"column"`

.

For a given rigid body tree model, you can also use the robot model to calculate joint
angles for desired end-effector positions using the robotics inverse kinematics
algorithms. Specify your rigid body tree model when using `inverseKinematics`

or `generalizedInverseKinematics`

.

The `show`

method supports visualization of
body meshes. Meshes are specified as `.stl`

files and can be added to
individual rigid bodies using `addVisual`

. Also, by default, the `importrobot`

function loads all the accessible `.stl`

files specified in your URDF robot model.

## Creation

### Description

creates a
tree-structured robot object. Add rigid bodies to it using `robot`

= rigidBodyTree`addBody`

.

specifies an upper bound on the number of bodies allowed in the robot when
generating code. You must also specify the `robot`

= rigidBodyTree("MaxNumBodies",N,"DataFormat",dataFormat)`DataFormat`

property as a name-value pair.

## Properties

`NumBodies`

— Number of bodies

integer

This property is read-only.

Number of bodies in the robot model (not including the base), returned as an integer.

`Bodies`

— List of rigid bodies

cell array of handles

This property is read-only.

List of rigid bodies in the robot model, returned as a cell array of
handles. Use this list to access specific `RigidBody`

objects in the model. You can also call `getBody`

to get a body by
its name.

`BodyNames`

— Names of rigid bodies

cell array of string scalars | cell array of character vectors

This property is read-only.

Names of rigid bodies, returned as a cell array of character vectors.

`BaseName`

— Name of robot base

`'base'`

(default) | string scalar | character vector

Name of robot base, returned as a string scalar or character vector.

`Gravity`

— Gravitational acceleration experienced by robot

`[0 0 0]`

m/s^{2} (default) | `[x y z]`

vector

Gravitational acceleration experienced by robot, specified as an
`[x y z]`

vector in meters per second squared. Each
element corresponds to the acceleration of the base robot frame in that
direction.

`DataFormat`

— Input/output data format for kinematics and dynamics functions

`"struct"`

(default) | `"row"`

| `"column"`

Input/output data format for kinematics and dynamics functions, specified
as `"struct"`

, `"row"`

, or
`"column"`

. To use dynamics functions, you must use
either `"row"`

or `"column"`

.

## Object Functions

### Dynamics

`centerOfMass` | Center of mass position and Jacobian |

`externalForce` | Compose external force matrix relative to base |

`forwardDynamics` | Joint accelerations given joint torques and states |

`geometricJacobian` | Geometric Jacobian for robot configuration |

`gravityTorque` | Joint torques that compensate gravity |

`inverseDynamics` | Required joint torques for given motion |

`massMatrix` | Joint-space mass matrix |

`velocityProduct` | Joint torques that cancel velocity-induced forces |

### Kinematics

`getTransform` | Get transform between body frames |

`homeConfiguration` | Get home configuration of robot |

`randomConfiguration` | Generate random configuration of robot |

### Collision Checking

`checkCollision` | Check if robot is in collision |

### Modify Rigid Body Tree Structure

`addBody` | Add body to robot |

`addSubtree` | Add subtree to robot |

`getBody` | Get robot body handle by name |

`removeBody` | Remove body from robot |

`replaceBody` | Replace body on robot |

`replaceJoint` | Replace joint on body |

`subtree` | Create subtree from robot model |

### Utilities

`copy` | Copy robot model |

`show` | Show robot model in figure |

`showdetails` | Show details of robot model |

`writeAsFunction` | Create `rigidBodyTree` code generating function |

## Examples

### Attach Rigid Body and Joint to Rigid Body Tree

Add a rigid body and corresponding joint to a rigid body tree. Each `rigidBody`

object contains a `rigidBodyJoint`

object and must be added to the `rigidBodyTree`

using `addBody`

.

Create a rigid body tree.

rbtree = rigidBodyTree;

Create a rigid body with a unique name.

`body1 = rigidBody('b1');`

Create a revolute joint. By default, the `rigidBody`

object comes with a fixed joint. Replace the joint by assigning a new `rigidBodyJoint`

object to the `body1.Joint`

property.

jnt1 = rigidBodyJoint('jnt1','revolute'); body1.Joint = jnt1;

Add the rigid body to the tree. Specify the body name that you are attaching the rigid body to. Because this is the first body, use the base name of the tree.

basename = rbtree.BaseName; addBody(rbtree,body1,basename)

Use `showdetails`

on the tree to confirm the rigid body and joint were added properly.

showdetails(rbtree)

-------------------- Robot: (1 bodies) Idx Body Name Joint Name Joint Type Parent Name(Idx) Children Name(s) --- --------- ---------- ---------- ---------------- ---------------- 1 b1 jnt1 revolute base(0) --------------------

### Build Manipulator Robot Using Denavit-Hartenberg Parameters

Use the Denavit-Hartenberg (DH) parameters of the Puma560® robot to build a robot. Each rigid body is added one at a time, with the child-to-parent transform specified by the joint object.

The DH parameters define the geometry of the robot with relation to how each rigid body is attached to its parent. For convenience, setup the parameters for the Puma560 robot in a matrix [1]. The Puma robot is a serial chain manipulator. The DH parameters are relative to the previous row in the matrix, corresponding to the previous joint attachment.

dhparams = [0 pi/2 0 0; 0.4318 0 0 0 0.0203 -pi/2 0.15005 0; 0 pi/2 0.4318 0; 0 -pi/2 0 0; 0 0 0 0];

Create a rigid body tree object to build the robot.

robot = rigidBodyTree;

Create the first rigid body and add it to the robot. To add a rigid body:

Create a

`rigidBody`

object and give it a unique name.Create a

`rigidBodyJoint`

object and give it a unique name.Use

`setFixedTransform`

to specify the body-to-body transformation using DH parameters. The last element of the DH parameters,`theta`

, is ignored because the angle is dependent on the joint position.Call

`addBody`

to attach the first body joint to the base frame of the robot.

body1 = rigidBody('body1'); jnt1 = rigidBodyJoint('jnt1','revolute'); setFixedTransform(jnt1,dhparams(1,:),'dh'); body1.Joint = jnt1; addBody(robot,body1,'base')

Create and add other rigid bodies to the robot. Specify the previous body name when calling `addBody`

to attach it. Each fixed transform is relative to the previous joint coordinate frame.

body2 = rigidBody('body2'); jnt2 = rigidBodyJoint('jnt2','revolute'); body3 = rigidBody('body3'); jnt3 = rigidBodyJoint('jnt3','revolute'); body4 = rigidBody('body4'); jnt4 = rigidBodyJoint('jnt4','revolute'); body5 = rigidBody('body5'); jnt5 = rigidBodyJoint('jnt5','revolute'); body6 = rigidBody('body6'); jnt6 = rigidBodyJoint('jnt6','revolute'); setFixedTransform(jnt2,dhparams(2,:),'dh'); setFixedTransform(jnt3,dhparams(3,:),'dh'); setFixedTransform(jnt4,dhparams(4,:),'dh'); setFixedTransform(jnt5,dhparams(5,:),'dh'); setFixedTransform(jnt6,dhparams(6,:),'dh'); body2.Joint = jnt2; body3.Joint = jnt3; body4.Joint = jnt4; body5.Joint = jnt5; body6.Joint = jnt6; addBody(robot,body2,'body1') addBody(robot,body3,'body2') addBody(robot,body4,'body3') addBody(robot,body5,'body4') addBody(robot,body6,'body5')

Verify that your robot was built properly by using the `showdetails`

or `show`

function. `showdetails`

lists all the bodies in the MATLAB® command window. `show`

displays the robot with a given configuration (home by default). Calls to `axis`

modify the axis limits and hide the axis labels.

showdetails(robot)

-------------------- Robot: (6 bodies) Idx Body Name Joint Name Joint Type Parent Name(Idx) Children Name(s) --- --------- ---------- ---------- ---------------- ---------------- 1 body1 jnt1 revolute base(0) body2(2) 2 body2 jnt2 revolute body1(1) body3(3) 3 body3 jnt3 revolute body2(2) body4(4) 4 body4 jnt4 revolute body3(3) body5(5) 5 body5 jnt5 revolute body4(4) body6(6) 6 body6 jnt6 revolute body5(5) --------------------

```
show(robot);
axis([-0.5,0.5,-0.5,0.5,-0.5,0.5])
axis off
```

**References**

[1] Corke, P. I., and B. Armstrong-Helouvry. “A Search for Consensus among Model Parameters Reported for the PUMA 560 Robot.” *Proceedings of the 1994 IEEE International Conference on Robotics and Automation*, IEEE Computer. Soc. Press, 1994, pp. 1608–13. *DOI.org (Crossref)*, doi:10.1109/ROBOT.1994.351360.

### Modify a Robot Rigid Body Tree Model

Make changes to an existing `rigidBodyTree`

object. You can get replace joints, bodies and subtrees in the rigid body tree.

Load an ABB IRB-120T manipulator from the Robotics System Toolbox™ `loadrobot`

. It is specified as a `rigidBodyTree`

object.

`manipulator = loadrobot("abbIrb120T");`

View the robot with `show`

and read the details of the robot using `showdetails`

.

show(manipulator); showdetails(manipulator)

Get a specific body to inspect the properties. The only child of the `link_3`

body is the `link_4`

body. You can copy a specific body as well.

```
body3 = getBody(manipulator,"link_3");
childBody = body3.Children{1}
body3Copy = copy(body3);
```

Replace the joint on the `link_3`

body. You must create a new `Joint`

object and use `replaceJoint`

to ensure the downstream body geometry is unaffected. Call `setFixedTransform`

if necessary to define a transform between the bodies instead of with the default identity matrices.

newJoint = rigidBodyJoint("prismatic"); replaceJoint(manipulator,"link_3",newJoint); showdetails(manipulator)

Remove an entire body and get the resulting subtree using `removeBody`

. The removed body is included in the subtree.

```
subtree = removeBody(manipulator,"link_4")
show(subtree);
```

Remove the modified `link_3`

body. Add the original copied `link_3`

body to the `link_2`

body, followed by the returned subtree. The robot model remains the same. See a detailed comparison through `showdetails`

.

removeBody(manipulator,"link_3"); addBody(manipulator,body3Copy,"link_2") addSubtree(manipulator,"link_3",subtree) showdetails(manipulator)

### Specify Dynamics Properties to Rigid Body Tree

To use dynamics functions to calculate joint torques and accelerations, specify the dynamics properties for the `rigidBodyTree`

object and `rigidBody`

.

Create a rigid body tree model. Create two rigid bodies to attach to it.

robot = rigidBodyTree('DataFormat','row'); body1 = rigidBody('body1'); body2 = rigidBody('body2');

Specify joints to attach to the bodies. Set the fixed transformation of `body2`

to `body1`

. This transform is 1m in the *x*-direction.

joint1 = rigidBodyJoint('joint1','revolute'); joint2 = rigidBodyJoint('joint2'); setFixedTransform(joint2,trvec2tform([1 0 0])) body1.Joint = joint1; body2.Joint = joint2;

Specify dynamics properties for the two bodies. Add the bodies to the robot model. For this example, basic values for a rod (`body1`

) with an attached spherical mass (`body2`

) are given.

body1.Mass = 2; body1.CenterOfMass = [0.5 0 0]; body1.Inertia = [0.001 0.67 0.67 0 0 0]; body2.Mass = 1; body2.CenterOfMass = [0 0 0]; body2.Inertia = 0.0001*[4 4 4 0 0 0]; addBody(robot,body1,'base'); addBody(robot,body2,'body1');

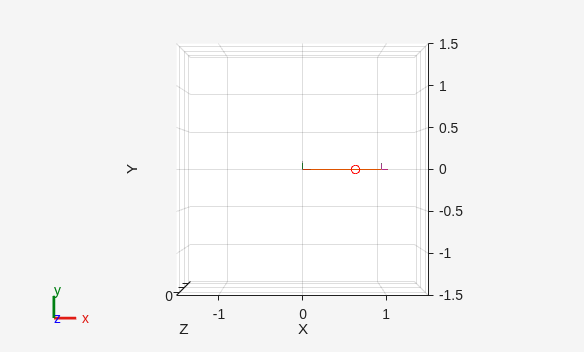

Compute the center of mass position of the whole robot. Plot the position on the robot. Move the view to the *xy* plane.

comPos = centerOfMass(robot); show(robot); hold on plot(comPos(1),comPos(2),'or') view(2)

Change the mass of the second body. Notice the change in center of mass.

body2.Mass = 20; replaceBody(robot,'body2',body2) comPos2 = centerOfMass(robot); plot(comPos2(1),comPos2(2),'*g') hold off

### Compute Forward Dynamics Due to External Forces on Rigid Body Tree Model

Calculate the resultant joint accelerations for a given robot configuration with applied external forces and forces due to gravity. A wrench is applied to a specific body with the gravity being specified for the whole robot.

Load a KUKA iiwa 14 robot model from the Robotics System Toolbox™ `loadrobot`

. The robot is specified as a `rigidBodyTree`

object.

Set the data format to "`row"`

. For all dynamics calculations, the data format must be either "`row"`

or "`column"`

.

Set the gravity. By default, gravity is assumed to be zero.

kukaIIWA14 = loadrobot("kukaIiwa14",DataFormat="row",Gravity=[0 0 -9.81]);

Get the home configuration for the `kukaIIWA14`

robot.

q = homeConfiguration(kukaIIWA14);

Specify the wrench vector that represents the external forces experienced by the robot. Use the `externalForce`

function to generate the external force matrix. Specify the robot model, the end effector that experiences the wrench, the wrench vector, and the current robot configuration. `wrench`

is given relative to the "`iiwa_link_ee_kuka"`

body frame, which requires you to specify the robot configuration, `q`

.

```
wrench = [0 0 0.5 0 0 0.3];
fext = externalForce(kukaIIWA14,"iiwa_link_ee_kuka",wrench,q);
```

Compute the resultant joint accelerations due to gravity, with the external force applied to the end-effector "`iiwa_link_ee_kuka"`

when `kukaIIWA14`

is at its home configuration. The joint velocities and joint torques are assumed to be zero (input as an empty vector `[]`

).

qddot = forwardDynamics(kukaIIWA14,q,[],[],fext)

`qddot = `*1×7*
-0.0023 -0.0112 0.0036 -0.0212 0.0067 -0.0075 499.9920

### Compute Inverse Dynamics from Static Joint Configuration

Use the `inverseDynamics`

function to calculate the required joint torques to statically hold a specific robot configuration. You can also specify the joint velocities, joint accelerations, and external forces using other syntaxes.

Load an Omron eCobra-600 from the Robotics System Toolbox™ `loadrobot`

, specified as a `rigidBodyTree`

object. Set the gravity property and ensure the data format is set to "`row"`

. For all dynamics calculations, the data format must be either "`row"`

or "`column"`

.

robot = loadrobot("omronEcobra600", DataFormat="row", Gravity=[0 0 -9.81]);

Generate a random configuration for `robot`

.

q = randomConfiguration(robot);

Compute the required joint torques for `robot`

to statically hold that configuration.

tau = inverseDynamics(robot,q)

`tau = `*1×4*
0.0000 0.0000 -19.6200 0

### Compute Joint Torque to Counter External Forces

Use the `externalForce`

function to generate force matrices to apply to a rigid body tree model. The force matrix is an *m*-by-6 vector that has a row for each joint on the robot to apply a six-element wrench. Use the `externalForce`

function and specify the end effector to properly assign the wrench to the correct row of the matrix. You can add multiple force matrices together to apply multiple forces to one robot.

To calculate the joint torques that counter these external forces, use the `inverseDynamics`

function.

Load a Universal Robots UR5e from the Robotics System Toolbox™ `loadrobot`

, specified as a `rigidBodyTree`

object. Update the gravity and set the data format to "`row"`

. For all dynamics calculations, the data format must be either "`row"`

or "`column"`

manipulator = loadrobot("universalUR5e", DataFormat="row", Gravity=[0 0 -9.81]); showdetails(manipulator)

-------------------- Robot: (10 bodies) Idx Body Name Joint Name Joint Type Parent Name(Idx) Children Name(s) --- --------- ---------- ---------- ---------------- ---------------- 1 base base_link-base_fixed_joint fixed base_link(0) 2 base_link_inertia base_link-base_link_inertia fixed base_link(0) shoulder_link(3) 3 shoulder_link shoulder_pan_joint revolute base_link_inertia(2) upper_arm_link(4) 4 upper_arm_link shoulder_lift_joint revolute shoulder_link(3) forearm_link(5) 5 forearm_link elbow_joint revolute upper_arm_link(4) wrist_1_link(6) 6 wrist_1_link wrist_1_joint revolute forearm_link(5) wrist_2_link(7) 7 wrist_2_link wrist_2_joint revolute wrist_1_link(6) wrist_3_link(8) 8 wrist_3_link wrist_3_joint revolute wrist_2_link(7) flange(9) 9 flange wrist_3-flange fixed wrist_3_link(8) tool0(10) 10 tool0 flange-tool0 fixed flange(9) --------------------

Get the home configuration for `manipulator`

.

q = homeConfiguration(manipulator);

Set external force on `shoulder_link`

. The input wrench vector is expressed in the base frame.

`fext1 = externalForce(manipulator,"shoulder_link",[0 0 0.0 0.1 0 0]);`

Set external force on the end effector, `tool0`

. The input wrench vector is expressed in the `tool0`

frame.

`fext2 = externalForce(manipulator,"tool0",[0 0 0.0 0.1 0 0],q);`

Compute the joint torques required to balance the external forces. To combine the forces, add the force matrices together. Joint velocities and accelerations are assumed to be zero (input as `[]`

).

tau = inverseDynamics(manipulator,q,[],[],fext1+fext2)

`tau = `*1×6*
-0.0233 -52.4189 -14.4896 -0.0100 0.0100 -0.0000

### Display Robot Model with Visual Geometries

You can import robots that have `.stl`

files associated with the Unified Robot Description format (URDF) file to describe the visual geometries of the robot. Each rigid body has an individual visual geometry specified. The `importrobot`

function parses the URDF file to get the robot model and visual geometries. The function assumes that visual geometry and collision geometry of the robot are the same and assigns the visual geometries as collision geometries of corresponding bodies.

Use the `show`

function to display the visual and collision geometries of the robot model in a figure. You can then interact with the model by clicking components to inspect them and right-clicking to toggle visibility.

Import a robot model as a URDF file. The `.stl`

file locations must be properly specified in this URDF. To add other `.stl`

files to individual rigid bodies, see `addVisual`

.

`robot = importrobot('iiwa14.urdf');`

Visualize the robot with the associated visual model. Click bodies or frames to inspect them. Right-click bodies to toggle visibility for each visual geometry.

show(robot,Visuals="on",Collisions="off");

Visualize the robot with the associated collision geometries. Click bodies or frames to inspect them. Right-click bodies to toggle visibility for each collision geometry.

show(robot,Visuals="off",Collisions="on");

## More About

### Dynamics Properties

When working with robot dynamics, specify the information for individual bodies of your manipulator robot using these properties of the `rigidBody`

objects:

`Mass`

— Mass of the rigid body in kilograms.`CenterOfMass`

— Center of mass position of the rigid body, specified as a vector of the form`[x y z]`

. The vector describes the location of the center of mass of the rigid body, relative to the body frame, in meters. The`centerOfMass`

object function uses these rigid body property values when computing the center of mass of a robot.`Inertia`

— Inertia of the rigid body, specified as a vector of the form`[Ixx Iyy Izz Iyz Ixz Ixy]`

. The vector is relative to the body frame in kilogram square meters. The inertia tensor is a positive definite matrix of the form:The first three elements of the

`Inertia`

vector are the moment of inertia, which are the diagonal elements of the inertia tensor. The last three elements are the product of inertia, which are the off-diagonal elements of the inertia tensor.

For information related to the entire manipulator robot model, specify these `rigidBodyTree`

object properties:

`Gravity`

— Gravitational acceleration experienced by the robot, specified as an`[x y z]`

vector in m/s^{2}. By default, there is no gravitational acceleration.`DataFormat`

— The input and output data format for the kinematics and dynamics functions, specified as`"struct"`

,`"row"`

, or`"column"`

.

### Dynamics Equations

Manipulator rigid body dynamics are governed by this equation:

$$\frac{d}{dt}\left[\begin{array}{c}q\\ \dot{q}\end{array}\right]=\left[\begin{array}{c}\dot{q}\\ M{(q)}^{-1}\left(-C(q,\dot{q})\dot{q}-G(q)-J{(q)}^{T}{f}_{Ext}+\tau \right)\end{array}\right]$$

also written as:

$$M(q)\ddot{q}=-C(q,\dot{q})\dot{q}-G(q)-J{(q)}^{T}{f}_{Ext}+\tau $$

where:

$$M(q)$$ — is a joint-space mass matrix based on the current robot configuration. Calculate this matrix by using the

`massMatrix`

object function.$$C(q,\dot{q})$$ — are the Coriolis terms, which are multiplied by $$\dot{q}$$ to calculate the velocity product. Calculate the velocity product by using by the

`velocityProduct`

object function.$$G(q)$$ — is the gravity torques and forces required for all joints to maintain their positions in the specified gravity

`Gravity`

. Calculate the gravity torque by using the`gravityTorque`

object function.$$J(q)$$ — is the geometric Jacobian for the specified joint configuration. Calculate the geometric Jacobian by using the

`geometricJacobian`

object function.$${f}_{Ext}$$ — is a matrix of the external forces applied to the rigid body. Generate external forces by using the

`externalForce`

object function.$$\tau $$ — are the joint torques and forces applied directly as a vector to each joint.

$$q,\dot{q},\ddot{q}$$ — are the joint configuration, joint velocities, and joint accelerations, respectively, as individual vectors. For revolute joints, specify values in radians, rad/s, and rad/s

^{2}, respectively. For prismatic joints, specify in meters, m/s, and m/s^{2}.

To compute the dynamics directly, use the `forwardDynamics`

object function. The function calculates the joint accelerations for the specified combinations of the above inputs.

To achieve a certain set of motions, use the `inverseDynamics`

object function. The function calculates the joint torques required to achieve the specified configuration, velocities, accelerations, and external forces.

## References

[1] Craig, John J. *Introduction to Robotics: Mechanics and
Control*. Reading, MA: Addison-Wesley, 1989.

[2] Siciliano, Bruno, Lorenzo Sciavicco, Luigi Villani, and Giuseppe Oriolo.
*Robotics: Modelling, Planning and Control.* London: Springer,
2009.

## Extended Capabilities

### C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

When creating the `rigidBodyTree`

object, use the syntax that specifies the
`MaxNumBodies`

as an upper bound for adding bodies to the robot model.
You must also specify the `DataFormat`

property as a name-value pair. For
example:

robot = rigidBodyTree("MaxNumBodies",15,"DataFormat","row")

To minimize data usage, limit the upper bound to a number close to the expected number of bodies in the model. All data formats are supported for code generation. To use the dynamics functions, the data format must be set to `"row"`

or `"column"`

.

The `show`

and `showdetails`

functions do not support code generation.

## Version History

**Introduced in R2016b**

### R2024a: Static memory allocation support

These `rigidBodyTree`

object functions now
support static memory sizes for code generation by disabling dynamic memory
allocation.

For more information about disabling dynamic memory allocation, see Set Dynamic Memory Allocation Threshold (MATLAB Coder).

### R2019b: `rigidBodyTree`

was renamed

The `rigidBodyTree`

object was renamed from
`robotics.RigidBodyTree`

. Use `rigidBodyTree`

for all object creation.

## See Also

`importrobot`

| `inverseKinematics`

| `generalizedInverseKinematics`

| `rigidBodyJoint`

| `rigidBody`

### Topics

### External Websites

## MATLAB Command

You clicked a link that corresponds to this MATLAB command:

Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.

Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
