# inverseKinematics

Create inverse kinematic solver

## Description

The `inverseKinematics`

System object™ creates an inverse kinematic (IK) solver to calculate joint
configurations for a desired end-effector pose based on a specified rigid body tree model.
Create a rigid body tree model for your robot using the `rigidBodyTree`

class. This model defines all the joint constraints that the solver
enforces. If a solution is possible, the joint limits specified in the robot model are
obeyed.

To specify more constraints besides the end-effector pose, including aiming constraints,
position bounds, or orientation targets, consider using `generalizedInverseKinematics`

. This object allows you to compute multiconstraint IK
solutions.

For closed-form analytical IK solutions, see `analyticalInverseKinematics`

.

To compute joint configurations for a desired end-effector pose:

Create the

`inverseKinematics`

object and set its properties.Call the object with arguments, as if it were a function.

To learn more about how System objects work, see What Are System Objects?

## Creation

### Description

creates an inverse
kinematic solver. To use the solver, specify a rigid body tree model in the
`ik`

= inverseKinematics`RigidBodyTree`

property.

creates an inverse kinematic solver with additional options specified by one or more
`ik`

= inverseKinematics(`Name,Value`

)`Name,Value`

pair arguments. `Name`

is a property
name and `Value`

is the corresponding value. `Name`

must
appear inside single quotes (`''`

). You can specify several name-value
pair arguments in any order as `Name1,Value1,...,NameN,ValueN`

.

## Properties

## Usage

### Description

`[`

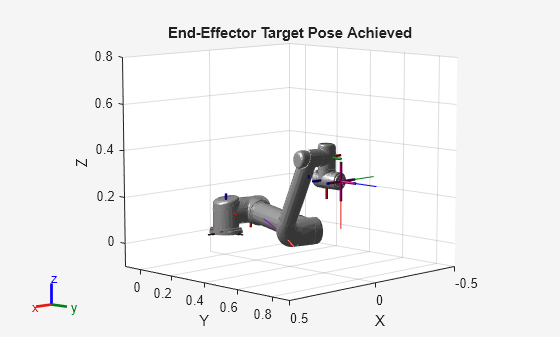

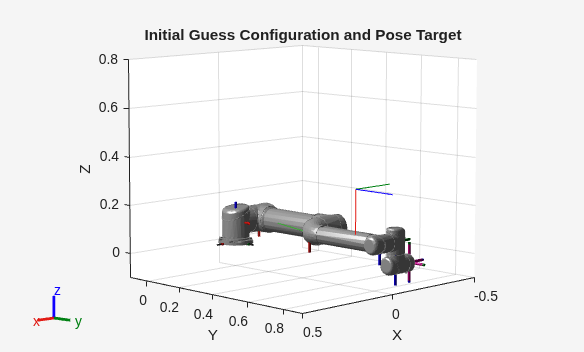

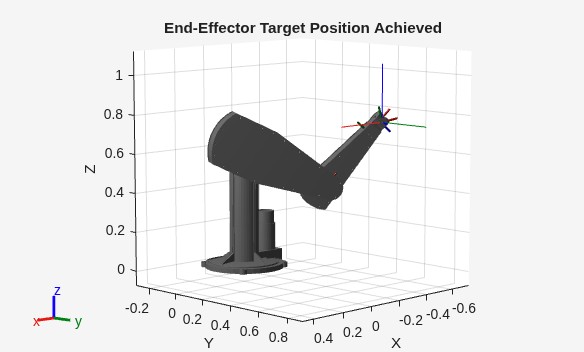

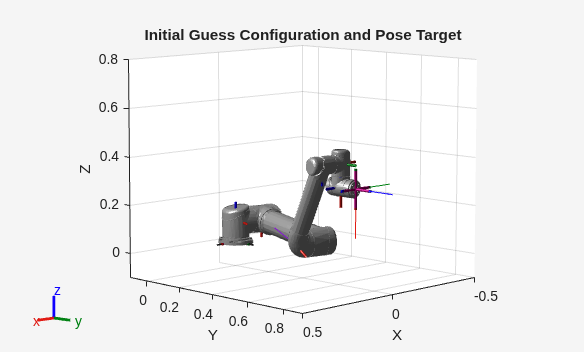

finds a joint configuration that achieves the specified end-effector pose. Specify an
initial guess for the configuration and your desired weights on the tolerances for the six
components of `configSol`

,`solInfo`

]
= ik(`endeffector`

,`pose`

,`weights`

,`initialguess`

)`pose`

. Solution information related to execution of the
algorithm, `solInfo`

, is returned with the joint configuration
solution, `configSol`

.

### Input Arguments

### Output Arguments

## Object Functions

To use an object function, specify the
System object as the first input argument. For
example, to release system resources of a System object named `obj`

, use
this syntax:

release(obj)

## Examples

## References

[1] Badreddine, Hassan, Stefan Vandewalle, and Johan Meyers. "Sequential Quadratic
Programming (SQP) for Optimal Control in Direct Numerical Simulation of Turbulent Flow."
*Journal of Computational Physics*. 256 (2014): 1–16.
doi:10.1016/j.jcp.2013.08.044.

[2] Bertsekas, Dimitri P. *Nonlinear Programming*. Belmont, MA:
Athena Scientific, 1999.

[3] Goldfarb, Donald. "Extension of Davidon’s Variable Metric Method to Maximization
Under Linear Inequality and Equality Constraints." *SIAM Journal on Applied
Mathematics*. Vol. 17, No. 4 (1969): 739–64. doi:10.1137/0117067.

[4] Nocedal, Jorge, and Stephen Wright. *Numerical Optimization*.
New York, NY: Springer, 2006.

[5] Sugihara, Tomomichi. "Solvability-Unconcerned Inverse Kinematics by the
Levenberg–Marquardt Method." *IEEE Transactions on Robotics* Vol. 27, No.
5 (2011): 984–91. doi:10.1109/tro.2011.2148230.

[6] Zhao, Jianmin, and Norman I. Badler. "Inverse Kinematics Positioning Using
Nonlinear Programming for Highly Articulated Figures." *ACM Transactions on
Graphics* Vol. 13, No. 4 (1994): 313–36. doi:10.1145/195826.195827.

## Extended Capabilities

## Version History

**Introduced in R2016b**
