# Train Reinforcement Learning Agent in MDP Environment

This example shows how to train a Q-learning agent to solve a generic Markov decision process (MDP) environment. For more information on these agents, see Q-Learning Agent.

The example code may involve computation of random numbers at various stages. Fixing the random number stream preserves the sequence of the random numbers every time you run the code and improves reproducibility of results. You will fix the random number stream at various locations in the example.

Fix the random number stream with the seed `0`

and random number algorithm Mersenne Twister. For more information on random number generation see `rng`

.

`previousRngState = rng(0,"twister")`

`previousRngState = `*struct with fields:*
Type: 'twister'
Seed: 0
State: [625x1 uint32]

The output `previousRngState`

is a structure that contains information about the previous state of the stream. You will restore the state at the end of the example.

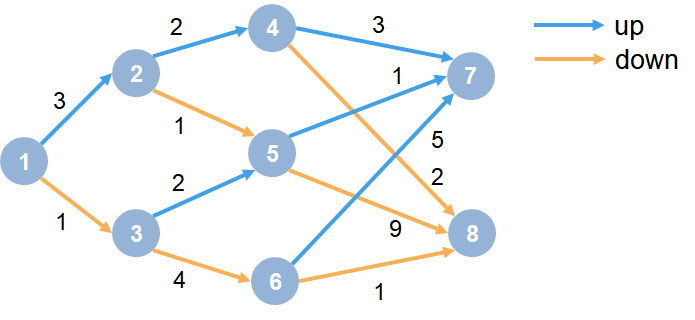

The MDP environment has the following graph.

Here:

Each circle represents a state.

At each state there is a decision to go up or down.

The agent begins from state 1.

The agent receives a reward equal to the value on each transition in the graph.

The training goal is to collect the maximum cumulative reward.

### Create MDP Environment

Create an MDP model with eight states and two actions ("up" and "down").

MDP = createMDP(8,["up";"down"]);

To model the transitions from the above graph, modify the state transition matrix and reward matrix of the MDP. By default, these matrices contain zeros. For more information on creating an MDP model and the properties of an MDP object, see `createMDP`

.

Specify the state transition and reward matrices for the MDP. For example, in the following commands:

The first two lines specify the transition from state 1 to state 2 by taking action

`1`

("up") and a reward of +3 for this transition.The next two lines specify the transition from state 1 to state 3 by taking action

`2`

("down") and a reward of +1 for this transition.

MDP.T(1,2,1) = 1; MDP.R(1,2,1) = 3; MDP.T(1,3,2) = 1; MDP.R(1,3,2) = 1;

Similarly, specify the state transitions and rewards for the remaining rules in the graph.

% State 2 transition and reward MDP.T(2,4,1) = 1; MDP.R(2,4,1) = 2; MDP.T(2,5,2) = 1; MDP.R(2,5,2) = 1; % State 3 transition and reward MDP.T(3,5,1) = 1; MDP.R(3,5,1) = 2; MDP.T(3,6,2) = 1; MDP.R(3,6,2) = 4; % State 4 transition and reward MDP.T(4,7,1) = 1; MDP.R(4,7,1) = 3; MDP.T(4,8,2) = 1; MDP.R(4,8,2) = 2; % State 5 transition and reward MDP.T(5,7,1) = 1; MDP.R(5,7,1) = 1; MDP.T(5,8,2) = 1; MDP.R(5,8,2) = 9; % State 6 transition and reward MDP.T(6,7,1) = 1; MDP.R(6,7,1) = 5; MDP.T(6,8,2) = 1; MDP.R(6,8,2) = 1; % State 7 transition and reward MDP.T(7,7,1) = 1; MDP.R(7,7,1) = 0; MDP.T(7,7,2) = 1; MDP.R(7,7,2) = 0; % State 8 transition and reward MDP.T(8,8,1) = 1; MDP.R(8,8,1) = 0; MDP.T(8,8,2) = 1; MDP.R(8,8,2) = 0;

Specify states `"s7"`

and `"s8"`

as terminal states of the MDP.

MDP.TerminalStates = ["s7";"s8"];

Create the reinforcement learning MDP environment for this process model.

env = rlMDPEnv(MDP);

To specify that the initial state of the agent is always state 1, specify a reset function that returns the initial agent state. This function is called at the start of each training episode and simulation. Create an anonymous function handle that sets the initial state to 1.

env.ResetFcn = @() 1;

### Create Q-Learning Agent

To create a Q-learning agent, first create a Q table model using the observation and action specifications from the MDP environment. Set the learning rate of the table model to 0.1.

obsInfo = getObservationInfo(env); actInfo = getActionInfo(env); qTable = rlTable(obsInfo, actInfo);

Next create a Q-value critic function from the table model.

qFunction = rlQValueFunction(qTable, obsInfo, actInfo);

Finally, create the Q-learning agent using this critic function. For this training:

Specify a discount factor of 1.0 to favor undiscounted long term rewards.

Specify the initial epsilon value 0.9 for the agent's epsilon greedy exploration model.

Specify a decay rate of 1e-3 and the minimum value of 0.1 for the epsilon parameter. Decaying the exploration gradually enables the agent to exploit its greedy policy towards the latter stages of training.

Use the stochastic gradient descent with momentum (sgdm) algorithm to update the table model with the learning rate of 0.1.

Using the L2 regularization factor 0. For this example disabling regularization helps in better estimating the long term undiscounted rewards.

agentOpts = rlQAgentOptions; agentOpts.DiscountFactor = 1; agentOpts.EpsilonGreedyExploration.Epsilon = 0.9; agentOpts.EpsilonGreedyExploration.EpsilonDecay = 1e-3; agentOpts.EpsilonGreedyExploration.EpsilonMin = 0.1; agentOpts.CriticOptimizerOptions = rlOptimizerOptions( ... Algorithm="sgdm", ... LearnRate=0.1, ... L2RegularizationFactor=0); qAgent = rlQAgent(qFunction,agentOpts);

For more information on creating Q-learning agents, see `rlQAgent`

and `rlQAgentOptions`

.

### Train Q-Learning Agent

To train the agent, first specify the training options. For this example, use the following options:

Train for 400 episodes, with each episode lasting at most 50 time steps.

Specify a window length of 30 for averaging the episode rewards.

For more information, see `rlTrainingOptions`

.

```
trainOpts = rlTrainingOptions;
trainOpts.MaxStepsPerEpisode = 50;
trainOpts.MaxEpisodes = 400;
trainOpts.ScoreAveragingWindowLength = 30;
trainOpts.StopTrainingCriteria = "none";
```

Fix the random stream for reproducibility.

`rng(0,"twister");`

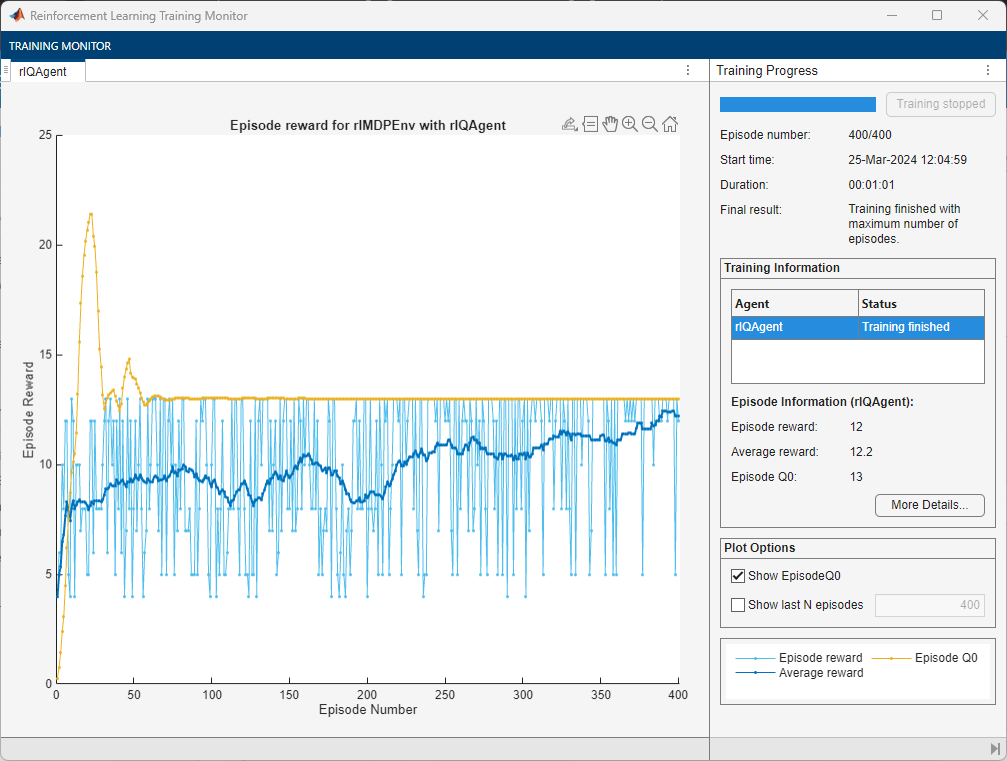

Train the agent using the `train`

function. This may take several minutes to complete. To save time while running this example, load a pretrained agent by setting `doTraining`

to `false`

. To train the agent yourself, set `doTraining`

to `true`

.

doTraining = false; if doTraining % Train the agent. trainingStats = train(qAgent,env,trainOpts); %#ok<UNRCH> else % Load pretrained agent for the example. load("genericMDPQAgent.mat","qAgent"); end

### Validate Q-Learning Results

Fix the random stream for reproducibility.

`rng(0,"twister");`

To validate the training results, simulate the agent in the training environment using the `sim`

function. The agent successfully finds the optimal path which results in cumulative reward of `13`

.

Data = sim(qAgent,env); cumulativeReward = sum(Data.Reward)

cumulativeReward = 13

Since the discount factor is set to `1`

, the values in the Q table of the trained agent are consistent with the undiscounted returns of the environment.

QTable = getLearnableParameters(getCritic(qAgent)); QTable{1}

`ans = `*8x2 single matrix*
13.0000 12.0000
5.0000 10.0000
11.0000 9.0000
3.0000 2.0000
1.0000 9.0000
5.0000 1.0000
0 0
0 0

TrueTableValues = [13,12;5,10;11,9;3,2;1,9;5,1;0,0;0,0]

`TrueTableValues = `*8×2*
13 12
5 10
11 9
3 2
1 9
5 1
0 0
0 0
