Train Reinforcement Learning Agent in Basic Grid World

This example shows how to solve a grid world environment using reinforcement learning by training Q-learning and SARSA agents. For more information on these agents, see Q-Learning Agents and SARSA Agents, respectively.

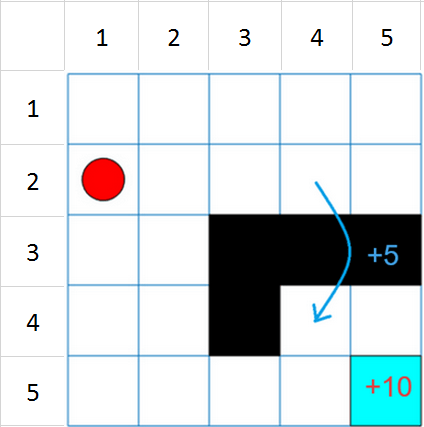

This grid world environment has the following configuration and rules:

  1. A 5-by-5 grid world bounded by borders, with 4 possible actions (North=1, South=2, East=3, West=4).

  2. The agent begins from cell [2,1] (second row, first column).

  3. The agent receives reward +10 if it reaches the terminal state at cell [5,5] (blue).

  4. The environment contains a special jump from cell [2,4] to cell [4,4] with +5 reward.

  5. The agent is blocked by obstacles (black cells).

  6. All other actions result in -1 reward.

Create Grid World Environment

Create the basic grid world environment.

env = rlPredefinedEnv("BasicGridWorld");

To specify the initial state of the agent is always [2,1], specify a reset function that returns the initial agent state. This function is called at the start of each training episode and simulation. The states are numbered starting at position [1,1] and counting down the column. Therefore, create an anonymous function handle that sets the initial state to 2.

env.ResetFcn = @() 2;

Fix the random generator seed for reproducibility.

rng(0)

Create Q-Learning Agent

To create a Q-learning agent, first create a Q table using the observation and action specifications from the grid world environment. Set the learn rate of the representation to 1.

qTable = rlTable(getObservationInfo(env),getActionInfo(env));
tableRep = rlRepresentation(qTable);
tableRep.Options.LearnRate = 1;

Next, create a Q-learning agent using this table representation, configuring the epsilon-greedy exploration. For more information on creating Q-learning agents, see rlQAgent and rlQAgentOptions.

agentOpts = rlQAgentOptions;
agentOpts.EpsilonGreedyExploration.Epsilon = .04;
qAgent = rlQAgent(tableRep,agentOpts);

Train Q-Learning Agent

To train the agent, first specify the training options. For this example, use the following options:

  • Train for at most 200 episodes, with each episode lasting at most 50 time steps.

  • Stop training when the agent receives an average cumulative reward greater than 10 over 30 consecutive episodes.

For more information, see rlTrainingOptions.

trainOpts = rlTrainingOptions;
trainOpts.MaxStepsPerEpisode = 50;
trainOpts.MaxEpisodes= 200;
trainOpts.StopTrainingCriteria = "AverageReward";
trainOpts.StopTrainingValue = 11;
trainOpts.ScoreAveragingWindowLength = 30;

Train the Q-Learning agent using the train function. This may take several minutes to complete. To save time while running this example, load a pretrained agent by setting doTraining to false. To train the agent yourself, set doTraining to true.

doTraining = false;

if doTraining
    % Train the agent.
    trainingStats = train(qAgent,env,trainOpts);
else
    % Load pretrained agent for the example.
    load('basicGWQAgent.mat','qAgent')
end

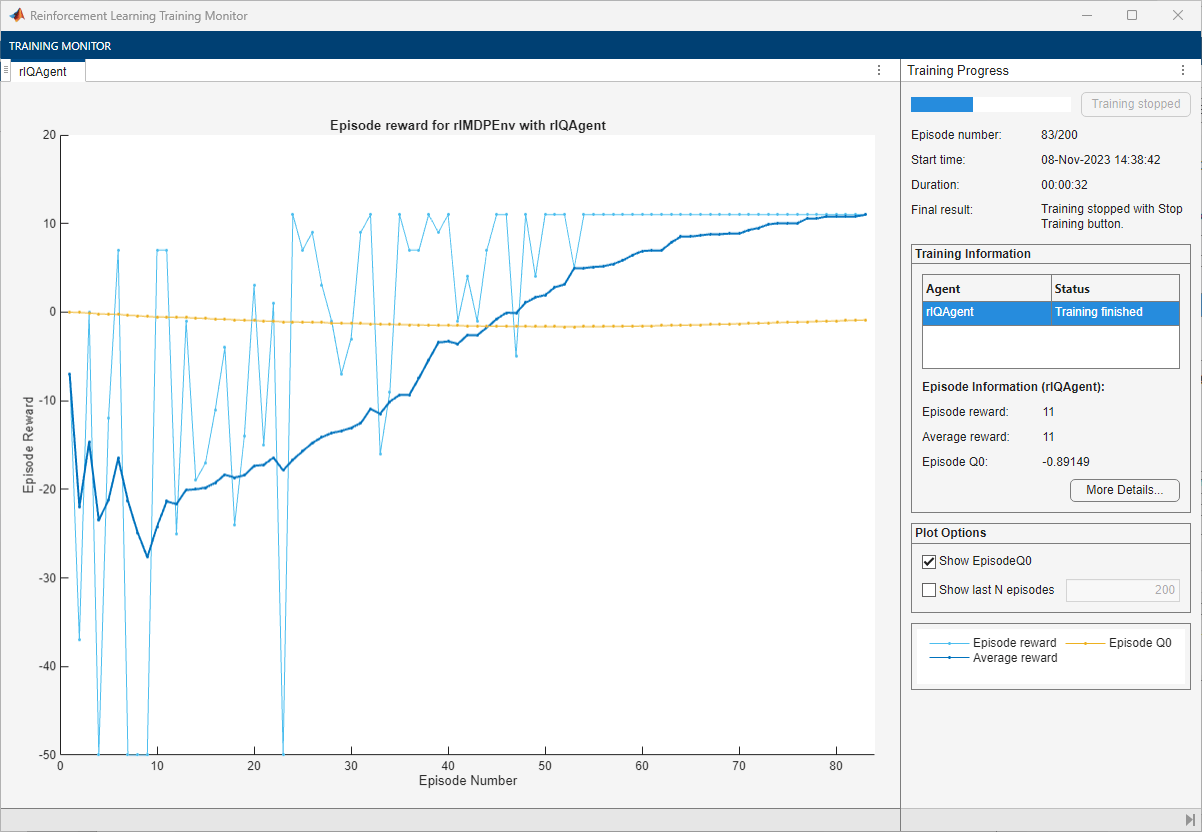

The Episode Manager window opens and displays the training progress.

Validate Q-Learning Results

To validate the training results, simulate the agent in the training environment.

Before running the simulation, visualize the environment and configure the visualization to maintain a trace of the agent states.

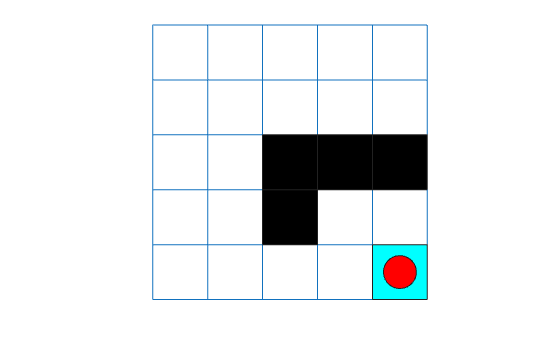

plot(env)
env.Model.Viewer.ShowTrace = true;
env.Model.Viewer.clearTrace;

Simulate the agent in the environment using the sim function.

sim(qAgent,env)

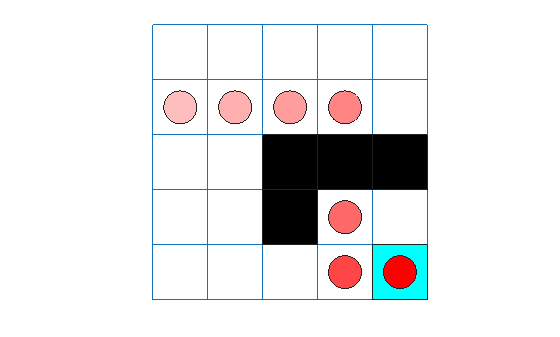

The agent trace shows that the agent successfully found the jump from state [2,4] to cell [4,4].

Create and Train SARSA Agent

To create the SARSA agent using the same Q table representation and epsilon-greedy configuration as the Q-learning agent. For more information on creating SARSA agents, see rlSARSAAgent and rlSARSAAgentOptions.

agentOpts = rlSARSAAgentOptions;
agentOpts.EpsilonGreedyExploration.Epsilon = 0.04;
sarsaAgent = rlSARSAAgent(tableRep,agentOpts);

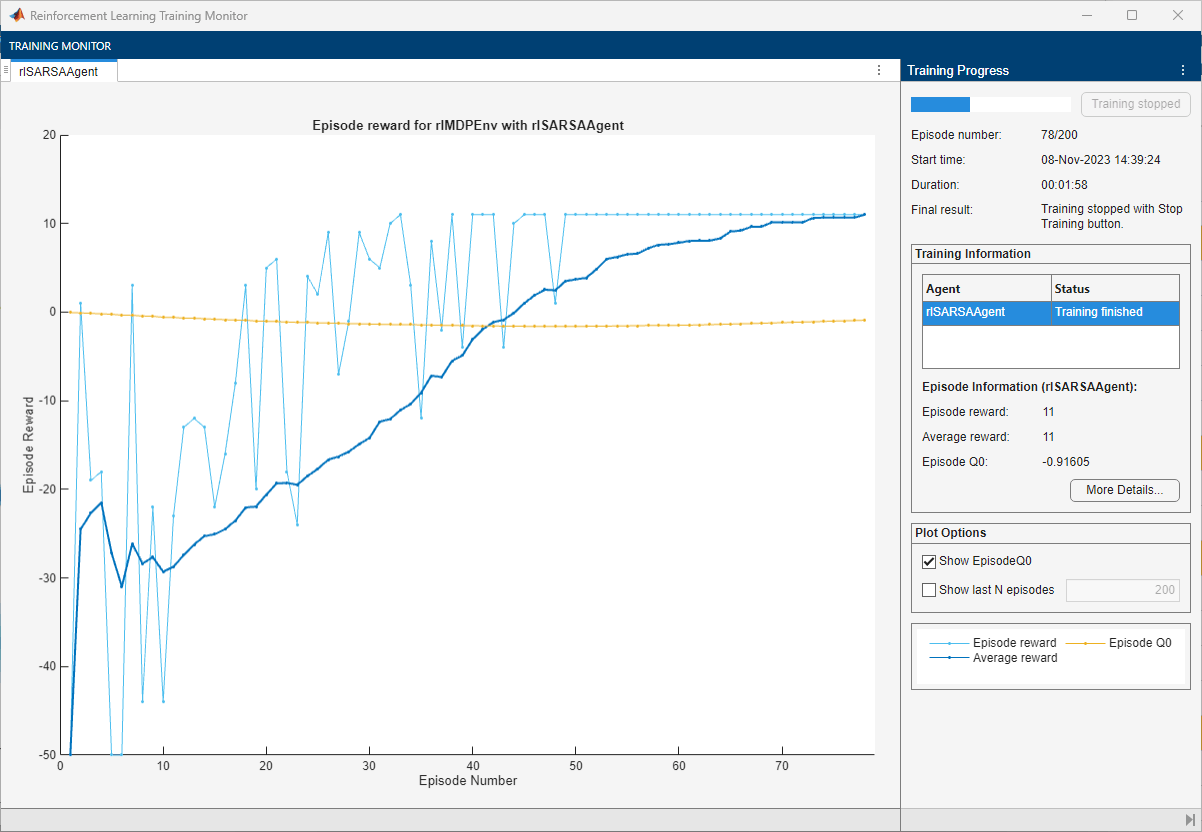

Train the SARSA agent using the train function. This may take several minutes to complete. To save time while running this example, load a pretrained agent by setting doTraining to false. To train the agent yourself, set doTraining to true.

doTraining = false;

if doTraining
    % Train the agent.
    trainingStats = train(sarsaAgent,env,trainOpts);
else
    % Load pretrained agent for the example.
    load('basicGWSARSAAgent.mat','sarsaAgent')
end

Validate SARSA Training

To validate the training results, simulate the agent in the training environment.

plot(env)
env.Model.Viewer.ShowTrace = true;
env.Model.Viewer.clearTrace;

Simulate the agent in the environment.

sim(sarsaAgent,env)

The SARSA agent finds the same grid world solution as the Q-learning agent.
