SteadyStateThermalResults

Steady-state thermal solution and derived quantities

Description

A SteadyStateThermalResults object contains the temperature and temperature gradient values in a form convenient for plotting and postprocessing.

The temperature and its gradients are calculated at the nodes of the triangular or tetrahedral mesh generated by generateMesh. Temperature values at the nodes appear in the Temperature property. The three components of the temperature gradient at the nodes appear in the XGradients, YGradients, and ZGradients properties.

To interpolate the temperature or its gradients to a custom grid (for example, specified by meshgrid), use interpolateTemperature or evaluateTemperatureGradient.

To evaluate heat flux of a thermal solution at nodal or arbitrary spatial locations, use evaluateHeatFlux. To evaluate integrated heat flow rate normal to specified boundary, use evaluateHeatRate.

Creation

Solve a steady-state thermal problem using the solve function. This function returns a steady-state thermal solution as a SteadyStateThermalResults object.

Properties

expand all

Finite element mesh, returned as a FEMesh Properties object.

Temperature values at nodes, returned as a vector.

Data Types: double

x-component of the temperature gradient at nodes, returned as a vector.

Data Types: double

y-component of the temperature gradient at nodes, returned as a vector.

Data Types: double

z-component of the temperature gradient at nodes, returned as a vector.

Data Types: double

Object Functions

evaluateHeatFluxEvaluate heat flux of a thermal solution at nodal or arbitrary spatial locations
evaluateHeatRateEvaluate integrated heat flow rate normal to specified boundary
evaluateTemperatureGradientEvaluate temperature gradient of a thermal solution at arbitrary spatial locations
interpolateTemperatureInterpolate temperature in a thermal result at arbitrary spatial locations

Examples

collapse all

Solve a 3-D steady-state thermal problem.

Create a thermal model for this problem.

thermalmodel = createpde('thermal');

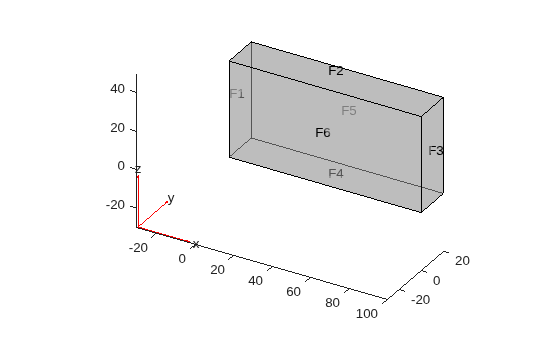

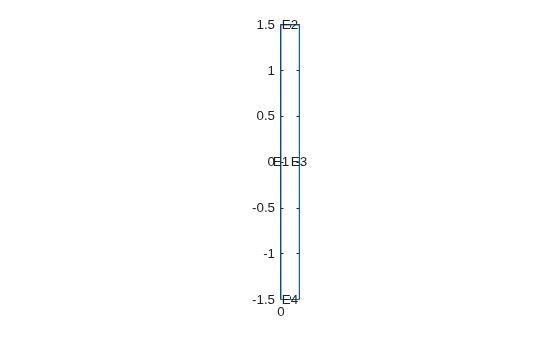

Import and plot the block geometry.

importGeometry(thermalmodel,'Block.stl');
pdegplot(thermalmodel,'FaceLabel','on','FaceAlpha',0.5)
axis equal

Assign material properties.

thermalProperties(thermalmodel,'ThermalConductivity',80);

Apply a constant temperature of 100C to the left side of the block (face 1) and a constant temperature of 300C to the right side of the block (face 3). All other faces are insulated by default.

thermalBC(thermalmodel,'Face',1,'Temperature',100);
thermalBC(thermalmodel,'Face',3,'Temperature',300);

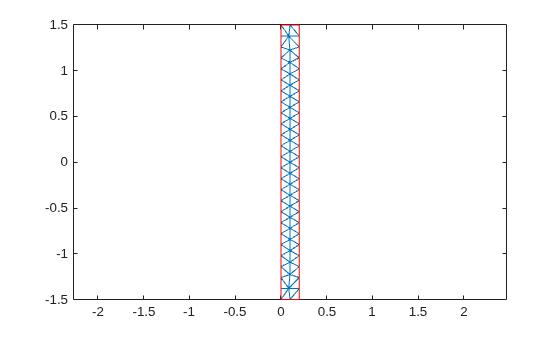

Mesh the geometry and solve the problem.

generateMesh(thermalmodel);
thermalresults = solve(thermalmodel)
thermalresults =
  SteadyStateThermalResults with properties:

    Temperature: [12691x1 double]
     XGradients: [12691x1 double]
     YGradients: [12691x1 double]
     ZGradients: [12691x1 double]
           Mesh: [1x1 FEMesh]

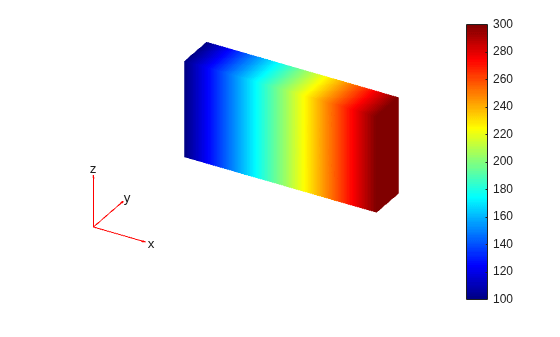

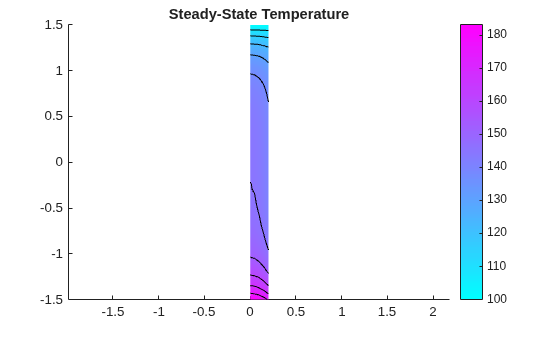

The solver finds the temperatures and temperature gradients at the nodal locations. To access these values, use thermalresults.Temperature, thermalresults.XGradients, and so on. For example, plot temperatures at nodal locations.

pdeplot3D(thermalmodel,'ColorMapData',thermalresults.Temperature)

Introduced in R2017a
