evaluateHeatRate

Evaluate integrated heat flow rate normal to specified boundary

Description

example

Qn = evaluateHeatRate(thermalresults,RegionType,RegionID) returns the integrated heat flow rate normal to the boundary specified by RegionType and RegionID.

Examples

collapse all

Compute the heat flow rate across a face of the block geometry.

Create a steady-state thermal model.

thermalmodel = createpde('thermal','steadystate');

Import the block geometry.

importGeometry(thermalmodel,'Block.stl');

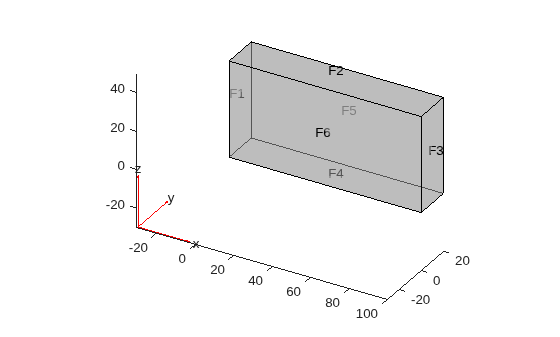

pdegplot(thermalmodel,'FaceLabels','on','FaceAlpha',0.5)

Specify the thermal conductivity of the block.

thermalProperties(thermalmodel,'ThermalConductivity',80);

Apply constant temperatures on the opposite ends of the block. All other faces are insulated by default.

thermalBC(thermalmodel,'Face',1,'Temperature',100);
thermalBC(thermalmodel,'Face',3,'Temperature',50);

Generate mesh.

generateMesh(thermalmodel,'GeometricOrder','linear');

Solve the thermal model.

thermalresults = solve(thermalmodel);

Compute the heat flow rate across face 3 of the block.

Qn = evaluateHeatRate(thermalresults,'Face',3)
Qn = 4.0000e+04

Compute the heat flow rate across the surface of the cooling sphere.

Create a thermal model for transient analysis.

thermalmodel = createpde('thermal','transient');

Create a sphere of radius 1, and assign it to the thermal model.

gm = multisphere(1);
thermalmodel.Geometry = gm;

Generate mesh.

generateMesh(thermalmodel,'GeometricOrder','linear');

Specify thermal properties of the sphere.

thermalProperties(thermalmodel,'ThermalConductivity',80, ...
                               'SpecificHeat',460, ...
                               'MassDensity',7800);

Apply a convection boundary condition on the surface of the sphere.

thermalBC(thermalmodel,'Face',1,...
                       'ConvectionCoefficient',500, ...
                       'AmbientTemperature',30);

Set the initial temperature.

thermalIC(thermalmodel,800);

Solve the thermal model.

tlist = 0:100:2000;
result = solve(thermalmodel,tlist);

Compute the heat flow rate across the surface of the sphere over time.

Qn = evaluateHeatRate(result,'Face',1);
plot(tlist,Qn)
xlabel('Time')
ylabel('Heat Flow Rate')

Input Arguments

collapse all

Solution of a thermal problem, specified as a SteadyStateThermalResults object. Create thermalresults using the solve function.

Example: thermalresults = solve(thermalmodel)

Geometric region type, specified as 'Face' for 3-D geometry or 'Edge' for 2-D geometry.

Example: Qn = evaluateHeatRate(thermalresults,'Face',3)

Data Types: char | string

Geometric region ID, specified as a positive integer. Find the region IDs using the pdegplot function with the 'FaceLabels' (3-D) or 'EdgeLabels' (2-D) value set to 'on'.

Example: Qn = evaluateHeatRate(thermalresults,'Face',3)

Data Types: double

Output Arguments

collapse all

Heat flow rate, returned as a real number or, for time-dependent results, a vector of real numbers. This value represents the integrated heat flow rate, measured in energy per unit time, flowing in the direction normal to the boundary. Qn is positive if the heat flows out of the domain, and negative if the heat flows into the domain.

Introduced in R2017a
