mappointshape

Point shape in planar coordinates

Description

A mappointshape object represents a point or multipoint in planar coordinates. A multipoint is an individual point shape that contains a set of point locations.

To represent a point or multipoint in geographic coordinates, use a geopointshape object instead.

Creation

To create mappointshape objects, either:

  • Import point data in planar coordinates as a geospatial table using the readgeotable function, and then query the Shape variable of the table.

  • Use the mappointshape function (described here).

Description

example

shape = mappointshape(x,y) creates a mappointshape object or array of mappointshape objects with the specified x- and y-coordinates. The sizes of x, y, and the mappointshape object array shape match.

Input Arguments

expand all

x-coordinates, specified as a numeric array or a cell array of numeric arrays.

  • Create a point by specifying a scalar, such as 39.

  • Create a multipoint by specifying an array within a cell, such as {[38 -30 29]}.

  • Create an array of points by specifying an array, such as [38 -30 29].

  • Create an array of points and multipoints by specifying a cell array of numeric arrays, such as {39,[38 -30 29]}.

Create placeholders for points with missing data by including NaN values. The NaN values in x must correspond to the NaN values in y.

The size of x must match the size of y. For cell arrays, the size of the array in each cell of x must match the size of the array in the corresponding cell of y.

Data Types: double | cell

y-coordinates, specified as a numeric array or a cell array of numeric arrays.

  • Create a point by specifying a scalar, such as -113.

  • Create a multipoint by specifying an array within a cell, such as {[-66 -31 42]}.

  • Create an array of points by specifying an array, such as [-66 -31 42].

  • Create an array of points and multipoints by specifying a cell array of numeric arrays, such as {-113,[-66 -31 42]}.

Create placeholders for points with missing data by including NaN values. The NaN values in x must correspond to the NaN values in y.

The size of x must match the size of y. For cell arrays, the size of the array in each cell of x must match the size of the array in the corresponding cell of y.

Properties

expand all

This property is read-only.

Number of points, returned as an array of nonnegative integers.

For a mappointshape scalar, the value of NumPoints is 1 when the mappointshape object represents a single point and more than 1 when the object represents a multipoint.

For a mappointshape array, the size of NumPoints matches the size of the array.

Data Types: double

x-coordinates, specified as an array.

For a mappointshape scalar, the size of X matches the value of NumPoints.

For a mappointshape array, the size of X matches the size of NumPoints. If the array contains mappointshape objects with multipoints, then accessing the X property of the array is not supported. Instead, access the X property of individual objects within the array.

This property is read-only for arrays when any element of NumPoints is greater than 1.

X and Y must be the same size.

Data Types: double

y-coordinates, specified as an array.

For a mappointshape scalar, the size of Y matches the value of NumPoints.

For a mappointshape array, the size of Y matches the size of NumPoints. If the array contains mappointshape objects with multipoints, then accessing the Y property of the array is not supported. Instead, access the Y property of individual objects within the array.

This property is read-only for arrays when any element of NumPoints is greater than 1.

X and Y must be the same size.

Data Types: double

This property is read-only.

Geometric type, returned as "point".

Data Types: string

This property is read-only.

Coordinate system type, returned as "planar".

Data Types: string

Projected coordinate reference system (CRS), specified as a projcrs object. A projected CRS consists of a geographic CRS and several parameters that are used to transform coordinates to and from the geographic CRS.

Object Functions

geoplotPlot points, lines, and polygons in geographic axes
mapclipClip shape to xy-limits in planar coordinates

Examples

collapse all

Import a shapefile containing the coordinates of locations in Boston as a geospatial table. The shapefile represents the locations using points. Get information about the points by querying the Shape variable of the table.

GT = readgeotable("boston_placenames.shp");
GT.Shape
ans =
  13×1 mappointshape array with properties:

               NumPoints: [13×1 double]
                       X: [13×1 double]
                       Y: [13×1 double]
                Geometry: "point"
    CoordinateSystemType: "planar"
            ProjectedCRS: [1×1 projcrs]

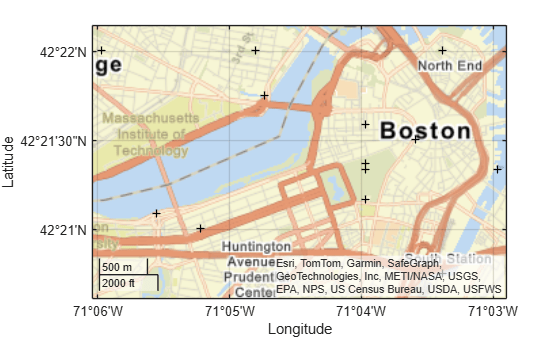

Display the locations using black plus signs on a road map.

geoplot(GT,"+k")
geobasemap streets

Create an individual point as a mappointshape scalar. Specify the projected CRS as World Equidistant Cylindrical, which has the EPSG authority code 4087.

point = mappointshape(-113,39);
p = projcrs(4087);
point.ProjectedCRS = p
point =
  mappointshape with properties:

               NumPoints: 1
                       X: -113
                       Y: 39
                Geometry: "point"
    CoordinateSystemType: "planar"
            ProjectedCRS: [1x1 projcrs]

Create a multipoint as a mappointshape scalar.

multipoint = mappointshape({[-66 -31 42]},{[38 -30 29]});
multipoint.ProjectedCRS = p
multipoint =
  mappointshape with properties:

               NumPoints: 3
                       X: [-66 -31 42]
                       Y: [38 -30 29]
                Geometry: "point"
    CoordinateSystemType: "planar"
            ProjectedCRS: [1x1 projcrs]

Create three individual points as a 1-by-3 mappointshape array.

pointVector = mappointshape([-66 -31 42],[38 -30 29]);
pointVector.ProjectedCRS = p
pointVector =
  1x3 mappointshape array with properties:

               NumPoints: [1 1 1]
                       X: [-66 -31 42]
                       Y: [38 -30 29]
                Geometry: "point"
    CoordinateSystemType: "planar"
            ProjectedCRS: [1x1 projcrs]

Create one individual point and one multipoint as a 1-by-2 mappointshape array.

pointMultipoint = mappointshape({-113,[-66 -31 42]},{39, [38 -30 29]});
pointMultipoint.ProjectedCRS = p
pointMultipoint =
  1x2 mappointshape array with properties:

               NumPoints: [1 3]
                Geometry: "point"
    CoordinateSystemType: "planar"
            ProjectedCRS: [1x1 projcrs]

Version History

Introduced in R2021b

expand all

Behavior changed in R2022a
