buffer
Description
creates a polygon shape that buffers the input point, line, or polygon shape by the
specified distance. The function creates the polygon shape by calculating the union of
circles that are centered on vertices of the input shape and that have radius
buffered
= buffer(shape
,dist
)dist
. By default, the function outwardly buffers the shape.
Examples
Buffer Shapes in Geographic Coordinates
Create a geospatial table containing a shape object for Australia. The table represents Australia using a polygon shape in geographic coordinates. Extract the polygon shape.
australia = geocode("australia");
shape = australia.Shape
shape = geopolyshape with properties: NumRegions: 1 NumHoles: 0 Geometry: "polygon" CoordinateSystemType: "geographic" GeographicCRS: [1x1 geocrs]
For shapes in geographic coordinates, the buffer distance units must match the angle unit of the geographic coordinate reference system (CRS) associated with the shape. Find the angle unit. The result indicates that the buffer distance must be in degrees.
shape.GeographicCRS.AngleUnit
ans = "degree"
Buffer the polygon shape by 2 degrees.
buffered = buffer(shape,2);

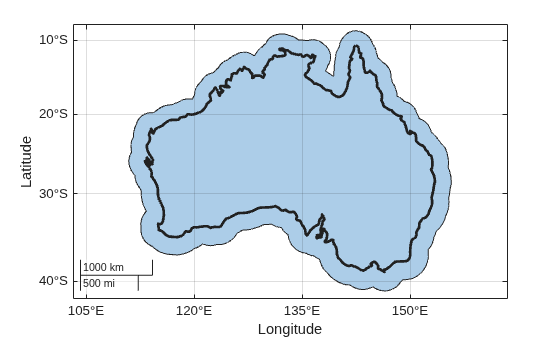

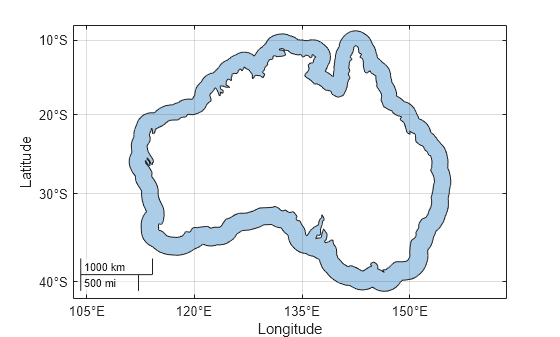

Create a map that displays the buffered shape and the outline of the original polygon.
figure geobasemap none geoplot(buffered) hold on geoplot(shape,LineWidth=2,FaceColor="none")
Buffer Shapes in Planar Coordinates
Read road data for an area in Concord, MA as a geospatial table. The table represents the roads using line shapes in planar coordinates. Create a subtable containing the line shapes for two named roads. Then, extract the line shapes.
roads = readgeotable("concord_roads.shp"); idx = ismember(roads.STREETNAME,["SOUTHFIELD CIRCLE","RIVERDALE ROAD"]); subroads = roads(idx,:); shape = subroads.Shape
shape=4×1 maplineshape array with properties:
NumParts: [4×1 double]
Geometry: "line"
CoordinateSystemType: "planar"
ProjectedCRS: [1×1 projcrs]
For shapes in planar coordinates, the buffer distance units must match the length unit of the projected CRS associated with the shape. Find the length unit. The result indicates that the buffer distance must be in meters.
shape.ProjectedCRS.LengthUnit
ans = "meter"
Buffer the line shapes by 15 meters.
buffered = buffer(shape,15);

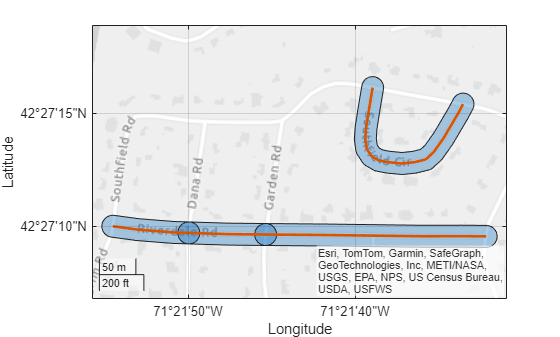

Create a map that displays the buffered shapes and the original lines. The overlapping buffered shapes indicate that the road consists of multiple line shapes.
figure
geoplot(buffered)
hold on
geoplot(shape,LineWidth=2)
Specify Buffer Distance for Each Shape
Read a shapefile containing the coordinates of locations in Boston as a geospatial table. The table represents the locations using point shapes in planar coordinates. Extract the point shapes.
places = readgeotable("boston_placenames.shp");
shape = places.Shape
shape = 13×1 mappointshape array with properties: NumPoints: [13×1 double] X: [13×1 double] Y: [13×1 double] Geometry: "point" CoordinateSystemType: "planar" ProjectedCRS: [1×1 projcrs]
Find the length unit to use for the buffer distances. The result indicates that the buffer distances must be in meters.
shape.ProjectedCRS.LengthUnit
ans = "meter"
For each shape, specify a random buffer distance between 100 meters and 400 meters. Then, buffer the point shapes.
sz = size(shape); dist = 100 + (400-100)*rand(sz); buffered = buffer(shape,dist);

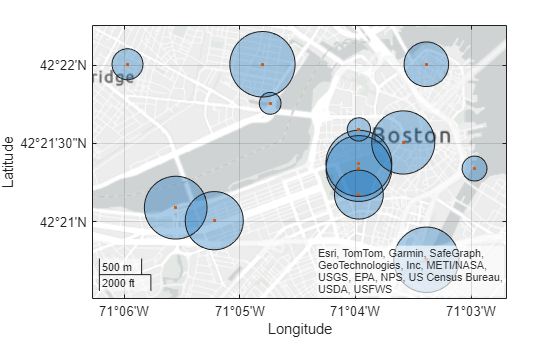

Create a map that displays the buffered shapes and the original point shapes.
figure
geoplot(buffered)
hold on
geoplot(shape)
Inwardly Buffer Polygon Shapes
Read a shapefile containing hydrographic data for Concord, MA as a geospatial table. The table represents the data using polygon shapes in planar coordinates. Create a subtable containing the polygon shape for a pond. Then, extract the polygon shapes.
hydro = readgeotable("concord_hydro_area.shp");
pond = hydro(14,:);
shape = pond.Shape
shape = mappolyshape with properties: NumRegions: 1 NumHoles: 3 Geometry: "polygon" CoordinateSystemType: "planar" ProjectedCRS: [1x1 projcrs]
Find the length unit to use for the buffer distance. The result indicates that the buffer distance must be in meters.
shape.ProjectedCRS.LengthUnit
ans = "meter"
Inwardly buffer the polygon shape by 20 meters by specifying the Direction
name-value argument.
buffered = buffer(shape,20,Direction="in");

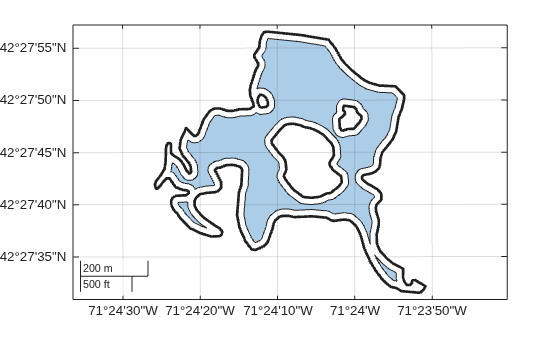

Create a map that uses the projected CRS associated with the shape. Then, display the buffered polygon and the outline of the original polygon.
figure newmap(shape.ProjectedCRS) geoplot(buffered) hold on geoplot(shape,LineWidth=2,FaceColor="none")
Input Arguments
shape
— Shape
array of geopointshape
, geolineshape
, or
geopolyshape
objects | array of mappointshape
, maplineshape
, or
mappolyshape
objects
Shape, specified as one of these options:
An array of
geopointshape
,geolineshape
, orgeopolyshape
objects — Point, line, or polygon shapes in geographic coordinates.An array of
mappointshape
,maplineshape
, ormappolyshape
objects — Point, line, or polygon shapes in planar coordinates.
For each option, you can include a combination of point, line, and polygon shapes. You can also specify this argument as a scalar point, line, or polygon shape.
dist
— Buffer distance
nonnegative scalar | array of nonnegative scalars
Buffer distance, specified as one of these options:
A nonnegative scalar — Use the same buffer distance for all the shape objects.
An array of nonnegative scalars — Use a different buffer distance for each shape object. The size of
dist
must match the size ofshape
.
The units you use to specify dist
and the way the
buffer
function interprets dist
depends on
the type of shape.
Type of Shape Object | Units | Interpretation |
---|---|---|
geopointshape , geolineshape , and
geopolyshape objects | Specify |
|
mappointshape , maplineshape , and
mappolyshape objects | Specify |
|
direction
— Buffer direction
"out"
(default) | "in"
Buffer direction, specified as one of these options:
"out"
— Outwardly buffer the shape."in"
— Inwardly buffer the shape.
To use this argument, the shape
argument must contain only
geopolyshape
or mappolyshape
objects.
If you inwardly buffer a polygon shape using a buffer distance that shrinks the
polygon to nothing, then the output polygon shape has no coordinate data and its
NumPoints
property is 0
.
Output Arguments
buffered
— Buffered shape
array of geopolyshape
objects | array of mappolyshape
objects
Buffered shape, returned as one of these options:
An array of
geopolyshape
objects, whenshape
contains shapes in geographic coordinates.An array of
mappolyshape
objects, whenshape
contains shapes in planar coordinates.
The size of buffered
matches the size of
shape
.
Version History
Introduced in R2024b
