# aoiquad

## Syntax

## Description

### Numeric Data

defines an area of
interest (AOI) for the specified geographic coordinates by creating a
quadrangle that bounds the coordinates.`aoi`

= aoiquad(`lat`

,`lon`

)

## Examples

### Define Quadrangular AOI from Latitude-Longitude Limits

Specify the latitude and longitude limits for a region surrounding the island of Kyushu, Japan. Specify the geographic CRS as the World Geodetic System of 1984, which has the EPSG code `4326`

.

latlim = [31 34]; lonlim = [129 132.5]; gcrs = geocrs(4326);

Create a quadrangular AOI from the limits. When you pass geographic coordinates to the `aoiquad`

function, the function represents the AOI using a scalar polygon shape in geographic coordinates.

aoi = aoiquad(latlim,lonlim,gcrs)

aoi = geopolyshape with properties: NumRegions: 1 NumHoles: 0 Geometry: "polygon" CoordinateSystemType: "geographic" GeographicCRS: [1×1 geocrs]

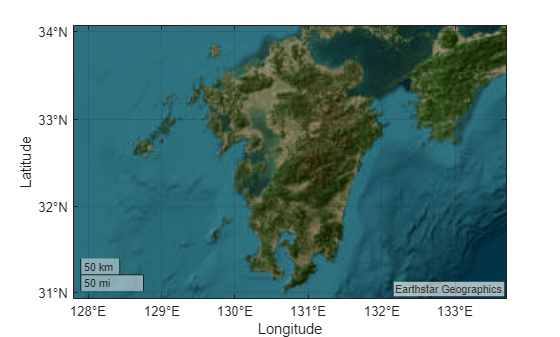

View satellite imagery for the region surrounding the AOI by plotting the AOI with no face or edge color.

geobasemap satellite geoplot(aoi,FaceColor="none",EdgeColor="none")

### Define Rectangular AOI from Projected Coordinates

Specify the projected coordinates for several places in Boston. Specify the projected CRS for the points as NAD83 / Massachusetts Mainland, which has the EPSG code `26986`

.

x = [234028 233569 235739 236266 234685 236536 234591 237114 235741 236548]; y = [900038 900190 901126 900974 901429 901901 901892 900670 900725 899587]; pcrs = projcrs(26986);

Create a rectangular AOI from the coordinates and the projected CRS. When you pass projected coordinates to the `aoiquad`

function, the function represents the AOI using a scalar polygon shape in projected coordinates.

aoi = aoiquad(x,y,pcrs)

aoi = mappolyshape with properties: NumRegions: 1 NumHoles: 0 Geometry: "polygon" CoordinateSystemType: "planar" ProjectedCRS: [1×1 projcrs]

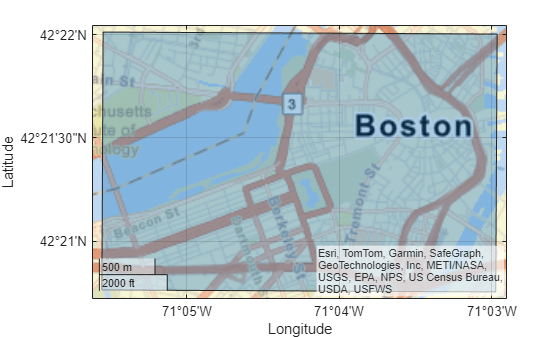

Display the AOI on a map.

```
geobasemap streets
geoplot(aoi)
```

### Define Rectangular AOI from Geospatial Table

Read road data for an area in Concord, MA as a geospatial table. The table represents the roads using line shapes in projected coordinates.

```
GT = readgeotable("concord_roads.shp");
GT.Shape
```

`ans=`*609×1 maplineshape array with properties:*
NumParts: [609×1 double]
Geometry: "line"
CoordinateSystemType: "planar"
ProjectedCRS: [1×1 projcrs]
⋮

Create a rectangular AOI from the shapes in the geospatial table. When you pass data in projected coordinates to the `aoiquad`

function, the function represents the AOI using a scalar polygon shape in projected coordinates.

aoi = aoiquad(GT)

aoi = mappolyshape with properties: NumRegions: 1 NumHoles: 0 Geometry: "polygon" CoordinateSystemType: "planar" ProjectedCRS: [1×1 projcrs]

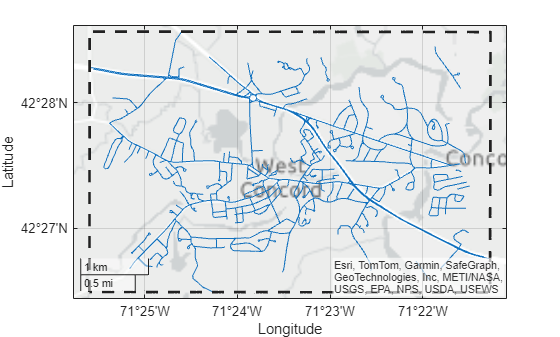

Display the road data and the boundary of the AOI on a map. Display the boundary of the AOI using a thick, dashed line.

geoplot(GT) hold on geoplot(aoi,LineWidth=2,LineStyle="--",FaceColor="none")

### Define Geographic AOI from Geocoded Placename

Create a geospatial table by geocoding the states of Kansas and Oklahoma. The table represents the states using polygon shapes in geographic coordinates.

GT = geocode(["Kansas","Oklahoma"],"state"); GT.Shape

`ans=`*2×1 geopolyshape array with properties:*
NumRegions: [2×1 double]
NumHoles: [2×1 double]
Geometry: "polygon"
CoordinateSystemType: "geographic"
GeographicCRS: [1×1 geocrs]

Create a quadrangular AOI from the shapes in the geospatial table. When you pass data in geographic coordinates to the `aoiquad`

function, the function represents the AOI using a scalar polygon shape in geographic coordinates.

aoi = aoiquad(GT)

aoi = geopolyshape with properties: NumRegions: 1 NumHoles: 0 Geometry: "polygon" CoordinateSystemType: "geographic" GeographicCRS: [1×1 geocrs]

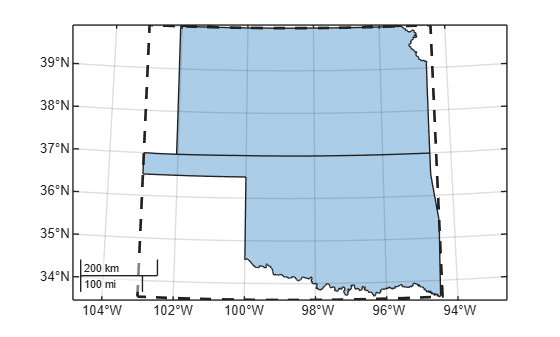

Display the states and the boundary of the AOI on a map. Display the boundary of the AOI using a thick, dashed line.

geobasemap colorterrain geoplot(GT) hold on geoplot(aoi,LineWidth=2,LineStyle="--",FaceColor="none")

### Define Quadrangular AOI from Shape Object

Read the geographic coordinates of European capitals into the workspace. Create a point shape object from the coordinates. Specify the geographic CRS as the World Geodetic System of 1984, which has the EPSG code `4326`

.

```
[lat,lon] = readvars("european_capitals.txt");
shape = geopointshape(lat,lon);
shape.GeographicCRS = geocrs(4326);
```

Create a quadrangular AOI from the shapes. When you pass data in geographic coordinates to the `aoiquad`

function, the function represents the AOI using a scalar polygon shape in geographic coordinates.

aoi = aoiquad(shape);

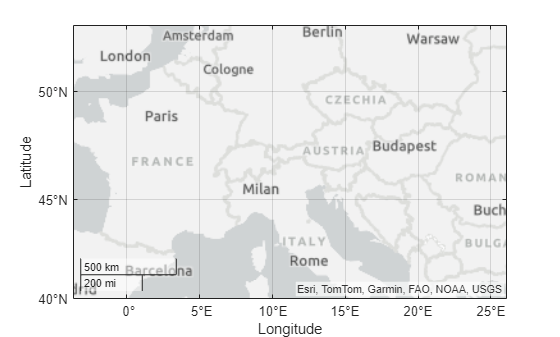

Create a map using the latitude and longitude limits of the AOI. Note that, to maintain the aspect ratio of the map, the `geolimits`

function typically uses wider limits than the limits you specify.

[latlim,lonlim] = bounds(aoi); geolimits(latlim,lonlim)

### Define Quadrangular AOI From Raster Data

Get the AOI for a raster data file. Then, display the AOI on a map. Displaying the AOI for a raster data file enables you to view the footprint of the file.

Get information about a raster data file by creating a `RasterInfo`

object. Extract the spatial reference from the object. The spatial reference indicates that the raster is a grid of rectangular cells referenced to projected *xy*-coordinates.

```
info = georasterinfo("MountDartmouth-ft.grd");
R = info.RasterReference
```

R = MapCellsReference with properties: XWorldLimits: [300390 310770] YWorldLimits: [4902150 4916340] RasterSize: [473 346] RasterInterpretation: 'cells' ColumnsStartFrom: 'north' RowsStartFrom: 'west' CellExtentInWorldX: 30 CellExtentInWorldY: 30 RasterExtentInWorldX: 10380 RasterExtentInWorldY: 14190 XIntrinsicLimits: [0.5 346.5] YIntrinsicLimits: [0.5 473.5] TransformationType: 'rectilinear' CoordinateSystemType: 'planar' ProjectedCRS: [1×1 projcrs]

Create a rectangular AOI from the spatial reference. When you pass data in projected coordinates to the `aoiquad`

function, the function represents the AOI using a scalar polygon shape in projected coordinates.

aoi = aoiquad(R)

aoi = mappolyshape with properties: NumRegions: 1 NumHoles: 0 Geometry: "polygon" CoordinateSystemType: "planar" ProjectedCRS: [1×1 projcrs]

Note that the bounds of the AOI match the `XWorldLimits`

and `YWorldLimits`

properties of the spatial reference.

[xlimits,ylimits] = bounds(aoi); isequal(xlimits,R.XWorldLimits) && isequal(ylimits,R.YWorldLimits)

`ans = `*logical*
1

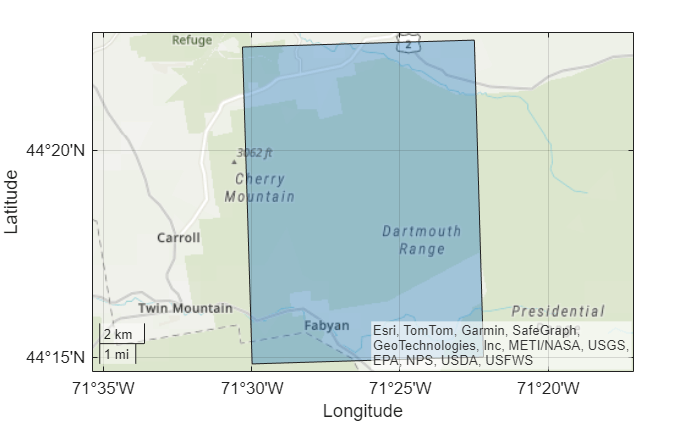

Display the AOI on a map. The AOI represents the footprint of the raster data file.

```
geobasemap topographic
geoplot(aoi)
```

### Export Quadrangular AOI to Shapefile

Export the footprint of a raster data file to a shapefile.

Get information about a DTED file by creating a `RasterInfo`

object. Create an AOI from the spatial reference that is stored in the `RasterInfo`

object.

```
info = georasterinfo("n40_w106_3arc_v2.dt1");
R = info.RasterReference;
aoi = aoiquad(R);
```

Create a geospatial table from the AOI. Then, export the geospatial table to a shapefile by using the `shapewrite`

function.

aoiGT = table(aoi,VariableName="Shape"); filename = "n40_w106_footprint.shp"; shapewrite(aoiGT,filename)

Read the shapefile into the workspace, and view the AOI.

```
GT = readgeotable(filename);

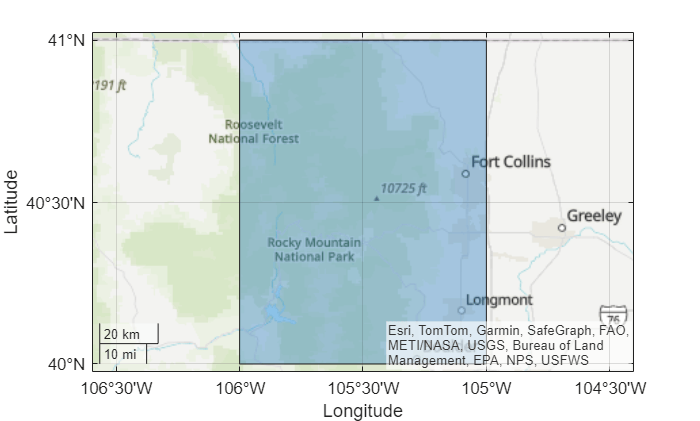

geobasemap topographic
geoplot(GT)
```

## Input Arguments

`lat`

— Latitude coordinates in degrees

numeric array with elements in range [–90, 90]

Latitude coordinates in degrees, specified as a numeric array with elements in
the range [–90, 90]. The sizes of `lat`

and
`lon`

must match.

If `lat`

and `lon`

are scalar, then the
function creates the AOI by calculating a small buffer around the point.

`lon`

— Longitude coordinates in degrees

numeric array

Longitude coordinates in degrees, specified as a numeric array. The sizes of
`lat`

and `lon`

must match.

If `lat`

and `lon`

are scalar, then the
function creates the AOI by calculating a small buffer around the point.

`gcrs`

— Geographic CRS of latitude and longitude coordinates

`geocrs`

object

Geographic CRS of the latitude and longitude coordinates, specified as a
`geocrs`

object.

`x`

— *x*-coordinates

numeric array

*x*-coordinates, specified as a numeric array. The sizes of
`x`

and `y`

must match.

If `x`

and `y`

are scalar, then the
function creates the AOI by calculating a small buffer around the point.

`y`

— *y*-coordinates

numeric array

*y*-coordinates, specified as a numeric array. The sizes of
`x`

and `y`

must match.

If `x`

and `y`

are scalar, then the
function creates the AOI by calculating a small buffer around the point.

`pcrs`

— Projected CRS for *xy*-coordinates

`projcrs`

object

Projected CRS for the *xy*-coordinates, specified as a `projcrs`

object.

`GT`

— Geospatial table

geospatial table

Geospatial table. A geospatial table is a `table`

or `timetable`

object with a
`Shape`

variable that contains point, line, or polygon shapes.
For more information about geospatial tables, see Create Geospatial Tables.

The `ProjectedCRS`

properties of `mappointshape`

, `maplineshape`

, and `mappolyshape`

objects within the `Shape`

variable
must not be empty.

`shape`

— Point, line, or polygon shapes

vector of `geopointshape`

, `geolineshape`

, or
`geopolyshape`

objects | vector of `mappointshape`

, `maplineshape`

, or
`mappolyshape`

objects

Point, line, or polygon shapes, specified as one of these options:

A vector of

`geopointshape`

,`geolineshape`

, or`geopolyshape`

objects — Point, line, or polygon shapes in geographic coordinates.A vector of

`mappointshape`

,`maplineshape`

, or`mappolyshape`

objects — Point, line, or polygon shapes in projected coordinates. The`ProjectedCRS`

properties of the shapes must not be empty.

For each option, you can include a combination of point, line, and polygon shapes. You can also specify this argument as a scalar point, line, or polygon shape.

`R`

— Spatial reference

array of `GeographicCellsReference`

objects | array of `GeographicPostingsReference`

objects | array of `MapCellsReference`

objects | array of `MapPostingsReference`

objects

Spatial reference, specified one of these options:

An array of

`GeographicCellsReference`

objects — Spatial reference for a grid of quadrangular cells in geographic coordinates.An array of

`GeographicPostingsReference`

objects — Spatial reference for a grid of posting point samples in geographic coordinates.An array of

`MapCellsReference`

objects — Spatial reference for a grid of quadrangular cells in projected coordinates.An array of

`MapPostingsReference`

objects — Spatial reference for a grid of posting point samples in projected coordinates.

You can also specify this argument as a scalar object.

The `ProjectedCRS`

properties of
`MapCellsReference`

and `MapPostingsReference`

objects must not be empty.

## Output Arguments

`aoi`

— Quadrangular or rectangular AOI

scalar `geopolyshape`

object | scalar `mappolyshape`

object

Quadrangular or rectangular AOI, returned as one of these options:

A scalar

`geopolyshape`

object, when you specify the input using geographic coordinates. The boundaries of the AOI follow linear paths.A scalar

`mappolyshape`

object, when you specify the input using projected coordinates.

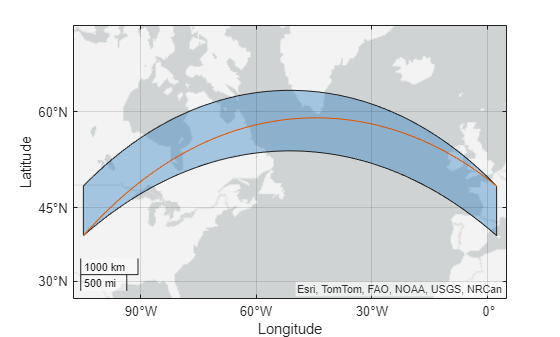

The `aoiquad`

function creates the boundary of the AOI by
linearly interpolating points between the corners of the AOI.

## More About

### Area of Interest

An *area of interest* (AOI) defines a focus
area for geospatial analysis and visualization. Mapping Toolbox™ represents AOIs using polygon shape objects. A scalar `geopolyshape`

object represents an AOI in geographic coordinates, and a scalar `mappolyshape`

object represents an AOI in projected coordinates.

## Version History

**Introduced in R2024b**
