# nlarx

Estimate parameters of nonlinear ARX model

## Syntax

## Description

### Estimate New Nonlinear ARX Model

estimates a nonlinear ARX model to fit the given estimation data
`sys`

= nlarx(`data`

,`orders`

)`data`

using the specified ARX model orders
`orders`

and the default wavelet network output function.

`data`

can be in the form of a `timetable`

, a comma-separated pair
of numeric matrices, a single numeric matrix, or an `iddata`

object. If
`data`

is a timetable, you can select specific input and
output channels to use for estimation by specifying the channel names in the
`InputName`

and `OutputName`

name-value arguments.

Use this syntax when you extend an ARX linear model, or when you use only regressors that are linear with consecutive lags.

estimates a nonlinear ARX model using the specified regressor set
`sys`

= nlarx(`data`

,`regressors`

)`regressors`

.

Use this syntax when you have linear regressors that have nonconsecutive lags, or when you also have any combination of polynomial regressors, periodic regressors, and custom regressors.

When you use `regressors`

to estimate a MIMO system and
`data`

is a timetable, you must also specify the output
variables in the `OutputName`

name-value argument.

specifies the output function that maps the regressors to the model output. You
can use this syntax with any of the previous input argument combinations.`sys`

= nlarx(___,`output_fcn`

)

### Extend Existing Linear Model

uses a linear ARX model `sys`

= nlarx(`data`

,`linmodel`

)`linmodel`

to specify the model
orders and the initial values of the linear coefficients of the model.

Use this syntax when you want to create a nonlinear ARX model as an extension of, or an improvement upon, an existing linear model.

When you use this syntax, the software initializes the offset value to
`0`

. In some cases, you can improve the estimation results
by overriding this initialization with the command
`sys.OutputFcn.Offset.Value = NaN`

.

specifies the output function to use for model estimation.`sys`

= nlarx(`data`

,`linmodel`

,`output_fcn`

)

### Refine Existing Nonlinear ARX Model

estimates or refines the parameters of the nonlinear ARX model
`sys`

= nlarx(`data`

,`sys0`

)`sys0`

.

Use this syntax to:

Estimate the parameters of a model previously created using the

`idnlarx`

constructor. Prior to estimation, you can configure the model properties using dot notation.Update the parameters of a previously estimated model to improve the fit to the estimation data. In this case, the estimation algorithm uses the parameters of

`sys0`

as initial guesses.

### Specify Additional Options

uses additional model options specified by one or more name-value arguments. For
example, specify the input and output signal variable names that correspond with
the variables to use from MIMO timetable data using `sys`

= nlarx(___,`Name,Value`

)```
sys =
nlarx(data,regressors,'InputName',["u1","u3"],'OutputName',["y1","y4"])
```

.

## Examples

### Estimate Nonlinear ARX Model

Load the estimation data.

`load twotankdata;`

Create an `iddata`

object from the estimation data with a sample time of 0.2 seconds.

Ts = 0.2; z = iddata(y,u,Ts);

Estimate the nonlinear ARX model using ARX model orders to specify the regressors.

sysNL = nlarx(z,[4 4 1])

sysNL = Nonlinear ARX model with 1 output and 1 input Inputs: u1 Outputs: y1 Regressors: Linear regressors in variables y1, u1 Output function: Wavelet network with 11 units Sample time: 0.2 seconds Status: Estimated using NLARX on time domain data "z". Fit to estimation data: 96.84% (prediction focus) FPE: 3.482e-05, MSE: 3.431e-05 More information in model's "Report" property.

`sys`

uses the default `idWaveletNetwork`

function as the output function.

For comparison, compute a linear ARX model with the same model orders.

sysL = arx(z,[4 4 1]);

Compare the model outputs with the original data.

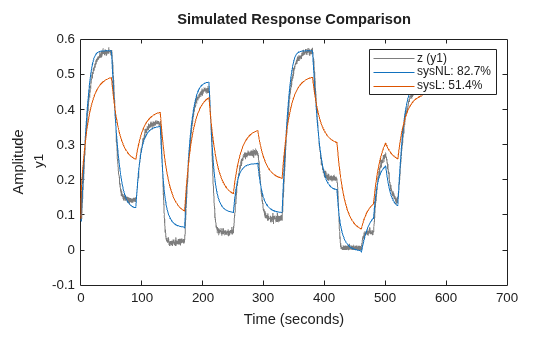

compare(z,sysNL,sysL)

The nonlinear model has a much better fit to the data than the linear model.

### Estimate Nonlinear ARX Model Using Linear Regressor Set

Specify a linear regressor that is equivalent to an ARX model order matrix of `[4 4 1]`

.

An order matrix of `[4 4 1]`

specifies that both input and output regressor sets contain four regressors with lags ranging from 1 to 4. For example, ${\mathit{u}}_{1}\left(\mathit{t}-2\right)$ represents the second input regressor.

Specify the output and input names.

output_name = 'y1'; input_name = 'u1'; names = {output_name,input_name};

Specify the output and input lags.

output_lag = [1 2 3 4]; input_lag = [1 2 3 4]; lags = {output_lag,input_lag};

Create the linear regressor object.

lreg = linearRegressor(names,lags)

lreg = Linear regressors in variables y1, u1 Variables: {'y1' 'u1'} Lags: {[1 2 3 4] [1 2 3 4]} UseAbsolute: [0 0] TimeVariable: 't'

Load the estimation data and create an iddata object.

```
load twotankdata
z = iddata(y,u,0.2);
```

Estimate the nonlinear ARX model.

sys = nlarx(z,lreg)

sys = Nonlinear ARX model with 1 output and 1 input Inputs: u1 Outputs: y1 Regressors: Linear regressors in variables y1, u1 Output function: Wavelet network with 11 units Sample time: 0.2 seconds Status: Estimated using NLARX on time domain data "z". Fit to estimation data: 96.84% (prediction focus) FPE: 3.482e-05, MSE: 3.431e-05 More information in model's "Report" property.

View the regressors

getreg(sys)

`ans = `*8x1 cell*
{'y1(t-1)'}
{'y1(t-2)'}
{'y1(t-3)'}
{'y1(t-4)'}
{'u1(t-1)'}
{'u1(t-2)'}
{'u1(t-3)'}
{'u1(t-4)'}

Compare the model output to the estimation data.

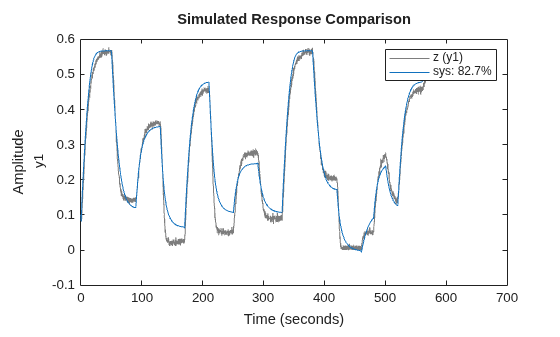

compare(z,sys)

### Estimate Nonlinear ARX Model from Time Series Data

Create time and data arrays.

dt = 0.01; t = 0:dt:10; y = 10*sin(2*pi*t)+rand(size(t));

Create an `iddata`

object with no input signal specified.

z = iddata(y',[],dt);

Estimate the nonlinear ARX model.

sys = nlarx(z,2)

sys = Nonlinear time series model Outputs: y1 Regressors: Linear regressors in variables y1 Output function: Wavelet network with 8 units Sample time: 0.01 seconds Status: Estimated using NLARX on time domain data "z". Fit to estimation data: 92.92% (prediction focus) FPE: 0.2568, MSE: 0.2507 More information in model's "Report" property.

### Specify and Customize Output Function

Estimate a nonlinear ARX model that uses the mapping function `idSigmoidNetwork`

as its output function.

Load the data and divide it into the estimation and validation data sets `ze`

and `zv`

.

load twotankdata.mat u y z = iddata(y,u,'Ts',0.2); ze = z(1:1500); zv = z(1501:end);

Configure the `idSigmoidNetwork`

mapping function. Fix the offset to 0.2 and the number of units to 15.

s = idSigmoidNetwork; s.Offset.Value = 0.2; s. NonlinearFcn.NumberOfUnits = 15;

Create a linear model regressor specification that contains four output regressors and five input regressors.

reg1 = linearRegressor({'y1','u1'},{1:4,0:4});

Create a polynomial model regressor specification that contains the squares of two output terms and three input terms.

reg2 = polynomialRegressor({'y1','u1'},{1:2,0:2},2);

Set estimation options for the search method and maximum number of iterations.

opt = nlarxOptions('SearchMethod','fmincon')'; opt.SearchOptions.MaxIterations = 40;

Estimate the nonlinear ARX model.

sys = nlarx(ze,[reg1;reg2],s,opt);

Validate `sys`

by comparing the simulated model response to the validation data set.

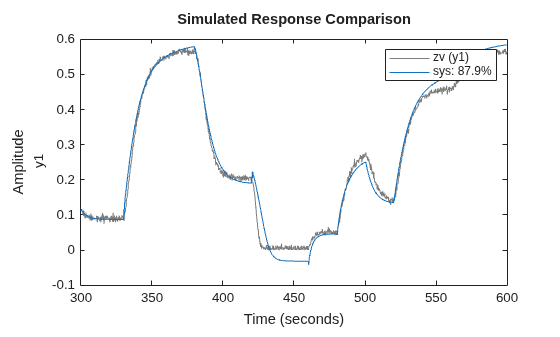

compare(zv,sys)

### Add Output Function to Extend and Improve Linear Model

Estimate a linear model and improve the model by adding an `idTreePartition`

output function.

Load the estimation data.

load throttledata ThrottleData

Estimate a linear ARX model `linsys`

with orders `[2 2 1]`

.

linsys = arx(ThrottleData,[2 2 1]);

Create an `idnlarx`

template model that uses `linsys`

and specifies `idTreePartition`

as the output function.

sys0 = idnlarx(linsys,idTreePartition);

Fix the linear component of `sys0`

so that during estimation, the linear portion of `sys0`

remains identical to `linsys`

. Set the offset component value to `NaN`

.

sys0.OutputFcn.LinearFcn.Free = false; sys0.OutputFcn.Offset.Value = NaN;

Estimate the free parameters of `sys0`

, which are the nonlinear-function parameters and the offset.

sys = nlarx(ThrottleData,sys0);

Compare the fit accuracies for the linear and nonlinear models.

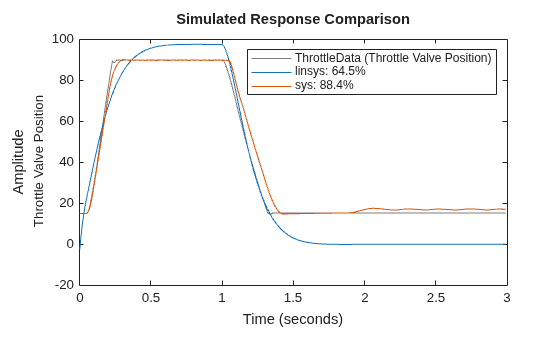

compare(ThrottleData,linsys,sys)

### Estimate Nonlinear ARX Model Using Custom Network Mapping Object

Generating a custom network mapping object requires the definition of a user-defined unit function.

Define the unit function and save it as `gaussunit.m`

.

function [f,g,a] = gaussunit(x) % Custom unit function nonlinearity. % % Copyright 2015 The MathWorks, Inc. f = exp(-x.*x); if nargout>1 g = -2*x.*f; a = 0.2; end

Create a custom network mapping object using a handle to the `gaussunit`

function.

H = @gaussunit; CNet = idCustomNetwork(H);

Load the estimation data.

```
load iddata1
```

Estimate a nonlinear ARX model using the custom network.

sys = nlarx(z1,[1 2 1],CNet)

sys = <strong>Nonlinear ARX model with 1 output and 1 input</strong> Inputs: u1 Outputs: y1 Regressors: Linear regressors in variables y1, u1 Output function: Custom Network with 10 units and "gaussunit" unit function Sample time: 0.1 seconds Status: Termination condition: Maximum number of iterations reached.. Number of iterations: 20, Number of function evaluations: 613 Estimated using NLARX on time domain data "z1". Fit to estimation data: 64.35% (prediction focus) FPE: 3.58, MSE: 2.465 More information in model's "Report" property.

### Estimate MIMO Nonlinear ARX Model

Load the estimation data.

`load motorizedcamera;`

Create an `iddata`

object.

z = iddata(y,u,0.02,'Name','Motorized Camera','TimeUnit','s');

`z`

is an `iddata`

object with six inputs and two outputs.

Specify the model orders.

Orders = [ones(2,2),2*ones(2,6),ones(2,6)];

Specify different mapping functions for each output channel.

NL = [idWaveletNetwork(2),idLinear];

Estimate the nonlinear ARX model.

sys = nlarx(z,Orders,NL)

sys = Nonlinear ARX model with 2 outputs and 6 inputs Inputs: u1, u2, u3, u4, u5, u6 Outputs: y1, y2 Regressors: Linear regressors in variables y1, y2, u1, u2, u3, u4, u5, u6 Output functions: Output 1: Wavelet network with 2 units Output 2: Linear with offset Sample time: 0.02 seconds Status: Termination condition: Maximum number of iterations reached.. Number of iterations: 20, Number of function evaluations: 710 Estimated using NLARX on time domain data "Motorized Camera". Fit to estimation data: [98.82;98.77]% (prediction focus) FPE: 0.4839, MSE: 0.9762 More information in model's "Report" property.

### Estimate MIMO Nonlinear ARX Model with Same Mapping Function for All Outputs

Load the estimation data and create an `iddata`

object `z`

. `z`

contains two output channels and six input channels.

```
load motorizedcamera;
z = iddata(y,u,0.02);
```

Specify a set of linear regressors that uses the output and input names from `z`

and contains:

2 output regressors with 1 lag.

6 input regressor pairs with 1 and 2 lags.

names = [z.OutputName; z.InputName]; lags = {1,1,[1,2],[1,2],[1,2],[1,2],[1,2],[1,2]}; reg = linearRegressor(names,lags);

Estimate a nonlinear ARX model using an `idSigmoidNetwork`

mapping function with four units for all output channels.

sys = nlarx(z,reg,idSigmoidNetwork(4))

sys = Nonlinear ARX model with 2 outputs and 6 inputs Inputs: u1, u2, u3, u4, u5, u6 Outputs: y1, y2 Regressors: Linear regressors in variables y1, y2, u1, u2, u3, u4, u5, u6 Output functions: Output 1: Sigmoid network with 4 units Output 2: Sigmoid network with 4 units Sample time: 0.02 seconds Status: Termination condition: Maximum number of iterations reached.. Number of iterations: 20, Number of function evaluations: 177 Estimated using NLARX on time domain data "z". Fit to estimation data: [98.86;98.79]% (prediction focus) FPE: 2.641, MSE: 0.9233 More information in model's "Report" property.

### Specify Linear, Polynomial, and Custom Regressors

Load the estimation data `z1`

, which has one input and one output, and obtain the output and input names.

load iddata1 z1; names = [z1.OutputName z1.InputName]

`names = `*1x2 cell*
{'y1'} {'u1'}

Specify `L`

as the set of linear regressors that represents ${\mathit{y}}_{1}\left(\mathit{t}-1\right)$, ${\mathit{u}}_{1}\left(\mathit{t}-2\right)$, and ${\mathit{u}}_{1}\left(\mathit{t}-5\right)$.

L = linearRegressor(names,{1,[2 5]});

Specify `P`

as the polynomial regressor ${{\mathit{y}}_{1}\left(\mathit{t}-1\right)}^{2}$.

P = polynomialRegressor(names(1),1,2);

Specify `C`

as the custom regressor ${\mathit{y}}_{1}\left(\mathit{t}-2\right)$${\mathit{u}}_{1}\left(\mathit{t}-3\right)$. Use an anonymous function handle to define this function.

C = customRegressor(names,{2 3},@(x,y)x.*y)

C = Custom regressor: y1(t-2).*u1(t-3) VariablesToRegressorFcn: @(x,y)x.*y Variables: {'y1' 'u1'} Lags: {[2] [3]} Vectorized: 1 TimeVariable: 't'

Combine the regressors in the column vector `R`

.

R = [L;P;C]

R = [3 1] array of linearRegressor, polynomialRegressor, customRegressor objects. ------------------------------------ 1. Linear regressors in variables y1, u1 Variables: {'y1' 'u1'} Lags: {[1] [2 5]} UseAbsolute: [0 0] TimeVariable: 't' ------------------------------------ 2. Order 2 regressors in variables y1 Order: 2 Variables: {'y1'} Lags: {[1]} UseAbsolute: 0 AllowVariableMix: 0 AllowLagMix: 0 TimeVariable: 't' ------------------------------------ 3. Custom regressor: y1(t-2).*u1(t-3) VariablesToRegressorFcn: @(x,y)x.*y Variables: {'y1' 'u1'} Lags: {[2] [3]} Vectorized: 1 TimeVariable: 't'

Estimate a nonlinear ARX model with `R`

.

sys = nlarx(z1,R)

sys = Nonlinear ARX model with 1 output and 1 input Inputs: u1 Outputs: y1 Regressors: 1. Linear regressors in variables y1, u1 2. Order 2 regressors in variables y1 3. Custom regressor: y1(t-2).*u1(t-3) Output function: Wavelet network with 1 units Sample time: 0.1 seconds Status: Estimated using NLARX on time domain data "z1". Fit to estimation data: 59.73% (prediction focus) FPE: 3.356, MSE: 3.147 More information in model's "Report" property.

View the full regressor set.

getreg(sys)

`ans = `*5x1 cell*
{'y1(t-1)' }
{'u1(t-2)' }
{'u1(t-5)' }
{'y1(t-1)^2' }
{'y1(t-2).*u1(t-3)'}

### Estimate Nonlinear ARX Model with No Linear Term in Output Function

Load the estimation data.

`load iddata1;`

Create a sigmoid network mapping object with 10 units and no linear term.

SN = idSigmoidNetwork(10,false);

Estimate the nonlinear ARX model. Confirm that the model does not use the linear function.

sys = nlarx(z1,[2 2 1],SN); sys.OutputFcn.LinearFcn.Use

`ans = `*logical*
0

### Specify Nonlinear ARX Orders and Linear Parameters Using Linear ARX Model

Load the estimation data.

`load throttledata;`

Detrend the data.

Tr = getTrend(ThrottleData); Tr.OutputOffset = 15; DetrendedData = detrend(ThrottleData,Tr);

Estimate the linear ARX model.

LinearModel = arx(DetrendedData,[2 1 1]);

Estimate the nonlinear ARX model using the linear model. The model orders, delays, and linear parameters of `NonlinearModel`

are derived from `LinearModel`

.

NonlinearModel = nlarx(ThrottleData,LinearModel)

NonlinearModel = Nonlinear ARX model with 1 output and 1 input Inputs: Step Command Outputs: Throttle Valve Position Regressors: Linear regressors in variables Throttle Valve Position, Step Command Output function: Wavelet network with 7 units Sample time: 0.01 seconds Status: Estimated using NLARX on time domain data "ThrottleData". Fit to estimation data: 99.03% (prediction focus) FPE: 0.1127, MSE: 0.1039 More information in model's "Report" property.

### Estimate Nonlinear ARX Model Using Constructed `idnlarx`

Object

Load the estimation data.

`load iddata1;`

Create an `idnlarx`

model.

sys = idnlarx([2 2 1]);

Configure the model using dot notation to:

Use a sigmoid network mapping object.

Assign a name.

sys.Nonlinearity = 'idSigmoidNetwork'; sys.Name = 'Model 1';

Estimate a nonlinear ARX model with the structure and properties specified in the `idnlarx`

object.

sys = nlarx(z1,sys)

sys = Nonlinear ARX model with 1 output and 1 input Inputs: u1 Outputs: y1 Regressors: Linear regressors in variables y1, u1 Output function: Sigmoid network with 10 units Name: Model 1 Sample time: 0.1 seconds Status: Termination condition: Maximum number of iterations reached.. Number of iterations: 20, Number of function evaluations: 353 Estimated using NLARX on time domain data "z1". Fit to estimation data: 69.03% (prediction focus) FPE: 2.918, MSE: 1.86 More information in model's "Report" property.

### Estimate Nonlinear ARX Model and Avoid Local Minima

If an estimation stops at a local minimum, you can perturb the model using `init`

and re-estimate the model.

Load the estimation data.

`load iddata1;`

Estimate the initial nonlinear model.

`sys1 = nlarx(z1,[4 2 1],'idSigmoidNetwork');`

Randomly perturb the model parameters to avoid local minima.

sys2 = init(sys1);

Estimate the new nonlinear model with the perturbed values.

sys2 = nlarx(z1,sys1);

### Estimate Nonlinear ARX Model Using Specific Options

Load the estimation data.

`load twotankdata;`

Create an `iddata`

object from the estimation data.

z = iddata(y,u,0.2);

Create an `nlarxOptions`

option set specifying a simulation error minimization objective and a maximum of 10 estimation iterations.

```
opt = nlarxOptions;
opt.Focus = 'simulation';
opt.SearchOptions.MaxIterations = 10;

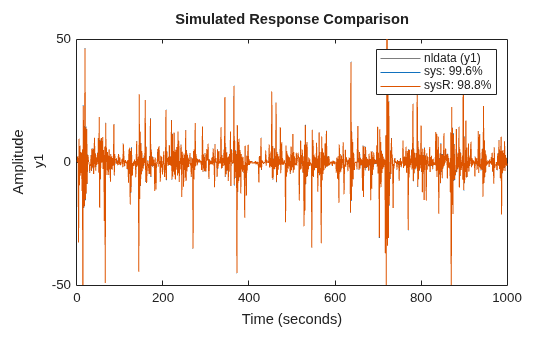

```

Estimate the nonlinear ARX model.

sys = nlarx(z,[4 4 1],idSigmoidNetwork(3),opt)

sys = Nonlinear ARX model with 1 output and 1 input Inputs: u1 Outputs: y1 Regressors: Linear regressors in variables y1, u1 Output function: Sigmoid network with 3 units Sample time: 0.2 seconds Status: Termination condition: Maximum number of iterations reached.. Number of iterations: 10, Number of function evaluations: 114 Estimated using NLARX on time domain data "z". Fit to estimation data: 85.86% (simulation focus) FPE: 3.791e-05, MSE: 0.0006853 More information in model's "Report" property.

### Estimate Regularized Nonlinear ARX Model with Large Number of Units

Load the regularization example data.

load regularizationExampleData.mat nldata;

Create an `idSigmoidnetwork`

mapping object with 30 units and specify the model orders.

MO = idSigmoidNetwork(30); Orders = [1 2 1];

Create an estimation option set and set the estimation search method to `lm`

.

opt = nlarxOptions('SearchMethod','lm');

Estimate an unregularized model.

sys = nlarx(nldata,Orders,MO,opt);

Configure the regularization `Lambda`

parameter.

opt.Regularization.Lambda = 1e-8;

Estimate a regularized model.

sysR = nlarx(nldata,Orders,MO,opt);

Compare the two models.

compare(nldata,sys,sysR)

The large negative fit result for the unregularized model indicates a poor fit to the data. Estimating a regularized model produces a significantly better result.

### Estimate Nonlinear ARX Model Using Optimal Subset of Regressors

Load the estimation data.

load twotankdata y u

Create an `iddata`

object from the data. Use the first 1000 samples for estimation and the remaining samples for validation.

Ts = 0.2; z = iddata(y,u,Ts); ze = z(1:1000); zv = z(1001:end);

Create an `nlarxOptions`

option set. Specify a simulation error minimization objective, `'lm'`

least squares search, and a maximum of 10 estimation iterations. Display progress during estimation.

opt = nlarxOptions('Focus','simulation','SearchMethod','lm','Display','on'); opt.SearchOptions.MaxIterations = 10;

Estimate a nonlinear ARX model, using ARX model orders to specify the regressors and an `idSigmoidNetwork`

mapping function. The model uses all candidate regressors. To view regressor usage information, at the MATLAB® command prompt, enter `sys.RegressorUsage`

.

orders = [8 8 1]; outputFcn = idSigmoidNetwork; sys = nlarx(ze,orders,outputFcn,opt); allRegressors = getreg(sys);

Sparsify the model (reduce the regressors in use) by using the `"log-sum"`

measure.

opt.SearchOptions.MaxIterations = 20; opt.SparsifyRegressors = true; opt.SparsificationOptions.MaxIterations = 10; opt.SparsificationOptions.Lambda = 2; sysr1 = nlarx(ze,sys,opt); T = sysr1.RegressorUsage; inUse = any(T{:,:},2); fprintf('Regressors in use: %s\n', strjoin(allRegressors(inUse),', '))

Regressors in use: y1(t-1), y1(t-5), u1(t-2), u1(t-3), u1(t-4), u1(t-7), u1(t-8)

Sparsify the model again using the `"l1"`

measure.

opt.SparsificationOptions.SparsityMeasure = 'l1'; opt.SparsificationOptions.Lambda = 2.2; sysr2 = nlarx(ze,sys,opt); T = sysr2.RegressorUsage; inUse = any(T{:,:},2); fprintf('Regressors in use: %s\n', strjoin(allRegressors(inUse),', '))

Regressors in use: y1(t-1), y1(t-5), u1(t-2), u1(t-3), u1(t-4), u1(t-6), u1(t-7), u1(t-8)

Sparsify the model again using the `"l0"`

measure.

opt.SparsificationOptions.SparsityMeasure = 'l0'; opt.SparsificationOptions.Lambda = 2.2; sysr3 = nlarx(ze,sys,opt); T = sysr3.RegressorUsage; InUse = any(T{:,:},2); fprintf('Regressors in use: %s\n', strjoin(allRegressors(inUse),', '))

Regressors in use: y1(t-1), y1(t-5), u1(t-2), u1(t-3), u1(t-4), u1(t-6), u1(t-7), u1(t-8)

Compare the full regressor model and three sparse regressor models against the validation data.

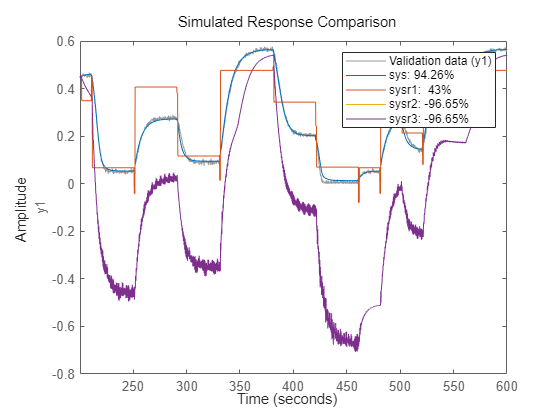

compare(zv,sys,sysr1,sysr2,sysr3)

## Input Arguments

`data`

— Estimation data

timetable | numeric matrix pair | numeric matrix | `iddata`

object | cell array of timetables | cell array of matrices

Uniformly sampled estimation data, specified as a timetable, a comma-separated matrix pair, as single matrix, or a data object, as the following sections describe.

#### Timetable

Specify `data`

as a `timetable`

that uses a regularly spaced time vector. `tt`

contains variables representing input and output channels.

When you use timetables for estimation, you can use all the variables or specify a subset of channels to use.

For multiexperiment data, specify data as an *Ne*-by-1 cell array of
timetables, where *Ne* is the number of experiments. The sample times of
all the experiments must match.

To select individual input and output channels to use for estimation, use the
`InputName`

and `OutputName`

name-value arguments.
If your model has more than one output and you use the `regressors`

argument, then you must specify the output channel names.

For example, use the following command to select input channels `u1`

and `u3`

and output channels `y2`

and
`y4`

from a timetable that contains three input variables and four output
variables.

sys = nlarx(tt,orders,'InputName',["u1" "u3"],'OutputName',["y2" "y4"])

#### Comma-Separated Matrix Pair

Specify `data`

as a comma-separated pair of real-valued matrices that
contain input and output time-domain signal values. When you specify matrix-based data, the
software assumes a sample time of 1 second. You can change the sample time after estimation
by setting the property `sys.Ts`

.

For SISO systems, specify

`data`

as a pair of*N*-element numeric column vectors that contain uniformly sampled input and output time-domain signal values. Here,_{s}*N*is the number of samples._{s}For MIMO systems, specify

`u`

,`y`

as an input/output matrix pair with the following dimensions:`u`

—*N*-by-_{s}*N*, where_{u}*N*is the number of inputs._{u}`y`

—*N*-by-_{s}*N*, where_{y}*N*is the number of outputs._{y}

For multiexperiment data, specify data as a pair of *Ne*-by-1 cell
arrays of matrices, where *Ne* is the number of experiments. The sample
times of all the experiments must match.

#### Single Matrix

Specify `data`

as a single real-valued matrix with
*N _{y}*+

*N*columns that contain the output signal values followed by the input signal values. Note that this order is the opposite of the order used for the comma-separated matrix pair form of

_{u}`data`

. When you specify matrix-based data, the software assumes a
sample time of 1 second. You can change the sample time after estimation by setting the
property `sys.Ts`

.#### Data Object

An estimation data object, specified as a time-domain `iddata`

object
that contains uniformly sampled input and output values. The data object can have one or
more output channels and zero or more input channels. By default, the software sets the
sample time of the model to the sample time of the estimation data.

For more information about working with estimation data types, see Data Domains and Data Types in System Identification Toolbox.

`orders`

— ARX model orders

`nlarx`

orders `[na nb nk]`

ARX model orders, specified as the matrix `[na nb nk]`

.
`na`

denotes the number of delayed outputs,
`nb`

denotes the number of delayed inputs, and
`nk`

denotes the minimum input delay. The minimum
output delay is fixed to `1`

. For more information on how
to construct the `orders`

matrix, see `arx`

.

When you specify `orders`

, the software converts the
order information into linear regressor form in the `idnlarx`

`Regressors`

property. For an example, see
Create Nonlinear ARX Model Using ARX Model Orders.

`regressors`

— Regressor specification

`linearRegressor`

object | `polynomialRegressor`

object | `periodicRegressor`

| `customRegressor`

object | column array of regressor specification objects

Regressor specification, specified as a column vector containing one or
more regressor specification objects, which are the `linearRegressor`

objects, `polynomialRegressor`

objects, `periodicRegressor`

objects, and
`customRegressor`

objects. Each object
specifies a formula for generating regressors from lagged variables. For example:

`L = linearRegressor({'y1','u1'},{1,[2 5]})`

generates the regressors*y*(_{1}*t*–1),*u*(_{1}*t*–2), and*u*(_{2}*t*–5).`P = polynomialRegressor('y2',4:7,2)`

generates the regressors*y*(_{2}*t*–4)^{2},*y*(_{2}*t*–5)^{2},*y*(_{2}*t*–6)^{2}, and*y*(_{2}*t*–7)^{2}.`SC = periodicRegressor({'y1','u1'},{1,2})`

generates the regressors*y*(_{1}*t*-1)), cos(*y*(_{1}*t*-1)), sin(*u*(_{1}*t*-2)), and cos(*u*(_{1}*t*-2)).`C = customRegressor({'y1','u1','u2'},{1 2 2},@(x,y,z)sin(x.*y+z))`

generates the single regressor sin(*y*(_{1}*t*–1)*u*(_{1}*t*–2)+*u*(_{2}*t*–2).

When you create a regressor set to support estimation with an
`iddata`

object, you can use the input and output names
of the object rather than create the names for the regressor function. For
instance, suppose you create a linear regressor for a model, plan to use the
`iddata`

object `z`

to estimate the
model. You can use the following command to create the linear regressor.

L = linearRegressor([z.outputName;z.inputName],{1,[2 5]})

For an example of creating and using a SISO linear regressor set, see Estimate Nonlinear ARX Model Using Linear Regressor Set. For an example of creating a MIMO linear regressor set that obtains variable names from the estimation data set, see Estimate MIMO Nonlinear ARX Model with Same Mapping Function for All Outputs.

`output_fcn`

— Output function

`'idWaveletNetwork'`

(default) | `'idLinear'`

| `[]`

| `'idSigmoidNetwork'`

| `'idTreePartition'`

| `'idTreePartition'`

| `'idGaussianProcess'`

| `'idTreeEnsemble'`

| `'idSupportVectorMachine'`

| `'idNeuralNetwork'`

| mapping object | array of mapping objects

Output function that maps the regressors of the `idnlarx`

model into the model output, specified as a column array containing zero or
more of the following strings or objects:

`'idWaveletNetwork'` or `idWaveletNetwork` object | Wavelet network |

`'linear'` or `''`
or `[]` or `idLinear`
object | Linear function |

`'idSigmoidNetwork'` or `idSigmoidNetwork` object | Sigmoid network |

`'idTreePartition'` or `idTreePartition` object | Binary tree partition regression model |

`'idGaussianProcess'` or `idGaussianProcess` object | Gaussian process regression model (requires Statistics and Machine Learning Toolbox™) |

`'idTreeEnsemble'` or `idTreeEnsemble` | Regression tree ensemble model requires (Statistics and Machine Learning Toolbox) |

`'idSupportVectorMachine'` or
`idSupportVectorMachine` | Kernel-based Support Vector Machine (SVM) regression model with constraints (requires Statistics and Machine Learning Toolbox) |

`'idNeuralNetwork'` or `idNeuralNetwork` object | Multilayer neural network (requires Statistics and Machine Learning Toolbox or Deep Learning Toolbox™) |

`idCustomNetwork` object | Custom network — Similar to
`idSigmoidNetwork` , but with a
user-defined replacement for the sigmoid
function. |

Use a string, such as `'idSigmoidNetwork'`

, to use the
default properties of the mapping function object. Use the object itself,
such as `idSigmoidNetwork`

, when you want to configure
the properties of the mapping object.

The `idWaveletNetwork`

,
`idSigmoidNetwork`

,
`idTreePartition`

, and
`idCustomNetwork`

objects contain both linear and
nonlinear components. You can remove (not use) the linear components of
`idWaveletNetwork`

,
`idSigmoidNetwork`

, and
`idCustomNetwork`

by setting the
`LinearFcn.Use`

value to
`false`

.

The
`idTreeEnsemble`

and
`idSupportVectorMachine`

objects contain only a
nonlinear component. The `idLinear`

object, as the name
implies, has only a linear component.

`output_fcn`

is static in that it depends only upon the
data values at a specific time, but not directly on time itself. For
example, if the output function *y*(*t*)
is equal to *y _{0}* +

*a*

_{1}*y*(

*t*–1) +

*a*

_{2}*y*(

*t*–2) + …

*b*

_{1}*u*(

*t*–1) +

*b*

_{2}*u*(

*t*–2) + …, then

`output_fcn`

is a linear function that the
`linear`

mapping object represents.Specifying a character vector, for example
`'idSigmoidNetwork'`

, creates a mapping object with
default settings. Alternatively, you can specify mapping object properties
in two ways:

Create the mapping object using arguments to modify default properties.

MO = idSigmoidNetwork(15);

Create a default mapping object first and then use dot notation to modify properties.

MO = idSigmoidNetwork; MO.NumberOfUnits = 15;

For *n _{y}* output channels, you can
specify mapping objects individually for each channel by setting

`output_fcn`

to an array of
*n*mapping objects. For example, the following code specifies

_{y}`OutputFcn`

using
dot notation for a system with two input channels and two output channels.
sys = idnlarx({'y1','y2'},{'u1','u2'}); sys.OutputFcn = [idWaveletNetwork; idSigmoidNetwork];

`OutputFcn`

as a character vector or a single mapping
object.
`output_fcn`

represents a static mapping function that
transforms the regressors of the nonlinear ARX model into the model output.
`output_fcn`

is static because it does not depend on
time. For example, if $$y(t)={y}_{0}+{a}_{1}y(t-1)+{a}_{2}y(t-2)+\dots +{b}_{1}u(t-1)+{b}_{2}u(t-2)+\dots $$, then `output_fcn`

is a linear function
represented by the `idLinear`

object.

For an example of specifying the output function, see Specify and Customize Output Function.

`linmodel`

— Discrete-time linear model

`idpoly`

object | `idss`

object | `idtf`

object | `idproc`

object

`sys0`

— Nonlinear ARX model

`idnlarx`

model

Nonlinear ARX model, specified as an `idnlarx`

model.
`sys0`

can be:

A model previously estimated using

`nlarx`

. The estimation algorithm uses the parameters of`sys0`

as initial guesses. In this case, use`init`

to slightly perturb the model properties to avoid trapping the model in local minima.sys = init(sys); sys = nlarx(data,sys);

A model previously created using the

`idnlarx`

constructor and with properties set using dot notation. For example, use the following to create an idnlarx object, set its properties, and estimate the model.sys1 = idnlarx('y1','u1',Regressors); sys1.OutputFcn = 'idTreePartition'; sys1.Ts = 0.02; sys1.TimeUnit = 'Minutes'; sys1.InputName = 'My Data'; sys2 = nlarx(data,sys1);

The preceding code is equivalent to the following nlarx command.

sys2 = nlarx(data,Regressors,'idTreePartition','Ts',0.02,'TimeUnit','Minutes', ... 'InputName','My Data');

`Options`

— Estimation options

`nlarxOptions`

option set

Estimation options for nonlinear ARX model identification, specified as an
`nlarxOptions`

option set.
Available options include:

Minimization objective

Normalization options

Regularization options

### Name-Value Arguments

Specify optional pairs of arguments as
`Name1=Value1,...,NameN=ValueN`

, where `Name`

is
the argument name and `Value`

is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.

*
Before R2021a, use commas to separate each name and value, and enclose*
`Name`

*in quotes.*

**Example: **```
sys =
nlarx(data,regressors,'InputName',"u2")
```

`InputName`

— Input channel names

string | character vector | string array | cell array of character vectors

Input channel names, specified as a string, character vector, string array, or cell array of character vectors.

If you are using a timetable for the data source, the names in
`InputName`

must be a subset of the timetable variables.

**Example: **`sys = nlarx(tt,__,'InputName',["u1" "u2"])`

selects
the variables `u1`

and `u2`

as the input channels from
the timetable `tt`

to use for the estimation.

`OutputName`

— Output channel names

string | character vector | string array | cell array of character vectors

Output channel names, specified as a string, character vector, string array, or cell array of character vectors.

If you are using a timetable for the data source, the names in
`OutputName`

must be a subset of the timetable variables.

**Example: **`sys = nlarx(tt,__,'OutputName',["y1" "y3"])`

selects
the variables `y1`

and `y3`

as the output channels
from the timetable `tt`

to use for the estimation.

## Output Arguments

`sys`

— Nonlinear ARX model

`idnlarx`

object

Nonlinear ARX model that fits the given estimation data, returned as an
`idnlarx`

object. This model
is created using the specified model orders, nonlinearity estimator, and
estimation options.

Information about the estimation results and options used is stored in the
`Report`

property of the model. The contents of
`Report`

depend upon the choice of nonlinearity and
estimation focus you specified for `nlarx`

.
`Report`

has the following fields:

Report Field | Description | ||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

`Status` | Summary of the model status, which indicates whether the model was created by construction or obtained by estimation. | ||||||||||||||||||

`Method` | Estimation command used. | ||||||||||||||||||

`Fit` | Quantitative assessment of the estimation, returned as a structure. See Loss Function and Model Quality Metrics for more information on these quality metrics. The structure has the following fields:
| ||||||||||||||||||

`Parameters` | Estimated values of model parameters. | ||||||||||||||||||

`OptionsUsed` | Option set used for estimation. If no custom
options were configured, this is a set of default
options. See | ||||||||||||||||||

`RandState` | State of the random number stream at the start of estimation. Empty,
| ||||||||||||||||||

`DataUsed` | Attributes of the data used for estimation, returned as a structure with the following fields.
| ||||||||||||||||||

`Termination` | Termination conditions for the iterative search used for prediction error minimization, returned as a structure with the following fields:
For estimation methods that do not require numerical search optimization,
the |

For more information on using `Report`

, see Estimation Report.

## Algorithms

### Nonlinear ARX Model Structure

A nonlinear ARX model consists of model regressors and an output function. The output function
contains one or more *mapping objects*, one for each model output. Each
mapping object can include a linear and a nonlinear function that act on the model
regressors to give the model output and a fixed offset for that output. This block diagram
represents the structure of a single-output nonlinear ARX model in a simulation scenario.

The software computes the nonlinear ARX model output *y* in
two stages:

It computes regressor values from the current and past input values and the past output data.

In the simplest case, regressors are delayed inputs and outputs, such as

*u*(*t*–1) and*y*(*t*–3). These kind of regressors are called*linear regressors*. You specify linear regressors using the`linearRegressor`

object. You can also specify linear regressors by using linear ARX model orders as an input argument. For more information, see Nonlinear ARX Model Orders and Delay. However, this second approach constrains your regressor set to linear regressors with consecutive delays. To create*polynomial regressors*, use the`polynomialRegressor`

object. To create*periodic regressors*that contain the sine and cosine functions of delayed input and output variables , use the`periodicRegressor`

object. You can also specify*custom regressors*, which are nonlinear functions of delayed inputs and outputs. For example,*u*(*t*–1)*y*(*t*–3) is a custom regressor that multiplies instances of input and output together. Specify custom regressors using the`customRegressor`

object.You can assign any of the regressors as inputs to the linear function block of the output function, the nonlinear function block, or both.

It maps the regressors to the model output using an output function block. The output function block can include multiple mapping objects, with each mapping object containing linear, nonlinear, and offset blocks in parallel. For example, consider the following equation:

$$F(x)={L}^{T}(x-r)+g\left(Q(x-r)\right)+d$$

Here,

*x*is a vector of the regressors, and*r*is the mean of*x*. $$F(x)={L}^{T}(x-r)+{y}_{0}$$ is the output of the linear function block. $$g\left(Q(x-r)\right)+{y}_{0}$$ represents the output of the nonlinear function block.*Q*is a projection matrix that makes the calculations well-conditioned.*d*is a scalar offset that is added to the combined outputs of the linear and nonlinear blocks. The exact form of*F*(*x*) depends on your choice of output function. You can select from the available mapping objects, such as tree-partition networks, wavelet networks, and multilayer neural networks. You can also exclude either the linear or the nonlinear function block from the output function.When estimating a nonlinear ARX model, the software computes the model parameter values, such as

*L*,*r*,*d*,*Q*, and other parameters specifying*g*.

The resulting nonlinear ARX models are `idnlarx`

objects that store all model data, including model regressors and
parameters of the output function. For more information about these objects, see Nonlinear Model Structures.

## Version History

**Introduced in R2007a**

### R2023b: New neural network mapping object creates neural networks from both Statistics and Machine Learning Toolbox and Deep Learning Toolbox

The `idNeuralNetwork`

mapping object creates neural networks using both the
regression networks of Statistics and Machine Learning Toolbox and the shallow or deep networks of Deep Learning Toolbox. This mapping object replaces and enhances the functionality of
`idFeedforwardNetwork`

, which is limited
to the shallow networks of Deep Learning Toolbox. For more information, see `idNeuralNetwork`

.

### R2022b: Time-domain estimation data is accepted in the form of timetables and matrices

Most estimation, validation, analysis, and utility functions now accept time-domain
input/output data in the form of a single timetable that contains both input and output data
or a pair of matrices that contain the input and output data separately. These functions
continue to accept `iddata`

objects as a data source as well, for
both time-domain and frequency-domain data.

### R2021b: Use of previous `idnlarx`

and `idnlhw`

mapping object names is not recommended.

Starting in R2021b, the mapping objects (also known as nonlinearities) used in the nonlinear components of the `idnlarx`

and `idnlhw`

objects have been renamed. The following table lists the name changes.

Pre-R2021b Name | R2021b Name |
---|---|

`wavenet` | `idWaveletNetwork` |

`sigmoidnet` | `idSigmoidNetwork` |

`treepartition` | `idTreePartition` |

`customnet` | `idCustomNetwork` |

`saturation` | `idSaturation` |

`deadzone` | `idDeadZone` |

`pwlinear` | `idPiecewiseLinear` |

`poly1d` | `idPolynomial1D` |

`unitgain` | `idUnitGain` |

`linear` | `idLinear` |

`neuralnet` | `idFeedforwardNetwork` |

Scripts with the old names still run normally, although they will produce a warning. Consider using the new names for continuing compatibility with newly developed features and algorithms. There are no plans to exclude the use of these object names at this time

### R2018a: Advanced Options are deprecated for `SearchOptions`

when `SearchMethod`

is `'lsqnonlin'`

Specification of `lsqnonlin`

- related advanced options are deprecated,
including the option to invoke parallel processing when estimating using the
`lsqnonlin`

search method, or solver, in Optimization Toolbox™.

## See Also

`idnlarx`

| `nlarxOptions`

| `isnlarx`

| `goodnessOfFit`

| `aic`

| `fpe`

| `polynomialRegressor`

| `periodicRegressor`

| `linearRegressor`

| `customRegressor`

### Topics

## Open Example

You have a modified version of this example. Do you want to open this example with your edits?

## MATLAB Command

You clicked a link that corresponds to this MATLAB command:

Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.

Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
