## Estimate Nonlinear ARX Models at the Command Line

You can estimate nonlinear ARX models after you perform the following tasks:

Prepare your data, as described in Preparing Data for Nonlinear Identification.

(Optional) Estimate model orders and delays the same way you would for linear ARX models. See Preliminary Step – Estimating Model Orders and Input Delays.

(Optional) Choose a mapping function for the output function in Available Mapping Functions for Nonlinear ARX Models.

(Optional) Estimate or construct a linear ARX model for initialization of nonlinear ARX model. See Initialize Nonlinear ARX Estimation Using Linear Model.

### Estimate Model Using `nlarx`

Use `nlarx`

to both construct
and estimate a nonlinear ARX model. After each estimation, validate
the model by comparing it to other models and simulating or
predicting the model response.

**Basic Estimation**

Start with the simplest estimation using `m = nlarx(data,[na nb nk])`

. For example:

load iddata1; % na = nb = 2 and nk = 1 m = nlarx(z1,[2 2 1])

m = Nonlinear ARX model with 1 output and 1 input Inputs: u1 Outputs: y1 Regressors: Linear regressors in variables y1, u1 Output function: Wavelet network with 1 units Sample time: 0.1 seconds Status: Estimated using NLARX on time domain data "z1". Fit to estimation data: 68.83% (prediction focus) FPE: 1.975, MSE: 1.885 More information in model's "Report" property.

View the regressors.

getreg(m)

`ans = `*4x1 cell*
{'y1(t-1)'}
{'y1(t-2)'}
{'u1(t-1)'}
{'u1(t-2)'}

The second input argument `[na nb nk]`

specifies the model orders and delays.
By default, the output function is the wavelet network `idWaveletNetwork`

, which accepts
regressors as inputs to its linear and nonlinear functions. `m`

is
an `idnlarx`

object.

For MIMO systems, * nb*,

*, and*

`nf`

*are*

`nk`

*ny*-by-

*nu*matrices. See the

`nlarx`

reference page for more information
about MIMO estimation.Create an `nlarxOptions`

option set and configure the `Focus`

property to minimize simulation error.

opt = nlarxOptions('Focus','simulation'); M = nlarx(z1,[2 2 1],'idSigmoidNetwork',opt);

### Configure Model Regressors

**Linear Regressors**

Linear regressors represent linear functions that are based on delayed input and output
variables and which provide the inputs into the model output function. When you use
orders to specify a model, the number of input regressors is equal to
`na`

and the number of output regressors is equal to
`nb`

. The orders syntax limits you to consecutive lags. You can
also create linear regressors using `linearRegressor`

. When you use `linearRegressor`

, you
can specify arbitrary lags.

**Polynomial Regressors**

Explore including polynomial regressors using `polynomialRegressor`

in addition to the linear regressors in the
nonlinear ARX model structure. Polynomial regressors are polynomial functions of
delayed inputs and outputs. (see Nonlinear ARX Model Orders and Delay).

For example, generate polynomial regressors up to order 2.

P = polynomialRegressor({'y1','u1'},{[1],[2]},2);

Append the polynomial regressors to the linear regressors in `m.Regressors.`

m.Regressors = [m.Regressors;P]; getreg(m)

`ans = `*8x1 cell*
{'y1(t-1)' }
{'y1(t-2)' }
{'u1(t-1)' }
{'u1(t-2)' }
{'y1(t-3)' }
{'y1(t-5)' }
{'y1(t-1)^2'}
{'u1(t-2)^2'}

`m`

now includes polynomial regressors.

View the size of the `m.Regressors`

array.

size(m.Regressors)

`ans = `*1×2*
3 1

The array now contains three regressor objects.

**Custom Regressors**

Use `customRegressor`

to construct regressors as arbitrary
functions of model input and output variables.

.For example, create two custom regressors that implement `'sin(y1(t-1)'`

and `'y1(t-2).*u1(t-3)'`

.

C1 = customRegressor({'y1'},{1},@(x)sin(x)); C2 = customRegressor({'y1','u1'},{2,3},@(x,y)x.*y); m.Regressors = [m.Regressors;C1;C2]; getreg(m) % displays all regressors

`ans = `*10x1 cell*
{'y1(t-1)' }
{'y1(t-2)' }
{'u1(t-1)' }
{'u1(t-2)' }
{'y1(t-3)' }
{'y1(t-5)' }
{'y1(t-1)^2' }
{'u1(t-2)^2' }
{'sin(y1(t-1))' }
{'y1(t-2).*u1(t-3)'}

View the properties of custom regressors. For example, get the function handle of the first custom regressor in the array. This regressor is the fourth regressor set in the `Regressors`

array.

C1_fcn = m.Regressors(4).VariablesToRegressorFcn

`C1_fcn = `*function_handle with value:*
@(x)sin(x)

View the regressor description.

display(m.Regressors(4))

Custom regressor: sin(y1(t-1)) VariablesToRegressorFcn: @(x)sin(x) Variables: {'y1'} Lags: {[1]} Vectorized: 1 TimeVariable: 't' Regressors described by this set

**Combine Regressors**

Once you have created linear, polynomial, and custom regressor objects, you can combine them in any way you want to suit your estimation needs.

### Specify Regressor Inputs to Linear and Nonlinear Components

Model regressors can enter as inputs to either or both linear and nonlinear function components of the mapping functions making up the output function. To reduce model complexity and keep the estimation well-conditioned, consider assigning a reduced set of regressors to the nonlinear component. You can also assign a subset of regressors to the linear component. The regressor usage table that manages the assignments provides complete flexibility. You can assign any combination of regressors to each component. For example, specify a nonlinear ARX model to be linear in past outputs and nonlinear in past inputs.

m = nlarx(z1,[2 2 1]); disp(m.RegressorUsage)

y1:LinearFcn y1:NonlinearFcn ____________ _______________ y1(t-1) true true y1(t-2) true true u1(t-1) true true u1(t-2) true true

m.RegressorUsage{3:4,1} = false; m.RegressorUsage{1:2,2} = false; disp(m.RegressorUsage)

y1:LinearFcn y1:NonlinearFcn ____________ _______________ y1(t-1) true false y1(t-2) true false u1(t-1) false true u1(t-2) false true

### Configure Output Function

The following table summarizes available mapping objects for the model output function.

Mapping Description | Value (Default Mapping Object Configuration) | Mapping Object |
---|---|---|

Wavelet network (default) | `'idWaveletNetwork'` or `'wave'` | `idWaveletNetwork` |

One layer sigmoid network | `'idSigmoidNetwork'` or `'sigm'` | `idSigmoidNetwork` |

Tree partition | `'idTreePartition'` or `'tree'` | `idTreePartition` |

F is linear in x | `'idLinear'` or `[ ]` or `''` | `idLinear` |

Additional available mapping objects include multilayered neural networks and custom networks that you create.

Specify a multilayered neural network using:

m = nlarx(data,[na nb nk],NNet)

where `NNet`

is the neural network object you create using the Deep Learning Toolbox™ software. See the `idFeedforwardNetwork`

reference page.

Specify a custom network by defining a function called `gaussunit.m`

, as
described in the `idCustomNetwork`

reference page. Define
the custom network object `CNetw`

and estimate the model:

CNetw = idCustomNetwork(@gaussunit); m = nlarx(data,[na nb nk],CNetw)

#### Exclude Linear Function in Output Function

If your model output function includes `idWaveletNetwork`

, `idSigmoidNetwork`

, or `idCustomNetwork`

mapping objects,
you can exclude the linear function using the `LinearFcn.Use`

property of the mapping object. The mapping object becomes
*F*(*x*)=$$g\left(Q(x-r)\right)+{y}_{0}$$, where *g*(.) is the nonlinear function and
*y*_{0} is the offset.

**Note**

You cannot exclude the linear function from tree partition and neural network mapping objects.

#### Exclude Nonlinear Function in Output Function

Configure the nonlinear ARX structure to include only the linear function in
the mapping object by setting the mapping object to `idLinear`

. In this case, $$F(x)={L}^{T}(x-r)+{y}_{0}$$ is a weighted sum of model regressors plus an offset. Such
models provide a bridge between purely linear ARX models and fully flexible
nonlinear models.

A popular nonlinear ARX configuration in many applications uses polynomial
regressors to model system nonlinearities. In such cases, the system is
considered to be a linear combination of products of (delayed) input and output
variables. Use the `polynomialRegressor`

command to easily
generate combinations of regressor products and powers.

For example, suppose that you know the output
*y*(*t*) of a system to be a linear
combination of (*y*(*t* −
1))^{2}, (*u*(*t*
− 1))^{2} and *y*(*t*
− 1)*u*(*t* − 1)). To model such a system,
use:

P = polynomialRegressor({'y1','u1'},{1,1},2)

P = Order 2 regressors in variables y1, u1 Order: 2 Variables: {'y1' 'u1'} Lags: {[1] [1]} UseAbsolute: [0 0] AllowVariableMix: 0 AllowLagMix: 0 TimeVariable: 't' Regressors described by this set

P.AllowVariableMix = true; M = nlarx(z1,P,idLinear); getreg(M)

`ans = `*3x1 cell*
{'y1(t-1)^2' }
{'u1(t-1)^2' }
{'y1(t-1)*u1(t-1)'}

For more complex combinations of polynomial delays and mixed-variable regressors, you can also use `customRegressor`

.

### Iteratively Refine Model

If your model structure includes mapping objects that support iterative search (see Specify Estimation Options for Nonlinear ARX Models), you can use `nlarx`

to refine model parameters:

```
m1 = nlarx(z1,[2 2 1],idSigmoidNetwork);
m2 = nlarx(z1,m1); % can repeatedly run this command
```

You can also use `pem`

to refine the original model:

m2 = pem(z1,m1);

Check the search termination criterion `m.Report.Termination.WhyStop`

. If `WhyStop`

indicates that the estimation reached the maximum number of iterations, try repeating the estimation and possibly specifying a larger value for the `nlarxOptions.SearchOptions.MaxIterations`

estimation option:

opt = nlarxOptions; opt.SearchOptions.MaxIterations = 30; m2 = nlarx(z1,m1,opt); % runs 30 more iterations % starting from m1

When the `m.Report.Termination.WhyStop`

value is `Near (local) minimum, (norm( g) < tol`

or `No improvement along the search direction with line search`

, validate your model to see if this model adequately fits the data. If not, the solution might be stuck in a local minimum of the cost-function surface. Try adjusting the SearchOptions`.Tolerance`

value or the `SearchMethod`

option in the nlarxOptions option set, and repeat the estimation.

You can also try perturbing the parameters of the last model
using `init`

(called *randomization*)
and refining the model using `nlarx`

:

M1 = nlarx(z1, [2 2 1], idSigmoidNetwork); % original model M1p = init(M1); % randomly perturbs parameters about nominal values M2 = nlarx(z1, M1p); % estimates parameters of perturbed model

You can display the progress of the iterative search in the MATLAB Command Window using the `nlarxOptions.Display`

estimation option:

opt = nlarxOptions('Display','on'); M2= nlarx(z1,M1p,opt);

### Troubleshoot Estimation

If you do not get a satisfactory model after many trials with various model structures and algorithm settings, it is possible that the data is poor. For example, your data might be missing important input or output variables and does not sufficiently cover all the operating points of the system.

Nonlinear black-box system identification usually requires more data than linear model identification to gain enough information about the system.

### Use nlarx to Estimate Nonlinear ARX Models

This example shows how to use `nlarx`

to estimate a nonlinear ARX model for measured input/output data.

Prepare the data for estimation.

```
load twotankdata
z = iddata(y, u, 0.2);
ze = z(1:1000); zv = z(1001:3000);
```

Estimate several models using different model orders, delays, and nonlinearity settings.

m1 = nlarx(ze,[2 2 1]); m2 = nlarx(ze,[2 2 3]); m3 = nlarx(ze,[2 2 3],idWaveletNetwork(8));

An alternative way to perform the estimation is to configure the model structure first, and then to estimate this model.

```
m4 = idnlarx([2 2 3],idSigmoidNetwork(14));
m4.RegressorUsage.("y1:NonlinearFcn")(3:4) = false;
m4 = nlarx(ze,m4);
```

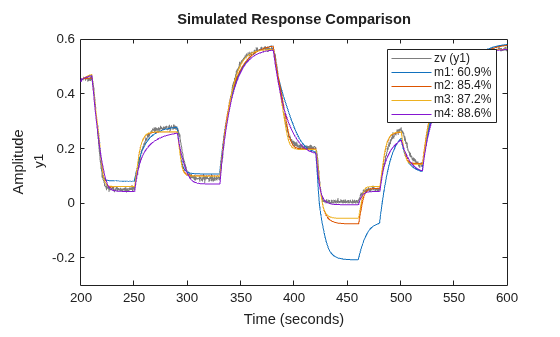

Compare the resulting models by plotting the model outputs with the measured output.

compare(zv, m1,m2,m3,m4)
