# Extended Kalman Filter

Estimate states of discrete-time nonlinear system using extended Kalman filter

**Libraries:**

Control System Toolbox /
State Estimation

System Identification Toolbox /
Estimators

## Description

The Extended Kalman Filter block estimates the states of a discrete-time nonlinear system using the first-order discrete-time extended Kalman filter algorithm.

Consider a plant with states *x*, input *u*, output
*y*, process noise *w*, and measurement noise
*v*. Assume that you can represent the plant as a nonlinear
system.

Using the state transition and measurement functions of the system and the extended Kalman filter algorithm, the block produces state estimates $$\widehat{x}$$ for the current time step. For information about the algorithm, see Extended and Unscented Kalman Filter Algorithms for Online State Estimation.

You create the nonlinear state transition function and measurement functions for the system and specify these functions in the block. The block supports state estimation of a system with multiple sensors that are operating at different sampling rates. You can specify up to five measurement functions, each corresponding to a sensor in the system. You can also specify the Jacobians of the state transition and measurement functions. If you do not specify them, the software numerically computes the Jacobians. For more information, see State Transition and Measurement Functions.

## Examples

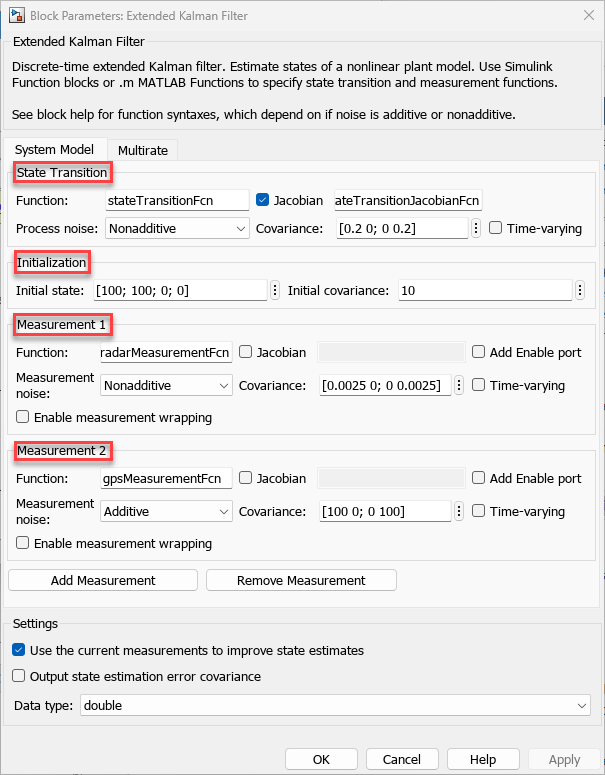

### Estimate States of Nonlinear System with Multiple, Multirate Sensors

Use an Extended Kalman Filter block to estimate the states of a system with multiple sensors that are operating at different sampling rates.

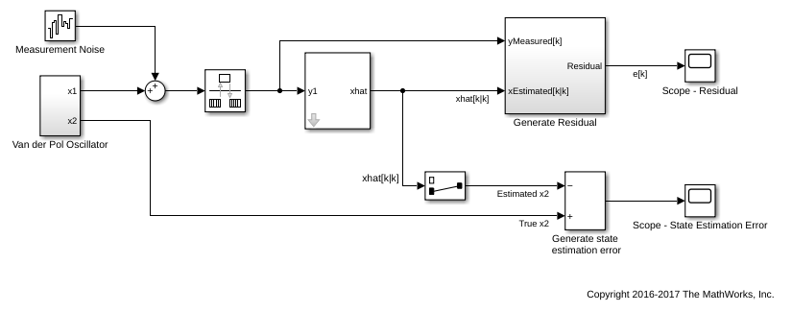

### Compute Residuals and State Estimation Errors

Estimate the states of a discrete-time Van der Pol oscillator and compute state estimation errors and residuals for validating the estimation. The residuals are the output estimation errors, that is, they are the difference between the measured and estimated outputs.

## Ports

### Input

**y1,y2,y3,y4,y5** — Measured system outputs

vector

Measured system outputs corresponding to each measurement function
that you specify in the block. The number of ports equals the number
of measurement functions in your system. You can specify up to five
measurement functions. For example, if your system has two sensors,
you specify two measurement functions in the block. The first port **y1** is
available by default. When you click **Apply**,
the software generates port **y2** corresponding
to the second measurement function.

Specify the ports as *N*-dimensional vectors,
where *N* is the number of quantities measured by
the corresponding sensor. For example, if your system has one sensor
that measures the position and velocity of an object, then there is
only one port **y1**. The port is specified as a
2-dimensional vector with values corresponding to position and velocity.

#### Dependencies

The first port **y1** is available by default.
Ports **y2** to **y5** are generated
when you click **Add Measurement**, and click **Apply**.

**Data Types: **`single`

| `double`

**StateTransitionFcnInputs** — Additional optional input argument to state transition function

scalar | vector | matrix

Additional optional input argument to the state transition function
`f`

other than the state `x`

and
process noise `w`

. For information about state
transition functions see, State Transition and Measurement Functions.

Suppose that your system has nonadditive process noise, and the state
transition function `f`

has the following form:

```
x(k+1) =
f(x(k),w(k),StateTransitionFcnInputs)
```

Here `k`

is the time step, and
`StateTransitionFcnInputs`

is an additional input
argument other than `x`

and
`w`

.

If you create `f`

using a MATLAB^{®} function (`.m`

file), the software
generates the port **StateTransitionFcnInputs** when
you click **Apply**. You can specify the inputs to
this port as a scalar, vector, or matrix.

If your state transition function has more than one additional input, use a Simulink Function (Simulink) block to specify the function. When you use a Simulink Function block, you provide the additional inputs directly to the Simulink Function block using Inport (Simulink) blocks. No input ports are generated for the additional inputs in the Extended Kalman Filter block. For an example, see Online State Estimation Using Identified Models - Nonlinear Models.

#### Dependencies

This port is generated only if both of the following conditions are satisfied:

You specify

`f`

in**Function**using a MATLAB function, and`f`

is on the MATLAB path.`f`

requires only one additional input argument apart from`x`

and`w`

.

**Data Types: **`single`

| `double`

**MeasurementFcn1Inputs,MeasurementFcn2Inputs,MeasurementFcn3Inputs,MeasurementFcn4Inputs,MeasurementFcn5Inputs** — Additional optional input argument to each measurement function

scalar | vector | matrix

Additional optional inputs to the measurement functions other than the
state `x`

and measurement noise `v`

.
For information about measurement functions see, State Transition and Measurement Functions.

**MeasurementFcn1Inputs** corresponds to the first
measurement function that you specify, and so on. For example, suppose
that your system has three sensors and nonadditive measurement noise,
and the three measurement functions `h1`

,
`h2`

, and `h3`

have the following
form:

`y1[k] = h1(x[k],v1[k],MeasurementFcn1Inputs)`

`y2[k] = h2(x[k],v2[k],MeasurementFcn2Inputs)`

`y3[k] = h3(x[k],v3[k])`

Here `k`

is the time step, and
`MeasurementFcn1Inputs`

and
`MeasurementFcn2Inputs`

are the additional input
arguments to `h1`

and `h2`

.

If you specify `h1`

, `h2`

, and
`h3`

using MATLAB functions (`.m`

files) in
**Function**, the software generates ports
**MeasurementFcn1Inputs** and
**MeasurementFcn2Inputs** when you click
**Apply**. You can specify the inputs to these
ports as scalars, vectors, or matrices.

If your measurement functions have more than one additional input, use Simulink Function (Simulink) blocks to specify the functions. When you use a Simulink Function block, you provide the additional inputs directly to the Simulink Function block using Inport (Simulink) blocks. No input ports are generated for the additional inputs in the Extended Kalman Filter block. For an example, see Online State Estimation Using Identified Models - Nonlinear Models.

#### Dependencies

A port corresponding to a measurement function
`h`

is generated only if both of the following
conditions are satisfied:

You specify

`h`

in**Function**using a MATLAB function, and`h`

is on the MATLAB path.`h`

requires only one additional input argument apart from`x`

and`v`

.

**Data Types: **`single`

| `double`

**Q** — Time-varying process noise covariance

scalar | vector | matrix

Time-varying process noise covariance, specified as a scalar,
vector, or matrix depending on the value of the **Process
noise** parameter:

**Process noise**is`Additive`

— Specify the covariance as a scalar, an*Ns*-element vector, or an*Ns*-by-*Ns*matrix, where*Ns*is the number of states of the system. Specify a scalar if there is no cross-correlation between process noise terms, and all the terms have the same variance. Specify a vector of length*Ns*, if there is no cross-correlation between process noise terms, but all the terms have different variances.**Process noise**is`Nonadditive`

— Specify the covariance as a*W*-by-*W*matrix, where*W*is the number of process noise terms in the state transition function.

#### Dependencies

This port is generated if you specify the process noise covariance
as **Time-Varying**. The port appears when you click **Apply**.

**Data Types: **`single`

| `double`

**R1,R2,R3,R4,R5** — Time-varying measurement noise covariance

matrix

Time-varying measurement noise covariances for up to five measurement
functions of the system, specified as matrices. The sizes of the matrices
depend on the value of the **Measurement noise** parameter
for the corresponding measurement function:

**Measurement noise**is`Additive`

— Specify the covariance as an*N*-by-*N*matrix, where*N*is the number of measurements of the system.**Measurement noise**is`Nonadditive`

— Specify the covariance as a*V*-by-*V*matrix, where*V*is the number of measurement noise terms in the corresponding measurement function.

#### Dependencies

A port is generated if you specify the measurement noise covariance
as **Time-Varying** for the corresponding measurement
function. The port appears when you click **Apply**.

**Data Types: **`single`

| `double`

**Enable1,Enable2,Enable3,Enable4,Enable5** — Enable correction of estimated states when measured data is available

scalar

Suppose that measured output data is not available at all time
points at the port **y1** that corresponds to the
first measurement function. Use a signal value other than `0`

at
the **Enable1** port to enable the correction of
estimated states when measured data is available. Specify the port
value as `0`

when measured data is not available.
Similarly, if measured output data is not available at all time points
at the port **y** for
the

`i`

*i*measurement function, specify the corresponding port

^{th}**Enable**as a value other than

`i`

`0`

.#### Dependencies

A port corresponding to a measurement function is generated
if you select **Add Enable port** for that measurement
function. The port appears when you click **Apply**.

**Data Types: **`single`

| `double`

| `Boolean`

### Output

**xhat** — Estimated states

vector

Estimated states, returned as a vector of size *Ns*, where
*Ns* is the number of states of the system. To access the
individual states, use the Selector (Simulink) block.

When the **Use the current measurements to improve state
estimates** parameter is selected, the block outputs the
corrected state estimate $$\widehat{x}[k|k]$$ at
time step `k`

, estimated using measured outputs until
time `k`

. If you clear this parameter, the block
returns the predicted state estimate $$\widehat{x}[k|k-1]$$ for
time `k`

, estimated using measured output until a
previous time `k-1`

. Clear this parameter if your
filter is in a feedback loop and there is an algebraic loop in your Simulink^{®} model.

**Data Types: **`single`

| `double`

**P** — State estimation error covariance

matrix

State estimation error covariance, returned as an
*Ns*-by-*Ns* matrix, where *Ns*
is the number of states of the system. To access the individual covariances, use the
Selector (Simulink) block.

#### Dependencies

This port is generated if you select **Output state estimation error
covariance** in the **System Model** tab, and click
**Apply**.

**Data Types: **`single`

| `double`

## Parameters

### System Model Tab

**State Transition**

**Function** — State transition function name

`myStateTransitionFcn`

(default) | function name

The state transition function calculates the
*Ns*-element state vector of the system at time step
*k*+1, given the state vector at time step
*k*. *Ns* is the number of states
of the nonlinear system. You create the state transition function and
specify the function name in **Function**. For example,
if `vdpStateFcn.m`

is the state transition function
that you created and saved, specify **Function** as
`vdpStateFcn`

.

The inputs to the function you create depend on whether you specify
the process noise as additive or nonadditive in **Process
noise**.

**Process noise**is`Additive`

— The state transition function*f*specifies how the states evolve as a function of state values at previous time step:`x(k+1) = f(x(k),Us1(k),...,Usn(k))`

,where

`x(k)`

is the estimated state at time`k`

, and`Us1,...,Usn`

are any additional input arguments required by your state transition function, such as system inputs or the sample time. To see an example of a state transition function with additive process noise, type`edit vdpStateFcn`

at the command line.**Process noise**is`Nonadditive`

— The state transition function also specifies how the states evolve as a function of the process noise`w`

:`x(k+1) = f(x(k),w(k),Us1(k),...,Usn(k))`

.

For more information, see State Transition and Measurement Functions.

You can create *f* using a Simulink Function (Simulink) block or
as a MATLAB function (`.m`

file).

You can use a MATLAB function only if

*f*has one additional input argument`Us1`

other than`x`

and`w`

.`x(k+1) = f(x(k),w(k),Us1(k))`

The software generates an additional input port

**StateTransitionFcnInputs**to specify this argument.If you are using a Simulink Function block, specify

`x`

and`w`

using Argument Inport (Simulink) blocks and the additional inputs`Us1,...,Usn`

using Inport (Simulink) blocks in the Simulink Function block. The**Argument name**parameter of the Argument Inport (Simulink) and Argument Outport (Simulink) blocks in the Simulink Function block must be different from each other. You do not provide`Us1,...,Usn`

to the Extended Kalman Filter block. For an example, see Online State Estimation Using Identified Models - Nonlinear Models.

#### Programmatic Use

Block Parameter:
`StateTransitionFcn` |

Type: character vector,
string |

Default:
`'myStateTransitionFcn'` |

**Jacobian** — Jacobian of state transition function

`off`

(default) | `on`

Jacobian of state transition function *f*, specified
as one of the following:

`off`

— The software computes the Jacobian numerically. This computation may increase processing time and numerical inaccuracy of the state estimation.`on`

— You create a function to compute the Jacobian, and specify the name of the function in**Jacobian**. For example, if`vdpStateJacobianFcn.m`

is the Jacobian function, specify**Jacobian**as`vdpStateJacobianFcn`

. If you create the state transition function*f*using a Simulink Function (Simulink) block, then create the Jacobian using a Simulink Function block. If you create*f*using a MATLAB function (`.m`

file), then create the Jacobian using a MATLAB function.The function calculates the partial derivatives of the state transition function with respect to the states and process noise. The number of inputs to the Jacobian function must equal the number of inputs of the state transition function and must be specified in the same order in both functions. The number of outputs of the Jacobian function depends on the

**Process noise**parameter:**Process noise**is`Additive`

— The function calculates the partial derivative of the state transition function*f*with respect to the states ($$\partial f/\partial x$$). The output is an*Ns*-by-*Ns*Jacobian matrix, where*Ns*is the number of states.To see an example of a Jacobian function for additive process noise, type

`edit vdpStateJacobianFcn`

at the command line.**Process noise**is`Nonadditive`

— The function must also return a second output that is the partial derivative of the state transition function*f*with respect to the process noise terms ($$\partial f/\partial w$$). The second output is returned as an*Ns*-by-*W*matrix, where*W*is the number of process noise terms in the state transition function.

#### Programmatic Use

Block Parameter:
`HasStateTransitionJacobianFcn` |

Type: character
vector |

Values:
`'off'` ,`'on'` |

Default:
`'off'` |

Block Parameter:
`StateTransitionJacobianFcn` |

Type: character vector,
string |

Default:
`''` |

**Process noise** — Process noise characteristics

`Additive`

(default) | `Nonadditive`

Process noise characteristics, specified as one of the following values:

`Additive`

— Process noise`w`

is additive, and the state transition function*f*that you specify in**Function**has the following form:`x(k+1) = f(x(k),Us1(k),...,Usn(k))`

,where

`x(k)`

is the estimated state at time`k`

, and`Us1,...,Usn`

are any additional input arguments required by your state transition function.`Nonadditive`

— Process noise is nonadditive, and the state transition function specifies how the states evolve as a function of the state*and*process noise at the previous time step:`x(k+1) = f(x(k),w(k),Us1(k),...,Usn(k))`

.

#### Programmatic Use

Block Parameter: `HasAdditiveProcessNoise` |

Type: character vector |

Values: `'Additive'` , `'Nonadditive'` |

Default: `'Additive'` |

**Covariance** — Time-invariant process noise covariance

`1`

(default) | scalar | vector | matrix

Time-invariant process noise covariance, specified as a scalar,
vector, or matrix depending on the value of the **Process
noise** parameter:

**Process noise**is`Additive`

— Specify the covariance as a scalar, an*Ns*-element vector, or an*Ns*-by-*Ns*matrix, where*Ns*is the number of states of the system. Specify a scalar if there is no cross-correlation between process noise terms and all the terms have the same variance. Specify a vector of length*Ns*, if there is no cross-correlation between process noise terms but all the terms have different variances.**Process noise**is`Nonadditive`

— Specify the covariance as a*W*-by-*W*matrix, where*W*is the number of process noise terms.

If the process noise covariance is time-varying, select **Time-varying**.
The block generates input port **Q** to specify the
time-varying covariance.

#### Dependencies

This parameter is enabled if you do not specify the process
noise as **Time-Varying**.

#### Programmatic Use

Block Parameter: `ProcessNoise` |

Type: character vector, string |

Default: `'1'` |

**Time-varying** — Time-varying process noise covariance

`'off'`

(default) | `'on'`

If you select this parameter, the block includes an additional
input port **Q** to specify the time-varying process
noise covariance.

#### Programmatic Use

Block Parameter: `HasTimeVaryingProcessNoise` |

Type: character vector |

Values: `'off'` , `'on'` |

Default: `'off'` |

**Initialization**

**Initial state** — Initial state estimate

`0`

(default) | vector

Initial state estimate value, specified as an *Ns*-element vector, where
*Ns* is the number of states in the system. Specify the initial
state values based on your knowledge of the system.

#### Programmatic Use

Block Parameter: `InitialState` |

Type: character vector, string |

Default: `'0'` |

**Initial covariance** — State estimation error covariance

`1`

(default) | scalar | vector | matrix

State estimation error covariance, specified as a scalar, an *Ns*-element
vector, or an *Ns*-by-*Ns* matrix, where
*Ns* is the number of states of the system. If you specify a scalar
or vector, the software creates an *Ns*-by-*Ns*
diagonal matrix with the scalar or vector elements on the diagonal.

Specify a high value for the covariance when you do not have
confidence in the initial state values that you specify in **Initial
state**.

#### Programmatic Use

Block Parameter: `InitialStateCovariance` |

Type: character vector, string |

Default: `'1'` |

**Measurement**

**Function** — Measurement function name

`myMeasurementFcn`

(default) | function name

The measurement function calculates the *N*-element
output measurement vector of the nonlinear system at time step
*k*, given the state vector at time step
*k*. You create the measurement function and
specify the function name in **Function**. For example,
if `vdpMeasurementFcn.m`

is the measurement function
that you created and saved, specify **Function** as
`vdpMeasurementFcn`

.

The inputs to the function you create depend on whether you specify
the measurement noise as additive or nonadditive in
**Measurement noise**.

**Measurement noise**is`Additive`

— The measurement function*h*specifies how the measurements evolve as a function of state Values:`y(k) = h(x(k),Um1(k),...,Umn(k))`

,where

`y(k)`

and`x(k)`

are the estimated output and estimated state at time`k`

, and`Um1,...,Umn`

are any optional input arguments required by your measurement function. For example, if you are using a sensor for tracking an object, an additional input could be the sensor position.To see an example of a measurement function with additive process noise, type

`edit vdpMeasurementFcn`

at the command line.**Measurement noise**is`Nonadditive`

— The measurement function also specifies how the output measurement evolves as a function of the measurement noise`v`

:`y(k) = h(x(k),v(k),Um1(k),...,Umn(k))`

.To see an example of a measurement function with nonadditive process noise, type

`edit vdpMeasurementNonAdditiveNoiseFcn`

.

For more information, see State Transition and Measurement Functions.

You can create *h* using a Simulink Function (Simulink) block or
as a MATLAB function (`.m`

file).

You can use a MATLAB function only if

*h*has one additional input argument`Um1`

other than`x`

and`v`

.`y[k] = h(x[k],v[k],Um1(k))`

The software generates an additional input port

**MeasurementFcn**to specify this argument for theInputs`i`

*i*th measurement function.If you are using a Simulink Function block, specify

`x`

and`v`

using Argument Inport (Simulink) blocks and the additional inputs`Um1,...,Umn`

using Inport (Simulink) blocks in the Simulink Function block. The**Argument name**parameter of the Argument Inport (Simulink) and Argument Outport (Simulink) blocks in the Simulink Function block must be different from each other. You do not provide`Um1,...,Umn`

to the Extended Kalman Filter block. For an example, see Online State Estimation Using Identified Models - Nonlinear Models.

If you have multiple sensors in your system, you can specify multiple
measurement functions. You can specify up to five measurement functions
using the **Add Measurement** button. To remove
measurement functions, use **Remove
Measurement**.

#### Programmatic Use

Block Parameter:
`MeasurementFcn1` ,
`MeasurementFcn2` ,
`MeasurementFcn3` ,
`MeasurementFcn4` ,
`MeasurementFcn5` |

Type: character vector,
string |

Default:
`'myMeasurementFcn'` |

**Jacobian** — Jacobian of measurement function

`off`

(default) | `on`

Jacobian of measurement function *h*, specified as
one of the following:

`off`

— The software computes the Jacobian numerically. This computation may increase processing time and numerical inaccuracy of the state estimation.`on`

— You create a function to compute the Jacobian of the measurement function*h*, and specify the name of the function in**Jacobian**. For example, if`vdpMeasurementJacobianFcn.m`

is the Jacobian function, specify`MeasurementJacobianFcn`

as`vdpMeasurementJacobianFcn`

. If you create*h*using a Simulink Function (Simulink) block, then create the Jacobian using a Simulink Function block. If you create*h*using a MATLAB function (`.m`

file), then create the Jacobian using a MATLAB function.The function calculates the partial derivatives of the measurement function

*h*with respect to the states and measurement noise. The number of inputs to the Jacobian function must equal the number of inputs to the measurement function and must be specified in the same order in both functions. The number of outputs of the Jacobian function depends on the**Measurement noise**parameter:**Measurement noise**is`Additive`

— The function calculates the partial derivatives of the measurement function with respect to the states ($$\partial h/\partial x$$). The output is as an*N*-by-*Ns*Jacobian matrix, where*N*is the number of measurements of the system and*Ns*is the number of states.To see an example of a Jacobian function for additive measurement noise, type

`edit vdpMeasurementJacobianFcn`

at the command line.**Measurement noise**is`Nonadditive`

— The function also returns a second output that is the partial derivative of the measurement function with respect to the measurement noise terms ($$\partial h/\partial v$$). The second output is returned as an*N*-by-*V*Jacobian matrix, where*V*is the number of measurement noise terms.

#### Programmatic Use

Block Parameter:
`HasMeasurementJacobianFcn1` ,
`HasMeasurementJacobianFcn2` ,
`HasMeasurementJacobianFcn3` ,
`HasMeasurementJacobianFcn4` ,`HasMeasurementJacobianFcn5` |

Type: character
vector |

Values:
`'off'` ,`'on'` |

Default:
`'off'` |

Block Parameter:
`MeasurementJacobianFcn1` ,
`MeasurementJacobianFcn2` ,
`MeasurementJacobianFcn3` ,
`MeasurementJacobianFcn4` ,
`MeasurementJacobianFcn5` |

Type: character
vector |

Default:
`''` |

**Measurement noise** — Measurement noise characteristics

`Additive`

(default) | `Nonadditive`

Measurement noise characteristics, specified as one of the following values:

`Additive`

— Measurement noise`v`

is additive, and the measurement function*h*that you specify in**Function**has the following form:`y(k) = h(x(k),Um1(k),...,Umn(k))`

,where

`y(k)`

and`x(k)`

are the estimated output and estimated state at time`k`

, and`Um1,...,Umn`

are any optional input arguments required by your measurement function.`Nonadditive`

— Measurement noise is nonadditive, and the measurement function specifies how the output measurement evolves as a function of the state*and*measurement noise:`y(k) = h(x(k),v(k),Um1(k),...,Umn(k))`

.

#### Programmatic Use

Block Parameter: `HasAdditiveMeasurementNoise1` , `HasAdditiveMeasurementNoise2` , `HasAdditiveMeasurementNoise3` , `HasAdditiveMeasurementNoise4` , `HasAdditiveMeasurementNoise5` |

Type: character vector |

Values: `'Additive'` , `'Nonadditive'` |

Default: `'Additive'` |

**Enable measurement wrapping** — Enable measurement wrapping

`off`

(default) | `on`

Select this parameter to enable measurement wrapping to estimate states when you have circular measurements that are independent of your model states. If you select this parameter, then the measurement function you specify must include the following two outputs:

The measurement, specified as a

*N*-element output measurement vector of the nonlinear system at time step*k*, given the state vector at time step*k*.*N*is the number of measurements of the system.The measurement wrapping bounds, specified as an

*N*-by-`2`

matrix where, the first column provides the minimum measurement bound and the second column provides the maximum measurement bound.

Enabling the **Enable measurement wrapping**
check box wraps the measurement residuals in a defined bound, which helps to prevent the
filter from divergence due to incorrect measurement residual values. For an example, see
State Estimation with Wrapped Measurements Using Extended Kalman Filter.

#### Programmatic Use

Block Parameter:
`EnableMeasurementWrapping1` ,
`EnableMeasurementWrapping2` ,
`EnableMeasurementWrapping3` ,
`EnableMeasurementWrapping4` ,
`EnableMeasurementWrapping5` |

Type: character vector |

Values: `'off'` ,
`'on'` |

Default: `'off'` |

**Covariance** — Time-invariant process noise covariance

`1`

(default) | scalar | vector | matrix

Time-invariant process noise covariance, specified as a scalar,
vector, or matrix depending on the value of the **Process
noise** parameter:

**Process noise**is`Additive`

— Specify the covariance as a scalar, an*Ns*-element vector, or an*Ns*-by-*Ns*matrix, where*Ns*is the number of states of the system. Specify a scalar if there is no cross-correlation between process noise terms and all the terms have the same variance. Specify a vector of length*Ns*, if there is no cross-correlation between process noise terms but all the terms have different variances.**Process noise**is`Nonadditive`

— Specify the covariance as a*W*-by-*W*matrix, where*W*is the number of process noise terms.

If the process noise covariance is time-varying, select
**Time-varying**. The block generates input port
**Q** to specify the time-varying
covariance.

#### Dependencies

This parameter is enabled if you do not specify the process noise
as **Time-Varying**.

#### Programmatic Use

Block Parameter:
`ProcessNoise` |

Type: character vector,
string |

Default:
`'1'` |

**Time-varying** — Time-varying measurement noise covariance

`off`

(default) | `on`

If you select this parameter for the measurement noise covariance of
the first measurement function, the block includes an additional input
port **R1**. You specify the time-varying measurement
noise covariance in **R1**. Similarly, if you select
**Time-varying ** for the
*i ^{th}* measurement
function, the block includes an additional input port

**R**to specify the time-varying measurement noise covariance for that function.

`i`

#### Programmatic Use

Block Parameter:
`HasTimeVaryingMeasurementNoise1` ,
`HasTimeVaryingMeasurementNoise2` ,
`HasTimeVaryingMeasurementNoise3` ,
`HasTimeVaryingMeasurementNoise4` ,
`HasTimeVaryingMeasurementNoise5` |

Type: character
vector |

Values:
`'off'` ,
`'on'` |

Default:
`'off'` |

**Add Enable Port** — Enable correction of estimated states only when measured data is available

`off`

(default) | `on`

Suppose that measured output data is not available at all time
points at the port **y1** that corresponds to the
first measurement function. Select **Add Enable port** to
generate an input port **Enable1**. Use a signal
at this port to enable the correction of estimated states only when
measured data is available. Similarly, if measured output data is
not available at all time points at the port **y** for
the

`i`

*i*measurement function, select the corresponding

^{th}**Add Enable port**.

#### Programmatic Use

Block Parameter: `HasMeasurementEnablePort1` , `HasMeasurementEnablePort2` , `HasMeasurementEnablePort3` , `HasMeasurementEnablePort4` , `HasMeasurementEnablePort5` |

Type: character vector |

Values: `'off'` , `'on'` |

Default: `'off'` |

**Settings**

**Use the current measurements to improve state estimates** — Choose between corrected or predicted state estimate

`on`

(default) | `off`

When this parameter is selected, the block outputs the corrected
state estimate $$\widehat{x}[k|k]$$ at
time step `k`

, estimated using measured outputs until
time `k`

. If you clear this parameter, the block
returns the predicted state estimate $$\widehat{x}[k|k-1]$$ for
time `k`

, estimated using measured output until a
previous time `k-1`

. Clear this parameter if your
filter is in a feedback loop and there is an algebraic loop in your Simulink model.

#### Programmatic Use

Block Parameter: `UseCurrentEstimator` |

Type: character vector |

Values: `'off'` , `'on'` |

Default: `'on'` |

**Output state estimation error covariance** — Output state estimation error covariance

`off`

(default) | `on`

If you select this parameter, a state estimation error covariance output port
**P** is generated in the block.

#### Programmatic Use

Block Parameter:
`OutputStateCovariance` |

Type: character vector |

Values:
`'off'` ,`'on'` |

Default: `'off'` |

**Data type** — Data type for block parameters

`double`

(default) | `single`

Use this parameter to specify the data type for all block parameters.

#### Programmatic Use

Block Parameter: `DataType` |

Type: character vector |

Values: `'single'` , `'double'` |

Default: `'double'` |

**Sample time** — Block sample time

`1`

(default) | positive scalar

Block sample time, specified as a positive scalar. If the sample
times of your state transition and measurement functions are different,
select **Enable multirate operation** in the **Multirate** tab,
and specify the sample times in the **Multirate** tab
instead.

#### Dependencies

This parameter is available if in the **Multirate** tab,
the **Enable multirate operation** parameter is `off`

.

#### Programmatic Use

Block Parameter: `SampleTime` |

Type: character vector, string |

Default: `'1'` |

### Multirate Tab

**Enable multirate operation** — Enable specification of different sample times for state
transition and measurement functions

`off`

(default) | `on`

Select this parameter if the sample times of the state transition
and measurement functions are different. You specify the sample times
in the **Multirate** tab, in **Sample time**.

#### Programmatic Use

Block Parameter: `EnableMultirate` |

Type: character vector |

Values: `'off'` , `'on'` |

Default: `'off'` |

**Sample times** — State transition and measurement function sample times

positive scalar

If the sample times for state transition and measurement functions are different,
specify **Sample time**. Specify the sample times for the measurement
functions as positive integer multiples of the state transition sample time. The sample
times you specify correspond to the following input ports:

Ports corresponding to state transition function — Additional input to state transition function

**StateTransitionFcnInputs**and time-varying process noise covariance**Q**. The sample times of these ports must always equal the state transition function sample time, but can differ from the sample time of the measurement functions.Ports corresponding to

*i*measurement function — Measured output^{th}**y**, additional input to measurement function`i`

**MeasurementFcn**, enable signal at portInputs`i`

**Enable**, and time-varying measurement noise covariance`i`

**R**. The sample times of these ports for the same measurement function must always be the same, but can differ from the sample time for the state transition function and other measurement functions.`i`

#### Dependencies

This parameter is available if in the **Multirate** tab, the
**Enable multirate operation** parameter is
`on`

.

#### Programmatic Use

Block Parameter:
`StateTransitionFcnSampleTime` ,
`MeasurementFcn1SampleTime1` ,
`MeasurementFcn1SampleTime2` ,
`MeasurementFcn1SampleTime3` ,
`MeasurementFcn1SampleTime4` ,
`MeasurementFcn1SampleTime5` |

Type: character vector, string |

Default: `'1'` |

## More About

### State Transition and Measurement Functions

The algorithm computes the state estimates $$\widehat{x}$$ of the nonlinear system using state transition and measurement functions specified by you. You can specify up to five measurement functions, each corresponding to a sensor in the system. The software lets you specify the noise in these functions as additive or nonadditive.

**Additive Noise Terms**— The state transition and measurements equations have the following form:$$\begin{array}{l}x[k+1]=f(x[k],{u}_{s}[k])+w[k]\\ y[k]=h(x[k],{u}_{m}[k])+v[k]\end{array}$$

Here

*f*is a nonlinear state transition function that describes the evolution of states`x`

from one time step to the next. The nonlinear measurement function*h*relates`x`

to the measurements`y`

at time step`k`

.`w`

and`v`

are the zero-mean, uncorrelated process and measurement noises, respectively. These functions can also have additional optional input arguments that are denoted by`u`

and_{s}`u`

in the equations. For example, the additional arguments could be time step_{m}`k`

or the inputs`u`

to the nonlinear system. There can be multiple such arguments.Note that the noise terms in both equations are additive. That is,

`x(k+1)`

is linearly related to the process noise`w(k)`

, and`y(k)`

is linearly related to the measurement noise`v(k)`

. For additive noise terms, you do not need to specify the noise terms in the state transition and measurement functions. The software adds the terms to the output of the functions.**Nonadditive Noise Terms**— The software also supports more complex state transition and measurement functions where the state*x*[*k*] and measurement*y*[*k*] are nonlinear functions of the process noise and measurement noise, respectively. When the noise terms are nonadditive, the state transition and measurements equation have the following form:$$\begin{array}{l}x[k+1]=f(x[k],w[k],{u}_{s}[k])\\ y[k]=h(x[k],v[k],{u}_{m}[k])\end{array}$$

## Extended Capabilities

### C/C++ Code Generation

Generate C and C++ code using Simulink® Coder™.

The state transition, measurement, and Jacobian functions that you specify must use only the MATLAB commands and Simulink blocks that support code generation. For a list of blocks that support code generation, see Blocks Supported for Code Generation (Simulink Coder). For a list of commands that support code generation, see Functions and Objects Supported for C/C++ Code Generation (MATLAB Coder).

Generated code uses an algorithm that is different from the algorithm that the Extended Kalman Filter block itself uses. You might see some numerical differences in the results obtained using the two methods.

## Version History

**Introduced in R2017a**

### R2020b: Numerical Changes

Starting in R2020b, numerical improvements in the Extended Kalman Filter algorithm might produce results that are different from the results you obtained in previous versions.

## See Also

### Blocks

### Functions

### Topics

## MATLAB Command

You clicked a link that corresponds to this MATLAB command:

Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.

Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
