Suppress gain of feedback loops at high frequency when using Control System Tuner.
Maximum Loop Gain Goal enforces a maximum loop gain in a particular frequency band. This tuning goal is useful, for example, for increasing system robustness to unmodeled dynamics.
Maximum Loop Gain Goal imposes a maximum gain on the open-loop frequency response (L) at a specified location in your control system. You specify the maximum open-loop gain as a function of frequency (a maximum gain profile). For MIMO feedback loops, the specified gain profile is interpreted as an upper bound on the largest singular value of L.
When you tune a control system, the maximum gain profile is converted to a maximum gain constraint on the complementary sensitivity function, T = L/(I + L).

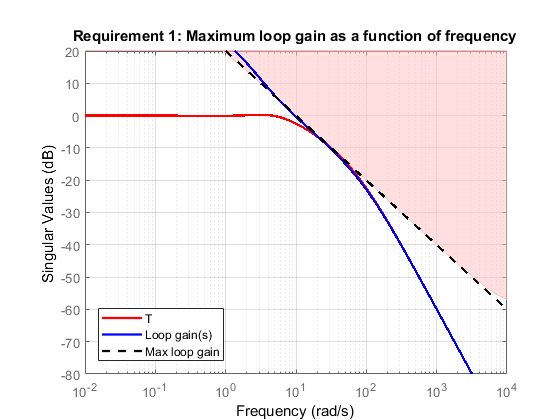

The following figure shows a typical specified maximum gain profile (dashed line) and a resulting tuned loop gain, L (blue line). The shaded region represents gain profile values that are forbidden by this requirement. The figure shows that when L is much smaller than 1, imposing a maximum gain on T is a good proxy for a maximum open-loop gain.
Maximum Loop Gain Goal is a constraint on the open-loop gain of the specified control loop. Thus, the loop gain is computed with the loop open at the specified location. To compute the gain with loop openings at other points in the control system, use the Compute response with the following loops open option in the Open-Loop Response Selection section of the dialog box.
Maximum Loop Gain Goal and Minimum Loop Gain Goal specify only high-gain or low-gain constraints in certain frequency bands. When you use these requirements, the software determines the best loop shape near crossover. When the loop shape near crossover is simple or well understood (such as integral action), you can use Loop Shape Goal to specify that target loop shape.
In the Tuning tab of Control System Tuner, select New Goal > Maximum gain for open-loop response to create a Maximum Gain Goal.
When tuning control systems at the command line, use
specify a maximum loop gain goal.
Use this section of the dialog box to specify the signal locations at which to compute the open-loop gain. You can also specify additional loop-opening locations for evaluating the tuning goal.
Shape open-loop response at the following locations
Select one or more signal locations in your model at which to compute and constrain the
open-loop gain. To constrain a SISO response, select a single-valued location. For
example, to constrain the open-loop gain at a location named
Add signal to list and select
constrain a MIMO response, select multiple signals or a vector-valued signal.
Compute response with the following loops open
Select one or more signal locations in your model at which to
open a feedback loop for the purpose of evaluating this tuning goal. The tuning goal is
evaluated against the open-loop configuration created by opening feedback loops at the locations
you identify. For example, to evaluate the tuning goal with an opening at a location named
Add signal to list and select
To highlight any selected signal in the Simulink® model, click . To remove a signal from the input or output list, click . When you have selected multiple signals, you can reorder them using and . For more information on how to specify signal locations for a tuning goal, see Specify Goals for Interactive Tuning.
Use this section of the dialog box to specify the target maximum loop gain.
Pure integrator K/s
Check to specify a pure integrator shape for the target maximum loop gain. The software chooses the integrator constant, K, based on the values you specify for a target maximum gain and frequency. For example, to specify an integral gain profile with crossover frequency 10 rad/s, enter 1 in the Choose K to keep gain below text box. Then, enter 10 in the at the frequency text box. The software chooses the integrator constant such that the maximum loop gain is 1 at 10 rad/s.
Other gain profile
Check to specify the maximum gain profile as a function of frequency.
Enter a SISO numeric LTI model whose magnitude represents the desired
gain profile. For example, you can specify a smooth transfer function
ss model). Alternatively,
you can sketch a piecewise target loop gain using an
frd model. When you do so, the software
automatically maps the profile to a smooth transfer function that
approximates the desired maximum loop gain. For example, to specify
maximum gain of 100 (40 dB) below 0.1 rad/s, rolling off at a rate
of –20 dB/dec at higher frequencies, enter
100 10],[0 1e-1 1]).
If you are tuning in discrete time, you can specify the maximum gain profile as a discrete-time model with the same sampling time as you use for tuning. If you specify the gain profile in continuous time, the tuning software discretizes it. Specifying the profile in discrete time gives you more control over the profile near the Nyquist frequency.
Use this section of the dialog box to specify additional characteristics of the maximum loop gain goal.
Enforce goal in frequency range
Limit the enforcement of the tuning goal to a particular frequency
band. Specify the frequency band as a row vector of the form
expressed in frequency units of your model. For example, to create
a tuning goal that applies only between 1 and 100 rad/s, enter
By default, the tuning goal applies at all frequencies for continuous
time, and up to the Nyquist frequency for discrete time.
Stabilize closed loop system
By default, the tuning goal imposes a stability requirement
on the closed-loop transfer function from the specified inputs to
outputs, in addition to the gain constraint. If stability is not required
or cannot be achieved, select
No to remove
the stability requirement. For example, if the gain constraint applies
to an unstable open-loop transfer function, select
Equalize loop interactions
For multi-loop or MIMO loop gain constraints, the feedback
channels are automatically rescaled to equalize the off-diagonal (loop
interaction) terms in the open-loop transfer function. Select
disable such scaling and shape the unscaled open-loop response.
Apply goal to
Use this option when tuning multiple models at once, such as
an array of models obtained by linearizing a Simulink model at
different operating points or block-parameter values. By default,
active tuning goals are enforced for all models. To enforce a tuning
requirement for a subset of models in an array, select Only
Models. Then, enter the array indices of the models for
which the goal is enforced. For example, suppose you want to apply
the tuning goal to the second, third, and fourth models in a model
array. To restrict enforcement of the requirement, enter
the Only Models text box.
For more information about tuning for multiple models, see Robust Tuning Approaches (Robust Control Toolbox).
When you tune a control system, the software converts each tuning goal into a normalized scalar value f(x). Here, x is the vector of free (tunable) parameters in the control system. The software then adjusts the parameter values to minimize f(x) or to drive f(x) below 1 if the tuning goal is a hard constraint.
For Maximum Loop Gain Goal, f(x) is given by:
Here, D is a diagonal scaling (for MIMO loops). T is
the complementary sensitivity function at the specified location. WT is
a frequency-weighting function derived from the maximum loop gain
profile you specify. The gain of this function roughly matches the
inverse of the specified loop gain for values ranging from –60
dB to 20 dB. For numerical reasons, the weighting function levels
off outside this range, unless the specified gain profile changes
slope outside this range. This adjustment is called regularization.
Because poles of WT close
to s = 0 or s =
lead to poor numeric conditioning for tuning, it is not recommended
to specify gain profiles with very low-frequency or very high-frequency
dynamics. For more information about regularization and its effects,
see Visualize Tuning Goals.
Although T is a closed-loop transfer function, driving f(x) < 1 is equivalent to enforcing an upper bound on the open-loop transfer, L, in a frequency band where the gain of L is less than one. To see why, note that T = L/(I + L). For SISO loops, when |L| << 1, |T| ≈ |L|. Therefore, enforcing the open-loop maximum gain requirement, |L| < 1/|WT|, is roughly equivalent to enforcing |WTT| < 1. For MIMO loops, similar reasoning applies, with ||T|| ≈ σmax(L), where σmax is the largest singular value.
This tuning goal imposes an implicit stability constraint on the closed-loop sensitivity function measured at the specified, evaluated with loops opened at the specified loop-opening locations. The dynamics affected by this implicit constraint are the stabilized dynamics for this tuning goal. The Minimum decay rate and Maximum natural frequency tuning options control the lower and upper bounds on these implicitly constrained dynamics. If the optimization fails to meet the default bounds, or if the default bounds conflict with other requirements, on the Tuning tab, use Tuning Options to change the defaults.
