# LTV System

**Libraries:**

Control System Toolbox /
Linear Parameter Varying

## Description

A *linear time-varying* (LTV) system is a linear state-space model
whose dynamics vary with time. In MATLAB^{®}, an LTV model is represented in a state-space form using coefficients that are
time dependent.

Mathematically, you can represent an LTV system as follows.

$$\begin{array}{l}dx\left(t\right)=\overline{dx}\left(t\right)+A\left(t\right)\left(x\left(t\right)-\overline{x}\left(t\right)\right)+B\left(t\right)\left(u\left(t\right)-\overline{u}(t)\right)\\ y\left(t\right)=\overline{y}\left(t\right)+C\left(t\right)\left(x\left(t\right)-\overline{x}\left(t\right)\right)+D\left(t\right)\left(u\left(t\right)-\overline{u}(t)\right)\\ x\left(0\right)={x}_{init}\end{array}$$

Here,

*u*(*t*) are the inputs*y*(*t*) are the outputs*x*(*t*) are the model states with initial value*x*_{init}$dx\left(t\right)$ is the state derivative vector $\dot{x}$ for continuous-time systems and the state update vector

*x*[*k*+1] for discrete-time systems. Here,*k*is the integer index that counts the number of sampling periods*T*._{s}*A*(*t*),*B*(*t*),*C*(*t*), and*D*(*t*) are the state-space matrices dependent of time*t*.*dx*_{0}(*t*),*x*_{0}(*t*),*u*_{0}(*t*), and*y*_{0}(*t*) are the offsets in the values of $dx\left(t\right)$,*x*(*t*),*u*(*t*) and*y*(*t*) at a given time*t*.You can obtain the offsets by returning additional linearization information when calling functions such as

`linearize`

(Simulink Control Design) or`getIOTransfer`

(Simulink Control Design).

The block accepts an array of state-space models with operating point information. The
block extracts the time dependence information from the `SamplingGrid`

property of the LTI array and picks the local dynamics from this operating space. The block
uses this array with data interpolation and extrapolation techniques for simulation.

You can obtain the offsets by returning additional linearization information when calling
functions such as `linearize`

(Simulink Control Design) or `getIOTransfer`

(Simulink Control Design).

## Examples

### Create and Simulate Linear Time-Varying Model Using LTV System Block

This example shows how to simulate a linear time-varying (LTV) model using the LTV System block. The LTV System block interpolates a state-space array to model the LTV response. In this example, you batch linearize the model defined by the following equation at time snapshots to obtain the array of linear state-space models.

$$\dot{\mathit{x}}=\frac{-1}{1+\mathit{t}}\mathit{x}$$

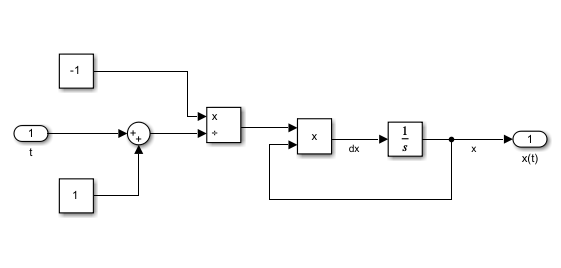

Open the model.

```
mdl = 'nonLinModel';
open_system(mdl);
```

Specify the initial condition.

xinit = 10;

Simulate the model and extract operating points at time snapshots.

tlin = logspace(-1,log10(30),20); op = findop(mdl,tlin);

Specify model linear analysis points.

io(1) = linio('nonLinModel/Ramp',1,'input'); io(2) = linio('nonLinModel/Plant',1,'output');

Compute the linearizations along with offsets.

opt = linearizeOptions('StoreOffsets',true); [linsys,~,info] = linearize(mdl,op,io,opt); linsys.SamplingGrid = struct('Time',tlin);

This linearization result is a state-space array of the system.

size(linsys)

20x1 array of state-space models. Each model has 1 outputs, 1 inputs, and 1 states.

You can now use this array with the LTV System block.

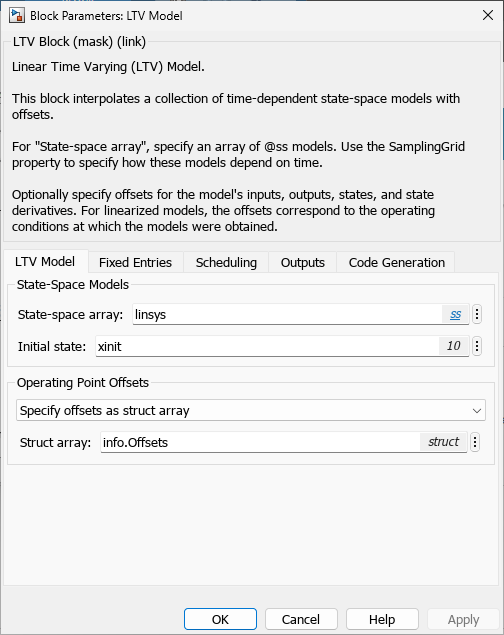

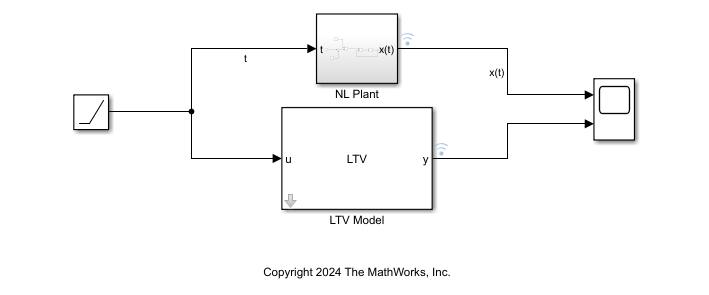

Open the `CompareNLandLTV`

model. This model contains the preconfigured LTV block.

```
ltvMdl = "CompareNLandLTV";
open_system(ltvMdl)
```

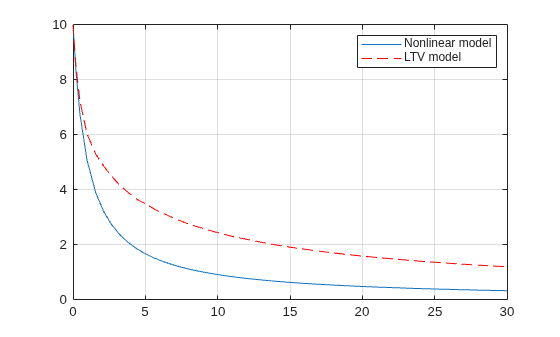

Simulate the LTV model and compare the results.

out = sim(ltvMdl); plot(out.logsout{2}.Values.Time,out.logsout{2}.Values.Data,... out.logsout{1}.Values.Time,out.logsout{1}.Values.Data,"r--") legend("Nonlinear model","LTV model") grid on

The LTV model provides a good approximation for the nonlinear model simulation.

Close the models.

close_system(mdl,0); close_system(ltvMdl,0);

## Limitations

Internal delays cannot be extrapolated to be less than their minimum value in the state-space model array.

## Ports

### Input

**u** — Input signal

scalar | vector

Specify the input signal *u*(*t*). In
multi-input case, this port accepts a signal of the dimension of the input.

### Output

**y** — Model output

scalar | vector

Response of the linear time-varying model.

**x** — State values

scalar | vector

Values of the model states

#### Dependencies

To enable this port, select **Output states** on the
**Outputs** tab of the block parameters.

**dx** — State derivative values

scalar | vector

Values of the state derivatives.

#### Dependencies

To enable this port, select **Output state derivatives (continuous-time)
or updates (discrete-time)** on the **Outputs** tab of
the block parameters.

**ss** — Local state-space model

bus

Local state-space model data at the major simulation time steps, returned as a bus signal with these elements.

`A`

— State matrix`B`

— Input matrix`C`

— Output matrix`D`

— Feedthrough matrix`InputDelay`

— Input delay`OutputDelay`

— Output delay`InternalDelay`

— Internal delays in the model

#### Dependencies

To enable this port, select **Output interpolated state-space
data** on the **Outputs** tab of the block
parameters.

**offset** — LPV model offsets

bus

LTV model offset data at the major simulation time steps, returned as a bus signal with these elements.

`InputOffset`

`OutputOffset`

`StateOffset`

`StateDerivativeOffset`

#### Dependencies

To enable this port, select **Output interpolated offsets** on
the **Outputs** tab of the block parameters.

## Parameters

To edit block parameters interactively, use the
Property Inspector. From the Simulink^{®} Toolstrip, on the **Simulation** tab, in the
**Prepare** gallery, select **Property
Inspector**.

### LTV Model Tab

**State-space array** — Array of state-space models

`ss`

or `idss`

model array

An array of state-space (`ss`

or `idss`

(System Identification Toolbox)) models. All the models in the
array must use the same definition of states.

The state-space array must specify the dependence on time in the
`SamplingGrid`

property. You can also specify the model offsets in
the `Offsets`

property of the array when you set the
**Operating Point Offsets** parameter to ```
Use offsets
in state-space array
```

, See the `ss`

model reference
page for more information on these properties.

When the block is in a model with synchronous state control (see the State Control (HDL Coder) block), you must specify an array of discrete-time models.

#### Programmatic Use

To set the block parameter value programmatically, use
the `set_param`

(Simulink) function.

Parameter: | `sys` |

Values: | `ss` or `idss` model array name in
quotes |

**Example: **`set_param(gcb,"sys","sysArrayName")`

**Initial state** — Initial conditions

0 (default) | vector

Initial conditions to use with the local model to start the simulation, specified as a vector of length equal to the number of model states.

#### Programmatic Use

To set the block parameter value programmatically, use
the `set_param`

(Simulink) function.

Parameter: | `x0` |

Values: | `"0"` (default) | initial state values in quotes |

**Example: **`set_param(gcb,"x0","[0 0.1]")`

**Operating Point Offsets** — Offset specification format

```
Specify Offsets as double
arrays
```

(default) | `Specify offsets as struct array`

| `Use offsets in state-space array`

Specify the format for operating point offsets.

`Specify Offsets as double arrays`

— Specify offsets using the**Input offset**,**Output offset**,**State Offset**, and**State derivative/update offset**parameters.`Specify offsets as struct array`

— Specify offsets as a structure array with fields`u`

,`y`

,`x`

, and`dx`

specifying the input, output, state, and state derivative offsets, respectively.`Use offsets in state-space array`

— Use the offsets specified in the`Offsets`

property of the state-space array.

#### Programmatic Use

To set the block parameter value programmatically, use
the `set_param`

(Simulink) function.

Parameter: | `opSpecOption` |

Values: | ```
"Specify Offsets as double
arrays"
``` (default) | `"Specify offsets as struct array"` | `"Use offsets in state-space array"` |

**Example: **```
set_param(gcb,"opSpecOption","Specify offsets as struct
array")
```

**Input offset** — Input offset

`0`

(default) | array

Offsets in input *u*(*t*), specified as one of
the following:

`0`

— Use when there are no input offsets.Double vector of length equal to the number of inputs — Use when input offset is the same across the scheduling space.

Double array of size

*n*-by-1-by-_{u}*N*— Use when offsets are present and they vary across the scheduling space. Here,*n*is the number of inputs and_{u}*N*is the number of time snapshots. For example, if your model has three inputs, two outputs, and four states and is scheduled over 10 time snapshots, the array size must be 3-by-1-by-10. Use`size(sys)`

to determine the size of the state-space array`sys`

.

#### Dependencies

To enable this parameter, set the **Operating Point Offsets**
format to `Specify Offsets as double arrays`

#### Programmatic Use

To set the block parameter value programmatically, use
the `set_param`

(Simulink) function.

Parameter: | `uOffset` |

Values: | `"0"` (default) | array name in quotes |

**Example: **`set_param(gcb,"uOffset","uOffArray")`

**Output offset** — Output offset

`0`

(default) | array

Offsets in output *y*(*t*), specified as one of
the following:

`0`

Use when there are no output offsets.Double vector of length equal to the number of outputs. Use when output offsets are the same across the scheduling space.

Double array of size

*n*-by-1-by-_{y}*N*— Use when offsets are present and they vary across the scheduling space. Here,*n*is the number of outputs and_{y}*N*is the number of time snapshots. For example, if your model has three inputs, two outputs, and four states and is scheduled over 10 time snapshots, the array size must be 2-by-1-by-10. Use`size(sys)`

to determine the size of the state-space array`sys`

.

#### Dependencies

To enable this parameter, set the **Operating Point Offsets**
format to `Specify Offsets as double arrays`

#### Programmatic Use

To set the block parameter value programmatically, use
the `set_param`

(Simulink) function.

Parameter: | `yOffset` |

Values: | `"0"` (default) | array name in quotes |

**Example: **`set_param(gcb,"yOffset","yOffArray")`

**State offset** — State offset

`0`

(default) | array

Offsets in states *x*(*t*), specified as one of
the following:

`0`

— Use when there are no state offsets.Double vector of length equal to the number of states — Use when the state offsets are the same across the scheduling space.

Double array of size

*n*-by-1-by-_{x}*N*— Use when offsets are present and they vary across the scheduling space. Here,*n*is the number of states and_{x}*N*is the number of time snapshots. For example, if your model has three inputs, two outputs, and four states and is scheduled over 10 time snapshots, the array size must be 4-by-1-by-10. Use`size(sys)`

to determine the size of the state-space array`sys`

.

#### Dependencies

To enable this parameter, set the **Operating Point Offsets**
format to `Specify Offsets as double arrays`

#### Programmatic Use

To set the block parameter value programmatically, use
the `set_param`

(Simulink) function.

Parameter: | `xOffset` |

Values: | `"0"` (default) | array name in quotes |

**Example: **`set_param(gcb,"xOffset","xOffArray")`

**State derivative/update offset** — State derivative or update offset

array

Offsets in state derivative or update variable
*dx*(*t*), specified as one of the
following:

If you obtained the linear system array by linearization under equilibrium conditions, select the

**Assume equilibrium operating conditions**option. This option corresponds to an offset of $$\overline{dx}(t)=0$$ for a continuous-time system and $$\overline{dx}(t)=\overline{x}(t)$$ for a discrete-time system. This option is selected by default.If the linear system contains at least one system that you obtained under non-equilibrium conditions, clear the

**Assume equilibrium operating conditions**option. Specify one of the following in the**Offset value**field:If the

`dx`

offset values are the same across the scheduling space, specify as a double vector of length equal to the number of states.If the

`dx`

offsets are present and they vary across the scheduling space, specify as a double array of size*n*-by-1-by-_{x}*N*— Use when offsets are present and they vary across the scheduling space. Here,*n*is the number of states and_{x}*N*is the number of time snapshots. For example, if your model has three inputs, two outputs, and four states and is scheduled over 10 time snapshots, the array size must be 4-by-1-by-10. Use`size(sys)`

to determine the size of the state-space array`sys`

.

#### Dependencies

To enable this parameter, set the **Operating Point Offsets**
format to `Specify Offsets as double arrays`

and disable
**Assume equilibrium operating conditions**.

#### Programmatic Use

To set the block parameter value programmatically, use
the `set_param`

(Simulink) function.

Parameter: | `dxOffset` |

Values: | `"0"` (default) | array name in quotes |

**Example: **`set_param(gcb,"dxOffset","dxOffArray")`

**Struct array** — Offsets structure array

`struct`

(default) | structure array name

Model offsets, specified as a structure with these fields.

Field | Description |
---|---|

`u` | Input offsets |

`y` | Output offsets |

`x` | State offsets |

`dx` | State derivative offsets |

If offset values are the same across the scheduling space, specify as a double vector of length equal to the number of inputs, outputs, or states for the corresponding fields.

If the offsets vary across scheduling space, specify a multidimensional array for each field. For instance, suppose that your model has three inputs, two outputs, and four states. If you linearize your model using a 5-by-6 array of operating points, the structure array size must be 5-by-6 and each entry must contain a vector of length equal to the number of inputs, outputs, or states for the corresponding fields.

The `linearize`

(Simulink Control Design) function returns offsets in
this format in the `info.Offsets`

output when you linearize with
`StoreOffsets`

option set to `true`

.

#### Dependencies

To enable this parameter, set the **Operating Point Offsets**
format to `Specify Offsets as struct array`

#### Programmatic Use

To set the block parameter value programmatically, use
the `set_param`

(Simulink) function.

Parameter: | `Offset` |

Values: | `"struct"` (default) | structure array name in quotes |

**Example: **`set_param(gcb,"Offset","OffsetStructName")`

### Fixed Entries Tab

**Nominal model** — Nominal LTV model

```
Use the first model in state-space
array
```

(default) | `Custom value`

State-space model that provides the values of the fixed coefficients, specified as one of the following:

`Use the first model in state-space array`

— The first model in the state-space array is used to represent the LTV model. In the following example, the state-space array is specified by object`sys`

and the fixed coefficients are taken from model`sys(:,:,1)`

.% Specify a 5-by-1 array of state-space models. sys = rss(4,2,3,5,1); t = 1:5; % Use "Time" as scheduling parameter. sys.SamplingGrid = struct("Time",t);

Fixed coefficients are taken from the model

`sysFixed = sys(:,:,1)`

, which corresponds to`[Time=1]`

. If the (2,1) entry of`A`

matrix is forced to be fixed, its value used during the simulation is`sysFixed.A(2,1)`

.`Custom value`

— Specify a different state-space model for fixed entries. Specify a variable for the fixed model in the**State space model**field. The fixed model must use the same state basis as the state-space array in the LTV model.

**Fixed Coefficient Indices** — Fixed coefficients of state-space matrices

`false`

or `0`

(default) | `true`

or `1`

| logical matrix

Specify which coefficients of the state-space matrices and delay vectors are fixed.

Specify one of the following:

Scalar Boolean (

`true`

or`false`

), if all entries of a matrix are to be treated the same way.The default value is

`false`

for the state-space matrices and delay vectors, which means that they are treated as free.Logical matrix of a size compatible with the size of the corresponding matrix:

State-space matrix

Size of fixed entry matrix

**A matrix***n*-by-_{x}*n*_{x}**B matrix***n*-by-_{x}*n*_{u}**C matrix***n*-by-_{y}*n*_{x}**D matrix***n*-by-_{y}*n*_{u}**Input delay***n*-by-1_{u}**Output delay***n*-by-1_{y}**Internal delay***n*-by-1_{i}where,

*n*is the number of inputs,_{u}*n*is the number of outputs,_{y}*n*is the number of states,_{x}*n*is the length of internal delay vector._{i}Numerical indices to specify the location of fixed entries. See

`sub2ind`

reference page for more information on how to generate numerical indices corresponding to a given subscript`(i,j)`

for an element of a matrix.

### Scheduling Tab

**Interpolation method** — Interpolation method

`Linear`

(default) | `Nearest`

| `Flat`

Interpolation method. Defines how the state-space data must be computed for scheduling parameter values that are located away from their grid locations.

Specify one of the following options:

`Flat`

— Choose the state-space data at the grid point closest, but not larger than, the current point. The*current point*is the value of the scheduling parameters at current time.`Nearest`

— Choose the state-space data at the closest grid point in the scheduling space.`Linear`

— Obtain state-space data by linear interpolation of the nearest 2d neighbors in the scheduling space, where d = number of scheduling parameters.

The default interpolation scheme is `Linear`

for regular
grids of scheduling parameter values. For irregular grids, the
`Nearest`

interpolation scheme is always used regardless of
the choice you made. To learn more about regular and irregular grids, see Regular vs. Irregular Grids.

The `Linear`

method provides the highest accuracy but
takes longer to compute. The `Flat`

and
`Nearest`

methods are good for models that have
mode-switching dynamics.

#### Programmatic Use

To set the block parameter value programmatically, use
the `set_param`

(Simulink) function.

Parameter: | `IMethod` |

Values: | `"Linear"` (default) | `"Nearest"` | `"Flat"` |

**Example: **`set_param(gcb,"IMethod","Flat")`

**Extrapolation method** — Extrapolation method

`Clip`

(default) | `Linear`

Extrapolation method. Defines how to compute the state-space data for scheduling
parameter values that fall outside the range over which the state-space array has been
provided (as specified in the `SamplingGrid`

property).

Specify one of the following options:

`Clip`

(default) — Disables extrapolation and returns the data corresponding to the last available scheduling grid point that is closest to the current point.`Linear`

— Fits a line between the first or last pair of values for each scheduling parameter, depending upon whether the current value is less than the first or greater than the last grid point value, respectively. This method returns the point on that line corresponding to the current value. Linear extrapolation requires that the interpolation scheme be linear too.

#### Programmatic Use

To set the block parameter value programmatically, use
the `set_param`

(Simulink) function.

Parameter: | `EMethod` |

Values: | `"Clip"` (default) | `"Linear"` |

**Example: **`set_param(gcb,"EMethod","Linear")`

**Index search method** — Prelookup algorithm

`Binary search`

(default) | `Linear search`

The block determines the location of the current scheduling parameter values in
the scheduling space using a prelookup algorithm. Select ```
Linear
search
```

or `Binary search`

. Each search method
has speed advantages in different situations. For more information on this parameter,
see the Prelookup (Simulink) block reference page.

#### Programmatic Use

To set the block parameter value programmatically, use
the `set_param`

(Simulink) function.

Parameter: | `IndexSearch` |

Values: | `"Binary Search"` (default) | `"Linear Search"` |

**Example: **```
set_param(gcb,"IndexSearch","Linear
Search")
```

**Begin index search using previous index result** — Begin search at previous time step

`on`

(default) | `off`

Select this check box when you want the block to start its search using the index found at the previous time step. For more information on this parameter, see the Prelookup (Simulink) block reference page.

#### Programmatic Use

To set the block parameter value programmatically, use
the `set_param`

(Simulink) function.

Parameter: | `IndexBegin` |

Values: | `"on"` (default) | `"off"` |

**Example: **`set_param(gcb,"IndexBegin","off")`

### Code Generation Tab

**Block data type (discrete-time case only)** — Block data type

`double`

(default) | `single`

Block data type, specified as `double`

or
`single`

.

#### Dependencies

To enable this option, use a discrete-time state-space model as input.

#### Programmatic Use

To set the block parameter value programmatically, use
the `set_param`

(Simulink) function.

Parameter: | `DataType` |

Values: | `"double"` (default) | `"single"` |

**Example: **`set_param(gcb,"DataType","single")`

**Initial buffer size for delays** — Initial buffer size

`1024`

(default) | positive integer greater than 5

Initial memory allocation for the number of input points to store for models that contain delays. If the number of input points exceeds the initial buffer size, the block allocates additional memory. The default size is 1024.

When you run the model in Accelerator mode or build the model, make sure the initial buffer size is large enough to handle maximum anticipated delay in the model.

#### Programmatic Use

To set the block parameter value programmatically, use
the `set_param`

(Simulink) function.

Parameter: | `InitBufferSize` |

Values: | `"1024"` (default) | positive integer greater than 5 in quotes |

**Example: **`set_param(gcb,"InitBufferSize","512")`

**Use fixed buffer size** — Use fixed buffer size

`off`

(default) | `on`

Specify whether to use a fixed buffer size to save delayed input and output data from previous time steps. Use this option for continuous-time LTV systems that contain input or output delays. If the buffer is full, new data replaces data already in the buffer. The software uses linear extrapolation to estimate output values that are not in the buffer.

#### Programmatic Use

To set the block parameter value programmatically, use
the `set_param`

(Simulink) function.

Parameter: | `FixedBuffer` |

Values: | `"off"` (default) | `"on"` |

**Example: **`set_param(gcb,"FixedBuffer","on")`

## Extended Capabilities

### C/C++ Code Generation

Generate C and C++ code using Simulink® Coder™.

## Version History

**Introduced in R2024a**

## MATLAB Command

You clicked a link that corresponds to this MATLAB command:

Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.

Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
