# LPV System

Simulate Linear Parameter-Varying (LPV) systems

## Description

Represent and simulate Linear Parameter-Varying (LPV) systems in Simulink®. The block also supports code generation.

A linear parameter-varying (LPV) system is a linear state-space model whose dynamics vary as a function of certain time-varying parameters called scheduling parameters. In MATLAB®, an LPV model is represented in a state-space form using coefficients that are parameter dependent.

Mathematically, an LPV system is represented as:

 $\begin{array}{l}dx\left(t\right)=A\left(p\right)x\left(t\right)+B\left(p\right)u\left(t\right)\\ y\left(t\right)=C\left(p\right)x\left(t\right)+D\left(p\right)u\left(t\right)\\ x\left(0\right)={x}_{0}\end{array}$ (1)

where

• `u(t)` are the inputs

• `y(t)` are the outputs

• `x(t)` are the model states with initial value `x0`

• $dx\left(t\right)$ is the state derivative vector $\stackrel{˙}{x}$ for continuous-time systems and the state update vector $x\left(t+\Delta T\right)$ for discrete-time systems. ΔT is the sample time.

• `A(p)`, `B(p)`, `C(p)` and `D(p)` are the state-space matrices parameterized by the scheduling parameter vector `p`.

• The parameters `p = p(t)` are measurable functions of the inputs and the states of the model. They can be a scalar quantity or a vector of several parameters. The set of scheduling parameters define the scheduling space over which the LPV model is defined.

Caution

Avoid making C(p) and D(p) depend on the system output y. Otherwise, the resulting state-space equation y = C(y)x + D(y)u creates an algebraic loop, because computing the output value y requires knowing the output value. This algebraic loop is prone to instability and divergence. Instead, try expressing C and D in terms of the time t, the block input u, and the state outputs x.

For similar reasons, avoid scheduling A(p) and B(p) based on the dx output. Note that it is safe for A and B to depend on y when y is a fixed combination of states and inputs (in other words, when y = Cx + Du, where C and D are constant matrices).

The block implements a grid-based representation of the LPV system. You pick a grid of values for the scheduling parameters. At each value `p = p*`, you specify the corresponding linear system as a state-space (`ss` or `idss` (System Identification Toolbox)) model object. You use the generated array of state-space models to configure the LPV System block.

The block accepts an array of state-space models with operating point information. The information on the scheduling variables is extracted from the `SamplingGrid` property of the LTI array. The scheduling variables define the grid of the LPV models. They are scalar-valued quantities that can be functions of time, inputs and states, or constants. They are used to pick the local dynamics in the operating space. The software interpolates the values of these variables. The block uses this array with data interpolation and extrapolation techniques for simulation.

The LPV system representation can be extended to allow offsets in `dx`, `x`, `u` and `y` variables. This form is known as affine form of the LPV model. Mathematically, the following represents an LPV system:

 $\begin{array}{l}dx\left(t\right)=A\left(p\right)x\left(t\right)+B\left(p\right)u\left(t\right)+\left(\overline{dx}\left(p\right)-A\left(p\right)\overline{x}\left(p\right)-B\left(p\right)\overline{u}\left(p\right)\right)\\ y\left(t\right)=C\left(p\right)x\left(t\right)+D\left(p\right)u\left(t\right)+\left(\overline{y}\left(p\right)-C\left(p\right)\overline{x}\left(p\right)-D\left(p\right)\overline{u}\left(p\right)\right)\\ x\left(0\right)={x}_{0}\end{array}$ (2)

are the offsets in the values of `dx(t)`, `x(t)`, `u(t)` and `y(t)` at a given parameter value `p = p(t)`.

To obtain such representations of the linear system array, linearize a Simulink model over a batch of operating points (see Batch Linearization (Simulink Control Design).) The offsets correspond to the operating points at which you linearized the model.

You can obtain the offsets by returning additional linearization information when calling functions such as `linearize` (Simulink Control Design) or `getIOTransfer` (Simulink Control Design). You can then extract the offsets using `getOffsetsForLPV` (Simulink Control Design). For an example, see LPV Approximation of Boost Converter Model (Simulink Control Design).

The following limitations apply to the LPV System block:

• Internal delays cannot be extrapolated to be less than their minimum value in the state-space model array.

• When using an irregular grid of linear models to define the LPV system, only the nearest neighbor interpolation scheme is used. This may reduce the accuracy of simulation results. It is recommended to work with regular grids. To learn more about regular and irregular grids, see Regular vs. Irregular Grids.

• ## Data Type Support

Single and double data. You must convert any other data type for input signals or model properties to these data types.

## Parameters

The LPV System Block Parameter dialog box contains five tabs for specifying the system data, scheduling algorithm and output ports. The following table summarizes the block parameters.

Specify an array of state-space models and initial states

In LPV Model tab:

Specify operating point offsets

In LPV Model tab:

Specify offsets in state derivative or update variable

In the LPV Model tab:

Specify which model matrices are fixed and their nominal values to override entries in model data.
In some situations, you may want to replace a parameter-dependent matrix such as `A(p)` with a fixed value `A*` for simulation. For example, `A*` may represent an average value over the scheduling range.

In the Fixed Entries tab:

Specify options for interpolation and extrapolation

In the Scheduling tab:

Specify additional outputs for the block

In the Outputs tab:

Specify code generation settings

In the Code Generation tab:

### State-space array

An array of state-space (`ss` or `idss` (System Identification Toolbox)) models. All the models in the array must use the same definition of states. Use the `SamplingGrid` property of the state-space object to specify scheduling parameters for the model. See the `ss` or `idss` model reference page for more information on the `SamplingGrid` property.

When the block is in a model with synchronous state control (see the State Control (HDL Coder) block), you must specify an array of discrete-time models.

### Initial state

Initial conditions to use with the local model to start the simulation, specified one of the following:

• 0 (Default)

• Double vector of length equal to the number of model states

### Input offset

Offsets in input `u(t)`, specified as one of the following:

• 0 (Default) — Use when there are no input offsets ().

• Double vector of length equal to the number of inputs — Use when input offset is the same across the scheduling space.

• Double array of size [`nu` 1 `sysArraySize`] — Use when offsets are present and they vary across the scheduling space. Here, `nu` = number of inputs, `sysArraySize` = array size of state-space array `sys`. Use ```sysArraySize = getArraySize(sys)``` to determine the array size.

You can obtain offsets during linearization and convert them to the format supported by the LPV System block. For more information, see Approximate Nonlinear Behavior Using Array of LTI Systems (Simulink Control Design) and `getOffsetsForLPV` (Simulink Control Design).

### Output offset

Offsets in output `y(t)`, specified as one of the following:

• 0 (Default) — Use when there are no output offsets .

• Double vector of length equal to the number of outputs. Use when output offsets are the same across the scheduling space.

• Double array of size [`ny` 1 `sysArraySize`]. Use when offsets are present and they vary across the scheduling space. Here, `ny` = number of outputs, `sysArraySize` = array size of state-space array. Use ```sysArraySize = getArraySize(sys)``` to determine the array size.

You can obtain offsets during linearization and convert them to the format supported by the LPV System block. For more information, see Approximate Nonlinear Behavior Using Array of LTI Systems (Simulink Control Design) and `getOffsetsForLPV` (Simulink Control Design).

### State offset

Offsets in states `x(t)`, specified as one of the following:

• 0 (Default) — Use when there are no state offsets .

• Double vector of length equal to the number of states. Use when the state offsets are the same across the scheduling space.

• Double array of size `[nx 1 sysArraySize]`, where `nx` = number of states, `sysArraySize` = array size of state-space array. Use when offsets are present and they vary across the scheduling space. Here, `nx` = number of states, `sysArraySize` = array size of state-space array. Use `sysArraySize = getArraySize(sys)` to determine the array size.

You can obtain offsets during linearization and convert them to the format supported by the LPV System block. For more information, see Approximate Nonlinear Behavior Using Array of LTI Systems (Simulink Control Design) and `getOffsetsForLPV` (Simulink Control Design).

### State derivative/update offset

Offsets in state derivative or update variable `dx(t)`, specified as one of the following:

• If you obtained the linear system array by linearization under equilibrium conditions, select the Assume equilibrium operating conditions option. This option corresponds to an offset of $\overline{dx}\left(p\right)=0$ for a continuous-time system and $\overline{dx}\left(p\right)=\overline{x}\left(p\right)$ for a discrete-time system. This option is selected by default.

• If the linear system contains at least one system that you obtained under non-equilibrium conditions, clear the Assume equilibrium operating conditions option. Specify one of the following in the Offset value field:

• If the `dx` offset values are the same across the scheduling space, specify as a double vector of length equal to the number of states.

• If the `dx` offsets are present and they vary across the scheduling space, specify as a double array of size [`nx` 1 `sysArraySize`], where `nx` = number of states, and `sysArraySize` = array size of state-space array.

You can obtain offsets during linearization and convert them to the format supported by the LPV System block. For more information, see Approximate Nonlinear Behavior Using Array of LTI Systems (Simulink Control Design) and `getOffsetsForLPV` (Simulink Control Design).

### Nominal Model

State-space model that provides the values of the fixed coefficients, specified as one of the following:

• `Use the first model in state-space array` (Default:) — The first model in the state-space array is used to represent the LPV model. In the following example, the state-space array is specified by object `sys` and the fixed coefficients are taken from model `sys(:,:,1)`.

```% Specify a 4-by-5 array of state-space models. sys = rss(4,2,3,4,5); a = 1:4; b = 10:10:50; [av,bv] = ndgrid(a,b); % Use "alpha" and "beta" variables as scheduling parameters. sys.SamplingGrid = struct('alpha',av,'beta',bv); ```

Fixed coefficients are taken from the model ```sysFixed = sys(:,:,1)```, which corresponds to ```[alpha=1, beta=10]```. If the (2,1) entry of `A` matrix is forced to be fixed, its value used during the simulation is `sysFixed.A(2,1)`.

• `Custom value` — Specify a different state-space model for fixed entries. Specify a variable for the fixed model in the State space model field. The fixed model must use the same state basis as the state-space array in the LPV model.

### Fixed Coefficient Indices

Specify which coefficients of the state-space matrices and delay vectors are fixed.

Specify one of the following:

• Scalar Boolean (`true` or `false`), if all entries of a matrix are to be treated the same way.

The default value is `false` for the state-space matrices and delay vectors, which means that they are treated as free.

• Logical matrix of a size compatible with the size of the corresponding matrix:

State-space matrix

Size of fixed entry matrix

A matrix

`nx`-by-`nx`

B matrix

`nx`-by-`nu`

C matrix

`ny`-by-`nx`

D matrix

`ny`-by-`nu`

Input delay

`nu`-by-1

Output delay

`ny`-by-1

Internal delay

`ni`-by-1

where, `nu` = number of inputs, `ny` = number of outputs, `nx` = number of states, `ni` = length of internal delay vector.

• Numerical indices to specify the location of fixed entries. See `sub2ind` reference page for more information on how to generate numerical indices corresponding to a given subscript `(i,j)` for an element of a matrix.

### Interpolation method

Interpolation method. Defines how the state-space data must be computed for scheduling parameter values that are located away from their grid locations.

Specify one of the following options:

• `Flat` — Choose the state-space data at the grid point closest, but not larger than, the current point. The current point is the value of the scheduling parameters at current time.

• `Nearest` — Choose the state-space data at the closest grid point in the scheduling space.

• `Linear` — Obtain state-space data by linear interpolation of the nearest 2d neighbors in the scheduling space, where d = number of scheduling parameters.

The default interpolation scheme is `Linear` for regular grids of scheduling parameter values. For irregular grids, the `Nearest` interpolation scheme is always used regardless of the choice made. to learn more about regular and irregular grids, see Regular vs. Irregular Grids.

The `Linear` method provides the highest accuracy but takes longer to compute. The `Flat` and `Nearest` methods are good for models that have mode-switching dynamics.

### Extrapolation method

Extrapolation method. Defines how to compute the state-space data for scheduling parameter values that fall outside the range over which the state-space array has been provided (as specified in the `SamplingGrid` property).

Specify one of the following options:

• `Clip` (Default:) — Disables extrapolation and returns the data corresponding to the last available scheduling grid point that is closest to the current point.

• `Linear` — Fits a line between the first or last pair of values for each scheduling parameter, depending upon whether the current value is less than the first or greater than the last grid point value, respectively. This method returns the point on that line corresponding to the current value. Linear extrapolation requires that the interpolation scheme be linear too.

### Index search method

The location of the current scheduling parameter values in the scheduling space is determined by a prelookup algorithm. Select ```Linear search``` or `Binary search`. Each search method has speed advantages in different situations. For more information on this parameter, see the Prelookup (Simulink) block reference page.

### Begin index search using previous index result

Select this check box when you want the block to start its search using the index found at the previous time step. For more information on this parameter, see the Prelookup (Simulink) block reference page.

### Output states

Add `x` port to the block to output state values. This option is selected by default.

### Output state derivatives (continuous-time) or updates (discrete-time)

Add `dx` port to the block to output state derivative values or update the values. This option is selected by default.

### Output interpolated state-space data

Add `ss` port to the block to output state-space data as a structure. This option is selected by default.

The fields of the generated structure are:

• State-space matrices `A`, `B`, `C`, `D`.

• Delays `InputDelay`, `OutputDelay`, and `InternalDelay`. The `InternalDelay` field is available only when the model has internal delay.

### Output interpolated offsets

Add `offset` port to the block to output LPV model offsets .

The fields of the structure are:

• `InputOffset`, `OutputOffset`, `StateOffset`, and `StateDerivativeOffset` in continuous-time.

• `InputOffset`, `OutputOffset`, `StateOffset`, and `StateUpdateOffset` in discrete-time.

### Block data type (discrete-time case only)

Supported data type. Use this option only for discrete-time state-space models. Specify `double` or `single`.

### Initial buffer size for delays

Initial memory allocation for the number of input points to store for models that contain delays. If the number of input points exceeds the initial buffer size, the block allocates additional memory. The default size is 1024.

When you run the model in Accelerator mode or build the model, make sure the initial buffer size is large enough to handle maximum anticipated delay in the model.

### Use fixed buffer size

Specify whether to use a fixed buffer size to save delayed input and output data from previous time steps. Use this option for continuous-time LPV systems that contain input or output delays. If the buffer is full, new data replaces data already in the buffer. The software uses linear extrapolation to estimate output values that are not in the buffer.

## Examples

### Configure the Scheduling Parameter Input Port

Consider a 2-input, 3-output, 4-state LPV model. Use input `u(2)` and state `x(1)` as scheduling parameters. Configure the Simulink model as shown in the following figure. ### Simulate a Linear Parameter-Varying System

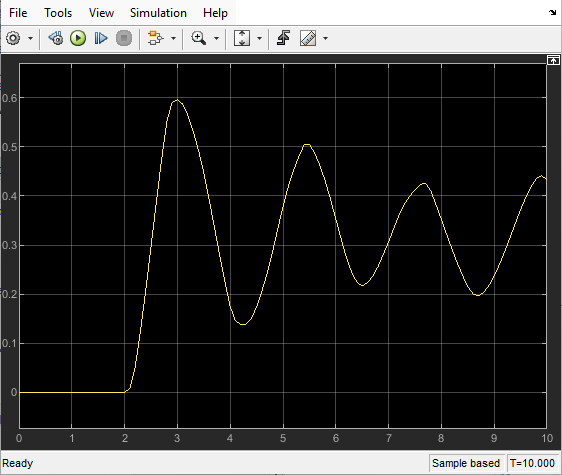

Consider a linear mass-spring-damper system whose mass changes as a function of an external load command. The governing equation is:

`$m\left(u\right)\stackrel{¨}{y}+c\stackrel{˙}{y}+k\left(y\right)y=F\left(t\right)$`

where `m(u)` is the mass dependent upon the external command `u`, `c` is the damping ratio, `k` is the stiffness of the spring and `F(t)` is the forcing input. `y(t)` is position of the mass at a given time `t`. For a fixed value of `u`, the system is linear and expressed as:

where $x=\left[\begin{array}{c}y\\ \stackrel{˙}{y}\end{array}\right]$ is the state vector and `m` is the value of the mass for a given value of `u`.

In this example, you want to study the model behavior over a range of input values from 1 to 10 Volts. For each value of `u`, measure the mass and compute the linear representation of the system. Suppose, mass is related to the input by the relationship: $m\left(u\right)=10u+0.1{u}^{2}$. For values of `u` ranging from 1:10 results in the following array of linear systems.

```% Specify damping coefficient. c = 5; % Specify stiffness. k = 300; % Specify load command. u = 1:10; % Specify mass. m = 10*u + 0.1*u.^2; % Compute linear system at a given mass value. for i = 1:length(u) A = [0 1; -k/m(i), -c/m(i)]; B = [0; 1/m(i)]; C = [1 0]; sys(:,:,i) = ss(A,B,C,0); end ```

The variable `u` is the scheduling input. Add this information to the model.

`sys.SamplingGrid = struct('LoadCommand',u);`

Configure the LPV System block:

• Type `sys` in the State-space array field.

• Connect the input port `par` to a one-dimensional source signal that generates the values of the load command. If the source provides values between 1 and 10, interpolation is used to compute the linear model at a given time instance. Otherwise, extrapolation is used. ## Ports

Port Name

Port Type

(In/Out)

Description
u In

Input signal u(t) in Equation 2 described previously. In multi-input case, this port accepts a signal of the dimension of the input.

parIn

Provides the signals for variables defining the scheduling space (“sampling grid” variables). The scheduling variables can be functions of time, inputs and states, or constants. The required dependence can be achieved by preparing a scheduling signal using clock input (for time), input signal (`u`), and the outputs signals (`x`, `dx/dt`, `y`) of the LPV block, as required.

Caution

Avoid making C(p) and D(p) depend on the system output y. Otherwise, the resulting state-space equation y = C(y)x + D(y)u creates an algebraic loop, because computing the output value y requires knowing the output value. This algebraic loop is prone to instability and divergence. Instead, try expressing C and D in terms of the time t, the block input u, and the state outputs x.

For similar reasons, avoid scheduling A(p) and B(p) based on the dx output. Note that it is safe to for A and B to depend on y when y is a fixed combination of states and inputs, (in other words, when y = Cx + Du where C and D are constant matrices).

yOut

Model output

x Out

Values of the model states

dxOut

Values of the state derivatives. The state derivatives are sometimes used to define the scheduling parameters. However, avoid scheduling A and B based on the dx output.

ssOut

Local state-space model at the major simulation time steps

offsetOutLPV model offsets

## Version History

Introduced in R2014b
