sub2ind
Convert subscripts to linear indices
Description
returns the linear indices ind
= sub2ind(sz
,I1,I2,...,In
)ind
corresponding to multidimensional
subscripts in n
arrays I1,I2,...,In
for a
multidimensional array of size sz
. Here sz
is a
vector with n
elements that specifies the size of each array
dimension.
Examples
Convert Subscripts to Linear Indices for Matrix

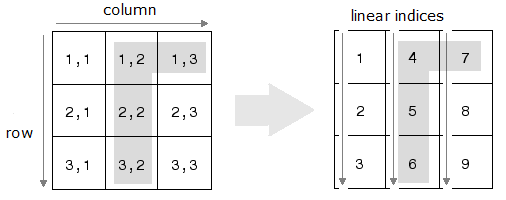

The mapping from subscripts (indexing by position) to linear indices for a 3-by-3 matrix can be illustrated as in the following.
Specify the row and column subscripts in a 3-by-3 matrix. Convert the subscripts to linear indices.
row = [1 2 3 1]; col = [2 2 2 3]; sz = [3 3]; ind = sub2ind(sz,row,col)
ind = 1×4
4 5 6 7
Convert Subscripts to Linear Indices for Three-Dimensional Array

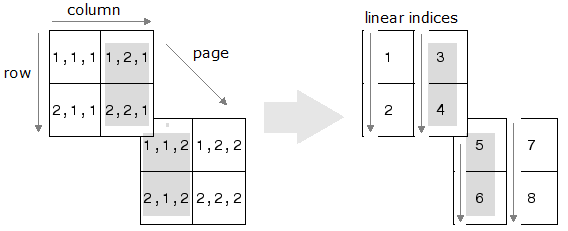

The mapping from subscripts to linear indices for a 2-by-2-by-2 array can be illustrated as in the following.
Specify the row, column, and page subscripts in a 2-by-2-by-2 array. Convert the subscripts to linear indices.
I1 = [1 2 1 2]; I2 = [2 2 1 1]; I3 = [1 1 2 2]; sz = [2 2 2]; ind = sub2ind(sz,I1,I2,I3)
ind = 1×4
3 4 5 6
Access Element of 3-D Array
Convert a subscript index of a 3-D array to a single linear index.
Create an array, and find the linear index corresponding to the element in the (2,1,2) position.
A = rand(3,4,2); linearInd = sub2ind(size(A),2,1,2)
linearInd = 14
Check that both index versions refer to the same element.
A(2,1,2)
ans = 0.4854
A(14)
ans = 0.4854
Input Arguments
sz
— Size of array
vector of positive integers
Size of array, specified as a vector of positive integers. Each element of this
vector indicates the size of the corresponding dimension. For example, [2 3
4]
defines a 2-by-3-by-4 array.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
row
— Row subscripts
scalar | vector | matrix | multidimensional array
Row subscripts, specified as a scalar, vector, matrix, or multidimensional array.
row
and col
can be arrays of the same size, or
either one can be scalar.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
col
— Column subscripts
scalar | vector | matrix | multidimensional array
Column subscripts, specified as a scalar, vector, matrix, or multidimensional array.
row
and col
can be arrays of the same size, or
either one can be scalar.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
I1,I2,...,In
— Multidimensional subscripts
scalar | vector | matrix | multidimensional array
Multidimensional subscripts, specified as a scalar, vector, matrix, or
multidimensional array. I1,I2,…,In
can be arrays of the same size, or
any of them can be scalar.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
Output Arguments
ind
— Linear indices
scalar | vector | matrix | multidimensional array
Linear indices, returned as a scalar, vector, matrix, or multidimensional array.
If the subscript inputs all have the same size, then
ind
is also that size.If the subscript inputs are a mix of scalars and arrays, then
ind
has the size of the nonscalar subscript inputs.
Data Types: double
Algorithms
For an array A
, if ind = sub2ind(size(A),I1,…,In)
,
then A(ind(k)) = A(I1(k),…,In(k))
for all k
.
Extended Capabilities
Tall Arrays
Calculate with arrays that have more rows than fit in memory.
The
sub2ind
function fully supports tall arrays. For more information,
see Tall Arrays.
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Usage notes and limitations:
The first argument must be a valid size vector. Code generation does not support size vectors for arrays with more than
intmax
elements.The generated code treats
NaN
inputs as out of range and throws a run-time error.See Variable-Sizing Restrictions for Code Generation of Toolbox Functions (MATLAB Coder).
GPU Code Generation
Generate CUDA® code for NVIDIA® GPUs using GPU Coder™.
Usage notes and limitations:
The first argument must be a valid size vector. Code generation does not support size vectors for arrays with more than
intmax
elements.
Thread-Based Environment
Run code in the background using MATLAB® backgroundPool
or accelerate code with Parallel Computing Toolbox™ ThreadPool
.
This function fully supports thread-based environments. For more information, see Run MATLAB Functions in Thread-Based Environment.
GPU Arrays
Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.
The sub2ind
function
fully supports GPU arrays. To run the function on a GPU, specify the input data as a gpuArray
(Parallel Computing Toolbox). For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).
Distributed Arrays
Partition large arrays across the combined memory of your cluster using Parallel Computing Toolbox™.
This function fully supports distributed arrays. For more information, see Run MATLAB Functions with Distributed Arrays (Parallel Computing Toolbox).
Version History
Introduced before R2006aR2024a: sub2ind
accepts mix of scalars and vectors for subscript inputs
sub2ind
now leverages scalar expansion and
accepts a mix of scalars and vectors for subscript inputs. For example,
sub2ind(sz,[1 2 3],2)
is now the same as sub2ind(sz,[1 2 3],[2
2 2])
. Previously, the subscript inputs were required to be the same
size.
