Create monopole antenna mounted on radial ground plane
monopoleRadial antenna object creates a monopole antenna
mounted on a radial ground plane. The monopole radial antenna is a variant of the monopole
antenna, where the antenna is mounted on radials as versus a rectangular ground plane. These
antennas are commonly used in airborne and ground-based radio communications.
creates a quarter
wavelength monopole antenna with a radial ground plane. The default antenna object is
center-fed with the feed point located at the origin on the X-Y plane. The default
antenna object resonates at 75 MHz.
mpr = monopoleRadial
sets Properties using name-value
pairs. For example,
mpr = monopoleRadial(Name,Value)
monopoleRadial('Height',2.2) creates a monopole
antenna mounted on a radial ground plane with height of 2.2 meters. You can specify
multiple name-value pairs. Enclose each property name in quotes. Properties not
specified retain their default values.
Height— Monopole height
1(default) | positive scalar
Monopole height, specified as a positive scalar in meter.
Width— Monopole width
0.1000(default) | positive scalar
Monopole width, specified as a positive scalar in meters.
Monopole width should be less than
'Height'/4 and greater than
'Height'/1001. For more information, see .
NumRadials— Number of radials
12(default) | positive scalar
Number of radials, specified as a positive scalar.
RadialWidth— Width of each radial
0.02(default) | positive scalar
Width of each radial in the monopole radial antenna, specified as a positive scalar in meters.
RadialLength— Length of each radial
2.85(default) | positive scalar
Length of each radial in the monopole radial antenna, specified as a positive scalar in meters.
RadialTilt— Tilt angle of radials with respect to ground plane
0(default) | scalar
Tilt angle of radials with respect to the ground plane, specified as a scalar in degree. Radials are tilted along the X-Y plane in negative Z direction.
Conductor— Type of metal material
Type of the metal used as a conductor, specified as a metal material object. You can
choose any metal from the
MetalCatalog or specify a metal of your choice. For more information, see
more information on metal conductor meshing, see Meshing.
m = metal('Copper'); 'Conductor',m
m = metal('Copper'); ant.Conductor = m
Load— Lumped elements
lumpedElement] (default) |
Lumped elements added to the antenna feed, specified as a
lumpedElement object. You can add a load anywhere on the surface of
the antenna. By default, the load is at the feed. For more information, see
lumpedelement is the load added to the antenna feed.
ant.Load = lumpedElement('Impedance',75)
Tilt— Tilt angle of antenna
0(default) | scalar | vector
Tilt angle of the antenna, specified as a scalar or vector with each element unit in degrees. For more information, see Rotate Antennas and Arrays.
ant.Tilt = 90
'TiltAxis',[0 1 0;0 1 1]
tilts the antenna at 90 degrees about the two axes defined by the
wireStack antenna object
only accepts the dot method to change its properties.
TiltAxis— Tilt axis of antenna
[1 0 0](default) | three-element vector of Cartesian coordinates | two three-element vectors of Cartesian coordinates |
Tilt axis of the antenna, specified as:
Three-element vector of Cartesian coordinates in meters. In this case, each coordinate in the vector starts at the origin and lies along the specified points on the X-, Y-, and Z-axes.
Two points in space, each specified as three-element vectors of Cartesian coordinates. In this case, the antenna rotates around the line joining the two points in space.
A string input describing simple rotations around one of the principal axes, 'X', 'Y', or 'Z'.
For more information, see Rotate Antennas and Arrays.
'TiltAxis',[0 1 0]
'TiltAxis',[0 0 0;0 1 0]
ant.TiltAxis = 'Z'
wireStack antenna object only accepts the dot method to change its
|Display antenna or array structure; display shape as filled patch|
|Input impedance of antenna; scan impedance of array|
|Return loss of antenna; scan return loss of array|
|Voltage standing wave ratio of antenna|
|Optimize antenna or array using SADEA optimizer|
|Radiation pattern and phase of antenna or array; Embedded pattern of antenna element in array|
|Azimuth pattern of antenna or array|
|Elevation pattern of antenna or array|
|Axial ratio of antenna|
|Beamwidth of antenna|
|Current distribution on metal or dielectric antenna or array surface|
|Charge distribution on metal or dielectric antenna or array surface|
|Radiation efficiency of antenna|
|Electric and magnetic fields of antennas; Embedded electric and magnetic fields of antenna element in arrays|
|Mesh properties of metal or dielectric antenna or array structure|
|Design prototype antenna or arrays for resonance at specified frequency|
|Calculate and plot radar cross section (RCS) of platform, antenna, or array|

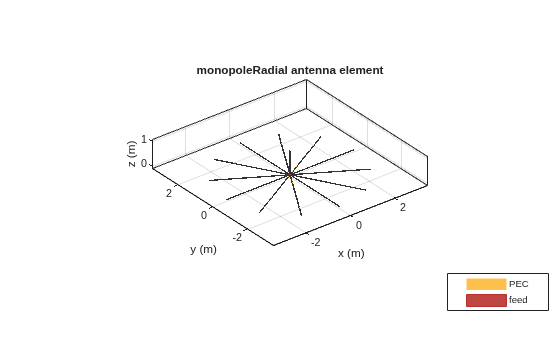

Create and view a monopole antenna mounted on radial ground plane with default properites.
ant = monopoleRadial; show(ant)

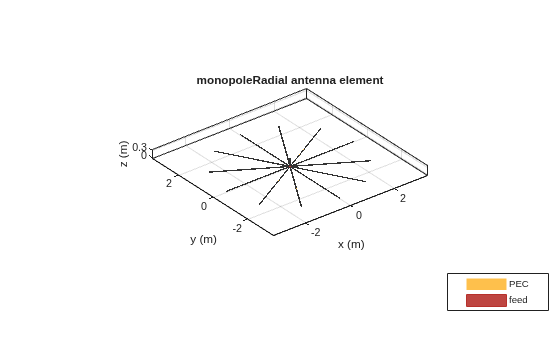

Create and view a monopole antenna on a radial ground plane with the width of 0.0067 meters and the height of 0.33331 meters.
m = monopoleRadial('Width',0.0067,'Height',0.3331); show(m)

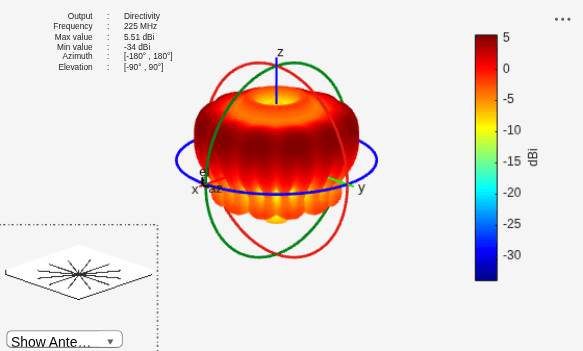

Plot the radiation pattern of the antenna at a frequency of 225 MHz.
 Balanis, Constantine A. Antenna Theory: Analysis and Design. 3rd ed. Hoboken, NJ: John Wiley, 2005.
 Volakis, John. Antenna Engineering Handbook, 4th Ed. New York: Mcgraw-Hill, 2007.
