Create helix or conical helix antenna on ground plane


Use the helix object to create a helix or conical helix antenna on a circular ground plane. The helix antenna is a common choice in satellite communication.

The width of the strip is related to the diameter of an equivalent cylinder by the equation



  • w is the width of the strip.

  • d is the diameter of an equivalent cylinder.

  • r is the radius of an equivalent cylinder.

For a given cylinder radius, use the cylinder2strip utility function to calculate the equivalent width. The default helix antenna is end-fed. The circular ground plane is on the xy- plane. Commonly, helix antennas are used in axial mode. In this mode, the helix circumference is comparable to the operating wavelength and the helix has maximum directivity along its axis. In normal mode, the helix radius is small compared to the operating wavelength. In this mode, the helix radiates broadside, that is, in the plane perpendicular to its axis. The basic equation for the helix is



  • r is the radius of the helix.

  • θ is the winding angle.

  • S is the spacing between turns.

For a given pitch angle in degrees, use the helixpitch2spacing utility function to calculate the spacing between the turns in meters.


In an array of helix antennas, the circular ground plane of the helix is converted to rectangular ground plane.



ant = helix creates a helix antenna operating in axial mode. The default antenna operates around 2 GHz.


ant = helix(Name,Value) sets properties using one or more name-value pairs. For example, ant = helix('Radius',28e-03) creates a helix with turns of radius 28e-03 m.

Output Arguments

expand all

Helix antenna, returned as a helix object.


expand all

Radius of the turns, specified as a positive scalar integer in meters or a two element vector with each element unit in meters. In the two-element vector, the first element specifies the bottom radius and the second element specifies the top radius of the conical helix antenna.

Example: 'Radius',[28e-03 30e-03]

Example: ant.Radius = [28e-03 30e-03]

Data Types: double

Strip width, specified as a scalar in meters.


Strip width should be less than 'Radius'/5 and greater than 'Radius'/250. [4]

Example: 'Width',5

Example: ant.Width = 5

Data Types: double

Number of turns of the helix, specified as a scalar.

Example: 'Turns',2

Example: ant.Turns = 2

Data Types: double

Spacing between turns, specified as a scalar in meters.

Example: 'Spacing',1.5

Example: ant.Spacing = 1.5

Data Types: double

Direction of helix turns (windings), specified as 'CW' or 'CCW'.

Example: 'WindingDirection',CW

Example: ant.WindingDirection = CW

Data Types: char | string

Ground plane radius, specified as a scalar in meters. By default, the ground plane is on the X-Y plane and is symmetrical about the origin.

Example: 'GroundPlaneRadius',2.05

Example: ant.GroundPlaneRadius = 2.05

Data Types: double

Feeding stub height from ground, specified as a scalar in meters.

Example: 'FeedStubHeight',2.000e-03

Example: ant.FeedStubHeight = 2.000e-03


The default value is chosen to allow backward compatibility.

Data Types: double

Type of dielectric material used as the substrate, specified as a dielectric object. You can specify only one dielectric layer in the helix object. When using the Substrate property, specify the same radius for all the turns. When using a dielectric material other than air, the number of turns in the helix should be greater than 1. For more information, see dielectric. For more information on dielectric substrate meshing, see Meshing.

Example: d = dielectric('Teflon'); hx = helix('Substrate',d)

Example: d = dielectric('Teflon'); hx.Substrate = d

Type of the metal used as a conductor, specified as a metal material object. You can choose any metal from the MetalCatalog or specify a metal of your choice. For more information, see metal. For more information on metal conductor meshing, see Meshing.

Example: m = metal('Copper'); 'Conductor',m

Example: m = metal('Copper'); ant.Conductor = m

Lumped elements added to the antenna feed, specified as a lumped element object. You can add a load anywhere on the surface of the antenna. By default, the load is at the origin. For more information, see lumpedElement.

Example: 'Load',lumpedelement. lumpedelement is the object for the load created using lumpedElement.

Example: ant.Load = lumpedElement('Impedance',75)

Data Types: double

Tilt angle of the antenna in degrees, specified as a scalar or vector. For more information, see Rotate Antennas and Arrays.

Example: 90

Example: Tilt=[90 90],TiltAxis=[0 1 0;0 1 1] tilts the antenna at 90 degrees about the two axes defined by the vectors.

Data Types: double

Tilt axis of the antenna, specified as one of these values:

  • Three-element vector of Cartesian coordinates in meters. In this case, each coordinate in the vector starts at the origin and lies along the specified points on the x-, y-, and z-axes.

  • Two points in space, specified as a 2-by-3 matrix corresponding to two three-element vectors of Cartesian coordinates. In this case, the antenna rotates around the line joining the two points.

  • "x", "y", or "z" to describe a rotation about the x-, y-, or z-axis, respectively.

For more information, see Rotate Antennas and Arrays.

Example: [0 1 0]

Example: [0 0 0;0 1 0]

Example: "Z"

Data Types: double | string

Object Functions

axialRatioCalculate and/or plot axial ratio of antenna or array
bandwidthCalculate and/or plot absolute bandwidth of antenna
beamwidthBeamwidth of antenna
chargeCharge distribution on antenna or array surface
currentCurrent distribution on antenna or array surface
designDesign prototype antenna or arrays for resonance around specified frequency or create AI-based antenna from antenna catalog objects
efficiencyRadiation efficiency of antenna
EHfieldsElectric and magnetic fields of antennas or embedded electric and magnetic fields of antenna element in arrays
impedanceInput impedance of antenna or scan impedance of array
infoDisplay information about antenna, array, or platform
memoryEstimateEstimate memory required to solve antenna or array mesh
meshMesh properties of metal, dielectric antenna, or array structure
meshconfigChange meshing mode of antenna, array, custom antenna, custom array, or custom geometry
optimizeOptimize antenna or array using SADEA optimizer
patternPlot radiation pattern and phase of antenna or array or embedded pattern of antenna element in array
patternAzimuthAzimuth plane radiation pattern of antenna or array
patternElevationElevation plane radiation pattern of antenna or array
rcsCalculate and plot monostatic and bistatic radar cross section (RCS) of platform, antenna, or array
resonantFrequencyCalculate and/or plot resonant frequency of antenna
returnLossReturn loss of antenna or scan return loss of array
showDisplay antenna, array structures, shapes, or platform
sparametersCalculate S-parameters for antennas and antenna arrays
vswrVoltage standing wave ratio (VSWR) of antenna or array element


collapse all

Create and view a helix antenna that has a 28 mm turn radius, 1.2 mm strip width, and 4 turns.

hx = helix('Radius',28e-3,'Width',1.2e-3,'Turns',4)
hx =
  helix with properties:

               Radius: 0.0280
                Width: 0.0012
                Turns: 4
              Spacing: 0.0350
     WindingDirection: 'CCW'
       FeedStubHeight: 1.0000e-03
    GroundPlaneRadius: 0.0750
            Substrate: [1x1 dielectric]
            Conductor: [1x1 metal]
                 Tilt: 0
             TiltAxis: [1 0 0]
                 Load: [1x1 lumpedElement]

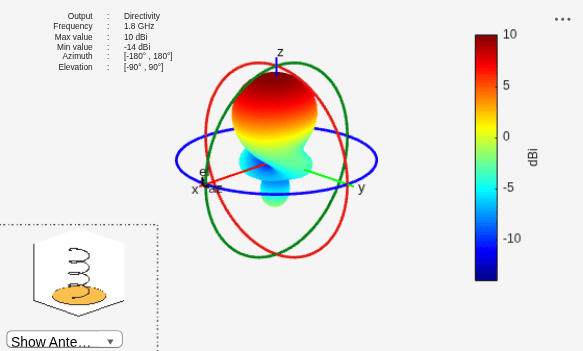

Plot the radiation pattern of a helix antenna.

hx = helix(Radius=28e-3,Width=1.2e-3,Turns=4);

Calculate the spacing of a helix that has a pitch of 12 degrees and a radius that varies from 20 mm to 22 mm in steps of 0.5 mm.

s = helixpitch2spacing(12,20e-3:0.5e-3:22e-3)
s = 1×5

    0.0267    0.0274    0.0280    0.0287    0.0294

Plot the radiation pattern of a helix antenna with transparency specified as 0.5.

p = PatternPlotOptions
p =
  PatternPlotOptions with properties:

      Transparency: 1
         SizeRatio: 0.9000
    MagnitudeScale: []
     AntennaOffset: [0 0 0]

p.Transparency = 0.5;
ant = helix;

To understand the effect of Transparency, chose Overlay Antenna in the radiation pattern plot.

This option overlays the helix antenna on the radiation pattern.

Create a custom helix antenna with a Teflon dielectric substrate.

d = dielectric('Teflon');
hx = helix('Width',0.815e-3,'Turns',6,'Radius',9.3e-3,'Spacing',12.4e-3,'Substrate',d)
hx =
  helix with properties:

               Radius: 0.0093
                Width: 8.1500e-04
                Turns: 6
              Spacing: 0.0124
     WindingDirection: 'CCW'
       FeedStubHeight: 1.0000e-03
    GroundPlaneRadius: 0.0750
            Substrate: [1x1 dielectric]
            Conductor: [1x1 metal]
                 Tilt: 0
             TiltAxis: [1 0 0]
                 Load: [1x1 lumpedElement]

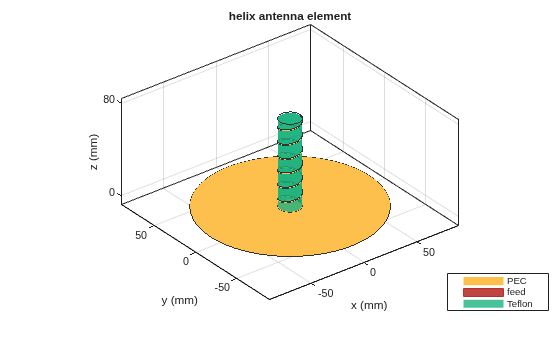

View the helix antenna.
