Change Stereotype Order Using Manage Profiles Tool
This example shows how to change the stereotype order for stereotypes applied to a component after importing the RGBColors
profile.
Open the model.
model = systemcomposer.openModel("OrderingStereotypes");
The Door
component has the Green
, Red
, and Blue

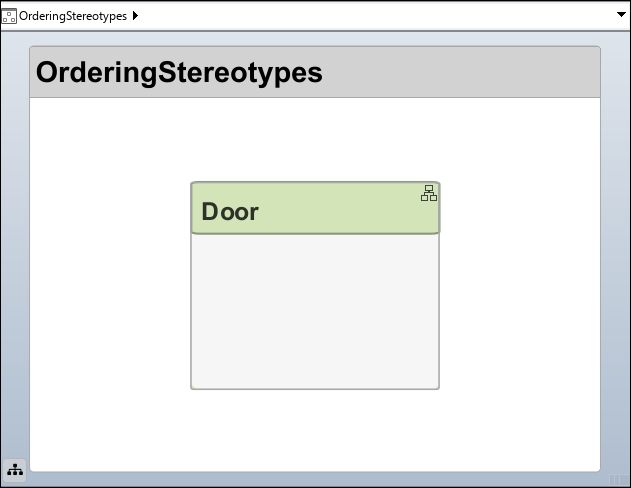

stereotypes applied. Since the Green
stereotype is first in priority, the color of the component is green.
To open the Manage Profiles tool, navigate to Modeling > Profile Editor > Manage.
Select the OrderingStereotypes.slx
model, then click Manage Stereotype Order to rearrange the priority of the stereotypes in imported profiles.

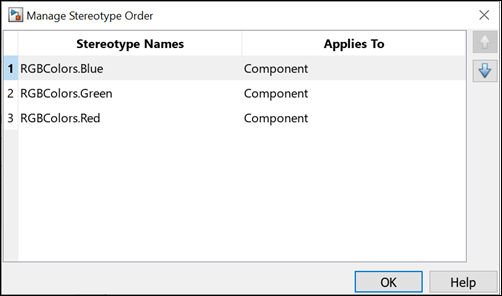

Select RBGColors.Blue
, then click the up arrow until RBGColors.Blue
is the top priority. Accept changes by clicking OK.

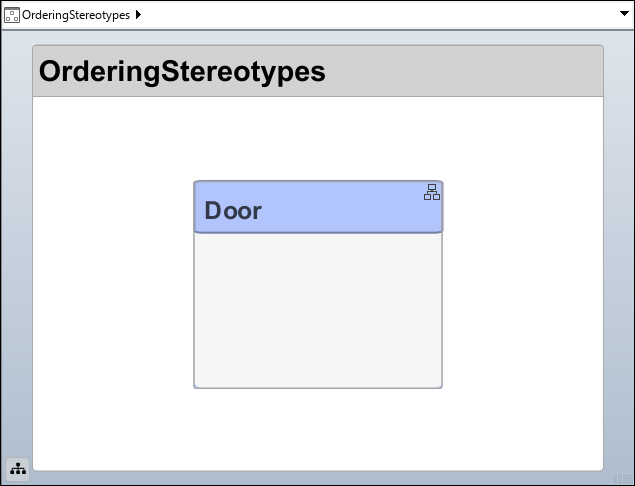

Navigate back to the model canvas. The Door
component is now colored blue.
