Change Stereotypes Based on Stereotype Hierarchy in Portable Blender Architecture
This example shows how to change stereotypes to higher levels of the stereotype hierarchy in a portable blender architecture in System Composer™. Stereotypes that are in a hierarchy inherit properties from base stereotypes. Start by applying a generalized stereotype, then change to a deeper stereotype in the hierarchy to further specify the component.
Open Architecture Model and Import Profile into Model
Open the simpleBlender
model or enter this code in the Command Window.
archModel = systemcomposer.openModel("simpleBlender");

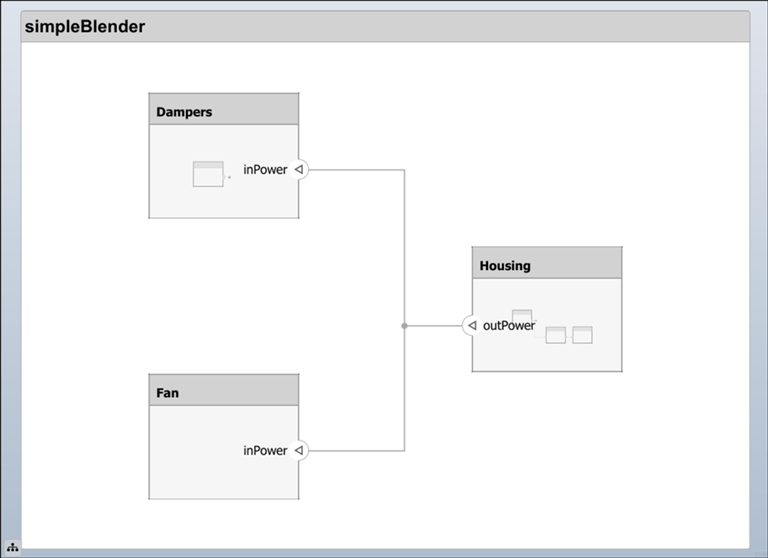

This model shows the hardware architecture of a simple portable blender with top-level components that represent physical components to manufacture the blender. Ports represent power sockets that send and receive power to and from these components.
Import the blenderProfile
profile into the model. In the System Composer toolstrip, on the Modeling tab, select Profile Editor > Import, or enter this code in the Command Window.
archModel.applyProfile("blenderProfile");
To view the contents of your imported profile, click Profile Editor to open the Profile Editor, or enter this code in the Command Window.
systemcomposer.profile.editor

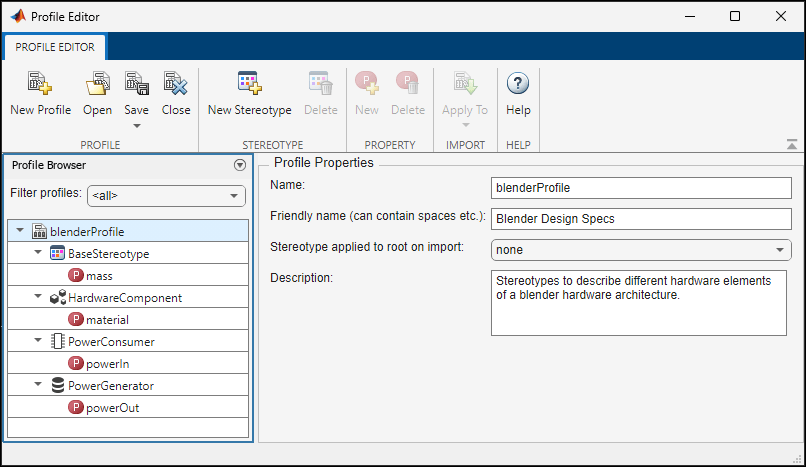

In the Profile Editor, you can inspect the structure of the blenderProfile
profile. The BaseStereotype
stereotype is the top-level stereotype. One level down is the HardwareComponent
stereotype that uses BaseStereotype
as the base stereotype from which it inherits properties. The PowerConsumer
and PowerGenerator
stereotypes inherit properties from the HardwareComponent
stereotype and are two levels down from the BaseStereotype
stereotype.
Apply Stereotypes to All Components

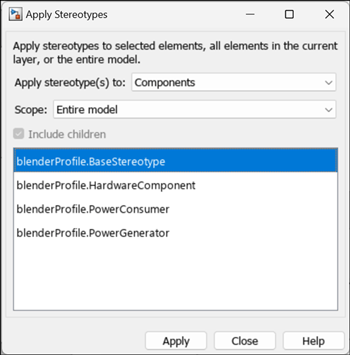

To open the Apply Stereotypes dialog box, in the System Composer toolstrip, on the Modeling tab, select Apply Stereotypes. Set Apply stereotype(s) to as Components
. Set Scope as Entire model
. Select the blenderProfile.BaseStereotype
stereotype.
To apply the BaseStereotype
stereotype with a default value of 3 kg
for the mass property to all components, click Apply.

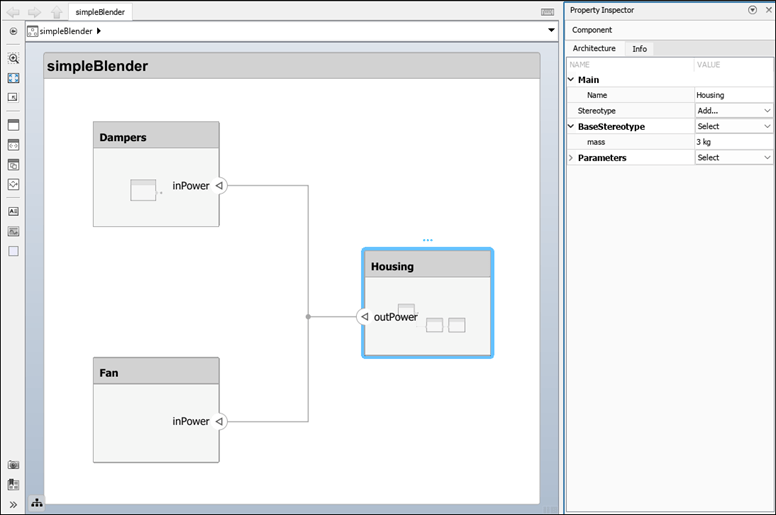

BaseStereotype
now applies to the Housing
component.
Change Stereotypes for Multiple Components in Model
Select the Housing
component on the canvas. In the Property Inspector, click Select next to BaseStereotype
for the Housing
component and select ↓ blenderProfile.HardwareComponent

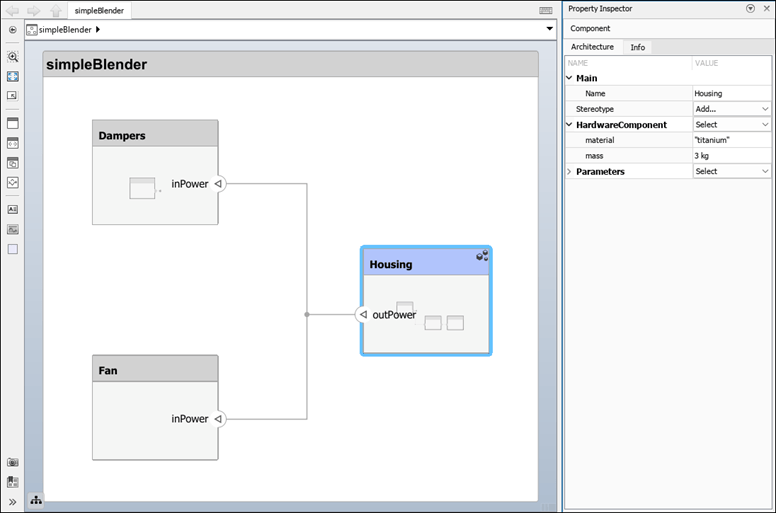

. The Housing
component is now specified one-level deeper in the BaseStereotype
stereotype hierarchy to the HardwareComponent
stereotype.
Further defining the Housing
component as a hardware component adds the additional property, material, which has a default value "titanium"
.
Double-click the Housing
component to view the architecture within it. Select the Battery
, Output Shaft
, and Blade Assembly
components by clicking each of them while pressing Shift. Then, right-click the Battery
component, select Change Stereotype, and select the ↓ blenderProfile.HardwareComponent

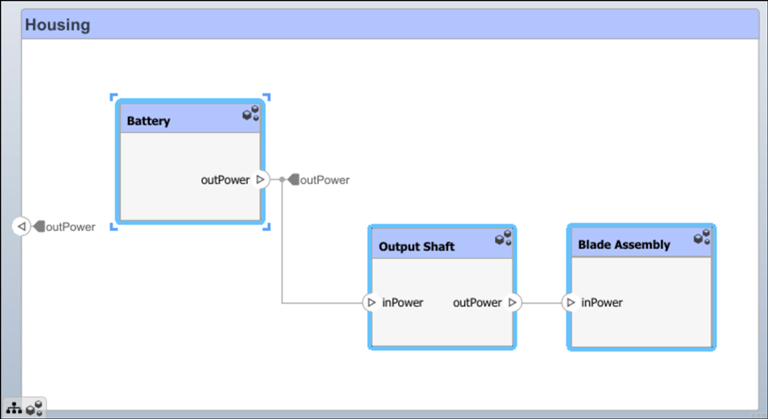

stereotype from the list. The HardwareComponent
stereotype is now applied to these three components.
Deselect all components by clicking once in the model canvas. Right-click the Battery
component and select Change Stereotype, and then select the ↓ blenderProfile.PowerGenerator
stereotype. Repeat for the Output Shaft
and Blade Assembly
components, but select the ↓ blenderProfile.PowerConsumer
stereotype instead.
In the Property Inspector, you can now specify the powerIn
and powerOut
properties for the Battery
, Output Shaft
, and Blade Assembly
components as necessary.
