templateECOC

R2026b

Error-correcting output codes learner template

Syntax

t = templateECOC

t = templateECOC(Name=Value)

Description

t = templateECOC returns an error-correcting output codes (ECOC) classification learner template.

t = templateECOC(Name=Value) returns a template with additional options specified by one or more name-value arguments. For example, you can specify a coding design, whether to fit posterior probabilities, or the types of binary learners.

The display of t in the Command Window shows all configurable options as empty ([]), except those that you specify using name-value arguments. During training, the software uses the default values for empty options.

Examples

Create Default ECOC Classification Learner Template

Use templateECOC to create a default ECOC template.

t = templateECOC

t =
Fit template with properties:

          Method: 'ECOC'
            Type: 'classification'

   Configurable Options:

        Learners: ''
          Coding: ''
    FitPosterior: []
         Verbose: []

All configurable options of the template object are empty. When you pass t to testckfold, the software fills in the empty options with their respective default values. For example, the software uses a Learners value of "svm". For details on other default values, see fitcecoc.

t is a plan for an ECOC learner. When you create it, no computation occurs. You can pass t to testckfold to specify a plan for an ECOC classification model to statistically compare with another model.

Statistically Compare Performance of Two ECOC Classification Models

One way to select predictors or features is to train two models where one that uses a subset of the predictors that trained the other. Statistically compare the predictive performances of the models. If there is sufficient evidence that model trained on fewer predictors performs better than the model trained using more of the predictors, then you can proceed with a more efficient model.

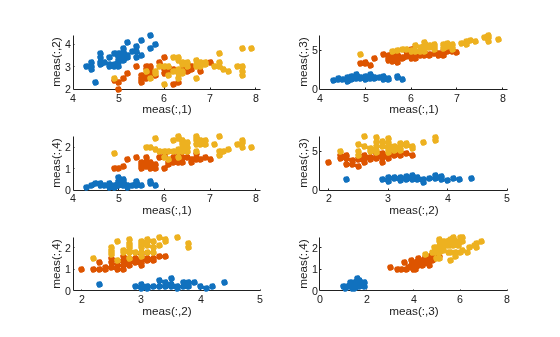

Load Fisher's iris data set. Plot all 2-dimensional combinations of predictors.

load fisheriris
d = size(meas,2); % Number of predictors
pairs = nchoosek(1:d,2)

pairs = 6×2

     1     2
     1     3
     1     4
     2     3
     2     4
     3     4

for j = 1:size(pairs,1)
    subplot(3,2,j)
    gscatter(meas(:,pairs(j,1)),meas(:,pairs(j,2)),species)
    xlabel(sprintf("meas(:,%d)",pairs(j,1)))
    ylabel(sprintf("meas(:,%d)",pairs(j,2)))
    legend off
end

Based on the scatterplot, meas(:,3) and meas(:,4) seem like they separate the groups well.

Create an ECOC template. Specify to use a one-versus-all coding design.

t = templateECOC(Coding="onevsall");

By default, the ECOC model uses linear SVM binary learners. You can choose other supported algorithms by specifying them using the Learners name-value argument.

Test whether an ECOC model that is just trained using predictors 3 and 4 performs at most as well as an ECOC model that is trained using all predictors. Rejecting this null hypothesis means that the ECOC model trained using predictors 3 and 4 performs better than the ECOC model trained using all predictors. Suppose $$C_1$$ represents the classification error of the ECOC model trained using predictors 3 and 4 and $$C_2$$ represents the classification error of the ECOC model trained using all predictors, then the test is:

$$\begin{array}{l}{H}_0:C_1\ge C_2\\ H_1:C_1<C_2\end{array}$$

By default, testckfold conducts a 5-by-2 k-fold F test, which is not appropriate as a one-tailed test. Specify to conduct a 5-by-2 k-fold t test.

rng(1); % For reproducibility
[h,pValue] = testckfold(t,t,meas(:,pairs(6,:)),meas,species, ...
    Alternative="greater",Test="5x2t")

h = logical
   0

pValue =
0.8940

The h = 0 indicates that there is not enough evidence to suggest that the model trained using predictors 3 and 4 is more accurate than the model trained using all predictors.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: templateECOC(Coding="ternarycomplete",FitPosterior=true,Learners="tree") specifies a ternary complete coding design, to transform scores to posterior probabilities, and to grow classification trees for all binary learners.

Coding — Coding design

"onevsone" (default) | "allpairs" | "binarycomplete" | "denserandom" | "onevsall" | "ordinal" | "sparserandom" | "ternarycomplete" | numeric matrix

Coding design name, specified as a numeric matrix or a value in this table.

Value	Number of Binary Learners	Description
"allpairs" and "onevsone"	K(K – 1)/2	For each binary learner, one class is positive, another is negative, and the software ignores the rest. This design exhausts all combinations of class pair assignments.
"binarycomplete"	$$2^{(K-1)}-1$$	This design partitions the classes into all binary combinations, and does not ignore any classes. For each binary learner, all class assignments are –1 and 1 with at least one positive class and one negative class in the assignment.
"denserandom"	Random, but approximately 10 log2K	For each binary learner, the software randomly assigns classes into positive or negative classes, with at least one of each type. For more details, see Random Coding Design Matrices.
"onevsall"	K	For each binary learner, one class is positive and the rest are negative. This design exhausts all combinations of positive class assignments.
"ordinal"	K – 1	For the first binary learner, the first class is negative and the rest are positive. For the second binary learner, the first two classes are negative and the rest are positive, and so on.
"sparserandom"	Random, but approximately 15 log2K	For each binary learner, the software randomly assigns classes as positive or negative with probability 0.25 for each, and ignores classes with probability 0.5. For more details, see Random Coding Design Matrices.
"ternarycomplete"	$$\left(3^K-2^{(K+1)}+1\right)/2$$	This design partitions the classes into all ternary combinations. All class assignments are 0, –1, and 1 with at least one positive class and one negative class in each assignment.

You can also specify a coding design using a custom coding matrix, which is a K-by-L matrix. Each row corresponds to a class and each column corresponds to a binary learner. The class order (rows) corresponds to the order in ClassNames. Create the matrix by following these guidelines:

• Every element of the custom coding matrix must be –1, 0, or 1, and the value must correspond to a dichotomous class assignment. Consider Coding(i,j), the class that learner j assigns to observations in class i.

  Value	Dichotomous Class Assignment
  –1	Learner j assigns observations in class i to a negative class.
  0	Before training, learner j removes observations in class i from the data set.
  1	Learner j assigns observations in class i to a positive class.

• Every column must contain at least one –1 and one 1.

• For all column indices i,j where i ≠ j, Coding(:,i) cannot equal Coding(:,j), and Coding(:,i) cannot equal –Coding(:,j).

• All rows of the custom coding matrix must be different.

For more details on the form of custom coding design matrices, see Custom Coding Design Matrices.

Example: Coding="ternarycomplete"

Data Types: char | string | double | single | int16 | int32 | int64 | int8

FitPosterior — Flag indicating whether to transform scores to posterior probabilities

false or 0 (default) | true or 1

Flag indicating whether to transform scores to posterior probabilities, specified as true (1) or false (0).

If FitPosterior is true, then the software transforms binary-learner classification scores to posterior probabilities. You can obtain posterior probabilities by using kfoldPredict, predict, or resubPredict.

fitcecoc does not support fitting posterior probabilities if:

• The ensemble method is AdaBoostM2, LPBoost, RUSBoost, RobustBoost, or TotalBoost.

• The binary learners (Learners) are linear or kernel classification models that implement SVM. To obtain posterior probabilities for linear or kernel classification models, implement logistic regression instead.

Example: FitPosterior=true

Data Types: logical

Learners — Binary learner templates

"svm" (default) | "discriminant" | "ensemble" | "kernel" | "knn" | "linear" | "naivebayes" | "tree" | template object | cell vector of template objects

Binary learner templates, specified as a character vector, string scalar, template object, or cell vector of template objects. Specifically, you can specify binary classifiers such as SVM, and the ensembles that use GentleBoost, LogitBoost, and RobustBoost, to solve multiclass problems. However, fitcecoc also supports multiclass models as binary classifiers.

• If Learners is a character vector or string scalar, then the software trains each binary learner using the default values of the specified algorithm. This table summarizes the available algorithms.

  Value	Description
  "discriminant"	Discriminant analysis. For default options, see templateDiscriminant.
  "ensemble" (since R2024a)	Ensemble learning model. By default, the ensemble uses an adaptive logistic regression ("LogitBoost") aggregation method, 100 learning cycles, and tree weak learners. For other default options, see templateEnsemble.
  "kernel"	Kernel classification model. For default options, see templateKernel.
  "knn"	k-nearest neighbors. For default options, see templateKNN.
  "linear"	Linear classification model. For default options, see templateLinear.
  "naivebayes"	Naive Bayes. For default options, see templateNaiveBayes.
  "svm"	SVM. For default options, see templateSVM.
  "tree"	Classification trees. For default options, see templateTree.

• If Learners is a template object, then each binary learner trains according to the stored options. You can create a template object using:

  • templateDiscriminant, for discriminant analysis.

  • templateEnsemble, for ensemble learning. You must at least specify the learning method (Method), the number of learners (NLearn), and the type of learner (Learners). You cannot use the "AdaBoostM2" ensemble method for binary learning. If you want to perform hyperparameter optimization using the OptimizeHyperparameters name-value argument, the ensemble method must be "AdaBoostM1", "GentleBoost", or "LogitBoost", and the ensemble weak learners must be trees.

  • templateKernel, for kernel classification.

  • templateKNN, for k-nearest neighbors.

  • templateLinear, for linear classification.

  • templateNaiveBayes, for naive Bayes.

  • templateSVM, for SVM.

  • templateTree, for classification trees.

• If Learners is a cell vector of template objects, then:

  • Cell j corresponds to binary learner j (in other words, column j of the coding design matrix), and the cell vector must have length L. L is the number of columns in the coding design matrix. For details, see Coding.

  • To use one of the built-in loss functions for prediction, then all binary learners must return a score in the same range. For example, you cannot include default SVM binary learners with default naive Bayes binary learners. The former returns a score in the range (-∞,∞), and the latter returns a posterior probability as a score. Otherwise, you must provide a custom loss as a function handle to functions such as predict and loss.

  • You cannot specify linear classification model learner templates with any other template.

  • Similarly, you cannot specify kernel classification model learner templates with any other template.

By default, the software trains learners using default SVM templates.

Example: Learners="tree"

Verbose — Verbosity level

0 (default) | 1 | 2

Since R2026b

Verbosity level, specified as 0, 1, or 2. Verbose controls the amount of diagnostic information per binary learner that the software displays in the Command Window.

This table describes the verbosity level values.

Value	Description
0	The software does not display diagnostic information.
1	The software displays diagnostic messages every time it trains a new binary learner.
2	The software displays extra diagnostic messages every time it trains a new binary learner.

Example: Verbose=1

Data Types: double | single

Output Arguments

t — ECOC classification template

template object

ECOC classification template, returned as a template object. Pass t to testckfold to specify how to create an ECOC classifier whose predictive performance you want to compare with another classifier.

If you display t in the Command Window, then all unspecified configurable options appear empty ([]). However, the software replaces empty options with their corresponding default values during training.

Algorithms

Custom Coding Design Matrices

Custom coding matrices must have a certain form. The software validates a custom coding matrix by ensuring:

• Every element is –1, 0, or 1.

• Every column contains as least one –1 and one 1.

• For all distinct column vectors u and v, u ≠ v and u ≠ –v.

• All row vectors are unique.

• The matrix can separate any two classes. That is, you can move from any row to any other row following these rules:

  • Move vertically from 1 to –1 or –1 to 1.

  • Move horizontally from a nonzero element to another nonzero element.

  • Use a column of the matrix for a vertical move only once.

  If it is not possible to move from row i to row j using these rules, then classes i and j cannot be separated by the design. For example, in the coding design

  $$\left[\begin{array}{cc}1& 0\\ -1& 0\\ 0& 1\\ 0& -1\end{array}\right]$$

  classes 1 and 2 cannot be separated from classes 3 and 4 (that is, you cannot move horizontally from –1 in row 2 to column 2 because that position contains a 0). Therefore, the software rejects this coding design.

Random Coding Design Matrices

For a given number of classes K, the software generates random coding design matrices as follows.

1. The software generates one of these matrices:

   1. Dense random — The software assigns 1 or –1 with equal probability to each element of the K-by-L_d coding design matrix, where $$L_d\approx \lceil 10{\log }_{2}K\rceil$$.

   2. Sparse random — The software assigns 1 to each element of the K-by-L_s coding design matrix with probability 0.25, –1 with probability 0.25, and 0 with probability 0.5, where $$L_s\approx \lceil 15{\log }_{2}K\rceil$$.

2. If a column does not contain at least one 1 and one –1, then the software removes that column.

3. For distinct columns u and v, if u = v or u = –v, then the software removes v from the coding design matrix.

The software randomly generates 10,000 matrices by default, and retains the matrix with the largest, minimal, pairwise row distance based on the Hamming measure ([2]) given by

$$\Delta (k_1,k_2)=0.5{\displaystyle \sum }_{l=1}^L\left|m_{k_{1}l}\right|\left|m_{k_{2}l}\right|\left|m_{k_{1}l}-m_{k_{2}l}\right|,$$

where m_kjl is an element of coding design matrix j.

References

[1] Fürnkranz, Johannes. “Round Robin Classification.” J. Mach. Learn. Res., Vol. 2, 2002, pp. 721–747.

[2] Escalera, S., O. Pujol, and P. Radeva. “Separability of ternary codes for sparse designs of error-correcting output codes.” Pattern Recog. Lett. Vol. 30, Issue 3, 2009, pp. 285–297.

Version History

Introduced in R2015a

R2026b: Template display has a new format

templateECOC returns a template object with a new display in the Command Window. The display always includes the Method and Type properties, as well as the configurable options that you specify using name-value arguments in the call to templateECOC.
