# fitensemble

Fit ensemble of learners for classification and regression

## Syntax

``Mdl = fitensemble(Tbl,ResponseVarName,Method,NLearn,Learners)``
``Mdl = fitensemble(Tbl,formula,Method,NLearn,Learners)``
``Mdl = fitensemble(Tbl,Y,Method,NLearn,Learners)``
``Mdl = fitensemble(X,Y,Method,NLearn,Learners)``
``Mdl = fitensemble(___,Name,Value)``

## Description

`fitensemble` can boost or bag decision tree learners or discriminant analysis classifiers. The function can also train random subspace ensembles of KNN or discriminant analysis classifiers.

For simpler interfaces that fit classification and regression ensembles, instead use `fitcensemble` and `fitrensemble`, respectively. Also, `fitcensemble` and `fitrensemble` provide options for Bayesian optimization.

example

````Mdl = fitensemble(Tbl,ResponseVarName,Method,NLearn,Learners)` returns a trained ensemble model object that contains the results of fitting an ensemble of `NLearn` classification or regression learners (`Learners`) to all variables in the table `Tbl`. `ResponseVarName` is the name of the response variable in `Tbl`. `Method` is the ensemble-aggregation method.```

example

````Mdl = fitensemble(Tbl,formula,Method,NLearn,Learners)` fits the model specified by `formula`.```

example

````Mdl = fitensemble(Tbl,Y,Method,NLearn,Learners)` treats all variables in `Tbl` as predictor variables. `Y` is the response variable that is not in `Tbl`.```

example

````Mdl = fitensemble(X,Y,Method,NLearn,Learners)` trains an ensemble using the predictor data in `X` and response data in `Y`.```

example

````Mdl = fitensemble(___,Name,Value)` trains an ensemble using additional options specified by one or more `Name,Value` pair arguments and any of the previous syntaxes. For example, you can specify the class order, to implement 10–fold cross-validation, or the learning rate.```

## Examples

collapse all

Estimate the resubstitution loss of a trained, boosting classification ensemble of decision trees.

Load the `ionosphere` data set.

`load ionosphere;`

Train a decision tree ensemble using AdaBoost, 100 learning cycles, and the entire data set.

`ClassTreeEns = fitensemble(X,Y,'AdaBoostM1',100,'Tree');`

`ClassTreeEns` is a trained `ClassificationEnsemble` ensemble classifier.

Determine the cumulative resubstitution losses (i.e., the cumulative misclassification error of the labels in the training data).

`rsLoss = resubLoss(ClassTreeEns,'Mode','Cumulative');`

`rsLoss` is a 100-by-1 vector, where element k contains the resubstitution loss after the first k learning cycles.

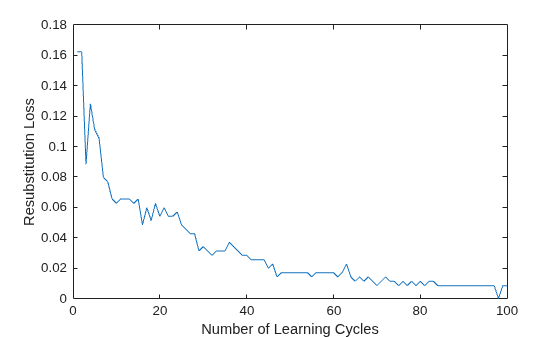

Plot the cumulative resubstitution loss over the number of learning cycles.

```plot(rsLoss); xlabel('Number of Learning Cycles'); ylabel('Resubstitution Loss');```

In general, as the number of decision trees in the trained classification ensemble increases, the resubstitution loss decreases.

A decrease in resubstitution loss might indicate that the software trained the ensemble sensibly. However, you cannot infer the predictive power of the ensemble by this decrease. To measure the predictive power of an ensemble, estimate the generalization error by:

1. Randomly partitioning the data into training and cross-validation sets. Do this by specifying `'holdout',holdoutProportion` when you train the ensemble using `fitensemble`.

2. Passing the trained ensemble to `kfoldLoss`, which estimates the generalization error.

Use a trained, boosted regression tree ensemble to predict the fuel economy of a car. Choose the number of cylinders, volume displaced by the cylinders, horsepower, and weight as predictors. Then, train an ensemble using fewer predictors and compare its in-sample predictive accuracy against the first ensemble.

Load the `carsmall` data set. Store the training data in a table.

```load carsmall Tbl = table(Cylinders,Displacement,Horsepower,Weight,MPG);```

Specify a regression tree template that uses surrogate splits to improve predictive accuracy in the presence of `NaN` values.

`t = templateTree('Surrogate','On');`

Train the regression tree ensemble using LSBoost and 100 learning cycles.

`Mdl1 = fitensemble(Tbl,'MPG','LSBoost',100,t);`

`Mdl1` is a trained `RegressionEnsemble` regression ensemble. Because `MPG` is a variable in the MATLAB® Workspace, you can obtain the same result by entering

`Mdl1 = fitensemble(Tbl,MPG,'LSBoost',100,t);`

Use the trained regression ensemble to predict the fuel economy for a four-cylinder car with a 200-cubic inch displacement, 150 horsepower, and weighing 3000 lbs.

`predMPG = predict(Mdl1,[4 200 150 3000])`
```predMPG = 22.8462 ```

The average fuel economy of a car with these specifications is 21.78 mpg.

Train a new ensemble using all predictors in `Tbl` except `Displacement`.

```formula = 'MPG ~ Cylinders + Horsepower + Weight'; Mdl2 = fitensemble(Tbl,formula,'LSBoost',100,t);```

Compare the resubstitution MSEs between `Mdl1` and `Mdl2`.

`mse1 = resubLoss(Mdl1)`
```mse1 = 6.4721 ```
`mse2 = resubLoss(Mdl2)`
```mse2 = 7.8599 ```

The in-sample MSE for the ensemble that trains on all predictors is lower.

Estimate the generalization error of a trained, boosting classification ensemble of decision trees.

Load the `ionosphere` data set.

`load ionosphere;`

Train a decision tree ensemble using AdaBoostM1, 100 learning cycles, and half of the data chosen randomly. The software validates the algorithm using the remaining half.

```rng(2); % For reproducibility ClassTreeEns = fitensemble(X,Y,'AdaBoostM1',100,'Tree',... 'Holdout',0.5);```

`ClassTreeEns` is a trained `ClassificationEnsemble` ensemble classifier.

Determine the cumulative generalization error, i.e., the cumulative misclassification error of the labels in the validation data).

`genError = kfoldLoss(ClassTreeEns,'Mode','Cumulative');`

`genError` is a 100-by-1 vector, where element k contains the generalization error after the first k learning cycles.

Plot the generalization error over the number of learning cycles.

```plot(genError); xlabel('Number of Learning Cycles'); ylabel('Generalization Error');```

The cumulative generalization error decreases to approximately 7% when 25 weak learners compose the ensemble classifier.

You can control the depth of the trees in an ensemble of decision trees. You can also control the tree depth in an ECOC model containing decision tree binary learners using the `MaxNumSplits`, `MinLeafSize`, or `MinParentSize` name-value pair parameters.

• When bagging decision trees, `fitensemble` grows deep decision trees by default. You can grow shallower trees to reduce model complexity or computation time.

• When boosting decision trees, `fitensemble` grows stumps (a tree with one split) by default. You can grow deeper trees for better accuracy.

Load the `carsmall` data set. Specify the variables `Acceleration`, `Displacement`, `Horsepower`, and `Weight` as predictors, and `MPG` as the response.

```load carsmall X = [Acceleration Displacement Horsepower Weight]; Y = MPG;```

The default values of the tree depth controllers for boosting regression trees are:

• `1` for `MaxNumSplits`. This option grows stumps.

• `5` for `MinLeafSize`

• `10` for `MinParentSize`

To search for the optimal number of splits:

1. Train a set of ensembles. Exponentially increase the maximum number of splits for subsequent ensembles from stump to at most n - 1 splits, where n is the training sample size. Also, decrease the learning rate for each ensemble from 1 to 0.1.

2. Cross validate the ensembles.

3. Estimate the cross-validated mean-squared error (MSE) for each ensemble.

4. Compare the cross-validated MSEs. The ensemble with the lowest one performs the best, and indicates the optimal maximum number of splits, number of trees, and learning rate for the data set.

Grow and cross validate a deep regression tree and a stump. Specify to use surrogate splits because the data contains missing values. These serve as benchmarks.

```MdlDeep = fitrtree(X,Y,'CrossVal','on','MergeLeaves','off',... 'MinParentSize',1,'Surrogate','on'); MdlStump = fitrtree(X,Y,'MaxNumSplits',1,'CrossVal','on','Surrogate','on');```

Train the boosting ensembles using 150 regression trees. Cross validate the ensemble using 5-fold cross validation. Vary the maximum number of splits using the values in the sequence $\left\{{2}^{0},{2}^{1},...,{2}^{m}\right\}$, where m is such that ${2}^{m}$ is no greater than n - 1, where n is the training sample size. For each variant, adjust the learning rate to each value in the set {0.1, 0.25, 0.5, 1};

```n = size(X,1); m = floor(log2(n - 1)); lr = [0.1 0.25 0.5 1]; maxNumSplits = 2.^(0:m); numTrees = 150; Mdl = cell(numel(maxNumSplits),numel(lr)); rng(1); % For reproducibility for k = 1:numel(lr); for j = 1:numel(maxNumSplits); t = templateTree('MaxNumSplits',maxNumSplits(j),'Surrogate','on'); Mdl{j,k} = fitensemble(X,Y,'LSBoost',numTrees,t,... 'Type','regression','KFold',5,'LearnRate',lr(k)); end; end;```

Compute the cross-validated MSE for each ensemble.

```kflAll = @(x)kfoldLoss(x,'Mode','cumulative'); errorCell = cellfun(kflAll,Mdl,'Uniform',false); error = reshape(cell2mat(errorCell),[numTrees numel(maxNumSplits) numel(lr)]); errorDeep = kfoldLoss(MdlDeep); errorStump = kfoldLoss(MdlStump);```

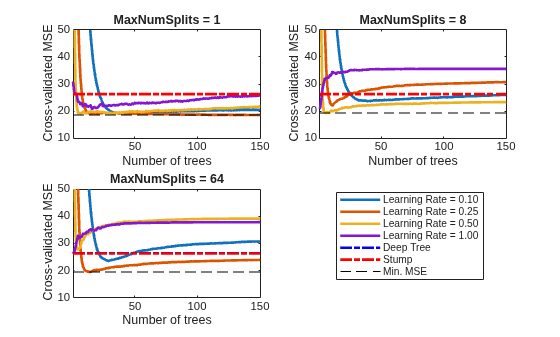

Plot how the cross-validated MSE behaves as the number of trees in the ensemble increases for a few of the ensembles, the deep tree, and the stump. Plot the curves with respect to learning rate in the same plot, and plot separate plots for varying tree complexities. Choose a subset of tree complexity levels.

```mnsPlot = [1 round(numel(maxNumSplits)/2) numel(maxNumSplits)]; figure; for k = 1:3; subplot(2,2,k); plot(squeeze(error(:,mnsPlot(k),:)),'LineWidth',2); axis tight; hold on; h = gca; plot(h.XLim,[errorDeep errorDeep],'-.b','LineWidth',2); plot(h.XLim,[errorStump errorStump],'-.r','LineWidth',2); plot(h.XLim,min(min(error(:,mnsPlot(k),:))).*[1 1],'--k'); h.YLim = [10 50]; xlabel 'Number of trees'; ylabel 'Cross-validated MSE'; title(sprintf('MaxNumSplits = %0.3g', maxNumSplits(mnsPlot(k)))); hold off; end; hL = legend([cellstr(num2str(lr','Learning Rate = %0.2f'));... 'Deep Tree';'Stump';'Min. MSE']); hL.Position(1) = 0.6;```

Each curve contains a minimum cross-validated MSE occurring at the optimal number of trees in the ensemble.

Identify the maximum number of splits, number of trees, and learning rate that yields the lowest MSE overall.

```[minErr,minErrIdxLin] = min(error(:)); [idxNumTrees,idxMNS,idxLR] = ind2sub(size(error),minErrIdxLin); fprintf('\nMin. MSE = %0.5f',minErr)```
```Min. MSE = 18.50574 ```
`fprintf('\nOptimal Parameter Values:\nNum. Trees = %d',idxNumTrees);`
```Optimal Parameter Values: Num. Trees = 12 ```
```fprintf('\nMaxNumSplits = %d\nLearning Rate = %0.2f\n',... maxNumSplits(idxMNS),lr(idxLR))```
```MaxNumSplits = 4 Learning Rate = 0.25 ```

For a different approach to optimizing this ensemble, see Optimize a Boosted Regression Ensemble.

## Input Arguments

collapse all

Sample data used to train the model, specified as a table. Each row of `Tbl` corresponds to one observation, and each column corresponds to one predictor variable. `Tbl` can contain one additional column for the response variable. Multi-column variables and cell arrays other than cell arrays of character vectors are not allowed.

• If `Tbl` contains the response variable and you want to use all remaining variables as predictors, then specify the response variable using `ResponseVarName`.

• If `Tbl` contains the response variable, and you want to use a subset of the remaining variables only as predictors, then specify a formula using `formula`.

• If `Tbl` does not contain the response variable, then specify the response data using `Y`. The length of response variable and the number of rows of `Tbl` must be equal.

### Note

To save memory and execution time, supply `X` and `Y` instead of `Tbl`.

Data Types: `table`

Response variable name, specified as the name of the response variable in `Tbl`.

You must specify `ResponseVarName` as a character vector or string scalar. For example, if `Tbl.Y` is the response variable, then specify `ResponseVarName` as `'Y'`. Otherwise, `fitensemble` treats all columns of `Tbl` as predictor variables.

The response variable must be a categorical, character, or string array, logical or numeric vector, or cell array of character vectors. If the response variable is a character array, then each element must correspond to one row of the array.

For classification, you can specify the order of the classes using the `ClassNames` name-value pair argument. Otherwise, `fitensemble` determines the class order, and stores it in the `Mdl.ClassNames`.

Data Types: `char` | `string`

Explanatory model of the response variable and a subset of the predictor variables, specified as a character vector or string scalar in the form `'Y~X1+X2+X3'`. In this form, `Y` represents the response variable, and `X1`, `X2`, and `X3` represent the predictor variables.

To specify a subset of variables in `Tbl` as predictors for training the model, use a formula. If you specify a formula, then the software does not use any variables in `Tbl` that do not appear in `formula`.

The variable names in the formula must be both variable names in `Tbl` (`Tbl.Properties.VariableNames`) and valid MATLAB® identifiers.

You can verify the variable names in `Tbl` by using the `isvarname` function. The following code returns logical `1` (`true`) for each variable that has a valid variable name.

`cellfun(@isvarname,Tbl.Properties.VariableNames)`
If the variable names in `Tbl` are not valid, then convert them by using the `matlab.lang.makeValidName` function.
`Tbl.Properties.VariableNames = matlab.lang.makeValidName(Tbl.Properties.VariableNames);`

Data Types: `char` | `string`

Predictor data, specified as numeric matrix.

Each row corresponds to one observation, and each column corresponds to one predictor variable.

The length of `Y` and the number of rows of `X` must be equal.

To specify the names of the predictors in the order of their appearance in `X`, use the `PredictorNames` name-value pair argument.

Data Types: `single` | `double`

Response data, specified as a categorical, character, or string array, a logical or numeric vector, or a cell array of character vectors. Each entry in `Y` is the response to or label for the observation in the corresponding row of `X` or `Tbl`. The length of `Y` and the number of rows of `X` or `Tbl` must be equal. If the response variable is a character array, then each element must correspond to one row of the array.

• For classification, `Y` can be any of the supported data types. You can specify the order of the classes using the `ClassNames` name-value pair argument. Otherwise, `fitensemble` determines the class order, and stores it in the `Mdl.ClassNames`.

• For regression, `Y` must be a numeric column vector.

Data Types: `categorical` | `char` | `string` | `logical` | `single` | `double` | `cell`

Ensemble aggregation method, specified as one of the method names in this list.

• For classification with two classes:

• `'AdaBoostM1'`

• `'LogitBoost'`

• `'GentleBoost'`

• `'RobustBoost'` (requires Optimization Toolbox™)

• `'LPBoost'` (requires Optimization Toolbox)

• `'TotalBoost'` (requires Optimization Toolbox)

• `'RUSBoost'`

• `'Subspace'`

• `'Bag'`

• For classification with three or more classes:

• `'AdaBoostM2'`

• `'LPBoost'` (requires Optimization Toolbox)

• `'TotalBoost'` (requires Optimization Toolbox)

• `'RUSBoost'`

• `'Subspace'`

• `'Bag'`

• For regression:

• `'LSBoost'`

• `'Bag'`

If you specify `'Method','Bag'`, then specify the problem type using the `Type` name-value pair argument, because you can specify `'Bag'` for classification and regression problems.

For details about ensemble aggregation algorithms and examples, see Ensemble Algorithms and Choose an Applicable Ensemble Aggregation Method.

Number of ensemble learning cycles, specified as a positive integer or `'AllPredictorCombinations'`.

• If you specify a positive integer, then, at every learning cycle, the software trains one weak learner for every template object in `Learners`. Consequently, the software trains `NLearn*numel(Learners)` learners.

• If you specify `'AllPredictorCombinations'`, then set `Method` to `'Subspace'` and specify one learner only in `Learners`. With these settings, the software trains learners for all possible combinations of predictors taken `NPredToSample` at a time. Consequently, the software trains `nchoosek``(size(X,2),NPredToSample)` learners.

The software composes the ensemble using all trained learners and stores them in `Mdl.Trained`.

For more details, see Tips.

Data Types: `single` | `double` | `char` | `string`

Weak learners to use in the ensemble, specified as a weak-learner name, weak-learner template object, or cell array of weak-learner template objects.

Weak LearnerWeak-Learner NameTemplate Object Creation Function`Method` Settings
Discriminant analysis`'Discriminant'``templateDiscriminant`Recommended for `'Subspace'`
k nearest neighbors`'KNN'``templateKNN`For `'Subspace'` only
Decision tree`'Tree'``templateTree`All methods except `'Subspace'`

For more details, see `NLearn` and Tips.

Example: For an ensemble composed of two types of classification trees, supply `{t1 t2}`, where `t1` and `t2` are classification tree templates.

### Name-Value Pair Arguments

Specify optional comma-separated pairs of `Name,Value` arguments. `Name` is the argument name and `Value` is the corresponding value. `Name` must appear inside quotes. You can specify several name and value pair arguments in any order as `Name1,Value1,...,NameN,ValueN`.

Example: `'CrossVal','on','LearnRate',0.05` specifies to implement 10-fold cross-validation and to use `0.05` as the learning rate.

#### General Ensemble Options

collapse all

Categorical predictors list, specified as the comma-separated pair consisting of `'CategoricalPredictors'` and one of the values in this table.

ValueDescription
Vector of positive integersEach entry in the vector is an index value corresponding to the column of the predictor data (`X` or `Tbl`) that contains a categorical variable.
Logical vectorA `true` entry means that the corresponding column of predictor data (`X` or `Tbl`) is a categorical variable.
Character matrixEach row of the matrix is the name of a predictor variable. The names must match the entries in `PredictorNames`. Pad the names with extra blanks so each row of the character matrix has the same length.
String array or cell array of character vectorsEach element in the array is the name of a predictor variable. The names must match the entries in `PredictorNames`.
'all'All predictors are categorical.

Specification of `'CategoricalPredictors'` is appropriate if:

• `'Learners'` specifies tree learners.

• `'Learners'` specifies k-nearest learners where all predictors are categorical.

Each learner identifies and treats categorical predictors in the same way as the fitting function corresponding to the learner. See `'CategoricalPredictors'` of `fitcknn` for k-nearest learners and `'CategoricalPredictors'` of `fitctree` for tree learners.

Example: `'CategoricalPredictors','all'`

Data Types: `single` | `double` | `logical` | `char` | `string` | `cell`

Printout frequency, specified as the comma-separated pair consisting of `'NPrint'` and a positive integer or `'off'`.

To track the number of weak learners or folds that `fitensemble` trained so far, specify a positive integer. That is, if you specify the positive integer m:

• Without also specifying any cross-validation option (for example, `CrossVal`), then `fitensemble` displays a message to the command line every time it completes training m weak learners.

• And a cross-validation option, then `fitensemble` displays a message to the command line every time it finishes training m folds.

If you specify `'off'`, then `fitensemble` does not display a message when it completes training weak learners.

### Tip

When training an ensemble of many weak learners on a large data set, specify a positive integer for `NPrint`.

Example: `'NPrint',5`

Data Types: `single` | `double` | `char` | `string`

Predictor variable names, specified as the comma-separated pair consisting of `'PredictorNames'` and a string array of unique names or cell array of unique character vectors. The functionality of `'PredictorNames'` depends on the way you supply the training data.

• If you supply `X` and `Y`, then you can use `'PredictorNames'` to give the predictor variables in `X` names.

• The order of the names in `PredictorNames` must correspond to the column order of `X`. That is, `PredictorNames{1}` is the name of `X(:,1)`, `PredictorNames{2}` is the name of `X(:,2)`, and so on. Also, `size(X,2)` and `numel(PredictorNames)` must be equal.

• By default, `PredictorNames` is `{'x1','x2',...}`.

• If you supply `Tbl`, then you can use `'PredictorNames'` to choose which predictor variables to use in training. That is, `fitensemble` uses only the predictor variables in `PredictorNames` and the response variable in training.

• `PredictorNames` must be a subset of `Tbl.Properties.VariableNames` and cannot include the name of the response variable.

• By default, `PredictorNames` contains the names of all predictor variables.

• It is a good practice to specify the predictors for training using either `'PredictorNames'` or `formula` only.

Example: `'PredictorNames',{'SepalLength','SepalWidth','PetalLength','PetalWidth'}`

Data Types: `string` | `cell`

Response variable name, specified as the comma-separated pair consisting of `'ResponseName'` and a character vector or string scalar.

Example: `'ResponseName','response'`

Data Types: `char` | `string`

Supervised learning type, specified as the comma-separated pair consisting of `'Type'` and `'classification'` or `'regression'`.

• If `Method` is `'bag'`, then the supervised learning type is ambiguous. Therefore, specify `Type` when bagging.

• Otherwise, the value of `Method` determines the supervised learning type.

Example: `'Type','classification'`

#### Cross-Validation Options

collapse all

Cross-validation flag, specified as the comma-separated pair consisting of `'Crossval'` and `'on'` or `'off'`.

If you specify `'on'`, then the software implements 10-fold cross-validation.

To override this cross-validation setting, use one of these name-value pair arguments: `CVPartition`, `Holdout`, `KFold`, or `Leaveout`. To create a cross-validated model, you can use one cross-validation name-value pair argument at a time only.

Alternatively, cross-validate later by passing `Mdl` to `crossval` or `crossval`.

Example: `'Crossval','on'`

Cross-validation partition, specified as the comma-separated pair consisting of `'CVPartition'` and a `cvpartition` partition object created by `cvpartition`. The partition object specifies the type of cross-validation and the indexing for the training and validation sets.

To create a cross-validated model, you can use one of these four name-value pair arguments only: `CVPartition`, `Holdout`, `KFold`, or `Leaveout`.

Example: Suppose you create a random partition for 5-fold cross-validation on 500 observations by using `cvp = cvpartition(500,'KFold',5)`. Then, you can specify the cross-validated model by using `'CVPartition',cvp`.

Fraction of the data used for holdout validation, specified as the comma-separated pair consisting of `'Holdout'` and a scalar value in the range (0,1). If you specify `'Holdout',p`, then the software completes these steps:

1. Randomly select and reserve `p*100`% of the data as validation data, and train the model using the rest of the data.

2. Store the compact, trained model in the `Trained` property of the cross-validated model.

To create a cross-validated model, you can use one of these four name-value pair arguments only: `CVPartition`, `Holdout`, `KFold`, or `Leaveout`.

Example: `'Holdout',0.1`

Data Types: `double` | `single`

Number of folds to use in a cross-validated model, specified as the comma-separated pair consisting of `'KFold'` and a positive integer value greater than 1. If you specify `'KFold',k`, then the software completes these steps:

1. Randomly partition the data into `k` sets.

2. For each set, reserve the set as validation data, and train the model using the other `k` – 1 sets.

3. Store the `k` compact, trained models in the cells of a `k`-by-1 cell vector in the `Trained` property of the cross-validated model.

To create a cross-validated model, you can use one of these four name-value pair arguments only: `CVPartition`, `Holdout`, `KFold`, or `Leaveout`.

Example: `'KFold',5`

Data Types: `single` | `double`

Leave-one-out cross-validation flag, specified as the comma-separated pair consisting of `'Leaveout'` and `'on'` or `'off'`. If you specify `'Leaveout','on'`, then, for each of the n observations (where n is the number of observations excluding missing observations, specified in the `NumObservations` property of the model), the software completes these steps:

1. Reserve the observation as validation data, and train the model using the other n – 1 observations.

2. Store the n compact, trained models in the cells of an n-by-1 cell vector in the `Trained` property of the cross-validated model.

To create a cross-validated model, you can use one of these four name-value pair arguments only: `CVPartition`, `Holdout`, `KFold`, or `Leaveout`.

Example: `'Leaveout','on'`

#### Other Classification or Regression Options

collapse all

Names of classes to use for training, specified as the comma-separated pair consisting of `'ClassNames'` and a categorical, character, or string array, a logical or numeric vector, or a cell array of character vectors. `ClassNames` must have the same data type as `Y`.

If `ClassNames` is a character array, then each element must correspond to one row of the array.

Use `ClassNames` to:

• Order the classes during training.

• Specify the order of any input or output argument dimension that corresponds to the class order. For example, use `ClassNames` to specify the order of the dimensions of `Cost` or the column order of classification scores returned by `predict`.

• Select a subset of classes for training. For example, suppose that the set of all distinct class names in `Y` is `{'a','b','c'}`. To train the model using observations from classes `'a'` and `'c'` only, specify `'ClassNames',{'a','c'}`.

The default value for `ClassNames` is the set of all distinct class names in `Y`.

Example: `'ClassNames',{'b','g'}`

Data Types: `categorical` | `char` | `string` | `logical` | `single` | `double` | `cell`

Misclassification cost, specified as the comma-separated pair consisting of `'Cost'` and a square matrix or structure. If you specify:

• The square matrix `Cost`, then `Cost(i,j)` is the cost of classifying a point into class `j` if its true class is `i`. That is, the rows correspond to the true class and the columns correspond to the predicted class. To specify the class order for the corresponding rows and columns of `Cost`, also specify the `ClassNames` name-value pair argument.

• The structure `S`, then it must have two fields:

• `S.ClassNames`, which contains the class names as a variable of the same data type as `Y`

• `S.ClassificationCosts`, which contains the cost matrix with rows and columns ordered as in `S.ClassNames`

The default is ```ones(K) - eye(K)```, where `K` is the number of distinct classes.

### Note

`fitensemble` uses `Cost` to adjust the prior class probabilities specified in `Prior`. Then, `fitensemble` uses the adjusted prior probabilities for training and resets the cost matrix to its default.

Example: `'Cost',[0 1 2 ; 1 0 2; 2 2 0]`

Data Types: `double` | `single` | `struct`

Prior probabilities for each class, specified as the comma-separated pair consisting of `'Prior'` and a value in this table.

ValueDescription
`'empirical'`The class prior probabilities are the class relative frequencies in `Y`.
`'uniform'`All class prior probabilities are equal to 1/K, where K is the number of classes.
numeric vectorEach element is a class prior probability. Order the elements according to `Mdl.ClassNames` or specify the order using the `ClassNames` name-value pair argument. The software normalizes the elements such that they sum to `1`.
structure array

A structure `S` with two fields:

• `S.ClassNames` contains the class names as a variable of the same type as `Y`.

• `S.ClassProbs` contains a vector of corresponding prior probabilities. The software normalizes the elements such that they sum to `1`.

`fitensemble` normalizes the prior probabilities in `Prior` to sum to 1.

Example: `struct('ClassNames',{{'setosa','versicolor','virginica'}},'ClassProbs',1:3)`

Data Types: `char` | `string` | `double` | `single` | `struct`

Observation weights, specified as the comma-separated pair consisting of `'Weights'` and a numeric vector of positive values or name of a variable in `Tbl`. The software weighs the observations in each row of `X` or `Tbl` with the corresponding value in `Weights`. The size of `Weights` must equal the number of rows of `X` or `Tbl`.

If you specify the input data as a table `Tbl`, then `Weights` can be the name of a variable in `Tbl` that contains a numeric vector. In this case, you must specify `Weights` as a character vector or string scalar. For example, if the weights vector `W` is stored as `Tbl.W`, then specify it as `'W'`. Otherwise, the software treats all columns of `Tbl`, including `W`, as predictors or the response when training the model.

The software normalizes `Weights` to sum up to the value of the prior probability in the respective class.

By default, `Weights` is `ones(n,1)`, where `n` is the number of observations in `X` or `Tbl`.

Data Types: `double` | `single` | `char` | `string`

#### Sampling Options for Boosting Methods and Bagging

collapse all

Fraction of the training set to resample for every weak learner, specified as the comma-separated pair consisting of `'FResample'` and a positive scalar in (0,1].

To use `'FResample'`, specify `'bag'` for `Method` or set `Resample` to `'on'`.

Example: `'FResample',0.75`

Data Types: `single` | `double`

Flag indicating sampling with replacement, specified as the comma-separated pair consisting of `'Replace'` and `'off'` or `'on'`.

• For `'on'`, the software samples the training observations with replacement.

• For `'off'`, the software samples the training observations without replacement. If you set `Resample` to `'on'`, then the software samples training observations assuming uniform weights. If you also specify a boosting method, then the software boosts by reweighting observations.

Unless you set `Method` to `'bag'` or set `Resample` to `'on'`, `Replace` has no effect.

Example: `'Replace','off'`

Flag indicating to resample, specified as the comma-separated pair consisting of `'Resample'` and `'off'` or `'on'`.

• If `Method` is a boosting method, then:

• `'Resample','on'` specifies to sample training observations using updated weights as the multinomial sampling probabilities.

• `'Resample','off'`(default) specifies to reweight observations at every learning iteration.

• If `Method` is `'bag'`, then `'Resample'` must be `'on'`. The software resamples a fraction of the training observations (see `FResample`) with or without replacement (see `Replace`).

If you specify to resample using `Resample`, then it is good practice to resample to entire data set. That is, use the default setting of 1 for `FResample`.

collapse all

Learning rate for shrinkage, specified as the comma-separated pair consisting of a numeric scalar in the interval (0,1].

To train an ensemble using shrinkage, set `LearnRate` to a value less than `1`, for example, `0.1` is a popular choice. Training an ensemble using shrinkage requires more learning iterations, but often achieves better accuracy.

Example: `'LearnRate',0.1`

Data Types: `single` | `double`

#### RUSBoost Method Options

collapse all

Learning rate for shrinkage, specified as the comma-separated pair consisting of a numeric scalar in the interval (0,1].

To train an ensemble using shrinkage, set `LearnRate` to a value less than `1`, for example, `0.1` is a popular choice. Training an ensemble using shrinkage requires more learning iterations, but often achieves better accuracy.

Example: `'LearnRate',0.1`

Data Types: `single` | `double`

Sampling proportion with respect to the lowest-represented class, specified as the comma-separated pair consisting of `'RatioToSmallest'` and a numeric scalar or numeric vector of positive values with length equal to the number of distinct classes in the training data.

Suppose that there are `K` classes in the training data and the lowest-represented class has `m` observations in the training data.

• If you specify the positive numeric scalar `s`, then `fitensemble` samples `s*m` observations from each class, that is, it uses the same sampling proportion for each class. For more details, see Algorithms.

• If you specify the numeric vector `[s1,s2,...,sK]`, then `fitensemble` samples `si*m` observations from class `i`, `i` = 1,...,K. The elements of `RatioToSmallest` correspond to the order of the class names specified using `ClassNames` (see Tips).

The default value is `ones(K,1)`, which specifies to sample `m` observations from each class.

Example: `'RatioToSmallest',[2,1]`

Data Types: `single` | `double`

#### LPBoost and TotalBoost Method Options

collapse all

Margin precision to control convergence speed, specified as the comma-separated pair consisting of `'MarginPrecision'` and a numeric scalar in the interval [0,1]. `MarginPrecision` affects the number of boosting iterations required for convergence.

### Tip

To train an ensemble using many learners, specify a small value for `MarginPrecision`. For training using a few learners, specify a large value.

Example: `'MarginPrecision',0.5`

Data Types: `single` | `double`

#### RobustBoost Method Options

collapse all

Target classification error, specified as the comma-separated pair consisting of `'RobustErrorGoal'` and a nonnegative numeric scalar. The upper bound on possible values depends on the values of `RobustMarginSigma` and `RobustMaxMargin`. However, the upper bound cannot exceed `1`.

### Tip

For a particular training set, usually there is an optimal range for `RobustErrorGoal`. If you set it too low or too high, then the software can produce a model with poor classification accuracy. Try cross-validating to search for the appropriate value.

Example: `'RobustErrorGoal',0.05`

Data Types: `single` | `double`

Classification margin distribution spread over the training data, specified as the comma-separated pair consisting of `'RobustMarginSigma'` and a positive numeric scalar. Before specifying `RobustMarginSigma`, consult the literature on `RobustBoost`, for example, [19].

Example: `'RobustMarginSigma',0.5`

Data Types: `single` | `double`

Maximal classification margin in the training data, specified as the comma-separated pair consisting of `'RobustMaxMargin'` and a nonnegative numeric scalar. The software minimizes the number of observations in the training data having classification margins below `RobustMaxMargin`.

Example: `'RobustMaxMargin',1`

Data Types: `single` | `double`

#### Random Subspace Method Options

collapse all

Number of predictors to sample for each random subspace learner, specified as the comma-separated pair consisting of `'NPredToSample'` and a positive integer in the interval 1,...,p, where p is the number of predictor variables (`size(X,2)` or `size(Tbl,2)`).

Data Types: `single` | `double`

## Output Arguments

collapse all

Trained ensemble model, returned as one of the model objects in this table.

Model Object`Type` SettingSpecify Any Cross-Validation Options?`Method` Setting`Resample` Setting
`ClassificationBaggedEnsemble``'classification'`No`'Bag'``'on'`
`ClassificationEnsemble``'classification'`NoAny ensemble-aggregation method for classification`'off'`
`ClassificationPartitionedEnsemble``'classification'`YesAny classification ensemble-aggregation method`'off'` or `'on'`
`RegressionBaggedEnsemble``'regression'`No`'Bag'``'on'`
`RegressionEnsemble``'regression'`No`'LSBoost'``'off'`
`RegressionPartitionedEnsemble``'regression'`Yes`'LSBoost'` or `'Bag'``'off'` or `'on'`

The name-value pair arguments that control cross-validation are `CrossVal`, `Holdout`, `KFold`, `Leaveout`, and `CVPartition`.

To reference properties of `Mdl`, use dot notation. For example, to access or display the cell vector of weak learner model objects for an ensemble that has not been cross-validated, enter `Mdl.Trained` at the command line.

## Tips

• `NLearn` can vary from a few dozen to a few thousand. Usually, an ensemble with good predictive power requires from a few hundred to a few thousand weak learners. However, you do not have to train an ensemble for that many cycles at once. You can start by growing a few dozen learners, inspect the ensemble performance and then, if necessary, train more weak learners using `resume` for classification problems, or `resume` for regression problems.

• Ensemble performance depends on the ensemble setting and the setting of the weak learners. That is, if you specify weak learners with default parameters, then the ensemble can perform poorly. Therefore, like ensemble settings, it is good practice to adjust the parameters of the weak learners using templates, and to choose values that minimize generalization error.

• If you specify to resample using `Resample`, then it is good practice to resample to entire data set. That is, use the default setting of `1` for `FResample`.

• In classification problems (that is, `Type` is `'classification'`):

• If the ensemble-aggregation method (`Method`) is `'bag'` and:

• The misclassification cost (`Cost`) is highly imbalanced, then, for in-bag samples, the software oversamples unique observations from the class that has a large penalty.

• The class prior probabilities (`Prior`) are highly skewed, the software oversamples unique observations from the class that has a large prior probability.

For smaller sample sizes, these combinations can result in a low relative frequency of out-of-bag observations from the class that has a large penalty or prior probability. Consequently, the estimated out-of-bag error is highly variable and it can be difficult to interpret. To avoid large estimated out-of-bag error variances, particularly for small sample sizes, set a more balanced misclassification cost matrix using `Cost` or a less skewed prior probability vector using `Prior`.

• Because the order of some input and output arguments correspond to the distinct classes in the training data, it is good practice to specify the class order using the `ClassNames` name-value pair argument.

• To determine the class order quickly, remove all observations from the training data that are unclassified (that is, have a missing label), obtain and display an array of all the distinct classes, and then specify the array for `ClassNames`. For example, suppose the response variable (`Y`) is a cell array of labels. This code specifies the class order in the variable `classNames`.

```Ycat = categorical(Y); classNames = categories(Ycat)```
`categorical` assigns `<undefined>` to unclassified observations and `categories` excludes `<undefined>` from its output. Therefore, if you use this code for cell arrays of labels or similar code for categorical arrays, then you do not have to remove observations with missing labels to obtain a list of the distinct classes.

• To specify that the class order from lowest-represented label to most-represented, then quickly determine the class order (as in the previous bullet), but arrange the classes in the list by frequency before passing the list to `ClassNames`. Following from the previous example, this code specifies the class order from lowest- to most-represented in `classNamesLH`.

```Ycat = categorical(Y); classNames = categories(Ycat); freq = countcats(Ycat); [~,idx] = sort(freq); classNamesLH = classNames(idx);```

## Algorithms

• For details of ensemble-aggregation algorithms, see Ensemble Algorithms.

• If you specify `Method` to be a boosting algorithm and `Learners` to be decision trees, then the software grows stumps by default. A decision stump is one root node connected to two terminal, leaf nodes. You can adjust tree depth by specifying the `MaxNumSplits`, `MinLeafSize`, and `MinParentSize` name-value pair arguments using `templateTree`.

• `fitensemble` generates in-bag samples by oversampling classes with large misclassification costs and undersampling classes with small misclassification costs. Consequently, out-of-bag samples have fewer observations from classes with large misclassification costs and more observations from classes with small misclassification costs. If you train a classification ensemble using a small data set and a highly skewed cost matrix, then the number of out-of-bag observations per class can be low. Therefore, the estimated out-of-bag error can have a large variance and can be difficult to interpret. The same phenomenon can occur for classes with large prior probabilities.

• For the RUSBoost ensemble-aggregation method (`Method`), the name-value pair argument `RatioToSmallest` specifies the sampling proportion for each class with respect to the lowest-represented class. For example, suppose that there are two classes in the training data: A and B. A have 100 observations and B have 10 observations. Also, suppose that the lowest-represented class has `m` observations in the training data.

• If you set `'RatioToSmallest',2`, then `s*m` = `2*10` = `20`. Consequently, `fitensemble` trains every learner using 20 observations from class A and 20 observations from class B. If you set ```'RatioToSmallest',[2 2]```, then you obtain the same result.

• If you set `'RatioToSmallest',[2,1]`, then `s1*m` = `2*10` = `20` and `s2*m` = `1*10` = `10`. Consequently, `fitensemble` trains every learner using 20 observations from class A and 10 observations from class B.

• For ensembles of decision trees, and for dual-core systems and above, `fitensemble` parallelizes training using Intel® Threading Building Blocks (TBB). For details on Intel TBB, see https://software.intel.com/en-us/intel-tbb.

## References

[1] Breiman, L. “Bagging Predictors.” Machine Learning. Vol. 26, pp. 123–140, 1996.

[2] Breiman, L. “Random Forests.” Machine Learning. Vol. 45, pp. 5–32, 2001.

[3] Freund, Y. “A more robust boosting algorithm.” arXiv:0905.2138v1, 2009.

[4] Freund, Y. and R. E. Schapire. “A Decision-Theoretic Generalization of On-Line Learning and an Application to Boosting.” J. of Computer and System Sciences, Vol. 55, pp. 119–139, 1997.

[5] Friedman, J. “Greedy function approximation: A gradient boosting machine.” Annals of Statistics, Vol. 29, No. 5, pp. 1189–1232, 2001.

[6] Friedman, J., T. Hastie, and R. Tibshirani. “Additive logistic regression: A statistical view of boosting.” Annals of Statistics, Vol. 28, No. 2, pp. 337–407, 2000.

[7] Hastie, T., R. Tibshirani, and J. Friedman. The Elements of Statistical Learning section edition, Springer, New York, 2008.

[8] Ho, T. K. “The random subspace method for constructing decision forests.” IEEE Transactions on Pattern Analysis and Machine Intelligence, Vol. 20, No. 8, pp. 832–844, 1998.

[9] Schapire, R. E., Y. Freund, P. Bartlett, and W.S. Lee. “Boosting the margin: A new explanation for the effectiveness of voting methods.” Annals of Statistics, Vol. 26, No. 5, pp. 1651–1686, 1998.

[10] Seiffert, C., T. Khoshgoftaar, J. Hulse, and A. Napolitano. “RUSBoost: Improving clasification performance when training data is skewed.” 19th International Conference on Pattern Recognition, pp. 1–4, 2008.

[11] Warmuth, M., J. Liao, and G. Ratsch. “Totally corrective boosting algorithms that maximize the margin.” Proc. 23rd Int’l. Conf. on Machine Learning, ACM, New York, pp. 1001–1008, 2006.
