SimFunction
Function-like object to simulate SimBiology models
Description
The SimFunction
object provides an interface that allows you
to execute a SimBiology® model like a function and a workflow to perform parameter scans (in parallel if
Parallel Computing Toolbox™ is available), Monte Carlo simulations, and scans with multiple or vectorized
doses. Because a SimFunction
object can be executed like a function handle,
you can customize it to integrate SimBiology models with other MATLAB® products and other custom analyses (such as visual predictive
checks).
Creation
Use createSimFunction
to construct a
SimFunction
object. SimFunction
objects are immutable once
created and automatically accelerated at the first function execution. After creation, you can
run the SimFunction
object (F
) using the syntaxes
described next.
Syntax
Description
SimFunction
Created With Doses
If you specified dosing information when you called createSimFunction
to construct the SimFunction
object
F
, then F
has the following syntaxes.
returns a simdata
= F(phi
,t_stop
,u
,t_output
)SimData object
simdata
after simulating a SimBiology model using the initial
conditions or simulation scenarios specified in phi
, simulation
stop time, t_stop
, dosing information, u
, and
output time, t_output
.
SimFunction
Created Without Doses
If you did not specify any dosing information when you called
createSimFunction
, then F
has the following
syntaxes:
returns a simdata
= F(phi
,t_stop
)SimData object
simdata
after simulating the model using initial conditions or
simulation scenarios specified in phi
, and simulation stop time,
t_stop
.
uses the input arguments simdata
= F(phi
,t_stop
,[],t_output
)phi
, t_stop
, empty
dosed argument []
, and t_output
. You must
specify u
, the dosing information, as an empty
array[]
for this signature. When t_output
is
empty and t_stop
is specified, the simulations report the solver
time points until t_stop
. When t_output
is
specified and t_stop
is empty, only the time points in
t_output
are reported. When both are specified, the reported time
points are the union of solver time points and the time points in
t_output
. If the last t_output
is greater
than the corresponding t_stop
, then simulation proceeds until the
last time point in t_output
.
[
returns T
,Y
] =
F(_)T
, a cell array of numeric vector, and
Y
, a cell array of 2-D numeric matrices, using any of the input
arguments in the preceding syntaxes.
Input Arguments
phi
— Initial conditions or simulation scenarios
[]
| {}
| numeric matrix | matrix of variants | cell column vector of variants | scalar SimBiology.Scenarios
object
Initial conditions or simulation scenarios, specified as one of the following.
Empty array
[]
or empty cell array{}
, meaning to perform simulations using the baseline initial values, that is, the values listed in theParameter
property of theSimFunction
object, without altering them.Matrix of size S-by-P, where S is the number of simulations to perform and P is the number of parameters specified in the
params
argument when you calledcreateSimFunction
to constructF
. Each simulation is performed with the parameters specified in the corresponding row ofphi
.S-by-V matrix of variant objects or a cell column vector of length S, where each element consists of a row vector of variant objects. S is the number of simulations to perform, and V is the number of variant objects. These variants are only allowed to modify the
SimFunction
input parameters, that is, model elements that were specified as theparams
input argument when you calledcreateSimFunction
. In other words, you must specify the variant parameters as the input parameters when you create theSimFunction
object. AnySimFunction
input parameters that are not specified in the variants use their baseline initial values.If, within a row of variants, multiple entries refer to the same model element, the last occurrence is used for simulation.
Scalar
SimBiology.Scenarios
object containing S number of scenarios.
When phi
is specified as a
1
-by-P or
1
-by-V matrix (or a Scenarios
object with only one scenario), then all simulations use the same parameters, and the
number of simulations is determined from the t_stop
,
u
, or t_output
argument in that order. For
example, if phi
and t_stop
have a single row
and u
is a matrix of size
N-by-DoseTargets, the number of simulations is
determined as N.
When phi
is specified as a
SimBiology.Scenarios
object, all scenarios are simulated. Variants
are applied before values from the scenarios are set.
t_stop
— Simulation stop time
nonnegative scalar | numeric vector
Simulation stop time, specified as a nonnegative scalar or numeric vector.
Specify a nonnegative scalar to use as the same stop time for all simulations.
Specify a numeric vector of size N to use as a stop time for each simulation in a total of N simulations.
Data Types: double
u
— Doses to use during simulation
[]
| table | cell array of tables
Doses to use during simulation, specified as one of the following.
Empty array
[]
to apply no doses during simulation unless you specifyphi
as aScenarios
object that has doses defined in its entries.table
of dosing information with two or three variables containingScheduleDose
data (ScheduleDose
table), namely, dose time, dose amount, and dose rate (optional). Name the table variables as follows.u.Properties.VariableNames = {'Time','Amount','Rate'};
If
UnitConversion
is on, specify units for each variable. For instance, you can specify units as follows.u.Properties.VariableUnits = {'second','molecule','molecule/second'};
This table can have multiple rows, where each row represents a dose applied to the dose target at a specified dose time with a specified amount and rate if available.
table
with one row and five variables containingRepeatDose
data (RepeatDose
table). Dose rate variable is optional. Name the variables as follows.u.Properties.VariableNames = {'StartTime','Amount','Rate','Interval','RepeatCount'};
If
UnitConversion
is on, specify units for each variable. Units for'RepeatCount'
variable can be empty''
or'dimensionless'
. The unit of the'Amount'
variable must be dimensionally consistent with that of the target species. For example, if the unit of target species is in an amount unit (such as mole or molecule), then the'Amount'
variable unit must have the same dimension, i.e., its unit must be an amount unit and cannot be a mass unit (such as gram or kilogram). The unit for the'Rate'
variable must be dimensionally consistent as well.u.Properties.VariableUnits = {'second','molecule','molecule/second','second','dimensionless'};
Tip
If you already have a dose object (
ScheduleDose
orRepeatDose
), you can get this dose table by using thegetTable
method of the object.Cell array of tables of size 1-by-N, where N is the number of dose targets. Each cell can represent either table as described previously.
Cell array of tables of size S-by-N, where S is the number of simulations and N is the number of dose targets. Each cell represents a table. S is equal to the number of rows in
phi
.If
u
is a cell array of tables, then:If
phi
is also aScenarios
object, the combined number of doses in theScenarios
object and the number of columns inu
must equal to the number of elements in theDosed
property of theSimFunction
object. In other words, the dosing information that you specified during the creation of theSimFunction
object must be consistent with the dosing information you specify in the execution of the object. The total number of elements for theDosed
property is equal to the combination of any doses from the inputScenarios
object and doses in the dosed input argument ofcreateSimFunction
.If
phi
is not aScenarios
object, the number of columns (N) in the cell arrayu
must be equal to the number of elements in theDosed
property of theSimFunction
object. The order of dose tables must also match the order of dosed species increateSimFunction
. That is, SimBiology assumes one-to-one correspondence between the columns ofu
and dose targets specified in theDosed
property of theSimFunction
object, meaning the doses (dose tables) in the first column ofu
are applied to the first dose target in theDosed
property and so on.The ith dose for the jth dose target is ignored if
u{i,j} = []
.If the ith dose is not parameterized,
u{i,j}
can be[]
or either type of table (theScheduleDose
orRepeatDose
table).If the ith dose is parameterized,
u{i,j}
must be[]
or aRepeatDose
table with one row and a column for each property (StartTime
,Amount
,Rate
,Interval
,RepeatCount
) that is not parameterized. It is not required to create a column for a dose property that is parameterized. If all of the properties are parameterized, you can pass in a table with one row and no columns to specify the parameterized dose is applied during simulations. To create such table, usetable.empty(1,0)
.
Data Types: double
| table
| cell
t_output
— Output times
numeric vector | cell array
Output times, specified as one of the following.
Vector of monotonically increasing output times that is applied to all simulations
Cell array containing a single time vector that is applied to all simulations
Cell array of vectors representing output times. The ith cell element provides the output times for the ith simulation. The number of elements in the cell array must match the number of rows (simulations) in
phi
.
Data Types: double
| cell
tbl
— Time course data and dosing information
table | dataset
Time course data and dosing information, specified as a table
or dataset.
tbl
contains information such as group labels, independent
variable, dependent variables, dose amounts, and dose rates. You must name the
variables of the table or data set as
'GROUP','TIME','DEPENDENTVAR1','DEPENDENTVAR2',...,'AMOUNT1','RATE1','AMOUNT2','RATE2',...
.
The rate variable is optional for each dose.
If the Dosed
property of the SimFunction
object F
is empty, then amount- and rate-related variables are not
required. The number of groups in tbl
must be equal to the number
of rows, or the number of scenarios, in phi
. The combined dosing
information in phi
, if phi
is a
SimBiology.Scenarios
object, and the number of amount and rate
columns in tbl
must be equal to the number of doses in the
Dosed
property of the object F
. If
tbl
has additional columns, they are ignored.
If UnitConversion
is on, specify a unit
for each variable. The unit of 'Amount'
variable must be
dimensionally consistent with that of the target species. See the description of the
input argument u
for details.
Data Types: table
Properties
Parameters
— SimFunction
input parameters
table
This property is read-only.
SimFunction
input parameters, specified as a table
. The table has the following variables.
'Name'
'Value'
'Type'
'Units'
(only ifUnitConversion
is turned on)
The table contains information about model quantities (species, compartments, or
parameters) that define the inputs of a SimFunction object
. For
instance, this table can contain parameters or species whose values are being scanned by
the SimFunction object
.
Data Types: table
Observables
— Responses or outputs of SimFunction
table
This property is read-only.
Responses or outputs of SimFunction
, specified as a table
.
The table has the following variables.
'Name'
'Type'
'Units'
(only ifUnitConversion
is turned on)
This table contains information about model quantities (species, compartments, or
parameters) that are the outputs of a SimFunction
object.
Data Types: table
Dosed
— Dosing information
table
This property is read-only.
Dosing information, specified as a table
.
The table has the following variables.
'TargetName'
'TargetDimension'
(only ifUnitConversion
is turned on)
In addition, the table also contains variables for each property that is
parameterized. For each parameterized property, two variables are added to this table.
The first variable has the same name as the property name and the value is the name of
the specified parameter. The second variable has the property name suffixed by
Value (PropertyNameValue), and the value is the
default value of the parameter. If the UnitConversion
is on, the unit
column is also added with the name PropertyNameUnits.
Suppose the Amount
property of a repeat dose targeting the
Drug species is parameterized by setting it to a model parameter
called AmountParam
with the value of 10
milligram,
and UnitConversion
is on. The Dosed
table contains
the following variables:
TargetName | TargetDimension | Amount | AmountValue | AmountUnits |
---|---|---|---|---|
'Drug' | 'Mass (e.g., gram)' | 'AmountParam' | 10 | 'milligram' |
Data Types: table
UseParallel
— Flag for parallel simulations
false
or 0 | true
or 1
This property is read-only.
Flag for parallel simulations, specified as a numeric or logical 1
(true
) or 0 (false
).
If the value is true
and Parallel Computing Toolbox is available, SimFunction
is run in parallel.
To update this value, rerun createSimFunction
by specifying
UseParallel
name-value argument to true
or
false
.
Data Types: double
| logical
UnitConversion
— Flag to perform unit conversion
false
or 0 | true
or 1
This property is read-only.
Flag to perform unit conversion, specified as a numeric or logical 1
(true
) or 0 (false
).
If the value is true
, then:
During the execution of the
SimFunction
object,phi
is assumed to be in the same units as units for corresponding model quantities specified in theparams
argument when the object was created using thecreateSimFunction
method.Time (
t_output
ort_stop
) is assumed to be in the same unit as theTimeUnits
property of the activeconfigset object
of the SimBiology model from whichF
was created.Variables of dose tables (
u
) must have units specified by settingu.Properties.VariableUnits
to a cell array of appropriate units. The dimension of the dose target such as an amount (molecule, mole, etc.) or mass (gram, kilogram, etc.), is stored on theDosed
property ofF
.The simulation result is in the same units as those specified on the corresponding quantities in the SimBiology model from which
F
was created.
To update this value, change the UnitConversion
property of
SimBiology.CompileOptions
of the active SimBiology.Configset
of the model that you are creating the
SimFunction
object from and recreate
SimFunction
.
Data Types: double
| logical
AutoAccelerate
— Flag to accelerate SimFunction
true
or 1 (default) | false
or 0
This property is read-only.
Flag to accelerate the SimFunction
object on its first evaluation,
specified as a numeric or logical 1 (true
) or 0
(false
).
To change this value, rerun createSimFunction
by specifying
AutoAccelerate
name-value argument to true
or
false
.
Data Types: double
| logical
TimeUnits
— Time units
character vector
This property is read-only.
Time units, specified as a character vector.
To update this value, change the TimeUnits
property of the
active SimBiology.Configset
of the model that you
are creating the SimFunction
object from and recreate
SimFunction
.
Data Types: char
DependentFiles
— Names of files needed for deployment
cell array of character vectors
This property is read-only.
Names of files that the model depends on and are needed for deployment, specified as a cell array of character vectors.
Data Types: cell
Object Functions
accelerate(SimFunction) | Prepare SimFunction object for accelerated simulations |
isAccelerated(SimFunction) | Determine if SimFunction object is accelerated |
Examples
Simulate Model of Glucose-Insulin Response with Different Initial Conditions
This example shows how to simulate the glucose-insulin responses for the normal and diabetic subjects.
Load the model of glucose-insulin response. For details about the model, see the Background section in Simulate the Glucose-Insulin Response.
sbioloadproject('insulindemo', 'm1')
The model contains different initial conditions stored in various variants.
variants = getvariant(m1);
Get the initial conditions for the type 2 diabetic patient.
type2 = variants(1)
type2 = SimBiology Variant - Type 2 diabetic (inactive) ContentIndex: Type: Name: Property: Value: 1 parameter Plasma Volume ... Value 1.49 2 parameter k1 Value .042 3 parameter k2 Value .071 4 parameter Plasma Volume ... Value .04 5 parameter m1 Value .379 6 parameter m2 Value .673 7 parameter m4 Value .269 8 parameter m5 Value .0526 9 parameter m6 Value .8118 10 parameter Hepatic Extrac... Value .6 11 parameter kmax Value .0465 12 parameter kmin Value .0076 13 parameter kabs Value .023 14 parameter kgri Value .0465 15 parameter f Value .9 16 parameter a Value 6e-05 17 parameter b Value .68 18 parameter c Value .00023 19 parameter d Value .09 20 parameter kp1 Value 3.09 21 parameter kp2 Value .0007 22 parameter kp3 Value .005 23 parameter kp4 Value .0786 24 parameter ki Value .0066 25 parameter [Ins Ind Glu U... Value 1.0 26 parameter Vm0 Value 4.65 27 parameter Vmx Value .034 28 parameter Km Value 466.21 29 parameter p2U Value .084 30 parameter K Value .99 31 parameter alpha Value .013 32 parameter beta Value .05 33 parameter gamma Value .5 34 parameter ke1 Value .0007 35 parameter ke2 Value 269.0 36 parameter Basal Plasma G... Value 164.18 37 parameter Basal Plasma I... Value 54.81
Suppress an informational warning that is issued during simulations.
warnSettings = warning('off','SimBiology:DimAnalysisNotDone_MatlabFcn_Dimensionless');
Create SimFunction objects to simulate the glucose-insulin response for the normal and diabetic subjects.
Specify an empty array
{}
for the second input argument to denote that the model will be simulated using the base parameter values (that is, no parameter scanning will be performed).Specify the plasma glucose and insulin concentrations as responses (outputs of the function to be plotted).
Specify the species
Dose
as the dosed species. This species represents the initial concentration of glucose at the start of the simulation.
normSim = createSimFunction(m1,{},... {'[Plasma Glu Conc]','[Plasma Ins Conc]'},'Dose')
normSim = SimFunction Parameters: Name Value Type Units ____ _____ ____ _____ Observables: Name Type Units _____________________ ___________ _______________________ {'[Plasma Glu Conc]'} {'species'} {'milligram/deciliter'} {'[Plasma Ins Conc]'} {'species'} {'picomole/liter' } Dosed: TargetName TargetDimension __________ _____________________ {'Dose'} {'Mass (e.g., gram)'} TimeUnits: hour
For the diabetic patient, specify the initial conditions using the variant type2
.
diabSim = createSimFunction(m1,{},... {'[Plasma Glu Conc]','[Plasma Ins Conc]'},'Dose',type2)
diabSim = SimFunction Parameters: Name Value Type Units ____ _____ ____ _____ Observables: Name Type Units _____________________ ___________ _______________________ {'[Plasma Glu Conc]'} {'species'} {'milligram/deciliter'} {'[Plasma Ins Conc]'} {'species'} {'picomole/liter' } Dosed: TargetName TargetDimension __________ _____________________ {'Dose'} {'Mass (e.g., gram)'} TimeUnits: hour
Select a dose that represents a single meal of 78 grams of glucose at the start of the simulation.
singleMeal = sbioselect(m1,'Name','Single Meal');
Convert the dosing information to the table format.
mealTable = getTable(singleMeal);

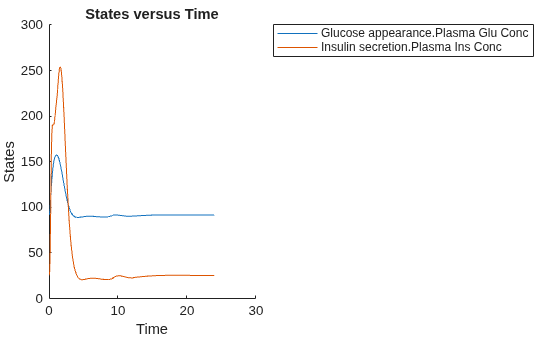

Simulate the glucose-insulin response for a normal subject for 24 hours.
sbioplot(normSim([],24,mealTable));
Simulate the glucose-insulin response for a diabetic subject for 24 hours.
sbioplot(diabSim([],24,mealTable));
Perform a Scan Using Variants
Suppose you want to perform a parameter scan using an array of variants that contain different initial conditions for different insulin impairments. For example, the model m1
has variants that correspond to the low insulin sensitivity and high insulin sensitivity. You can simulate the model for both conditions via a single call to the SimFunction object.
Select the variants to scan.
varToScan = sbioselect(m1,'Name',... {'Low insulin sensitivity','High insulin sensitivity'});
Check which model parameters are being stored in each variant.
varToScan(1)
ans = SimBiology Variant - Low insulin sensitivity (inactive) ContentIndex: Type: Name: Property: Value: 1 parameter Vmx Value .0235 2 parameter kp3 Value .0045
varToScan(2)
ans = SimBiology Variant - High insulin sensitivity (inactive) ContentIndex: Type: Name: Property: Value: 1 parameter Vmx Value .094 2 parameter kp3 Value .018
Both variants store alternate values for Vmx
and kp3
parameters. You need to specify them as input parameters when you create a SimFunction object.
Create a SimFunction object to scan the variants.
variantScan = createSimFunction(m1,{'Vmx','kp3'},... {'[Plasma Glu Conc]','[Plasma Ins Conc]'},'Dose');
Simulate the model and plot the results. Run 1
include simulation results for the low insulin sensitivity and Run 2
for the high insulin sensitivity.
sbioplot(variantScan(varToScan,24,mealTable));
Low insulin sensitivity lead to increased and prolonged plasma glucose concentration.
Restore warning settings.
warning(warnSettings);
Scan Initial Amounts of a Species from a Radioactive Decay Model
This example shows how to scan initial amounts of a species from a radioactive decay model with the first-order reaction , where x
and z
are species and c
is the forward rate constant.
Load the sample project containing the radiodecay model m1
.
sbioloadproject radiodecay;
Create a SimFunction
object f
to scan initial amounts of species x
.
f = createSimFunction(m1,{'x'},{'x','z'},[])
f = SimFunction Parameters: Name Value Type Units _____ _____ ___________ ____________ {'x'} 1000 {'species'} {'molecule'} Observables: Name Type Units _____ ___________ ____________ {'x'} {'species'} {'molecule'} {'z'} {'species'} {'molecule'} Dosed: None TimeUnits: second
Define four different initial amounts of species x for scanning. The number of rows indicates the total number of simulations, and each simulation uses the parameter value specified in each row of the vector.
phi = [200; 400; 600; 800];
Run simulations until the stop time is 20 and plot the simulation results.
sbioplot(f(phi, 20));
Simulate a Model and Scan Parameters with Doses
This example shows how to simulate and scan a parameter of a radiodecay model while a species is being dosed.
Load the sample project containing the radiodecay model m1
.
sbioloadproject radiodecay;
Create a SimFunction
object f
specifying parameter Reaction1.c
to be scanned and species x
as a dosed target.
f = createSimFunction(m1,{'Reaction1.c'},{'x','z'},{'x'});
Define a scalar dose of amount 200 molecules given at three time points (5, 10, and 15 seconds).
dosetime = [5 10 15]; dose = [200 200 200]; u = table(dosetime', dose'); u.Properties.VariableNames = {'Time','Amount'}; u.Properties.VariableUnits = {'second','molecule'};
Define the parameter values for Reaction1.c
to scan.
phi = [0.1 0.2 0.5]';

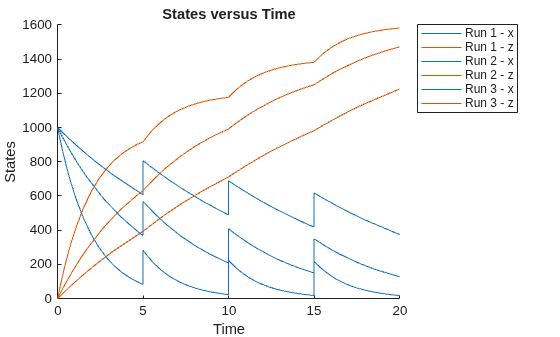

Simulate the model for 20 seconds and plot the results.
sbioplot(f(phi,20,u));
You can also specify different dose amounts at different times.
d1 = table(5,100); d1.Properties.VariableNames = {'Time','Amount'}; d1.Properties.VariableUnits = {'second','molecule'}; d2 = table(10,300); d2.Properties.VariableNames = {'Time','Amount'}; d2.Properties.VariableUnits = {'second','molecule'}; d3 = table(15,600); d3.Properties.VariableNames = {'Time','Amount'}; d3.Properties.VariableUnits = {'second','molecule'};

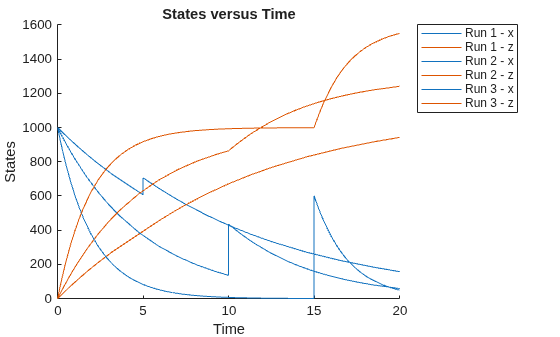

Simulate the model using these doses and plot the results.
sbioplot(f(phi,20,{d1;d2;d3}));
You can also define a cell array of dose tables.
u = cell(3,1); dosetime = [5 10 15]; dose = [200 200 200]; u{1} = table(dosetime',dose'); u{1}.Properties.VariableNames = {'Time','Amount'}; u{1}.Properties.VariableUnits = {'second','molecule'}; dosetime2 = [2 6 12]; dose2 = [500 500 500]; u{2} = table(dosetime2', dose2'); u{2}.Properties.VariableNames = {'Time','Amount'}; u{2}.Properties.VariableUnits = {'second','molecule'}; dosetime3 = [3 8 18]; dose3 = [100 100 100]; u{3} = table(dosetime3', dose3'); u{3}.Properties.VariableNames = {'Time','Amount'}; u{3}.Properties.VariableUnits = {'second','molecule'};

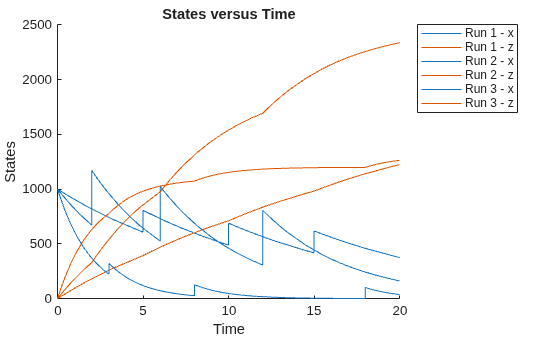

Simulate the model using the dose tables and plot results.
sbioplot(f(phi,20,u));
References
[1] Gillespie, D.T. (1977). Exact Stochastic Simulation of Coupled Chemical Reactions. The Journal of Physical Chemistry. 81(25), 2340–2361.
Version History
Introduced in R2014a
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
