sbiosampleparameters

Generate parameters by sampling covariate model (requires Statistics and Machine Learning Toolbox software)

Syntax

phi = sbiosampleparameters(covexpr,thetas,omega,ds)

phi = sbiosampleparameters(covexpr,thetas,omega,n)

[phi,covmodel] = sbiosampleparameters(_)

Description

phi = sbiosampleparameters(covexpr,thetas,omega,ds) generates a matrix phi containing sampled parameter values using the covariate model specified by the covariate expression covexpr, fixed effects thetas, covariance matrix omega, and covariate data ds.

phi = sbiosampleparameters(covexpr,thetas,omega,n) uses a scalar n that specifies the number of rows in phi when the parameters are not dependent on any covariate.

[phi,covmodel] = sbiosampleparameters(_) returns a matrix phi and a covariate model object covmodel using any of the input arguments from previous syntaxes.

Examples

Sample Parameter Values from a Covariate Model

This example uses data collected on 59 preterm infants given phenobarbital during the first 16 days after birth. Each infant received an initial dose followed by one or more sustaining doses by intravenous bolus administration. A total of between 1 and 6 concentration measurements were obtained from each infant at times other than dose times, for a total of 155 measurements. Infant weights and APGAR scores (a measure of newborn health) were also recorded. Data was described in [1], a study funded by the NIH/NIBIB grant P41-EB01975.

Load the data.

load pheno.mat ds

Visualize the data.

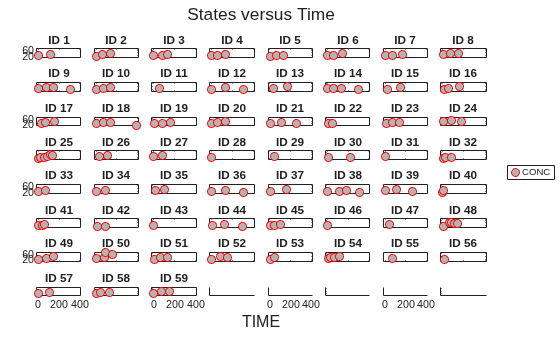

t = sbiotrellis(ds,'ID','TIME','CONC','marker','o','markerfacecolor',[.7 .7 .7],'markeredgecolor','r','linestyle','none');
t.plottitle = 'States versus Time';

Create a one-compartment PK model with bolus dosing and linear clearance to model such data.

pkmd = PKModelDesign;
pkmd.addCompartment('Central','DosingType','Bolus','EliminationType','linear-clearance',...
                    'HasResponseVariable',true,'HasLag',false);
onecomp = pkmd.construct;

Suppose there is a correlation between the volume of the central compartment (Central) and the weight of infants. You can define this parameter-covariate relationship using a covariate model that can be described as

$\log (V_i)={\theta }_V+{\theta }_{\raisebox{1ex}{$V$}\!\left/ \!\raisebox{-1ex}{$WEIGHT$}\right.}\ast WEIGH{T}_i+{\eta }_{V,i}$,

where, for each ith infant, V is the volume, θs (thetas) are fixed effects, η (eta) represents random effects, and WEIGHT is the covariate.

covM = CovariateModel;
covM.Expression = {'Central = exp(theta1+theta2*WEIGHT+eta1)'};

Define the fixed and random effects. The column names of each table must have the names of fixed effects and random effects, respectively.

thetas = table(1.4,0.05,'VariableNames',{'theta1','theta2'});
eta1 = table(0.2,'VariableNames',{'eta1'});

Change the group label ID to GROUP as required by the sbiosampleparameters function.

ds.Properties.VariableNames{'ID'} = 'GROUP';

Generate parameter values for the volumes of central compartments Central based on the covariate model for all infants in the data set.

phi = sbiosampleparameters(covM.Expression,thetas,eta1,ds);

You can then simulate the model using the sampled parameter values. For convenience, use the function-like interface provided by a SimFunction object.

First, construct a SimFunction object using the createSimFunction method, specifying the volume (Central) as the parameter, and the drug concentration in the compartment (Drug_Central) as the output of the SimFunction object, and the dosed species.

f = createSimFunction(onecomp,covM.ParameterNames,'Drug_Central','Drug_Central');

The data set ds contains dosing information for each infant, and the groupedData object provides a convenient way to extract such dosing information. Convert ds to a groupedData object and extract dosing information.

grpData = groupedData(ds);
doses = createDoses(grpData,'DOSE');

Simulate the model using the sampled parameter values from phi and the extracted dosing information of each infant, and plot the results. The ith run uses the ith parameter value in phi and dosing information of the ith infant.

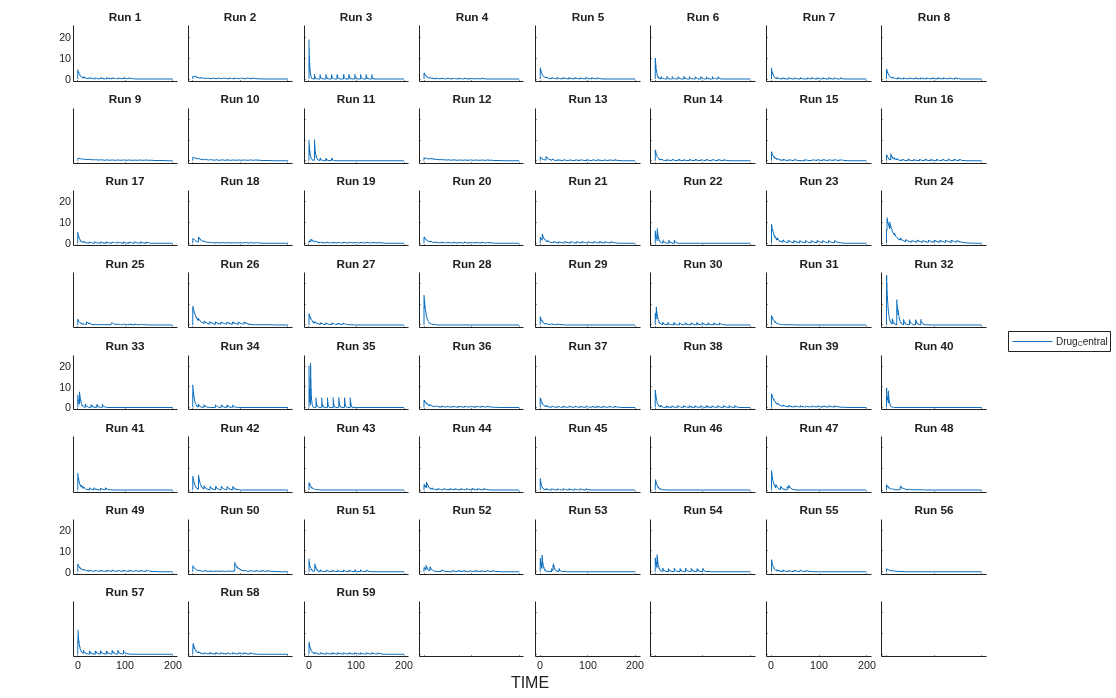

t = sbiotrellis(f(phi,200,doses.getTable),[],'TIME','Drug_Central');
% Resize the figure.
t.hFig.Position(:) = [100 100 1280 800];

Input Arguments

covexpr — Covariate expressions

cell array of character vectors | string vector

Covariate expressions, specified as a cell array of character vectors or string vector that defines the parameter-covariate relationships.

If a model component name or covariate name is not a valid MATLAB^® variable name, surround it by square brackets when referring to it in the expression. For example, if the name of a species is DNA polymerase+, write [DNA polymerase+]. If a covariate name itself contains square brackets, you cannot use it in the expression.

See CovariateModel to learn more about covariate expressions.

thetas — Fixed effects

table | groupedData | dataset | numeric vector

Fixed effects, specified as a table, groupedData, dataset, or numeric vector containing values for fixed effect parameters defined in the covariate expressions covexpr. Fixed effect parameter names must start with 'theta'.

• If thetas is a table, thetas.Properties.VariableNames must match the names of the fixed effects.

  For example, suppose that you have three thetas: thetaOne = 0.1, theta2 = 0.2, and theta3 = 0.3. You can create the corresponding table.

  thetas = table(0.1,0.2,0.3);
  thetas.Properties.VariableNames = {'thetaOne','theta2','theta3'}

  thetas =

    1×3 table

      thetaOne    theta2    theta3
      ________    ______    ______

        0.1        0.2       0.3

• If thetas is a dataset, thetas.Properties.VarNames must match the names of the fixed effects.

• If thetas is a numeric vector, the order of the values in the vector must be the same ascending ASCII dictionary order as the fixed effect names.

  Use the sort function to sort a cell array of character vectors to see the order.

  sort({'thetaOne','theta2','theta3'})

  ans =

    1×3 cell array

      {'theta2'}    {'theta3'}    {'thetaOne'}

  Then specify the value of each theta in the same order.

  thetas = [0.2 0.3 0.1];

omega — Covariance matrix of random effects

table | groupedData | dataset | matrix

Covariance matrix of random effects, specified as a table, groupedData, dataset, or matrix. Random effect parameter names must start with 'eta'.

• If omega is a table, omega.Properties.VariableNames must match the names of the random effects. Specifying the row names (RowNames) is optional, but if you do, they must also match the names of random effects.

  Suppose that you want to define a diagonal covariance matrix with three random effect parameters eta1, eta2, and eta3 with the values 0.1, 0.2, and 0.3, respectively.

  $$\left[\begin{array}{l}Cov({\eta }_1,{\eta }_1)\text{}\text{}\text{}\text{}Cov(\eta {}_1,{\eta }_2)Cov({\eta }_1,{\eta }_3)\\ Cov({\eta }_2,{\eta }_1)Cov({\eta }_2,{\eta }_2)Cov({\eta }_2,{\eta }_3)\\ Cov({\eta }_3,{\eta }_1)Cov({\eta }_3,{\eta }_2)Cov({\eta }_3,{\eta }_3)\end{array}\right]=\left[\begin{array}{l}eta100\\ 0eta20\\ 00eta3\end{array}\right]$$

  You can construct the corresponding table.

  eta1 = [0.1;0;0];
  eta2 = [0;0.2;0];
  eta3 = [0;0;0.3];
  omega = table(eta1,eta2,eta3,'VariableNames',{'eta1','eta2','eta3'})

  omega =

    3×3 table

      eta1    eta2    eta3
      ____    ____    ____

      0.1       0       0
        0     0.2       0
        0       0     0.3

• If omega is a dataset, omega.Properties.VarNames must match the names of the random effects. Specifying the row names (ObsNames) is optional, but if you do, they must also match the names of random effects.

• If omega is a matrix, the rows and columns must have the same ascending ASCII dictionary order as the random effect names.

  Use the sort function to sort a cell array of character vectors to see the order.

  sort({'eta1','eta2','eta3'})

  ans =

    1×3 cell array

      {'eta1'}    {'eta2'}    {'eta3'}

ds — Covariate data

dataset | table | groupedData

Covariate data, specified as a dataset, table, or groupedData containing the covariate data for all groups.

ds must have a column for each covariate used in the covariate model. The column names must match the names of the corresponding covariates used in the covariate expressions.

n — Number of rows in phi

scalar

Number of rows in phi, specified as a scalar.

Output Arguments

phi — Sampled parameter values

matrix

Sampled parameter values, returned as a matrix of size S-by-P, where S is the number of groups specified in ds or specified by n and P is the number of parameters which is equal to the number of elements in covexpr.

covmodel — Covariate model

CovariateModel object

Covariate model, returned as a CovariateModel object which represents the model defined by covexpr.

References

[1] Grasela Jr, T.H., Donn, S.M. (1985) Neonatal population pharmacokinetics of phenobarbital derived from routine clinical data. Dev Pharmacol Ther. 8(6), 374–83.

Version History

Introduced in R2014a

R2022b: Covariate data no longer requires group column

The covariate data (the ds input argument) no longer requires a group column that specifies the group labels.

R2018b: Support for numeric vector and matrix inputs for fixed and random effects will be removed

Support for specifying a numeric vector for the fixed effects (thetas) or a matrix for the covariance matrix of random effects (omega) will be removed in a future release. Use a table instead.
