Sample error based on error model and add noise to simulation data

adds
noise to the simulation data `sdN`

= sbiosampleerror(`sd`

,`errormodel`

,`errorparam`

)`sd`

using one or
more error models `errormodel`

and error parameters `errorparam`

.

This example adds noise (or error) to the simulation data from a radioactive decay model with the first-order reaction: $$\frac{dz}{dt}=c\cdot x$$, where `x`

and `z`

are species and `c`

is the forward rate constant.

Load the sample project containing the radiodecay model `m1`

.

`sbioloadproject radiodecay;`

Simulate the model.

[t,sd,names] = sbiosimulate(m1);

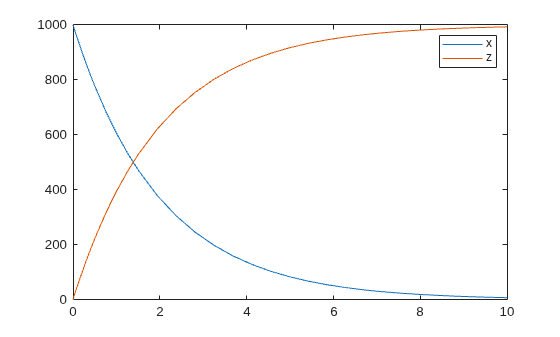

Plot the simulation results.

plot(t,sd); legend(names,'AutoUpdate','off'); hold on

Add noise to the simulation results using the constant error model with the error parameter set to 20.

`sdNoisy = sbiosampleerror(sd,'constant',20);`

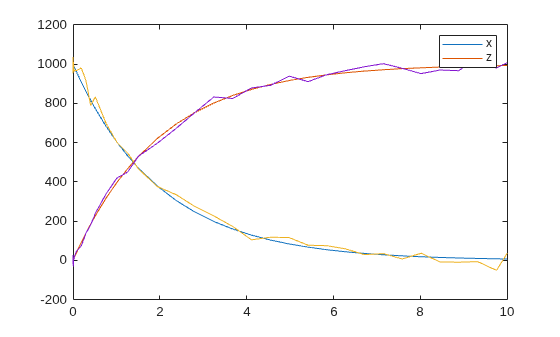

Plot the noisy simulation data.

plot(t,sdNoisy);

This example defines a custom error model using a function handle and adds noise to simulation data of a radioactive decay model with the first-order reaction , where `x`

and `z`

are species, and `c`

is the forward rate constant.

Load the sample project containing the radiodecay model `m1`

.

```
sbioloadproject radiodecay;
```

Suppose you have a simple custom error model with a standard mean-zero and unit-variance (Gaussian) normal variable `e`

, simulation results `f`

, and two parameters `p1`

and `p2`

:

Define a function handle that represents the error model.

em = @(y,p1,p2) y+p1+p2*randn(size(y));

Simulate the model.

[t,sd,names] = sbiosimulate(m1);

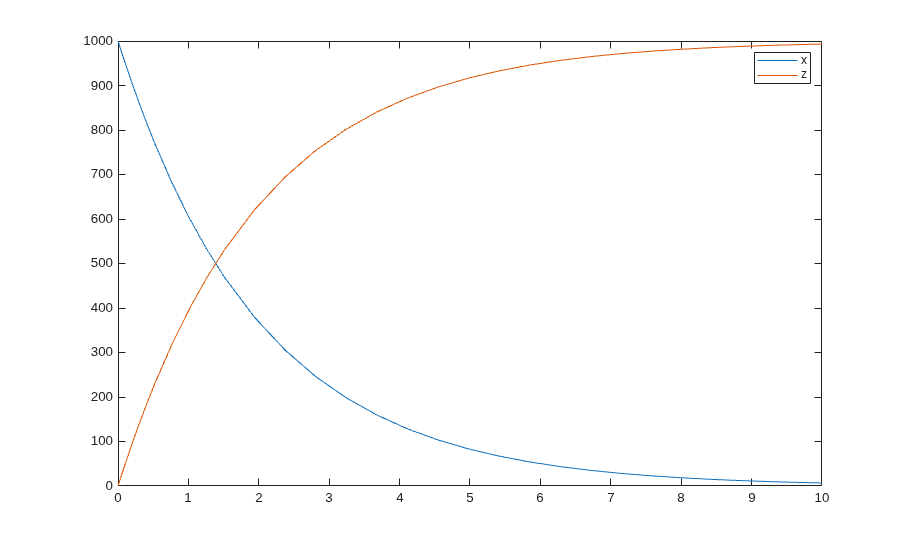

Plot the simulation results and hold the plot.

plot(t,sd); legend(names,'AutoUpdate','off'); hold on

Sample the error using the previously defined custom function with two parameters set to 0.5 and 30, respectively.

sdNoisy = sbiosampleerror(sd,em,{0.5,30});

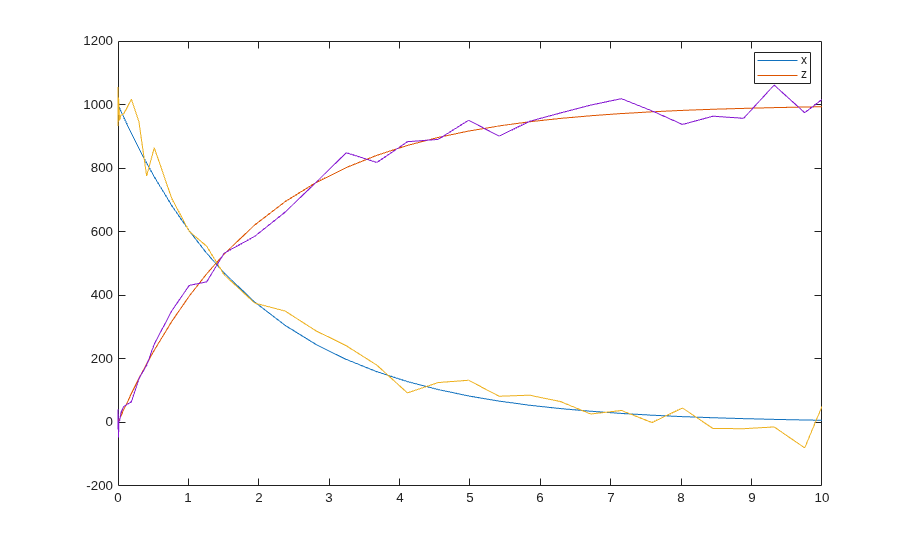

Plot the noisy simulation data.

plot(t,sdNoisy);

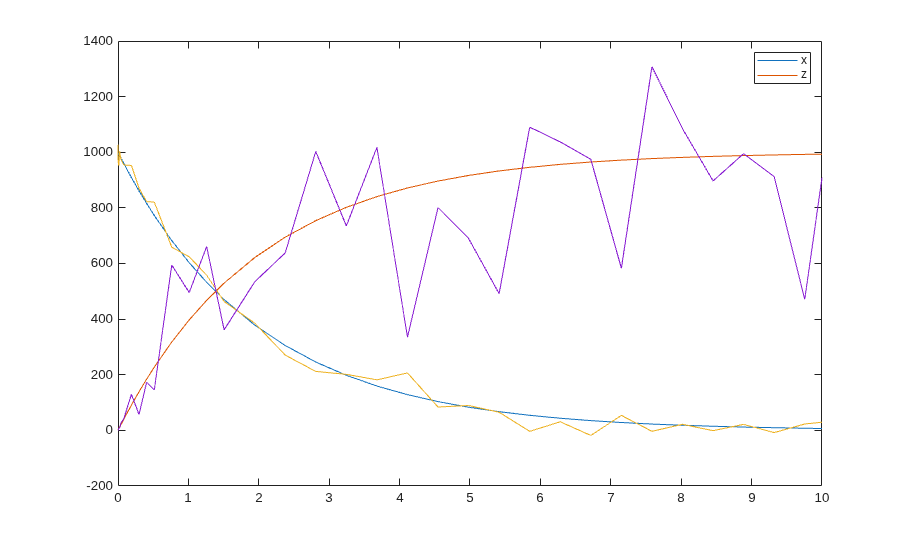

You can also apply a different error model to each state, which is a column in `sd`

. Suppose you want to apply the custom error model (`em`

) to the first column (species `x`

data) and the proportional error model to the second column (species `z`

data).

hold off sdNoisy = sbiosampleerror(sd,{em,'proportional'},{{0.5,30},0.3}); plot(t,sd); legend(names,'AutoUpdate','off'); hold on plot(t,sdNoisy);

`sd`

— Simulation results`SimData object`

| matrixSimulation results, specified as a ```
SimData
object
```

or matrix.

`errormodel`

— Error modelcharacter vector | string | function handle | string vector | cell array of character vectors

Error model(s), specified as a character vector, string, function handle, string vector, cell array of character vectors, or cell array containing a mixture of character vectors and function handles.

If it is a string vector or cell array, its length must match the number of columns
(responses) in `sd`

, and each error model is applied to
the corresponding column in `sd`

. If it is a single
character vector, string, or function handle, the same error model is
applied to all columns in `sd`

.

The first argument of a function handle must be a matrix of
simulation results. The subsequent arguments are the parameters of
the error model supplied in the `errorparam`

input
argument. The output of the function handle must be a matrix of the
same size as the first input argument (simulation results).

For example, suppose you have a custom error model with a standard
mean-zero and unit-variance (Gaussian) normal variable *e*,
simulation results *f*, and two parameters *p1* and *p2*: $$y=f+p1+p2\ast e$$. You can define the corresponding
function handle as follows.

em = @(y,p1,p2) y+p1+p2*randn(size(y));

`y`

is
the matrix of simulation results and `p1`

and `p2`

are
the error parameters. The output of the function handle must be the
same size as `y`

, which is the same as the simulation
results specified in the `sd`

input argument. The
parameters `p1`

and `p2`

are specified
in the `errorparam`

argument.
There are four built-in error models. Each model defines the
error using a standard mean-zero and unit-variance (Gaussian) variable *e*,
simulation results *f*, and one or two parameters *a* and *b*.
The models are:

`'constant'`

: $$y=f+ae$$`'proportional'`

: $$y=f+b\left|f\right|e$$`'combined'`

: $$y=f+(a+b\left|f\right|)e$$`'exponential'`

: $$y=f\ast \mathrm{exp}(ae)$$

`errorparam`

— Error model parameterscalar | vector | cell array

Error model parameter(s), specified as a scalar, vector, or
cell array. If `errormodel`

is `'constant'`

, `'proportional'`

,
or `'exponential'`

, then `errorparam`

is
specified as a numeric scalar. If it is `'combined'`

,
then `errorparam`

is specified as a row vector
with two elements `[a b]`

.

If `errormodel`

is a cell array, then `errorparam`

must
be a cell array of the same length. In other words, `errorparam`

must
contain N elements, where N is the number of error models in `errormodel`

.
Each element must have the correct number of parameters for the corresponding
error model.

For example, suppose you have three columns in `sd`

,
and you are applying a different error model (`constant`

, `proportional`

,
and `exponential`

error models with error parameters
0.1, 2, and 0.5, respectively) to each column, then `errormodel`

and `errorparam`

must
be cell arrays with three elements as follows.

errormodel = {'constant','proportional','exponential'}; errorparam = {0.1,2,0.5};

`sdN`

— Simulation results with added noisevector of SimData objects | matrix

Simulation results with added noise, returned as a vector of `SimData`

objects
or numeric matrix. If `sd`

is a vector of `SimData`

objects, `sdN`

is
also a vector of `SimData`

objects, and the error
is added to each column in the `sd.Data`

property.
If `sd`

is specified as a matrix, `sdN`

is
a matrix, and the error is added to each column in the matrix.

`SimFunction object`

| `createSimFunction`

| `sbiosampleparameters`
