# findpeaks

Find local maxima

## Syntax

## Description

returns a vector with the local maxima (peaks) of the input signal vector,
`pks`

= findpeaks(`data`

)`data`

. A *local peak* is a data
sample that is either larger than its two neighboring samples or is equal to
`Inf`

. The peaks are output in order of occurrence.
Non-`Inf`

signal endpoints are excluded. If a peak is flat,
the function returns only the point with the lowest index.

`[___] = findpeaks(___,`

specifies options using name-value arguments in addition to any of the input
arguments in previous syntaxes.`Name,Value`

)

`findpeaks(___)`

without output
arguments plots the signal and overlays the peak values.

## Examples

### Find Peaks in a Vector

Define a vector with three peaks and plot it.

data = [25 8 15 5 6 10 10 3 1 20 7]; plot(data)

Find the local maxima. The peaks are output in order of occurrence. The first sample is not included despite being the maximum. For the flat peak, the function returns only the point with lowest index.

pks = findpeaks(data)

`pks = `*1×3*
15 10 20

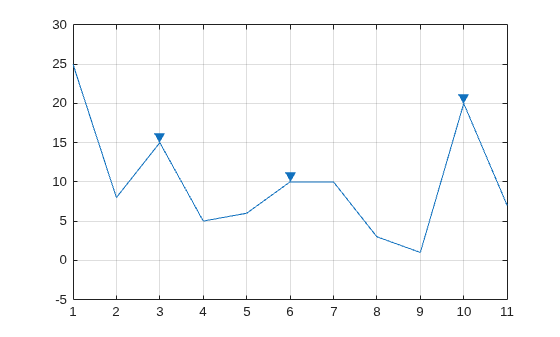

Use `findpeaks`

without output arguments to display the peaks.

findpeaks(data)

### Find Peaks and Their Locations

Create a signal that consists of a sum of bell curves. Specify the location, height, and width of each curve.

x = linspace(0,1,1000); Pos = [1 2 3 5 7 8]/10; Hgt = [3 4 4 2 2 3]; Wdt = [2 6 3 3 4 6]/100; for n = 1:length(Pos) Gauss(n,:) = Hgt(n)*exp(-((x - Pos(n))/Wdt(n)).^2); end PeakSig = sum(Gauss);

Plot the individual curves and their sum.

`plot(x,Gauss,'--',x,PeakSig)`

Use `findpeaks`

with default settings to find the peaks of the signal and their locations.

[pks,locs] = findpeaks(PeakSig,x);

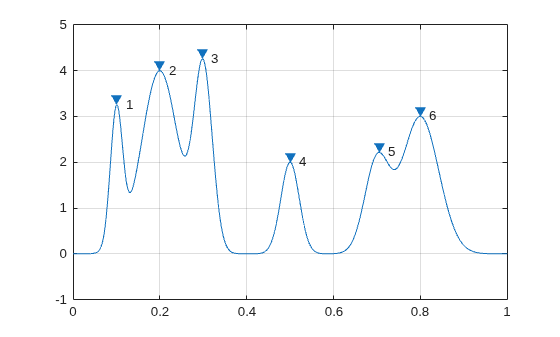

Plot the peaks using `findpeaks`

and label them.

findpeaks(PeakSig,x) text(locs+.02,pks,num2str((1:numel(pks))'))

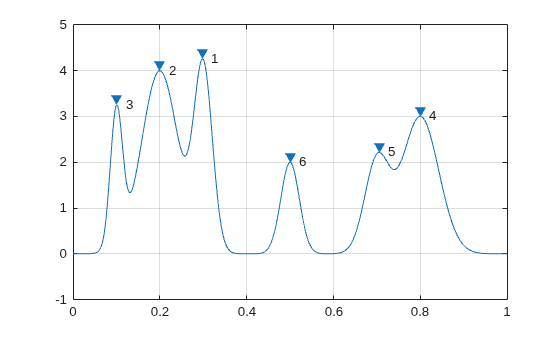

Sort the peaks from tallest to shortest.

[psor,lsor] = findpeaks(PeakSig,x,'SortStr','descend'); findpeaks(PeakSig,x) text(lsor+.02,psor,num2str((1:numel(psor))'))

### Peak Prominences

Create a signal that consists of a sum of bell curves riding on a full period of a cosine. Specify the location, height, and width of each curve.

x = linspace(0,1,1000); base = 4*cos(2*pi*x); Pos = [1 2 3 5 7 8]/10; Hgt = [3 7 5 5 4 5]; Wdt = [1 3 3 4 2 3]/100; for n = 1:length(Pos) Gauss(n,:) = Hgt(n)*exp(-((x - Pos(n))/Wdt(n)).^2); end PeakSig = sum(Gauss)+base;

Plot the individual curves and their sum.

`plot(x,Gauss,'--',x,PeakSig,x,base)`

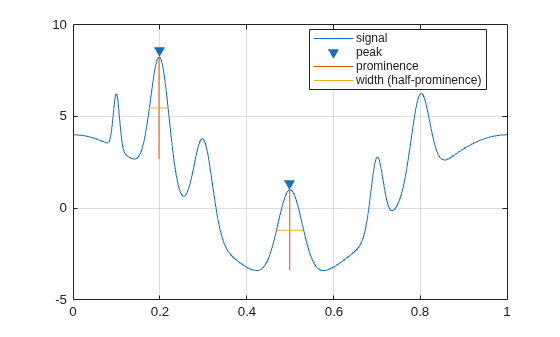

Use `findpeaks`

to locate and plot the peaks that have a prominence of at least 4.

findpeaks(PeakSig,x,'MinPeakProminence',4,'Annotate','extents')

The highest and lowest peaks are the only ones that satisfy the condition.

Display the prominences and the widths at half prominence of all the peaks.

[pks,locs,widths,proms] = findpeaks(PeakSig,x); widths

`widths = `*1×6*
0.0154 0.0431 0.0377 0.0625 0.0274 0.0409

proms

`proms = `*1×6*
2.6816 5.5773 3.1448 4.4171 2.9191 3.6363

### Find Peaks with Minimum Separation

Sunspots are a cyclic phenomenon. Their number is known to peak roughly every 11 years.

Load the file `sunspot.dat`

, which contains the average number of sunspots observed every year from 1700 to 1987. Find and plot the maxima.

```
load sunspot.dat
year = sunspot(:,1);
avSpots = sunspot(:,2);

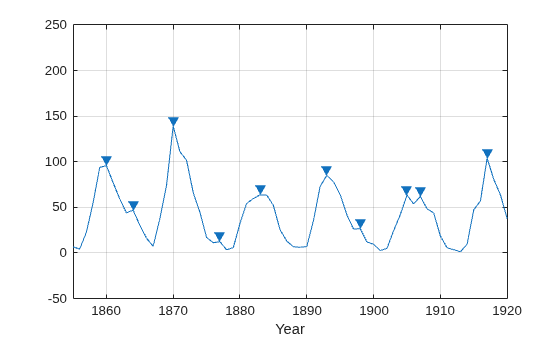

findpeaks(avSpots,year)
```

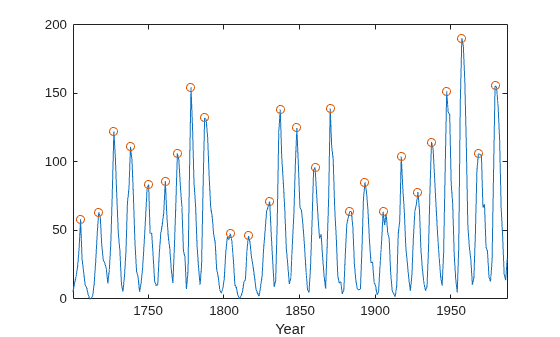

Improve your estimate of the cycle duration by ignoring peaks that are very close to each other. Find and plot the peaks again, but now restrict the acceptable peak-to-peak separations to values greater than six years.

`findpeaks(avSpots,year,'MinPeakDistance',6)`

Use the peak locations returned by `findpeaks`

to compute the mean interval between maxima.

```
[pks,locs] = findpeaks(avSpots,year,'MinPeakDistance',6);
meanCycle = mean(diff(locs))
```

meanCycle = 10.9600

Create a `datetime`

array using the year data. Assume the sunspots were counted every year on March 20th, close to the vernal equinox. Find the peak sunspot years. Use the `years`

function to specify the minimum peak separation as a `duration`

.

ty = datetime(year,3,20); [pk,lk] = findpeaks(avSpots,ty,'MinPeakDistance',years(6)); plot(ty,avSpots,lk,pk,'o')

Compute the mean sunspot cycle using `datetime`

functionality.

dttmCycle = years(mean(diff(lk)))

dttmCycle = 10.9600

Create a timetable with the data. Specify the time variable in years. Plot the data. Show the last five entries of the timetable.

TT = timetable(years(year),avSpots); plot(TT.Time,TT.Variables)

entries = TT(end-4:end,:)

`entries=`*5×1 timetable*
Time avSpots
________ _______
1983 yrs 66.6
1984 yrs 45.9
1985 yrs 17.9
1986 yrs 13.4
1987 yrs 29.3

### Constrain Peak Features

Load an audio signal sampled at 7418 Hz. Select 200 samples.

```
load mtlb
select = mtlb(1001:1200);
```

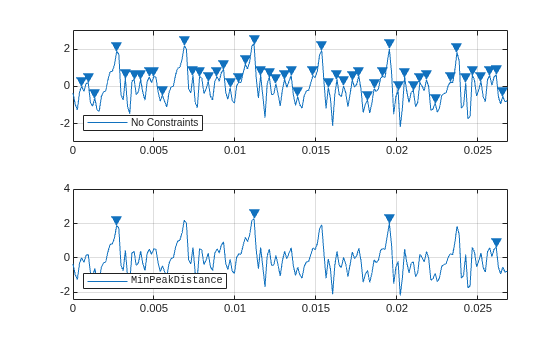

Find the peaks that are separated by at least 5 ms.

To apply this constraint, `findpeaks`

chooses the tallest peak in the signal and eliminates all peaks within 5 ms of it. The function then repeats the procedure for the tallest remaining peak and iterates until it runs out of peaks to consider.

`findpeaks(select,Fs,'MinPeakDistance',0.005)`

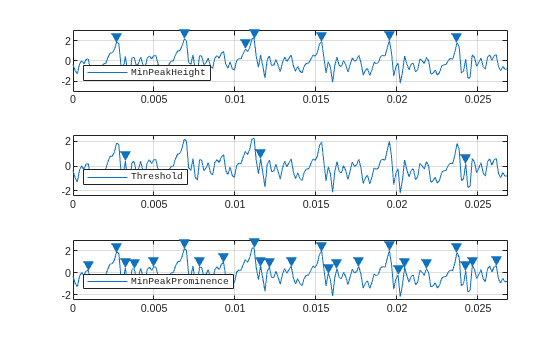

Find the peaks that have an amplitude of at least 1 V.

`findpeaks(select,Fs,'MinPeakHeight',1)`

Find the peaks that are at least 1 V higher than their neighboring samples.

`findpeaks(select,Fs,'Threshold',1)`

Find the peaks that drop at least 1 V on either side before the signal attains a higher value.

`findpeaks(select,Fs,'MinPeakProminence',1)`

### Peaks of Saturated Signal

Sensors can return clipped readings if the data are larger than a given saturation point. You can choose to disregard these peaks as meaningless or incorporate them to your analysis.

Generate a signal that consists of a product of trigonometric functions of frequencies 5 Hz and 3 Hz embedded in white Gaussian noise of variance 0.1². The signal is sampled for one second at a rate of 100 Hz. Reset the random number generator for reproducible results.

```
rng default
fs = 1e2;
t = 0:1/fs:1-1/fs;
s = sin(2*pi*5*t).*sin(2*pi*3*t)+randn(size(t))/10;
```

Simulate a saturated measurement by truncating every reading that is greater than a specified bound of 0.32. Plot the saturated signal.

```
bnd = 0.32;
s(s>bnd) = bnd;
plot(t,s)
xlabel('Time (s)')
```

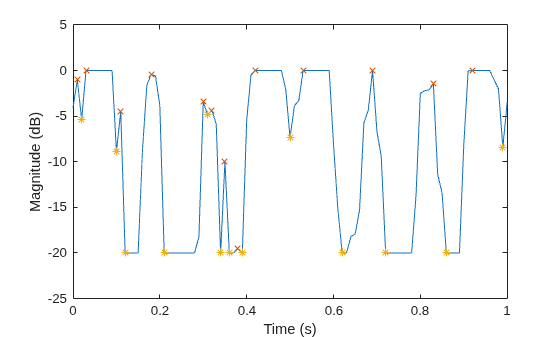

Locate the peaks of the signal. `findpeaks`

reports only the rising edge of each flat peak.

[pk,lc] = findpeaks(s,t); hold on plot(lc,pk,'x')

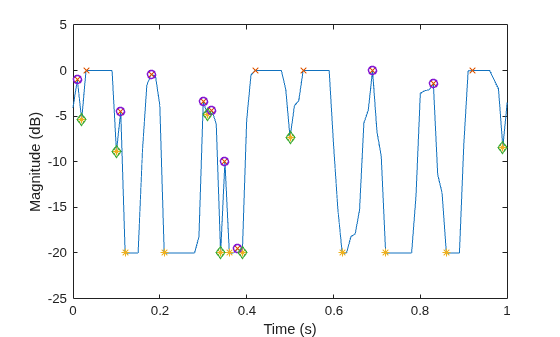

Use the `'Threshold'`

name-value pair to exclude the flat peaks. Require a minimum amplitude difference of $$1{0}^{-4}$$ between a peak and its neighbors.

[pkt,lct] = findpeaks(s,t,'Threshold',1e-4); plot(lct,pkt,'o','MarkerSize',12)

### Determine Peak Widths

Create a signal that consists of a sum of bell curves. Specify the location, height, and width of each curve.

x = linspace(0,1,1000); Pos = [1 2 3 5 7 8]/10; Hgt = [4 4 2 2 2 3]; Wdt = [3 8 4 3 4 6]/100; for n = 1:length(Pos) Gauss(n,:) = Hgt(n)*exp(-((x - Pos(n))/Wdt(n)).^2); end PeakSig = sum(Gauss);

Plot the individual curves and their sum.

```
plot(x,Gauss,'--',x,PeakSig)
grid
```

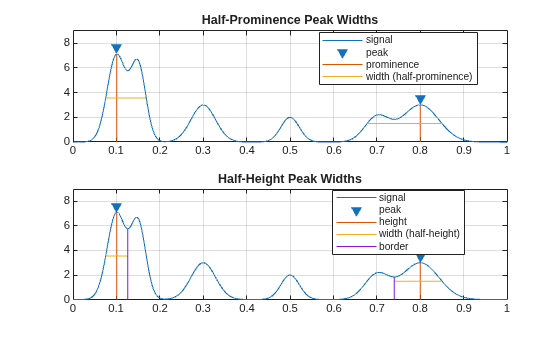

Measure the widths of the peaks using the half prominence as reference.

findpeaks(PeakSig,x,'Annotate','extents')

Measure the widths again, this time using the half height as reference.

findpeaks(PeakSig,x,'Annotate','extents','WidthReference','halfheight') title('Signal Peak Widths')

## Input Arguments

`data`

— Input data

vector

Input data, specified as a vector. `data`

must
be real and must have at least three elements.

**Data Types: **`double`

| `single`

`x`

— Locations

vector | `datetime`

array

Locations, specified as a vector or a `datetime`

array. `x`

must
increase monotonically and have the same length as `data`

.
If `x`

is omitted, then the indices of `data`

are
used as locations.

**Data Types: **`double`

| `single`

| `datetime`

`Fs`

— Sample rate

positive scalar

Sample rate, specified as a positive scalar. The sample rate is the number of samples per unit time. If the unit of time is seconds, the sample rate has units of hertz.

**Data Types: **`double`

| `single`

### Name-Value Arguments

Specify optional pairs of arguments as
`Name1=Value1,...,NameN=ValueN`

, where `Name`

is
the argument name and `Value`

is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.

*
Before R2021a, use commas to separate each name and value, and enclose*
`Name`

*in quotes.*

**Example: **`'SortStr','descend','NPeaks',3`

finds
the three tallest peaks of the signal.

`NPeaks`

— Maximum number of peaks

positive integer scalar

Maximum number of peaks to return, specified as a positive integer scalar.
`findpeaks`

operates from the first element of the
input data and terminates when the number of peaks reaches the value of
`'NPeaks'`

.

**Data Types: **`double`

| `single`

`SortStr`

— Peak sorting

`'none'`

(default) | `'ascend'`

| `'descend'`

Peak sorting, specified as one of these values:

`'none'`

returns the peaks in the order in which they occur in the input data.`'ascend'`

returns the peaks in ascending or increasing order, from the smallest to the largest value.`'descend'`

returns the peaks in descending order, from the largest to the smallest value.

`MinPeakHeight`

— Minimum peak height

`-Inf`

(default) | real scalar

Minimum peak height, specified as a real scalar. Use this argument to have
`findpeaks`

return only those peaks higher than
`'MinPeakHeight'`

. Specifying a minimum peak height
can reduce processing time.

**Data Types: **`double`

| `single`

`MinPeakProminence`

— Minimum peak prominence

0 (default) | real scalar

Minimum peak prominence, specified as a real scalar. Use this argument to have
`findpeaks`

return only those peaks that have a
relative importance of at least `'MinPeakProminence'`

.
For more information, see Prominence.

**Data Types: **`double`

| `single`

`Threshold`

— Minimum height difference

0 (default) | nonnegative real scalar

Minimum height difference between a peak and its neighbors, specified as a nonnegative real
scalar. Use this argument to have `findpeaks`

return
only those peaks that exceed their immediate neighboring values by at
least the value of `'Threshold'`

.

**Data Types: **`double`

| `single`

`MinPeakDistance`

— Minimum peak separation

0 (default) | positive real scalar

Minimum peak separation, specified as a positive real scalar. When you specify a value for
`'MinPeakDistance'`

, the algorithm chooses the
tallest peak in the signal and ignores all peaks within
`'MinPeakDistance'`

of it. The function then
repeats the procedure for the tallest remaining peak and iterates until
it runs out of peaks to consider.

If you specify a location vector,

`x`

, then`'MinPeakDistance'`

must be expressed in terms of`x`

. If`x`

is a`datetime`

array, then specify`'MinPeakDistance'`

as a`duration`

scalar or as a numeric scalar expressed in days.If you specify a sample rate,

`Fs`

, then`'MinPeakDistance'`

must be expressed in units of time.If you specify neither

`x`

nor`Fs`

, then`'MinPeakDistance'`

must be expressed in units of samples.

Use this argument to have `findpeaks`

ignore small peaks that occur in the neighborhood of a larger
peak.

**Data Types: **`double`

| `single`

| `duration`

`WidthReference`

— Reference height for width measurements

`'halfprom'`

(default) | `'halfheight'`

Reference height for width measurements, specified as either `'halfprom'`

or
`'halfheight'`

. `findpeaks`

estimates the width of a peak as the distance between the points where
the descending signal intercepts a horizontal reference line. The height
of the line is selected using the criterion specified in
`'WidthReference'`

:

`'halfprom'`

positions the reference line beneath the peak at a vertical distance equal to half the peak prominence. See Prominence for more information.`'halfheight'`

positions the reference line at one-half the peak height. The line is truncated if any of its intercept points lie beyond the borders of the peaks selected by setting`'MinPeakHeight'`

,`'MinPeakProminence'`

, and`'Threshold'`

. The border between peaks is defined by the horizontal position of the lowest valley between them. Peaks with height less than zero are discarded.

The locations of the intercept points are computed by linear interpolation.

`MinPeakWidth`

— Minimum peak width

0 (default) | positive real scalar

Minimum peak width, specified as a positive real scalar. Use this argument to select only
those peaks that have widths of at least
`'MinPeakWidth'`

.

If you specify a location vector,

`x`

, then`'MinPeakWidth'`

must be expressed in terms of`x`

. If`x`

is a`datetime`

array, then specify`'MinPeakWidth'`

as a`duration`

scalar or as a numeric scalar expressed in days.If you specify a sample rate,

`Fs`

, then`'MinPeakWidth'`

must be expressed in units of time.If you specify neither

`x`

nor`Fs`

, then`'MinPeakWidth'`

must be expressed in units of samples.

**Data Types: **`double`

| `single`

| `duration`

`MaxPeakWidth`

— Maximum peak width

`Inf`

(default) | positive real scalar

Maximum peak width, specified as a positive real scalar. Use this argument to select only
those peaks that have widths of at most
`'MaxPeakWidth'`

.

If you specify a location vector,

`x`

, then`'MaxPeakWidth'`

must be expressed in terms of`x`

. If`x`

is a`datetime`

array, then specify`'MaxPeakWidth'`

as a`duration`

scalar or as a numeric scalar expressed in days.If you specify a sample rate,

`Fs`

, then`'MaxPeakWidth'`

must be expressed in units of time.If you specify neither

`x`

nor`Fs`

, then`'MaxPeakWidth'`

must be expressed in units of samples.

**Data Types: **`double`

| `single`

| `duration`

`Annotate`

— Plot style

`'peaks'`

(default) | `'extents'`

Plot style, specified as one of these values:

`'peaks'`

plots the signal and annotates the location and value of every peak.`'extents'`

plots the signal and annotates the location, value, width, and prominence of every peak.

This argument is ignored if you call `findpeaks`

with
output arguments.

## Output Arguments

`pks`

— Local maxima

vector

Local maxima, returned as a vector of signal values. If there
are no local maxima, then `pks`

is empty.

`locs`

— Peak locations

vector

Peak locations, returned as a vector.

If you specify a location vector,

`x`

, then`locs`

contains the values of`x`

at the peak indices.If you specify a sample rate,

`Fs`

, then`locs`

is a numeric vector of time instants with a time difference of 1/`Fs`

between consecutive samples.If you specify neither

`x`

nor`Fs`

, then`locs`

is a vector of integer indices.

`w`

— Peak widths

vector

Peak widths, returned as a vector of real numbers. The width
of each peak is computed as the distance between the points to the
left and right of the peak where the signal intercepts a reference
line whose height is specified by `WidthReference`

.
The points themselves are found by linear interpolation.

`p`

— Peak prominences

vector

Peak prominences, returned as a vector of real numbers. The prominence of a peak is the minimum vertical distance that the signal must descend on either side of the peak before either climbing back to a level higher than the peak or reaching an endpoint. See Prominence for more information.

## More About

### Prominence

The *prominence* of a peak
measures how much the peak stands out due to its intrinsic height
and its location relative to other peaks. A low isolated peak can
be more prominent than one that is higher but is an otherwise unremarkable
member of a tall range.

To measure the prominence of a peak:

Place a marker on the peak.

Extend a horizontal line from the peak to the left and right until the line does one of the following:

Crosses the signal because there is a higher peak

Reaches the left or right end of the signal

Find the minimum of the signal in each of the two intervals defined in Step 2. This point is either a valley or one of the signal endpoints.

The higher of the two interval minima specifies the reference level. The height of the peak above this level is its prominence.

`findpeaks`

makes no assumption about the behavior of the signal beyond its
endpoints, whatever their height. As a result, Steps 2 and 4 disregard signal
behavior beyond endpoints, which often affects the value of the reference level.
Consider for example the peaks of this signal:

Peak Number | Left Interval Lies Between Peak and | Right Interval Lies Between Peak and | Lowest Point on the Left Interval | Lowest Point on the Right Interval | Reference Level (Highest Minimum) |
---|---|---|---|---|---|

1 | Left end | Crossing due to peak 2 | Left endpoint | a | a |

2 | Left end | Right end | Left endpoint | h | Left endpoint |

3 | Crossing due to peak 2 | Crossing due to peak 4 | b | c | c |

4 | Crossing due to peak 2 | Crossing due to peak 6 | b | d | b |

5 | Crossing due to peak 4 | Crossing due to peak 6 | d | e | e |

6 | Crossing due to peak 2 | Right end | d | h | d |

7 | Crossing due to peak 6 | Crossing due to peak 8 | f | g | g |

8 | Crossing due to peak 6 | Right end | f | h | f |

9 | Crossing due to peak 8 | Crossing due to right endpoint | h | i | i |

## Extended Capabilities

### C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

### GPU Arrays

Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

This function fully supports GPU arrays. For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).

## Version History

**Introduced in R2007b**

## See Also

`fminbnd`

| `fminsearch`

| `fzero`

| `islocalmax`

| `islocalmin`

| `max`

## Open Example

You have a modified version of this example. Do you want to open this example with your edits?

## MATLAB Command

You clicked a link that corresponds to this MATLAB command:

Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.

Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
