constraintDistanceBounds

Constrain body within distance bounds of reference body

Since R2022a

Description

The constraintDistanceBounds object describes a constraint on the distance of one body (the end effector) relative to another body (the reference body) within the same rigidBodyTree. This constraint is satisfied if the distance, d, of the end effector origin relative to the reference body origin frame is within the specified bounds.

Creation

Syntax

distConst = constraintDistanceBounds(endeffector)

distConst = constraintDistanceBounds(endeffector,Name=Value)

Description

distConst = constraintDistanceBounds(endeffector) returns a distance bounds constraint object, distConst, that represents a constraint on distance between the specified endeffector and the reference body specified by the ReferenceBody property.

distConst = constraintDistanceBounds(endeffector,Name=Value) specifies properties using one or more name-value arguments.

Properties

EndEffector — Name of end effector

string scalar | character vector

Name of the end effector, specified as a string scalar or character vector. When using this constraint with a generalizedInverseKinematics solver, the name must match a body specified in the associated RigidBodyTree robot model.

Example: "left_palm"

Data Types: char | string

EndEffector — Name of end effector body or frame

string scalar | character vector

Name of the end effector body or frame, specified as a string scalar or character vector. When using this constraint with generalizedInverseKinematics, the name must match a body or frame specified in the robot model (rigidBodyTree).

Example: "left_palm"

Data Types: char | string

ReferenceBody — Name of reference body or frame

'' (default) | string scalar | character vector

Name of the reference body or frame, specified as a string scalar or character vector. The default '' indicates that the constraint is relative to the base of the robot model. When using this constraint with generalizedInverseKinematics, the name must match a body or frame specified in the robot model (rigidBodyTree).

Example: "base"

Data Types: char | string

Bounds — Distance bounds

[0 0] (default) | two-element row vector

Lower and upper distance bounds imposed on the end effector from the reference body, specified as a two-element row vector of the form [minimum maximum].

Example: [1 3]

Weights — Weight of constraint

1 (default) | nonnegative numeric scalar

Weight of the constraint, specified as a numeric scalar. This weight is used with the Weights property of all the constraints specified in generalizedInverseKinematics solver to properly balance each constraint.

Example: 2

Examples

Create Distance Bounds Constraint

Create a constraintDistanceBounds object and observe its effect on an inverse kinematics solution.

Load Robot and Set Up Solver

Load a Universal UR5e robot into the workspace, and create a generalized inverse kinematics solver.

rng default;
robot = loadrobot("universalUR5e",DataFormat="column");
gik = generalizedInverseKinematics("RigidBodyTree",robot);

Set the constraint inputs distance for a distance bounds constraint, and position for the target constraint.

gik.ConstraintInputs = {'distance','position'};
gik.SolverParameters.MaxIterations = 100;

Create Distance Bounds Constraint

Create Distance Bounds constraint to constrain the origin of the end effector body, tool0, relative to the origin of the reference frame, base.

constrDist = constraintDistanceBounds("tool0",ReferenceBody="base");

Set the minimum distance between two bodies to 0.25 meters, and the maximum distance to 0.5 meters. This constraint prevents the inverse kinematics solver from solving for a configuration that violates the bounds.

minDist = 0.25;
maxDist = 0.5;
constrDist.Bounds = [minDist maxDist];

Constrain the first wrist link, wrist_1_link, to a target position to add some complexity.

forearmTgt = constraintPositionTarget('wrist_1_link');
forearmTgt.TargetPosition = [0.0 0.25 0.25];

Visualize Constraint

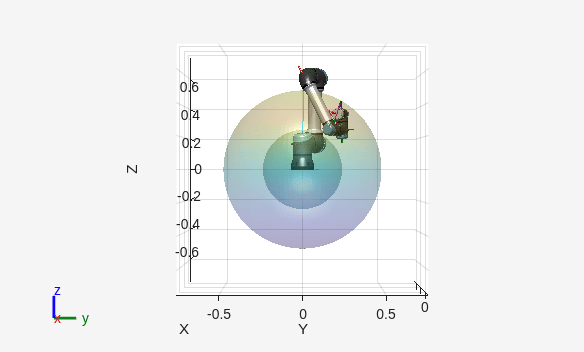

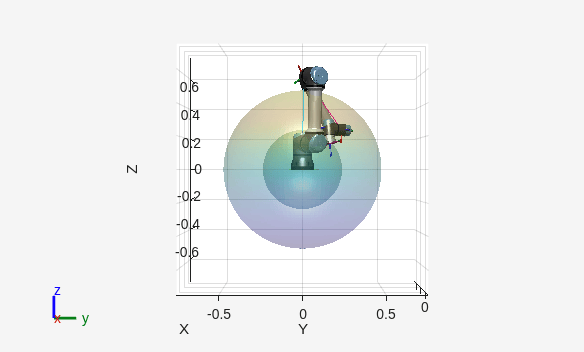

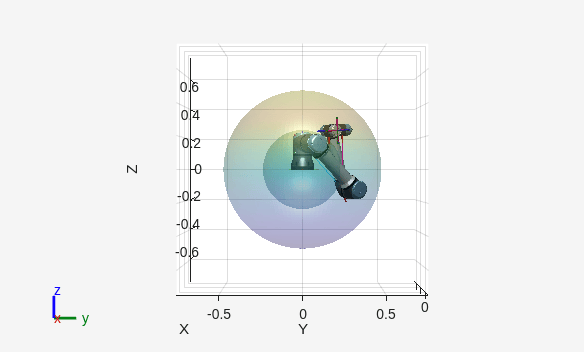

Run the solver through three random configurations, using the constraints, and then display the solver status. Each iteration, the solver finds a solution where the distance of the end effector is either equal to or within the specified bounds. Visualize the bounds by using the exampleHelperVisualizeBounds helper function to plot the distance bounds as two transparent spheres.

for i = 1:3
    figure
    q0 = randomConfiguration(robot); % Initial guess for solver
    [q,solutionInfo] = gik(q0,constrDist,forearmTgt);
    show(robot,q);
    view(90,0)
    hold on
    exampleHelperVisualizeBounds(minDist,maxDist)
    hold off
    eeDist = norm(tform2trvec(getTransform(robot,q,"tool0")));
    display(["Solver Status: ",solutionInfo.Status])
    display(["End Effector Distance: ",num2str(eeDist)])
end

  1×2 string array

    "Solver Status: "    "success"

  1×2 string array

    "End Effector Distance: "    "0.48425"

  1×2 string array

    "Solver Status: "    "success"

  1×2 string array

    "End Effector Distance: "    "0.29671"

  1×2 string array

    "Solver Status: "    "success"

  1×2 string array

    "End Effector Distance: "    "0.48713"

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Version History

Introduced in R2022a

R2025a: Specify frame name in constraintDistanceBounds object

The constraintDistanceBounds object now accepts either a body name or frame name as input in the EndEffector and ReferenceBody properties.
