specifyCoefficients
Specify coefficients in PDE model
Syntax
Description
Examples
Specify Poisson's Equation
Specify the coefficients for Poisson's equation .
solvepde
addresses equations of the form
.
Therefore, the coefficients for Poisson's equation are , , , , . Include these coefficients in a PDE model of the L-shaped membrane.
model = createpde(); geometryFromEdges(model,@lshapeg); specifyCoefficients(model,"m",0,... "d",0,... "c",1,... "a",0,... "f",1);
Specify zero Dirichlet boundary conditions, mesh the model, and solve the PDE.
applyBoundaryCondition(model,"dirichlet", ... "Edge",1:model.Geometry.NumEdges, ... "u",0); generateMesh(model,"Hmax",0.25); results = solvepde(model);

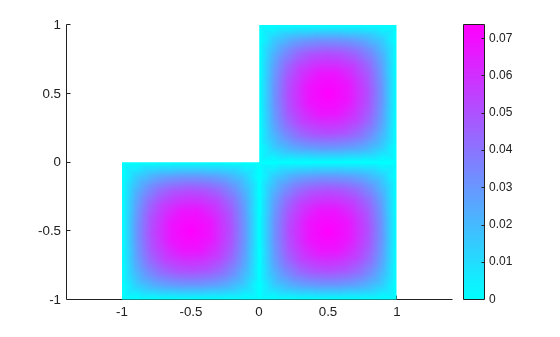

View the solution.
pdeplot(model,"XYData",results.NodalSolution)
Coefficient Handle for Nonconstant Coefficients
Specify coefficients for Poisson's equation in 3-D with a nonconstant source term, and obtain the coefficient object.
The equation coefficients are , , , . For the nonconstant source term, take .
f = @(location,state)location.y.^2.*tanh(location.z)/1000;
Set the coefficients in a 3-D rectangular block geometry.
model = createpde(); importGeometry(model,"Block.stl"); CA = specifyCoefficients(model,"m",0,... "d",0,... "c",1,... "a",0,... "f",f)
CA = CoefficientAssignment with properties: RegionType: 'cell' RegionID: 1 m: 0 d: 0 c: 1 a: 0 f: @(location,state)location.y.^2.*tanh(location.z)/1000
Set zero Dirichlet conditions on face 1, mesh the geometry, and solve the PDE.
applyBoundaryCondition(model,"dirichlet","Face",1,"u",0); generateMesh(model); results = solvepde(model);

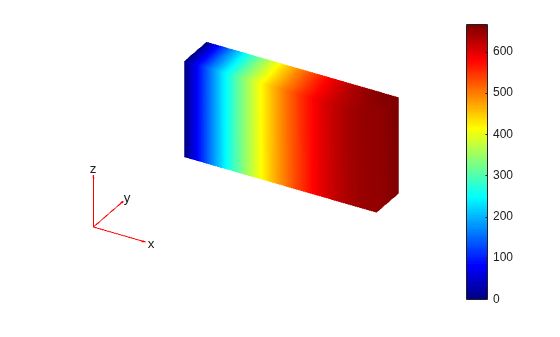

View the solution on the surface.
pdeplot3D(model,"ColorMapData",results.NodalSolution)
Specify Coefficients Depending on Subdomain
Create a scalar PDE model with the L-shaped membrane as the geometry. Plot the geometry and subdomain labels.
model = createpde(); geometryFromEdges(model,@lshapeg); pdegplot(model,"FaceLabels","on") axis equal ylim([-1.1,1.1])
Set the c
coefficient to 1 in all domains, but the f
coefficient to 1 in subdomain 1, 5 in subdomain 2, and -8 in subdomain 3. Set all other coefficients to 0.
specifyCoefficients(model,"m",0,"d",0,"c",1,"a",0,"f",1,"Face",1); specifyCoefficients(model,"m",0,"d",0,"c",1,"a",0,"f",5,"Face",2); specifyCoefficients(model,"m",0,"d",0,"c",1,"a",0,"f",-8,"Face",3);

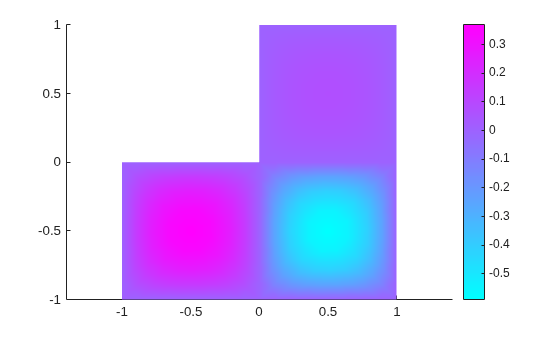

Set zero Dirichlet boundary conditions to all edges. Create a mesh, solve the PDE, and plot the result.
applyBoundaryCondition(model,"dirichlet", ... "Edge",1:model.Geometry.NumEdges, ... "u",0); generateMesh(model,"Hmax",0.25); results = solvepde(model); pdeplot(model,"XYData",results.NodalSolution)
Damped Cantilever Beam
Perform transient analysis of a simple cantilever beam with and without damping. To include damping in the analysis, specify nonzero m
and d
coefficients.
Create a geometry representing a cantilever beam. The beam is 5 inches long and 0.1 inch thick.
height = 0.1; width = 5; gm = [3;4;0;width;width;0;0;0;height;height]; g = decsg(gm,'S1',('S1')');
Create a PDEModel
object with two independent variables, and include a geometry in the model.
model = createpde(2); geometryFromEdges(model,g);

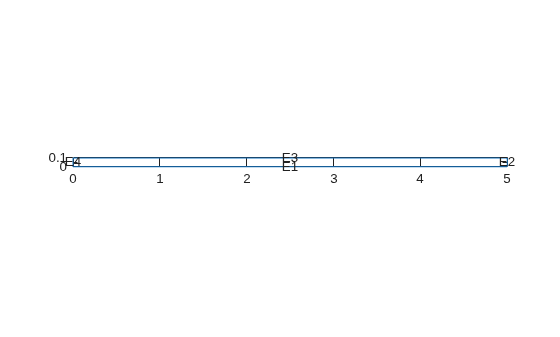

Plot the geometry with edge labels.
pdegplot(model,EdgeLabels="on")
Specify that the left edge of the beam is a fixed boundary.
applyBoundaryCondition(model,"dirichlet",Edge=4,u=[0,0]);
Specify Young's modulus, Poisson's ratio, and the mass density of the beam assuming that it is made of steel.
E = 3.0e7; nu = 0.3; rho = 0.3/386;
Specify the PDE coefficients for the undamped model by setting the d
coefficient to 0.
G = E/(2.*(1+nu)); mu = 2.0*G*nu/(1-nu); specifyCoefficients(model, ... m=rho, ... d=0, ... c=[2*G+mu;0;G;0;G;mu;0;G;0;2*G+mu], ... a=0, ... f=[0;0]);
Set the initial displacement to and the initial velocity to (0; 0).
setInitialConditions(model,@(location) location.x.^2.*[0;0.0001],[0;0]);
Generate a mesh and solve the problem.
generateMesh(model); tlist = 0:0.25/1000:0.25; tres = solvepde(model,tlist);

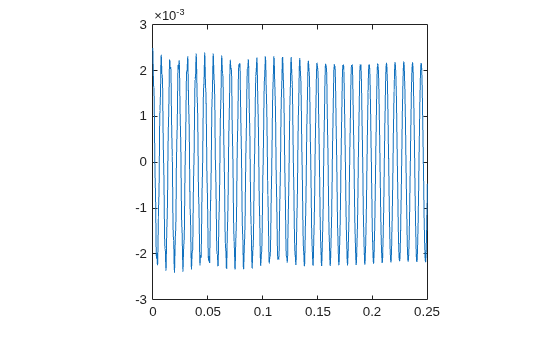

Plot the undamped solution.
uu = tres.NodalSolution; utip = uu(2,2,:); plot(tlist,utip(:))
Obtain assembled mass and stiffness matrices by calling assembleFEMatrices
.
fem = assembleFEMatrices(model);
Now specify the coefficients for the beam model with Rayleigh damping. The d
coefficient represents the damping matrix. The d
coefficient is a linear combination of the mass matrix fem.M
and the stiffness matrix fem.K
.
alpha = 10; beta = 0; dampmat = alpha*fem.M + beta*fem.K; specifyCoefficients(model, ... m=rho, ... d=dampmat, ... c=[2*G+mu;0;G;0;G;mu;0;G;0;2*G+mu], ... a=0, ... f=[0;0]);

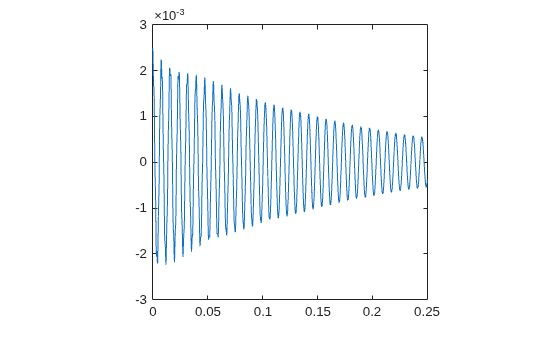

Solve the problem and plot the damped solution.
tres = solvepde(model,tlist); uu = tres.NodalSolution; utip = uu(2,2,:); plot(tlist,utip(:))
Input Arguments
model
— PDE model
PDEModel
object
PDE model, specified as a PDEModel
object.
Example: model = createpde
m
— Second-order time derivative coefficient
scalar | column vector | function handle
Second-order time derivative coefficient, specified as a scalar, column vector, or function handle. For details on the sizes, and for details of the function handle form of the coefficient, see m, d, or a Coefficient for specifyCoefficients.
Specify 0 on the entire geometry if the term is not part of your problem. If this coefficient is zero in one subdomain of the geometry, it must be zero on the entire geometry.
Example: specifyCoefficients("m",@mcoef,"d",0,"c",1,"a",0,"f",1,"Face",1:4)
Data Types: double
| function_handle
Complex Number Support: Yes
d
— First-order time derivative coefficient
scalar | column vector | function handle
First-order time derivative coefficient, specified as a scalar, column vector, or function handle. For details on the sizes, and for details of the function handle form of the coefficient, see m, d, or a Coefficient for specifyCoefficients.
Note
If the m
coefficient is nonzero,
d
must be 0
or a matrix, and
not a function handle. See d Coefficient When m Is Nonzero.
Specify 0 on the entire geometry if the term is not part of your problem. If this coefficient is zero in one subdomain of the geometry, it must be zero on the entire geometry.
Example: specifyCoefficients("m",0,"d",@dcoef,"c",1,"a",0,"f",1,"Face",1:4)
Data Types: double
| function_handle
Complex Number Support: Yes
c
— Second-order space derivative coefficient
scalar | column vector | function handle
Second-order space derivative coefficient, specified as a scalar, column vector, or function handle. For details on the sizes, and for details of the function handle form of the coefficient, see c Coefficient for specifyCoefficients.
This coefficient must not be zero in one subdomain of the geometry while nonzero in another subdomain.
Example: specifyCoefficients("m",0,"d",0,"c",@ccoef,"a",0,"f",1,"Face",1:4)
Data Types: double
| function_handle
Complex Number Support: Yes
a
— Solution multiplier coefficient
scalar | column vector | function handle
Solution multiplier coefficient, specified as a scalar, column vector, or function handle. For details on the sizes, and for details of the function handle form of the coefficient, see m, d, or a Coefficient for specifyCoefficients.
Specify 0
if the term is not part of your problem. This
coefficient can be zero in one subdomain and nonzero in another.
Example: specifyCoefficients("m",0,"d",0,"c",1,"a",@acoef,"f",1,"Face",1:4)
Data Types: double
| function_handle
Complex Number Support: Yes
f
— Source coefficient
scalar | column vector | function handle
Source coefficient, specified as a scalar, column vector, or function handle. For details on the sizes, and for details of the function handle form of the coefficient, see f Coefficient for specifyCoefficients.
Specify 0
if the term is not part of your problem. This
coefficient can be zero in one subdomain and nonzero in another.
Example: specifyCoefficients("m",0,"d",0,"c",1,"a",0,"f",@fcoeff,"Face",1:4)
Data Types: double
| function_handle
Complex Number Support: Yes
RegionType
— Geometric region type
Face
for a 2-D model | Cell
for a 3-D model
Geometric region type, specified as Face
or
Cell
.
Example: specifyCoefficients(m=0,d=0,c=1,a=0,f=10,Cell=2)
Data Types: char
| string
RegionID
— Geometric region ID
positive integer | vector of positive integers
Geometric region ID, specified as a positive integer or vector of positive
integers. Find the region IDs by using pdegplot
.
Example: specifyCoefficients(m=0,d=0,c=1,a=0,f=10,Cell=1:3)
Data Types: double
Output Arguments
CA
— Coefficient assignment
CoefficientAssignment
object
Coefficient assignment, returned as a
CoefficientAssignment
object. See CoefficientAssignment Properties.
More About
PDE Coefficients
solvepde
solves PDEs of the form
solvepdeeig
solves PDE eigenvalue problems of the form
specifyCoefficients
defines the coefficients
m, d, c,
a, and f in the PDE model.
d
Coefficient When m
Is Nonzero
The d
coefficient takes a special matrix
form when m
is nonzero. You must specify d
as a matrix of a particular size, not as a function handle.
In the case of nonzero m
, the d
coefficient
represents a damping matrix. To specify d
, perform these two
steps:
Assemble finite element matrices for the PDE problem with your original coefficients and
d
= 0 by callingassembleFEMatrices
. Use the default"none"
method forassembleFEMatrices
.model = createpde(); geometryFromEdges(model,@lshapeg); generateMesh(model,Hmax=0.25); specifyCoefficients(model,m=1,d=0,c=1,a=0,f=0,Face=1); specifyCoefficients(model,m=1,d=0,c=1,a=0,f=2,Face=2); specifyCoefficients(model,m=1,d=0,c=1,a=0,f=-8,Face=3); results = assembleFEMatrices(model);
Define the
d
coefficient as a matrix of sizeresults.M
. Generally,d
is either proportional toresults.M
or is a linear combination ofresults.M
andresults.K
.specifyCoefficients(model,m=1,d=0*results.M,c=1,a=0,f=0,Face=1); specifyCoefficients(model,m=1,d=1*results.M, ... % nonzero d c=1,a=0,f=2,Face=2); specifyCoefficients(model,m=1,d=0*results.M,c=1,a=0,f=-8,Face=3);
For an example with nonzero m
and d
coefficients, see Damped Cantilever Beam.
Tips
For eigenvalue equations, the coefficients cannot depend on the solution
u
or its gradient.You can transform a partial differential equation into the required form by using Symbolic Math Toolbox™. The
pdeCoefficients
(Symbolic Math Toolbox) function converts a PDE into the required form and extracts the coefficients into a structure that can be used byspecifyCoefficients
.The
pdeCoefficients
function also can return a structure of symbolic expressions, in which case you need to usepdeCoefficientsToDouble
(Symbolic Math Toolbox) to convert these expressions todouble
format before passing them tospecifyCoefficients
.
Version History
Introduced in R2016a
See Also
findCoefficients
| PDEModel
| pdeCoefficients
(Symbolic Math Toolbox) | pdeCoefficientsToDouble
(Symbolic Math Toolbox)
