DiscreteGeometry

Discrete 2-D or 3-D geometry description

    Description

    DiscreteGeometry describes a 2-D or 3-D geometry in the form of a discrete geometry object. PDEModel, StructuralModel, and ThermalModel objects have a Geometry property, which can be an AnalyticGeometry or DiscreteGeometry object.

    Creation

    Create a discrete geometry for your model by using one of the following approaches:

    • Use importGeometry to import a 2-D or 3-D geometry from an STL file or a 3-D geometry from a STEP file and attach it to the model.

    • Use geometryFromMesh to reconstruct a 2-D or 3-D geometry from mesh and attach it to the model.

    • Use multicuboid, multicylinder, or multisphere to create a 3-D geometry. Then assign the resulting geometry to the Geometry property of the model. For example, create a PDE model and add the following geometry formed by three spheres to the model.

      model = createpde;
      gm = multisphere([1,2,3]);
      model.Geometry = gm;
    • Use extrude to create a 3-D geometry by vertically extruding a 2-D geometry.

    Properties

    expand all

    Number of geometry cells, specified as a nonnegative integer.

    Data Types: double

    Number of geometry faces, specified as a positive integer.

    Data Types: double

    Number of geometry edges, specified as a nonnegative integer.

    Data Types: double

    Number of geometry vertices, specified as a nonnegative integer.

    Data Types: double

    Coordinates of geometry vertices, specified as an N-by-2 or N-by-3 numeric matrix for a 2-D or 3-D geometry, respectively. Here, N is the number of vertices.

    Data Types: double

    Object Functions

    addCellCombine two geometries by adding one inside a cell of another
    addFaceFill void regions in 2-D and split cells in 3-D geometry
    addVertexAdd vertex on geometry boundary
    addVoidCreate void regions inside 3-D geometry
    cellEdgesFind edges belonging to boundaries of specified cells
    cellFacesFind faces belonging to specified cells
    extrudeVertically extrude 2-D geometry or specified faces of 3-D geometry
    faceEdgesFind edges belonging to specified faces
    facesAttachedToEdgesFind faces attached to specified edges
    mergeCellsMerge geometry cells
    nearestEdgeFind edges nearest to specified point
    nearestFaceFind faces nearest to specified point
    rotateRotate geometry
    scaleScale geometry
    translateTranslate geometry

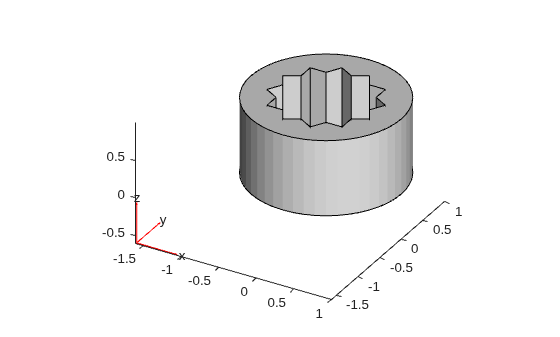

    Examples

    collapse all

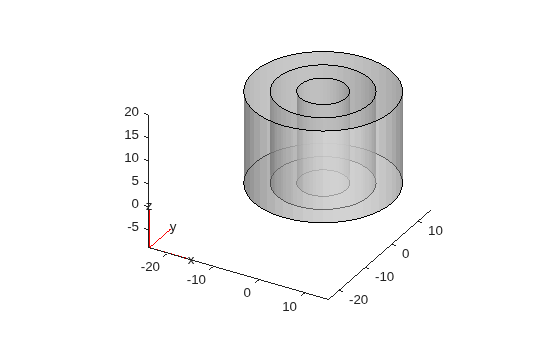

    Create the geometry consisting of three cylinders of the same height by using the multicylinder function.

    gm = multicylinder([5 10 15],20)
    gm =
      DiscreteGeometry with properties:

           NumCells: 3
           NumFaces: 9
           NumEdges: 6
        NumVertices: 6
           Vertices: [6x3 double]



    Plot the geometry.

    pdegplot(gm,FaceAlpha=0.5)

    Figure contains an axes object. The axes object contains 6 objects of type quiver, text, patch, line.

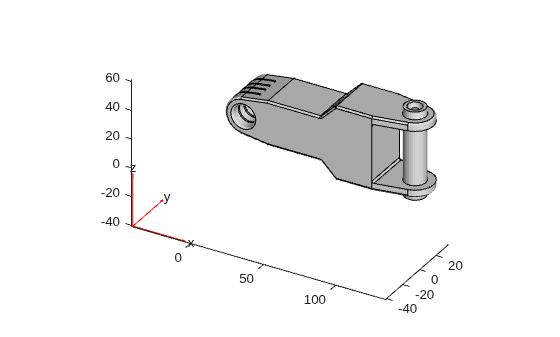

    Import a geometry from an STL geometry file.

    gm = importGeometry("ForearmLink.stl")
    gm =
      DiscreteGeometry with properties:

           NumCells: 1
           NumFaces: 147
           NumEdges: 329
        NumVertices: 213
           Vertices: [213x3 double]



    Plot the geometry,

    pdegplot(gm)

    Figure contains an axes object. The axes object contains 6 objects of type quiver, text, patch, line.

    Version History

    Introduced in R2015a
