nearestFace
Description
Examples
Faces of 3-D Geometry Closest to Specified Points
Find faces of a block nearest to the specified points.
Create a block geometry.
gm = multicuboid(3,2,1)
gm = DiscreteGeometry with properties: NumCells: 1 NumFaces: 6 NumEdges: 12 NumVertices: 8 Vertices: [8x3 double]

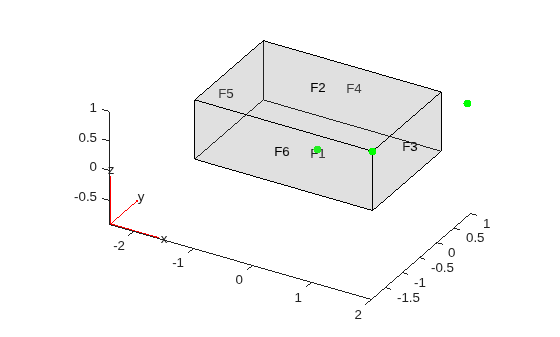

Plot the geometry with the face labels. Add the points with the coordinates (0 0 0.1), (2 0.9 1), and (1.5 -1 1) to the plot.
pdegplot(gm,"FaceLabels","on","FaceAlpha",0.2) hold on scatter3([0 2 1.5],[0 0.9 -1],[0.1 1 1],"filled","MarkerFaceColor","g")
Find faces closest to the points with the coordinates (0 0 0.1), (2 0.9 1), and (1.5 -1 1). If several faces are equally close (within the tolerance) to the point, nearestFace
returns the ID of one of the faces.
faceIDs = nearestFace(gm,[0 0 0.1; 2 0.9 1; 1.5 -1 1])
faceIDs = 1×3
1 3 6
Faces of 2-D Geometry Closest to Specified Points
Find faces of the L-shaped membrane nearest to the specified points.
Create a model and include this geometry. The geometry of the L-shaped membrane is described in the file lshapeg
.
model = createpde(); gm = geometryFromEdges(model,@lshapeg)
gm = AnalyticGeometry with properties: NumCells: 0 NumFaces: 3 NumEdges: 10 NumVertices: 8 Vertices: [8x2 double]

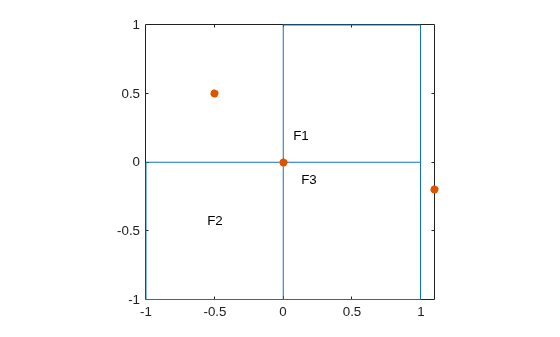

Plot the geometry with the face labels. Add the points with the coordinates (0 0), (1.1 -0.2), and (-0.5 0.5) to the plot.
pdegplot(gm,"FaceLabels","on") hold on scatter([0 1.1 -0.5],[0 -0.2 0.5],"filled")
Find faces closest to the points with the coordinates (0 0), (1.1 -0.2), and (-0.5 0.5). If several faces are equally close (within the tolerance) to the point, nearestFace
returns the ID of one of the faces.
faceIDs = nearestFace(gm,[0 0; 1.1 -0.2; -0.5 0.5])
faceIDs = 1×3
2 3 1
Input Arguments
g
— Geometry
fegeometry
object | DiscreteGeometry
object | AnalyticGeometry
object
Geometry, specified as an fegeometry
object, a DiscreteGeometry
object, or an AnalyticGeometry
object.
Coords
— Coordinates
N
-by-2 numeric matrix | N
-by-3 numeric matrix
Coordinates of the points, specified as an N
-by-2 or
N
-by-3 numeric matrix for a 2-D or 3-D geometry, respectively.
Here, N
is the number of points.
Data Types: double
Output Arguments
FaceID
— IDs of faces nearest to specified point
positive number | vector of positive numbers
IDs of faces nearest to the specified point, returned as a positive number or a vector of positive numbers.
Version History
Introduced in R2021aR2023a: Finite element model
nearestFace
now accepts geometries specified by fegeometry
objects.
