nearestEdge

Find edges nearest to specified point

Since R2021a

Syntax

EdgeID = nearestEdge(g,Coords)

Description

EdgeID = nearestEdge(g,Coords) finds edges nearest to the point with the coordinates Coords.

Examples

Edges of 3-D Geometry Closest to Specified Points

Find edges of a block nearest to the specified points.

Create a block geometry.

gm = multicuboid(3,2,1)

gm =
  DiscreteGeometry with properties:

       NumCells: 1
       NumFaces: 6
       NumEdges: 12
    NumVertices: 8
       Vertices: [8x3 double]

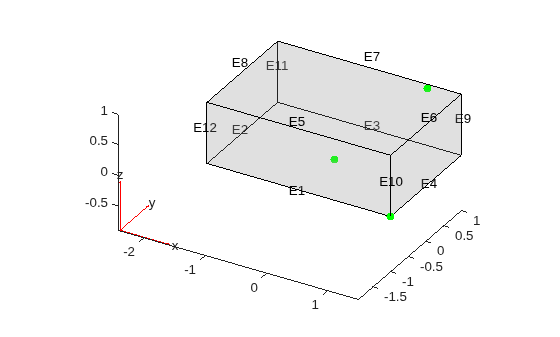

Plot the geometry with the edge labels. Add the points with the coordinates (0 0 0), (1 0.9 1), and (1.5 -1 0) to the plot.

pdegplot(gm,"EdgeLabels","on","FaceAlpha",0.2)
hold on
scatter3([0 1 1.5],[0 0.9 -1],[0 1 0],"filled","MarkerFaceColor","g")

Find edges closest to the points with the coordinates (0 0 0), (1 0.9 1), and (1.5 -1 0). If several edges are equally close (within the tolerance) to the point, nearestEdge returns the ID of one of the edges.

edgeIDs = nearestEdge(gm,[0 0 0; 1 0.9 1; 1.5 -1 0])

edgeIDs = 1×3

     1     7     1

Edges of 2-D Geometry Closest to Specified Points

Find edges of the L-shaped membrane nearest to the specified points.

Create a model and include this geometry. The geometry of the L-shaped membrane is described in the file lshapeg.

model = createpde();
gm = geometryFromEdges(model,@lshapeg)

gm =
  AnalyticGeometry with properties:

       NumCells: 0
       NumFaces: 3
       NumEdges: 10
    NumVertices: 8
       Vertices: [8x2 double]

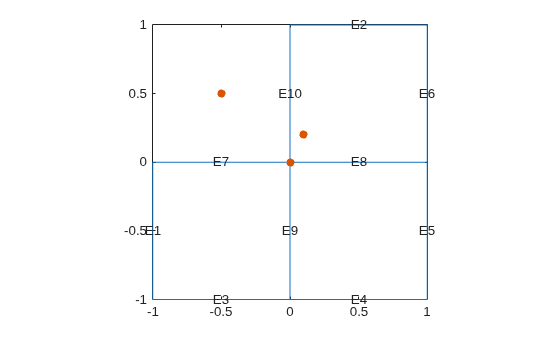

Plot the geometry with the edge labels. Add the points with the coordinates (0 0), (0.1 0.2), and (-0.5 0.5) to the plot.

pdegplot(gm,"EdgeLabels","on")
hold on
scatter([0 0.1 -0.5],[0 0.2 0.5],"filled")

Find edges closest to the points with the coordinates (0 0), (0.1 0.2), and (-0.5 0.5). If several edges are equally close (within the tolerance) to the point, nearestEdge returns the ID of one of the edges.

edgeIDs = nearestEdge(gm,[0 0; 0.1 0.2; -0.5 0.5])

edgeIDs = 1×3

     7    10    10

Input Arguments

g — Geometry

fegeometry object | DiscreteGeometry object | AnalyticGeometry object

Geometry, specified as an fegeometry object, a DiscreteGeometry object, or an AnalyticGeometry object.

Coords — Coordinates

N-by-2 numeric matrix | N-by-3 numeric matrix

Coordinates of the points, specified as an N-by-2 or N-by-3 numeric matrix for a 2-D or 3-D geometry, respectively. Here, N is the number of points.

Data Types: double

Output Arguments

EdgeID — IDs of edges nearest to specified point

positive number | vector of positive numbers

IDs of edges nearest to the specified point, returned as a positive number or a vector of positive numbers.

Version History

Introduced in R2021a

R2023a: Finite element model

nearestEdge now accepts geometries specified by fegeometry objects.
