# Pure Pursuit

Linear and angular velocity control commands

**Libraries:**

Robotics System Toolbox /
Mobile Robot Algorithms

Navigation Toolbox /
Control Algorithms

## Description

The Pure Pursuit block computes linear and angular velocity commands for
following a path using a set of waypoints and the current pose of a differential drive
vehicle. The block takes updated poses to update velocity commands for the vehicle to
follow a path along a desired set of waypoints. Use the **Max angular
velocity** and **Desired linear velocity** parameters
to update the velocities based on the performance of the vehicle.

The look-ahead distance port and parameter compute a look-ahead point on the path, which is an instantaneous local goal for the vehicle. The angular velocity command is computed based on this point. Changing the look-ahead distance has a significant impact on the performance of the algorithm. A higher look-ahead distance results in a smoother trajectory for the vehicle, but can cause the vehicle to cut corners along the path. Too low of a look-ahead distance can result in oscillations in tracking the path, causing unstable behavior. For more information on the pure pursuit algorithm, see Pure Pursuit Controller.

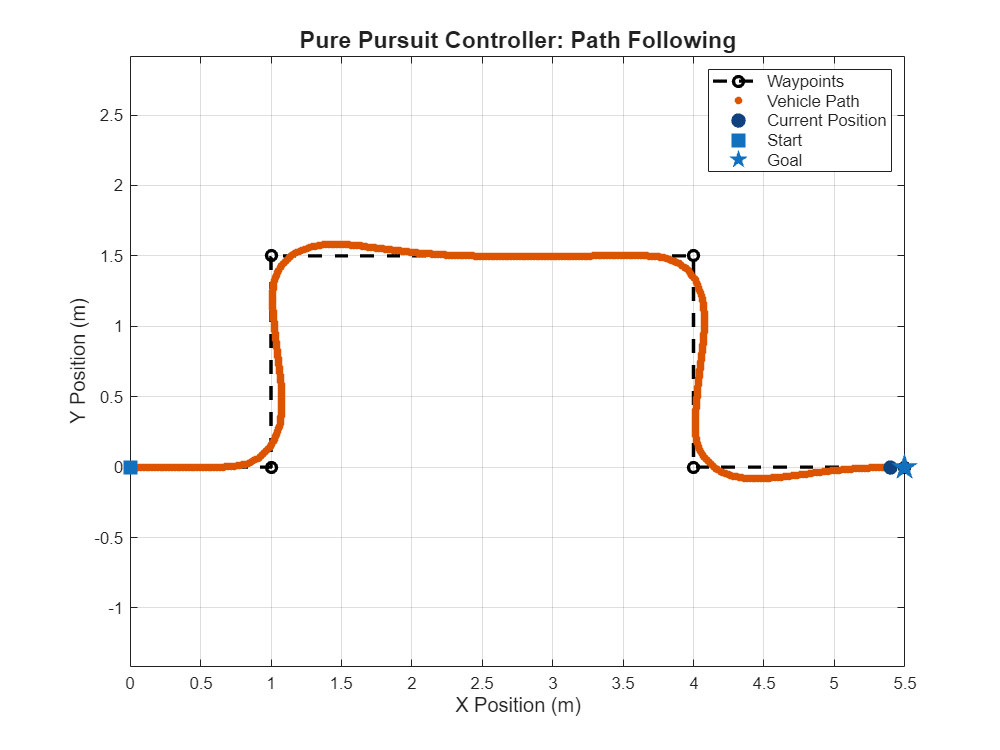

## Examples

### Path Following with Obstacle Avoidance in Simulink®

Use Simulink to avoid obstacles while following a path for a differential drive robot. This example uses ROS to send and receive information from a MATLAB®-based simulator. You can replace the simulator with other ROS-based simulators such as Gazebo®.

## Ports

### Input

**Pose** — Current vehicle pose

`[x y theta]`

vector

Current vehicle pose, specified as an `[x y theta]`

vector, which corresponds to the *x-y* position and
orientation angle, *theta*. Positive angles are
measured counterclockwise from the positive
*x*-axis.

**Waypoints** — Waypoints

[ ] (default) | *n*-by-2 array

Waypoints, specified as an *n*-by-2 array of
`[x y]`

pairs, where *n* is the
number of waypoints. You can generate the waypoints using path planners
like `mobileRobotPRM`

(Robotics System Toolbox) or specify
them as an array in Simulink^{®}.

**Desired Linear Velocity** — Linear velocity

scalar in meters per second

Desired linear velocity, specified as a scalar in meters per second. The controller assumes that the vehicle drives at a constant linear velocity and that the computed angular velocity is independent of the linear velocity.

#### Dependencies

To enable this port, select the **Specify desired linear
velocity from input port** parameter.

**Lookahead Distance** — Look-ahead distance

scalar in meters per second

Look-ahead distance, specified as a scalar in meters per second. The look-ahead distance changes the response of the controller. A vehicle with a higher look-ahead distance produces smooth paths but takes larger turns at corners. A vehicle with a smaller look-ahead distance follows the path closely and takes sharp turns, but oscillate along the path. For more information on the effects of look-ahead distance, see Pure Pursuit Controller.

#### Dependencies

To enable this port, select the **Specify lookahead
distance from input port** parameter.

### Output

**Linear Velocity** — Linear velocity

scalar in meters per second

Linear velocity, returned as a scalar in meters per second.

**Data Types: **`double`

**Angular Velocity** — Angular velocity

scalar in radians per second

Angular velocity, returned as a scalar in radians per second.

**Data Types: **`double`

**Target Direction** — Target direction for vehicle

scalar in radians

Target direction for the vehicle, returned as a scalar in radians. The
forward direction of the vehicle is considered zero radians, with
positive angles measured counterclockwise. This output can be used as
the input to the **TargetDir** port for the Vector Field Histogram
block.

#### Dependencies

To enable this port, select the **Show Target Direction
output port** parameter.

## Parameters

**Specify desired linear velocity from input port** — Enable input port for desired linear velocities

`off`

(default) | `on`

Select this parameter to enable input of desired linear velocities at the
**Desired Linear
Velocity** input port.

Clear this parameter to specify desired linear velocity using the
**Desired linear velocity
(m/s)** parameter

**Desired linear velocity (m/s)** — Linear velocity

`0.1`

(default) | scalar

Desired linear velocity, specified as a scalar in meters per second. The controller assumes that the vehicle drives at a constant linear velocity and that the computed angular velocity is independent of the linear velocity.

#### Dependencies

To enable this parameter, clear the **Specify desired linear
velocity from input port** parameter.

**Maximum angular velocity (rad/s)** — Angular velocity

`1.0`

(default) | scalar

Maximum angular velocity, specified as a scalar in radians per second. The controller saturates the absolute angular velocity output at the given value.

**Specify lookahead distance from input port** — Enable input port for look-ahead distances

`off`

(default) | `on`

Select this parameter to enable input of look-ahead distances at the **Lookahead
Distance** input port.

Clear this parameter to specify desired linear velocity using the
**Lookahead distance
(m)** parameter

**Lookahead distance (m)** — Look-ahead distance

`1.0`

(default) | scalar

Look-ahead distance, specified as a scalar in meters. The look-ahead distance changes the response of the controller. A vehicle with a higher look-ahead distance produces smooth paths but takes larger turns at corners. A vehicle with a smaller look-ahead distance follows the path closely and takes sharp turns, but oscillate along the path. For more information on the effects of look-ahead distance, see Pure Pursuit Controller.

#### Dependencies

To enable this parameter, clear the **Specify lookahead
distance from input port** parameter.

**Show Target Direction output port** — Target direction indicator

`off`

(default) | `on`

Select this parameter to enable the **Target Direction** output
port. This port gives the target direction as an angle in radians from the
forward position, with positive angles measured counterclockwise.

**Simulate using** — Type of simulation to run

`Code generation`

(default) | `Interpreted execution`

`Interpreted execution`

— Simulate model using the MATLAB^{®}interpreter. This option shortens startup time but has a slower simulation speed than`Code generation`

. In this mode, you can debug the source code of the block.`Code generation`

— Simulate model using generated C code. The first time you run a simulation, Simulink generates C code for the block. The C code is reused for subsequent simulations, as long as the model does not change. This option requires additional startup time, but the speed of the subsequent simulations is comparable to`Interpreted execution`

.

**Tunable: **No

## Extended Capabilities

### C/C++ Code Generation

Generate C and C++ code using Simulink® Coder™.

## Version History

**Introduced in R2019b**

### R2024a: Specify linear velocity and look-ahead distance at input ports, and renamed output ports

The Pure Pursuit block has two sets of changes:

You can now specify the desired linear velocity at the

**Desired Linear Velocity**input port by selecting the**Specify desired linear velocity from input port**parameter.You can now specify the desired linear velocity at the

**Lookahead Distance**input port by selecting the**Specify lookahead distance from input port**parameter.The output ports and a parameter have new names. This table shows the names prior to R2024a, and the names for R2024a and after.

Name Prior to R2024a Name for R2024a and after **LinVel**output port**Linear Velocity**output port**AngVel**output port**Angular Velocity**output port**TargetDir**output port**Target Direction**output port**Show TargetDir output port**parameter**Show Target Direction output port**parameter
