plannerBenchmark

Benchmark path planners using generated metrics

Since R2022a

    Description

    plannerBenchmark object benchmarks the 2-D path planners by running them on a specified environment with specified start and goal poses.

    The plannerBenchmark object calculates the following metrics:

    • clearance — Minimum distance to obstacles in the environment

    • executionTime — Time taken by plan function to execute

    • initializationTime — Time taken by initialization function to execute

    • isPathValid — If true represent the path exists and is collision free

    • pathLength — Length of the generated path

    • smoothness — Smoothness of the path for all poses

    The metrics like executionTime and initializationTime are calculated during the execution of planners. The metrics like clearance, isPathValid, pathLength, and smoothness are calculated from the resulting path outputs after executing planners. Calculated metrics are statistically summarized as a table and can be visualized as plots.

    Creation

    Description

    plannerBM = plannerBenchmark(environment,start,goal) creates a plannerBenchmark object with the specified environment, start and goal poses. The inputs environment, start, and goal sets the Environment, Start, and Goal properties, respectively.

    example

    Properties

    expand all

    Environment for benchmarking path planners, specified as occupancyMap, binaryOccupancyMap, or validatorOccupancyMap object.

    Start pose of path for all planners, specified as a vector of the form [x y] or [x y theta].

    Data Types: single | double

    Goal pose of path for all planners, specified as a vector of the form [x y] or [x y theta].

    Data Types: single | double

    This property is read-only.

    Output of planners after execution, returned as a structure that contains the initialization function output and plan function output for all planners. The fields of the structure are named by planner name specified in addPlanner function.

    Each structure contains an initialization output and a plan function output. The plan function output is further a structure containing plan function output for each run of the planner.

    Data Types: struct

    Object Functions

    addPlannerAdd path planner for benchmarking
    copyCreate deep copy of plannerBenchmark object
    metricReturn path planner metrics
    reportCreate benchmark report
    runPlannerRun path planners
    showVisualize path planner metrics

    Examples

    collapse all

    Create an occupancy map from an example map.

    load("exampleMaps.mat","simpleMap");
    map = occupancyMap(simpleMap);

    Create a state validator with stateSpaceSE2 using the map.

    sv = validatorOccupancyMap(stateSpaceSE2,Map=map);

    Specify the start and goal states.

    start = [5 8 pi/2];
    goal = [7 18 pi/2];

    Create a plannerBenchmark object.

    pbo = plannerBenchmark(sv,start,goal);

    Define the function handles for the initialization functions of the planners.

    plannerHAFcn = @(sv)plannerHybridAStar(sv);
    plannerRRTSFcn = @(sv)plannerRRTStar(sv.StateSpace,sv);

    Define the function handle for the plan function, which is common for both planners.

    plnFcn = @(initOut,s,g)plan(initOut,s,g);

    Add the path planners for benchmarking.

    addPlanner(pbo,plnFcn,plannerHAFcn);
    addPlanner(pbo,plnFcn,plannerRRTSFcn,PlannerName="ppRRTStar");

    Set the rng for repetitive results.

    rng('default')

    Run the path planners for the number of times specified in runCount to collect metrics.

    runCount = 5;
    runPlanner(pbo,runCount)
    Initializing plannerHAFcn_plnFcn ...
    Done.
    Planning a path from the start pose (5 8 1.5708) to the goal pose (7 18 1.5708) using plannerHAFcn_plnFcn.
    Executing run 1.
    Executing run 2.
    Executing run 3.
    Executing run 4.
    Executing run 5.
    Initializing ppRRTStar ...
    Done.
    Planning a path from the start pose (5 8 1.5708) to the goal pose (7 18 1.5708) using ppRRTStar.
    Executing run 1.
    Executing run 2.
    Executing run 3.
    Executing run 4.
    Executing run 5.


    Access path length metric for all the runs on the environment.

    [pLenSummary,pLenData] = metric(pbo,"pathLength")
    pLenSummary=2×4 table
                                Mean     Median    StdDev     sampleSize
                               ______    ______    _______    __________

        plannerHAFcn_plnFcn    10.349    10.349          0        5
        ppRRTStar               12.84      12.9    0.67112        5


    pLenData=2×5 table
                                Run1      Run2      Run3      Run4      Run5
                               ______    ______    ______    ______    ______

        plannerHAFcn_plnFcn    10.349    10.349    10.349    10.349    10.349
        ppRRTStar                13.8      12.9      12.2        12      13.3



    Visualize all the metrics.

    show(pbo)

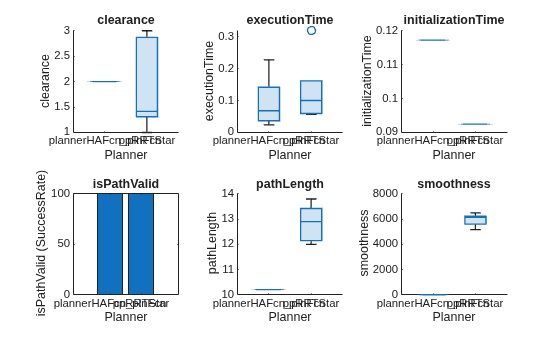

    Figure contains 6 axes objects. Axes object 1 with title clearance, xlabel Planner, ylabel clearance contains an object of type boxchart. Axes object 2 with title executionTime, xlabel Planner, ylabel executionTime contains an object of type boxchart. Axes object 3 with title initializationTime, xlabel Planner, ylabel initializationTime contains an object of type boxchart. Axes object 4 with title isPathValid, xlabel Planner, ylabel isPathValid (SuccessRate) contains an object of type bar. Axes object 5 with title pathLength, xlabel Planner, ylabel pathLength contains an object of type boxchart. Axes object 6 with title smoothness, xlabel Planner, ylabel smoothness contains an object of type boxchart.

    Closely inspect the clearance metric.

    figure
    show(pbo,"clearance")

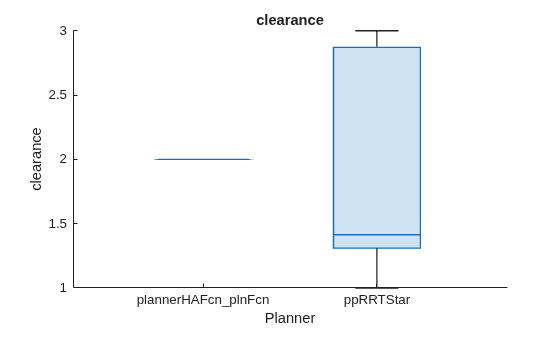

    Figure contains an axes object. The axes object with title clearance, xlabel Planner, ylabel clearance contains an object of type boxchart.

    Version History

    Introduced in R2022a
