Plot discrete sequence data
stem(
plots the
data sequence, Y
)Y
, as stems that extend from a baseline
along the xaxis. The data values are indicated
by circles terminating each stem.
If Y
is a vector, then the xaxis
scale ranges from 1 to length(Y)
.
If Y
is a matrix, then stem
plots
all elements in a row against the same x value,
and the xaxis scale ranges from 1 to the number
of rows in Y
.
stem(
plots
the data sequence, X
,Y
)Y
, at values specified by X
.
The X
and Y
inputs must be vectors
or matrices of the same size. Additionally, X
can
be a row or column vector and Y
must be a matrix
with length(X)
rows.
If X
and Y
are
both vectors, then stem
plots entries in Y
against
corresponding entries in X
.
If X
is a vector and Y
is
a matrix, then stem
plots each column of Y
against
the set of values specified by X
, such that all
elements in a row of Y
are plotted against the
same value.
If X
and Y
are
both matrices, then stem
plots columns of Y
against
corresponding columns of X
.
stem(___,
fills
the circles. Use this option with any of the input argument combinations
in the previous syntaxes.'filled'
)
stem(___,
modifies
the stem chart using one or more Name,Value
)Name,Value
pair
arguments.

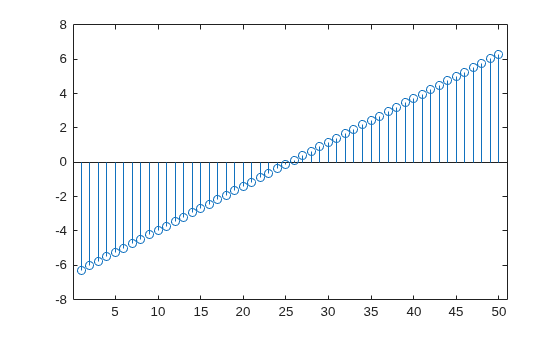

Create a stem plot of 50 data values between $$2\pi $$ and $$2\pi $$.
figure Y = linspace(2*pi,2*pi,50); stem(Y)
Data values are plotted as stems extending from the baseline and terminating at the data value. The length of Y
automatically determines the position of each stem on the xaxis.
Plot two data series using a twocolumn matrix.
figure X = linspace(0,2*pi,50)'; Y = [cos(X), 0.5*sin(X)]; stem(Y)
Each column of Y
is plotted as a separate series, and entries in the same row of Y
are plotted against the same x value. The number of rows in Y
automatically generates the position of each stem on the xaxis.

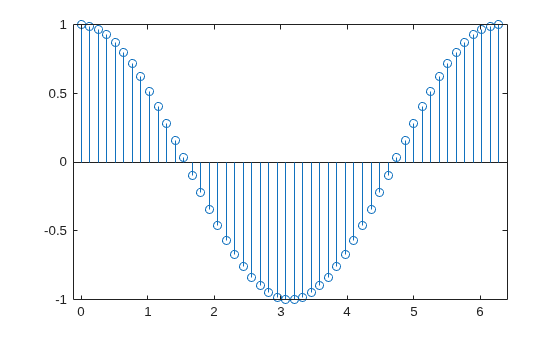

Plot 50 data values of cosine evaluated between 0 and $$2\pi $$ and specify the set of x values for the stem plot.
figure X = linspace(0,2*pi,50)'; Y = cos(X); stem(X,Y)
The first vector input determines the position of each stem on the xaxis.

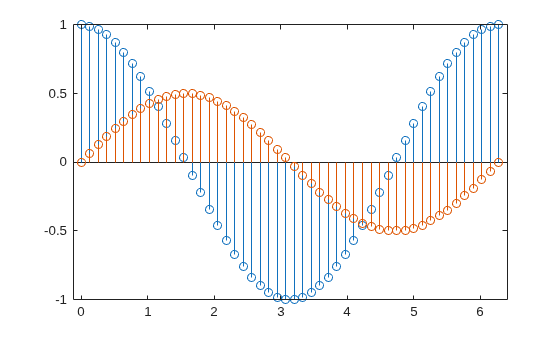

Plot 50 data values of sine and cosine evaluated between 0 and $$2\pi $$ and specify the set of x values for the stem plot.
figure X = linspace(0,2*pi,50)'; Y = [cos(X), 0.5*sin(X)]; stem(X,Y)
The vector input determines the xaxis positions for both data series.

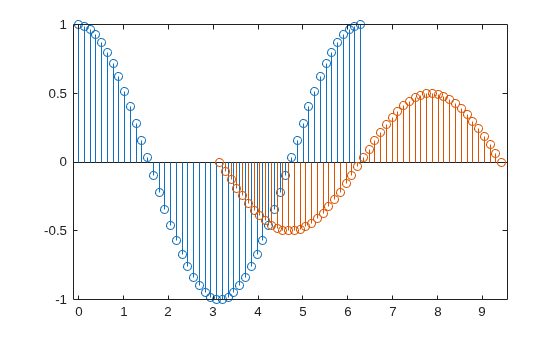

Plot 50 data values of sine and cosine evaluated at different sets of x values. Specify the corresponding sets of x values for each series.
figure x1 = linspace(0,2*pi,50)'; x2 = linspace(pi,3*pi,50)'; X = [x1, x2]; Y = [cos(x1), 0.5*sin(x2)]; stem(X,Y)
Each column of X
is plotted against the corresponding column of Y
.

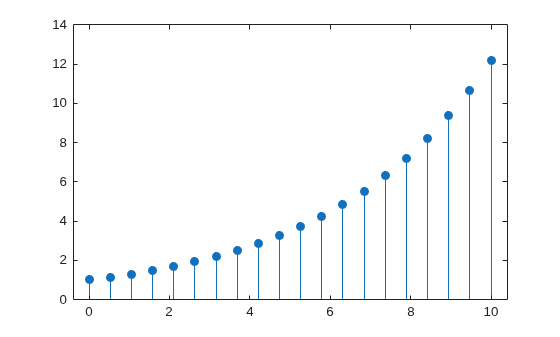

Create a stem plot and fill in the circles that terminate each stem.
X = linspace(0,10,20)';
Y = (exp(0.25*X));
stem(X,Y,'filled')

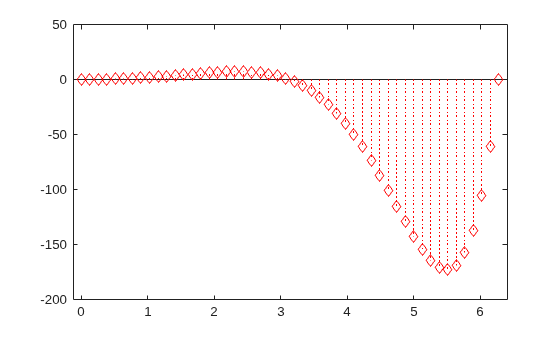

Create a stem plot and set the line style to a dotted line, the marker symbols to diamonds, and the color to red using the LineSpec
option.
figure
X = linspace(0,2*pi,50)';
Y = (exp(X).*sin(X));
stem(X,Y,':diamondr')
To color the inside of the diamonds, use the 'fill'
option.

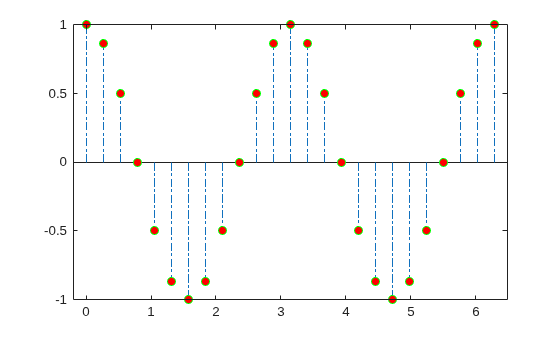

Create a stem plot and set the line style to a dotdashed line, the marker face color to red, and the marker edge color to green using Name,Value
pair arguments.
figure X = linspace(0,2*pi,25)'; Y = (cos(2*X)); stem(X,Y,'LineStyle','.',... 'MarkerFaceColor','red',... 'MarkerEdgeColor','green')
The stem remains the default color.

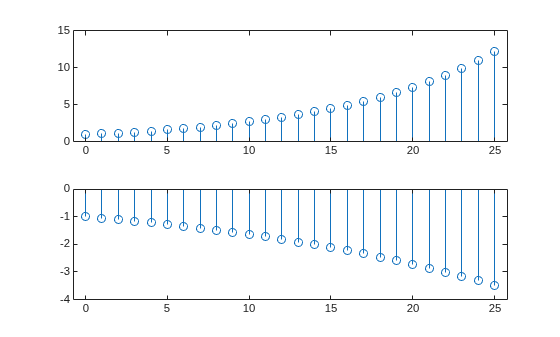

Starting in R2019b, you can display a tiling of plots using the tiledlayout
and nexttile
functions. Call the tiledlayout
function to create a 2by1 tiled chart layout. Call the nexttile
function to create the axes objects ax1
and ax2
. Create separate stem plots in the axes by specifying the axes object as the first argument to stem
.
x = 0:25; y1 = exp(0.1*x); y2 = exp(.05*x); tiledlayout(2,1) % Top plot ax1 = nexttile; stem(ax1,x,y1) % Bottom plot ax2 = nexttile; stem(ax2,x,y2)
Create a stem plot.
X = 0:25; Y = [cos(X); exp(0.05*X)]'; h = stem(X,Y);
The stem
function creates a stem series object for each column of data. The output argument, h
, contains the two stem series objects.
Set the first stem series color to green. Change the markers of the second stem series to squares. Starting in R2014b, you can use dot notation to set properties. If you are using an earlier release, use the set
function instead.
h(1).Color = 'green'; h(2).Marker = 'square';

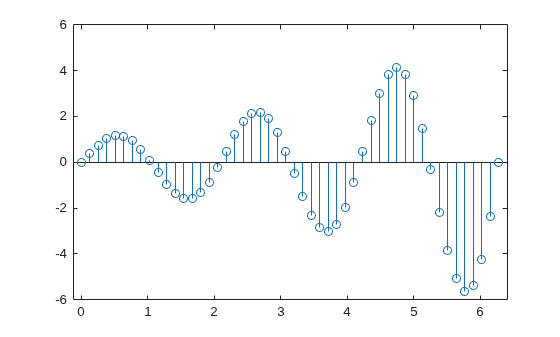

Create a stem plot and change properties of the baseline.
X = linspace(0,2*pi,50); Y = exp(0.3*X).*sin(3*X); h = stem(X,Y);

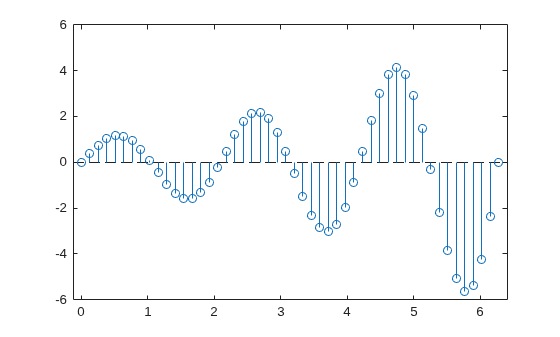

Change the line style of the baseline. Starting in R2014b, you can use dot notation to set properties. If you are using an earlier release, use the set
function instead.
hbase = h.BaseLine;
hbase.LineStyle = '';
Hide the baseline by setting its Visible
property to 'off'
.
hbase.Visible = 'off';

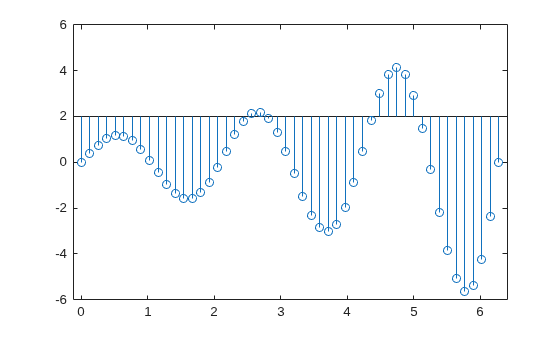

Create a stem plot with a baseline level at 2.
X = linspace(0,2*pi,50)';
Y = (exp(0.3*X).*sin(3*X));
stem(X,Y,'BaseValue',2);
Y
— Data sequence to displayData sequence to display, specified as a vector or matrix. When Y
is
a vector, stem
creates one Stem
object.
When Y
is a matrix, stem
creates
a separate Stem
object for each column.
Data Types: single
 double
 int8
 int16
 int32
 int64
 uint8
 uint16
 uint32
 uint64
 categorical
 datetime
 duration
X
— Locations to plot data values in Y
Locations to plot data values in Y
, specified
as a vector or matrix. When Y
is a vector, X
must
be a vector of the same size. When Y
is a matrix, X
must
be a matrix of the same size, or a vector whose length equals the
number of rows in Y
.
Data Types: single
 double
 int8
 int16
 int32
 int64
 uint8
 uint16
 uint32
 uint64
 categorical
 datetime
 duration
LineSpec
— Line style, marker, and colorLine style, marker, and color, specified as a character vector or string. For more
information, see LineSpec
.
Example: ':*r'
ax
— Axes
objectAxes
objectAxes
object. If you do not specify the axes,
then stem
plots into the current axes.
Specify optional
commaseparated pairs of Name,Value
arguments. Name
is
the argument name and Value
is the corresponding value.
Name
must appear inside quotes. You can specify several name and value
pair arguments in any order as
Name1,Value1,...,NameN,ValueN
.
'LineStyle',':','MarkerFaceColor','red'
plots
the stem as a dotted line and colors the marker face red.The Stem
properties listed
here are only a subset. For a complete list, see Stem Properties.
'LineStyle'
— Line style''
(default)  ''
 ':'
 '.'
 'none'
Line style, specified as one of the options listed in this table.
Line Style  Description  Resulting Line

''  Solid line

''  Dashed line

':'  Dotted line

'.'  Dashdotted line

'none'  No line  No line
'LineWidth'
— Line width0.5
(default)  positive valueLine width, specified as a positive value in points, where 1 point = 1/72 of an inch. If the line has markers, then the line width also affects the marker edges.
'Color'
— Stem color[0 0 0]
(default)  RGB triplet  hexadecimal color code  'r'
 'g'
 'b'
 ...Stem color, specified as an RGB triplet, a hexadecimal color code, a color name, or a short name.
For a custom color, specify an RGB triplet or a hexadecimal color code.
An RGB triplet is a threeelement row vector whose elements
specify the intensities of the red, green, and blue
components of the color. The intensities must be in the
range [0,1]
; for example, [0.4
0.6 0.7]
.
A hexadecimal color code is a character vector or a string
scalar that starts with a hash symbol (#
)
followed by three or six hexadecimal digits, which can range
from 0
to F
. The
values are not case sensitive. Thus, the color codes
'#FF8800'
,
'#ff8800'
,
'#F80'
, and
'#f80'
are equivalent.
Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.
Color Name  Short Name  RGB Triplet  Hexadecimal Color Code  Appearance

'red'  'r'  [1 0 0]  '#FF0000'
'green'  'g'  [0 1 0]  '#00FF00'
'blue'  'b'  [0 0 1]  '#0000FF'
'cyan'
 'c'  [0 1 1]  '#00FFFF'
'magenta'  'm'  [1 0 1]  '#FF00FF'
'yellow'  'y'  [1 1 0]  '#FFFF00'
'black'  'k'  [0 0 0]  '#000000'
'white'  'w'  [1 1 1]  '#FFFFFF'
'none'  Not applicable  Not applicable  Not applicable  No color
Here are the RGB triplets and hexadecimal color codes for the default colors MATLAB^{®} uses in many types of plots.
RGB Triplet  Hexadecimal Color Code  Appearance

[0 0.4470 0.7410]  '#0072BD'
[0.8500 0.3250 0.0980]  '#D95319'
[0.9290 0.6940 0.1250]  '#EDB120'
[0.4940 0.1840 0.5560]  '#7E2F8E'
[0.4660 0.6740 0.1880]  '#77AC30'
[0.3010 0.7450 0.9330]  '#4DBEEE'
[0.6350 0.0780 0.1840]  '#A2142F'
Example: 'blue'
Example: [0
0 1]
Example: '#0000FF'
'Marker'
— Marker symbol'o'
(default)  '+'
 '*'
 '.'
 'x'
 ...Marker symbol, specified as one of the markers listed in this table.
Value  Description

'o'  Circle
'+'  Plus sign
'*'  Asterisk
'.'  Point
'x'  Cross
'square' or 's'  Square
'diamond' or 'd'  Diamond
'^'  Upwardpointing triangle
'v'  Downwardpointing triangle
'>'  Rightpointing triangle
'<'  Leftpointing triangle
'pentagram' or 'p'  Fivepointed star (pentagram)
'hexagram' or 'h'  Sixpointed star (hexagram)
'none'  No markers
Example: '+'
Example: 'diamond'
'MarkerSize'
— Marker size6
(default)  positive valueMarker size, specified as a positive value in points, where 1 point = 1/72 of an inch.
'MarkerEdgeColor'
— Marker outline color'auto'
(default)  RGB triplet  hexadecimal color code  'r'
 'g'
 'b'
 ...Marker outline color, specified as 'auto'
, an RGB triplet, a
hexadecimal color code, a color name, or a short name. The default value of
'auto'
uses the same color as the Color
property.
For a custom color, specify an RGB triplet or a hexadecimal color code.
An RGB triplet is a threeelement row vector whose elements
specify the intensities of the red, green, and blue
components of the color. The intensities must be in the
range [0,1]
; for example, [0.4
0.6 0.7]
.
A hexadecimal color code is a character vector or a string
scalar that starts with a hash symbol (#
)
followed by three or six hexadecimal digits, which can range
from 0
to F
. The
values are not case sensitive. Thus, the color codes
'#FF8800'
,
'#ff8800'
,
'#F80'
, and
'#f80'
are equivalent.
Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.
Color Name  Short Name  RGB Triplet  Hexadecimal Color Code  Appearance

'red'  'r'  [1 0 0]  '#FF0000'
'green'  'g'  [0 1 0]  '#00FF00'
'blue'  'b'  [0 0 1]  '#0000FF'
'cyan'
 'c'  [0 1 1]  '#00FFFF'
'magenta'  'm'  [1 0 1]  '#FF00FF'
'yellow'  'y'  [1 1 0]  '#FFFF00'
'black'  'k'  [0 0 0]  '#000000'
'white'  'w'  [1 1 1]  '#FFFFFF'
'none'  Not applicable  Not applicable  Not applicable  No color
Here are the RGB triplets and hexadecimal color codes for the default colors MATLAB uses in many types of plots.
RGB Triplet  Hexadecimal Color Code  Appearance

[0 0.4470 0.7410]  '#0072BD'
[0.8500 0.3250 0.0980]  '#D95319'
[0.9290 0.6940 0.1250]  '#EDB120'
[0.4940 0.1840 0.5560]  '#7E2F8E'
[0.4660 0.6740 0.1880]  '#77AC30'
[0.3010 0.7450 0.9330]  '#4DBEEE'
[0.6350 0.0780 0.1840]  '#A2142F'
'MarkerFaceColor'
— Marker fill color'none'
(default)  'auto'
 RGB triplet  hexadecimal color code  'r'
 'g'
 'b'
 ...Marker fill color, specified as 'auto'
, an RGB triplet, a hexadecimal
color code, a color name, or a short name. The 'auto'
option uses the
same color as the Color
property of the parent axes. If
you specify 'auto'
and the axes plot box is invisible, the marker fill
color is the color of the figure.
For a custom color, specify an RGB triplet or a hexadecimal color code.
An RGB triplet is a threeelement row vector whose elements
specify the intensities of the red, green, and blue
components of the color. The intensities must be in the
range [0,1]
; for example, [0.4
0.6 0.7]
.
A hexadecimal color code is a character vector or a string
scalar that starts with a hash symbol (#
)
followed by three or six hexadecimal digits, which can range
from 0
to F
. The
values are not case sensitive. Thus, the color codes
'#FF8800'
,
'#ff8800'
,
'#F80'
, and
'#f80'
are equivalent.
Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.
Color Name  Short Name  RGB Triplet  Hexadecimal Color Code  Appearance

'red'  'r'  [1 0 0]  '#FF0000'
'green'  'g'  [0 1 0]  '#00FF00'
'blue'  'b'  [0 0 1]  '#0000FF'
'cyan'
 'c'  [0 1 1]  '#00FFFF'
'magenta'  'm'  [1 0 1]  '#FF00FF'
'yellow'  'y'  [1 1 0]  '#FFFF00'
'black'  'k'  [0 0 0]  '#000000'
'white'  'w'  [1 1 1]  '#FFFFFF'
'none'  Not applicable  Not applicable  Not applicable  No color
Here are the RGB triplets and hexadecimal color codes for the default colors MATLAB uses in many types of plots.
RGB Triplet  Hexadecimal Color Code  Appearance

[0 0.4470 0.7410]  '#0072BD'
[0.8500 0.3250 0.0980]  '#D95319'
[0.9290 0.6940 0.1250]  '#EDB120'
[0.4940 0.1840 0.5560]  '#7E2F8E'
[0.4660 0.6740 0.1880]  '#77AC30'
[0.3010 0.7450 0.9330]  '#4DBEEE'
[0.6350 0.0780 0.1840]  '#A2142F'
h
— Stem
objectsStem
objectsStem
objects. These are unique identifiers,
which you can use to modify the properties of a specific Stem
object
after it is created.
Usage notes and limitations:
This function accepts GPU arrays, but does not run on a GPU.
For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).
Usage notes and limitations:
This function operates on distributed arrays, but executes in the client MATLAB.
For more information, see Run MATLAB Functions with Distributed Arrays (Parallel Computing Toolbox).
A modified version of this example exists on your system. Do you want to open this version instead?
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
Select web siteYou can also select a web site from the following list:
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
