Pie chart

`pie(X)`

`pie(X,explode)`

`pie(X,labels)`

`pie(X,explode,labels)`

`pie(ax,___)`

`p = pie(___)`

`pie(`

draws a pie
chart using the data in `X`

)`X`

. Each slice of the pie
chart represents an element in `X`

.

If

`sum(X) ≤ 1`

, then the values in`X`

directly specify the areas of the pie slices.`pie`

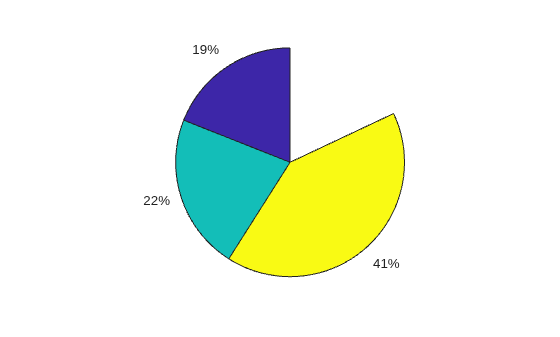

draws only a partial pie if`sum(X) < 1`

.If

`sum(X) > 1`

, then`pie`

normalizes the values by`X/sum(X)`

to determine the area of each slice of the pie.If

`X`

is of data type`categorical`

, the slices correspond to categories. The area of each slice is the number of elements in the category divided by the number of elements in`X`

.

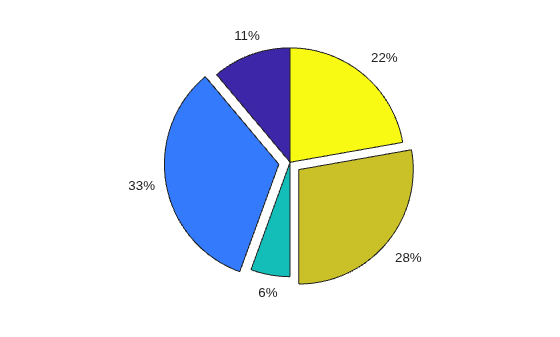

`pie(`

offsets
slices from the pie. `X`

,`explode`

)`explode`

is a vector or matrix
of zeros and nonzeros that correspond to `X`

. The `pie`

function
offsets slices for the nonzero elements only in `explode`

.

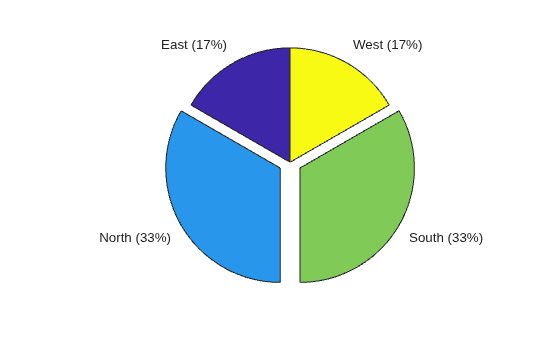

If `X`

is of data type `categorical`

,
then `explode`

can be a vector of zeros and nonzeros
corresponding to categories, or a cell array of the names of categories
to offset.
