Piecewise Cubic Hermite Interpolating Polynomial (PCHIP)


p = pchip(x,y,xq)
pp = pchip(x,y)



p = pchip(x,y,xq) returns a vector of interpolated values p corresponding to the query points in xq. The values of p are determined by shape-preserving piecewise cubic interpolation of x and y.


pp = pchip(x,y) returns a piecewise polynomial structure for use with ppval and the spline utility unmkpp.


collapse all

Compare the interpolation results produced by spline and pchip for two different functions.

Create vectors of x values, function values at those points y, and query points xq. Compute interpolations at the query points using both spline and pchip. Plot the interpolated function values at the query points for comparison.

x = -3:3;
y = [-1 -1 -1 0 1 1 1];
xq1 = -3:.01:3;
p = pchip(x,y,xq1);
s = spline(x,y,xq1);
legend('Sample Points','pchip','spline','Location','SouthEast')

In this case, pchip is favorable since it does not oscillate as freely between the sample points.

Perform a second comparison using an oscillatory sample function.

x = 0:25;
y = besselj(1,x);
xq2 = 0:0.01:25;
p = pchip(x,y,xq2);
s = spline(x,y,xq2);
legend('Sample Points','pchip','spline')

When the underlying function is oscillatory, spline captures the movement between points better than pchip.

Create vectors for the x values and function values y, and then use pchip to construct a piecewise polynomial structure.

x = -5:5;
y = [1 1 1 1 0 0 1 2 2 2 2];
p = pchip(x,y);

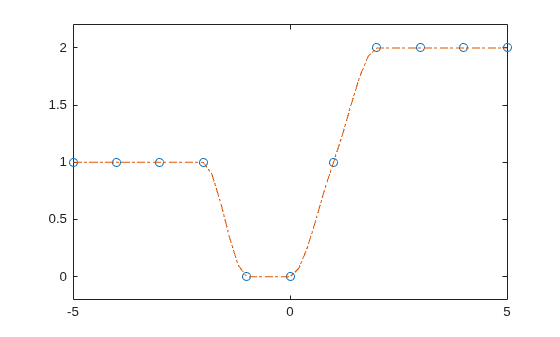

Use the structure with ppval to evaluate the interpolation at several query points. Plot the results.

xq = -5:0.2:5;
pp = ppval(p,xq);
ylim([-0.2 2.2])

Input Arguments

collapse all

Sample points, specified as a vector. The vector x specifies the points at which the data y is given. The elements of x must be unique.

Data Types: single | double

Function values at sample points, specified as a numeric vector, matrix, or array. x and y must have the same length.

If y is a matrix or array, then the values in the last dimension, y(:,...,:,j), are taken as the values to match with x. In that case, the last dimension of y must be the same length as x.

Data Types: single | double

Query points, specified as a vector. The points specified in xq are the x-coordinates for the interpolated function values p computed by pchip.

Data Types: single | double

Output Arguments

collapse all

Interpolated values at query points, returned as a vector, matrix, or array. The size of p depends on the sizes of the inputs:

  • If y is a vector, then p is a vector that has the same length as xq.

  • If y has two or more dimensions denoted by n, then p has size [size(y,1) size(y,2) ... size(y,n-1) length(xq)]. For example, if y is a matrix, then p is of size [size(y,1) length(xq)].

Piecewise polynomial, returned as a structure. Use this structure with the ppval function to evaluate the interpolating polynomials at one or more query points. The structure has these fields.


'pp' for piecewise polynomial


Vector of length L+1 with strictly increasing elements that represent the start and end of each of L intervals


L-by-k matrix with each row coefs(i,:) containing the local coefficients of an order k polynomial on the ith interval, [breaks(i),breaks(i+1)]


Number of pieces, L


Order of the polynomials


Dimensionality of target

Since the polynomial coefficients in coefs are local coefficients for each interval, you must subtract the lower endpoint of the corresponding knot interval to use the coefficients in a conventional polynomial equation. In other words, for the coefficients [a,b,c,d] on the interval [x1,x2], the corresponding polynomial is


More About

collapse all

Shape-Preserving Piecewise Cubic Interpolation

pchip interpolates using a piecewise cubic polynomial P(x) with these properties:

  • On each subinterval xkxxk+1, the polynomial P(x) is a cubic Hermite interpolating polynomial for the given data points with specified derivatives (slopes) at the interpolation points.

  • P(x) interpolates y, that is, P(xj)=yj, and the first derivative dPdx is continuous. The second derivative d2Pdx2 is probably not continuous so jumps at the xj are possible.

  • The cubic interpolant P(x) is shape preserving. The slopes at the xj are chosen in such a way that P(x) preserves the shape of the data and respects monotonicity. Therefore, on intervals where the data is monotonic, so is P(x), and at points where the data has a local extremum, so does P(x).


If y is a matrix, P(x) satisfies these properties for each row of y.


  • spline constructs S(x) in almost the same way pchip constructs P(x). However, spline chooses the slopes at the xj differently, namely to make even S(x) continuous. This difference has several effects:

    • spline produces a smoother result, such that S(x) is continuous.

    • spline produces a more accurate result if the data consists of values of a smooth function.

    • pchip has no overshoots and less oscillation if the data is not smooth.

    • pchip is less expensive to set up.

    • The two are equally expensive to evaluate.


[1] Fritsch, F. N. and R. E. Carlson. "Monotone Piecewise Cubic Interpolation." SIAM Journal on Numerical Analysis. Vol. 17, 1980, pp.238–246.

[2] Kahaner, David, Cleve Moler, Stephen Nash. Numerical Methods and Software. Upper Saddle River, NJ: Prentice Hall, 1988.
